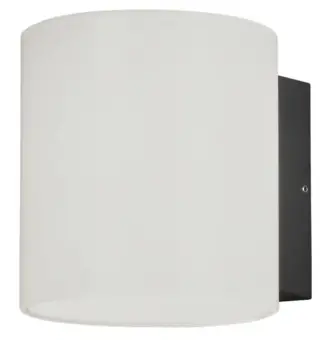

BEGA 50066.2 LED Wall Luminaire
Product Information
| Product Description | Metal housing, finish Stainless steel Hand-blown opal glass, satin matt |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 1.0 kg | ||||||||||||
| Energy Efficiency Class | F | ||||||||||||
| Overvoltage Protection | The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547. For additional protection against transients, etc. separate overvoltage protection components are recommended. |
||||||||||||
| Module Information |
|
Product Usage Instructions
Safety:
- The installation and operation of this luminaire are subject to national safety regulations.
- Installation and commissioning may only be carried out by a qualified electrician.
- The manufacturer accepts no liability for damage caused by improper use or installation.
- If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Installation:
- Loosen knurled nuts and replace glass from luminaire
housing. - Pull silicone sleeves over the wires, make earth connection and
electrical connection to the terminals. - Fix luminaire housing with enclosed or any other suitable
fixing material onto the mounting surface. - Place glass with its opening over the LED module and fix it
hand tight onto the luminaire housing by means of the knurled
nuts.
LED Module Replacement:
- The designation of the LED module can be found on a label inthe luminaire.
- Switch off power to the luminaire and make sure it is voltage-free.
- Refer to the installation manual of the LED module for replacement instructions.
Dimension
Wall luminaire for indoor use
Application
Free-radiating wall luminaire · indoor luminaire made of hand-blown opal glass, satin matt and metal housing, for all lighting tasks.
Product description
- Metal housing, finish Stainless steel
- Hand-blown opal glass, satin matt
- 2 mounting holes ø 5 mm
- Distance apart 115 x 55 mm
- Connecting terminals 2.5@
- Earth conductor connection
- Installation surface 145 x 86 mm
- LED-Module for mains voltage
- 220-230 V y 50/60 Hz
- BEGA Thermal Switch®
- Temporary thermal shutdown to protect temperature-sensitive components
- Safety class I
– Safety mark
– Conformity mark- Weight: 1.0 kg
- This product contains light sources of energy efficiency class(es) F
Safety
- The installation and operation of this luminaire are subject to national safety regulations.
- Installation and commissioning may only be carried out by a qualified electrician.
- The manufacturer accepts no liability for damage caused by improper use or installation.
- If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Overvoltage protection
- The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
- To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
- You can find them on our website at www.bega.com.
Lamp
- Luminaire connected wattage 10 W
- Rated temperature ta = 25 °C
- Ambient temperature ta max = 40 °C
- 50 066.2 K3
- Module designation LED-0607/930
- Colour temperature 3000 K
- Colour rendering index Ra > 90
- Module luminous flux 940 lm
- Luminaire luminous flux 860 lm
- Luminaire luminous efficiency 86 lm / W
Installation
- LED are high-quality electronic components! Please avoid touching the light output opening of the LED directly during installation or relamping.
- Loosen knurled nuts and replace glass from luminaire housing.
- Pull silicone sleeves over the wires, make earth connection and electrical connection to the terminals.
- Fix luminaire housing with enclosed or any other suitable fixing material onto the mounting surface.
- Place glass with its opening over the LED module and fix it hand tight onto the luminaire housing by means of the knurled nuts.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free cleansers from dirt.
Replacing the LED module
- The designation of the LED module is noted on a label in the luminaire.
- The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted. The module can be replaced by a qualified electrician or a comparably qualified person using standard tools.
- Disconnect the system and open the luminaire.
- Please follow the installation instructions for the LED module.
- Defective glass must be replaced.
- Close the luminaire.
Spares
- Spare glass 11 003 189 .0R G
- LED module 3000 K LED-0607/930
