Technical amendments reserved
Wall luminaire for indoor use
50 224.1
Instructions for use
Contents
Application
Free-radiating wall luminaire · indoor luminaire made of hand-blown opal glass, satin matt and metal housing, for all lighting tasks in interior applications.
They are ideal for places where a soft and uniform lighting distribution is required.
Luminaire with a high protection class.
Product description
Die-cast aluminum and aluminum housing, finish colour white

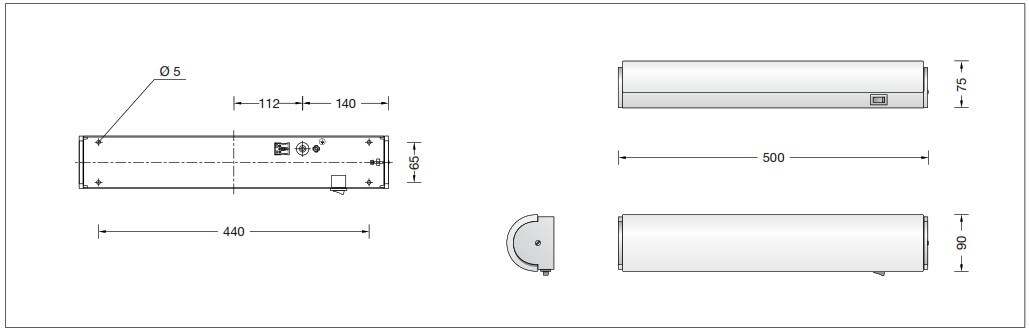

Hand-blown opal glass, satin matt 4 mounting holes ø 5 mm Distance 440 x 65 mm 1 cable entry for mains supply cable up to ø 10.5 mm max. 3 x 1.5@ Connection terminal 2.5@
Earth conductor connection Built-in toggle switch LED power supply unit 220-240 V ≂ 0/50-60 Hz DC 176-280 V BEGA Thermal Switch ®
Temporary thermal shutdown to protect temperature-sensitive components
Safety class I
r – Safety mark
c – Conformity mark
Weight: 1.3 kg
This product contains light sources of energy efficiency class(es) D
Safety
The installation and operation of this luminaire are subject to national safety regulations. Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.
Lamp
| Module connected wattage | 11.2 W |
| Luminaire connected wattage | 14.1 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 45 °C |
50 224.1 K27
| Module designation | 2x LED-0626/927 |
| Colour temperature | 2700 K |
| Colour rendering index | CRI > 90 |
| Module luminous flux | 1730 lm |
| Luminaire luminous flux | 1252 lm |
| Luminaire luminous efficiency | 88,8 lm / W |
50 224.1 K3
| Module designation | 2x LED-0626/930 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 90 |
| Module luminous flux | 1790 lm |
| Luminaire luminous flux | 1426 lm |
| Luminaire luminous efficiency | 101,1 lm / W |
Installation
LED are high-quality electronic components!
Please avoid touching the light output opening of the LED directly during installation or relamping.
Lead the mains supply cable through the grommet into the luminaire housing.
Fix the luminaire housing with enclosed or any other suitable fixing material onto the mounting surface.
It is imperative to use the enclosed gaskets.
Make earth conductor connection electrical connection to the terminals.
Loosen screw of the lateral cover.
Position glass into the luminaire housing and fix it with the screw and the cover.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free
cleansers from dirt.
Replacement of the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Defective glass must be replaced.
Close the luminaire.
Spares
| Spare glass | 11 003 117 .0R G |
| LED power supply unit | DEV-0129/500 |
| Switch | 63 000 430 B |
| LED module 2700 K | LED-0626/927 |
| LED module 3000 K | LED-0626/930 |
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · [email protected] · www.bega.com
