12 131.3 Ceiling and Wall Luminaire
Instruction Manual
Contents
12 131.3 Ceiling and Wall Luminaire Instruction Manual
Technical amendments reserved

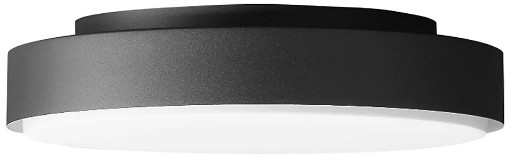

Ceiling and wall luminaire for indoor use
Application
Ceiling and wall luminaire · indoor luminaire made of aluminium and hand-blown opal glass, satin matt.
For a variety of lighting applications.
Product description
Luminaire made of Aluminium, finish Polished aluminium
Hand-blown opal glass, satin matt, with screw neck
Silicone gasket
2 cable entries for through-wiring for mains supply cable up to ø 10.5 mm max. 5 G 1.5@

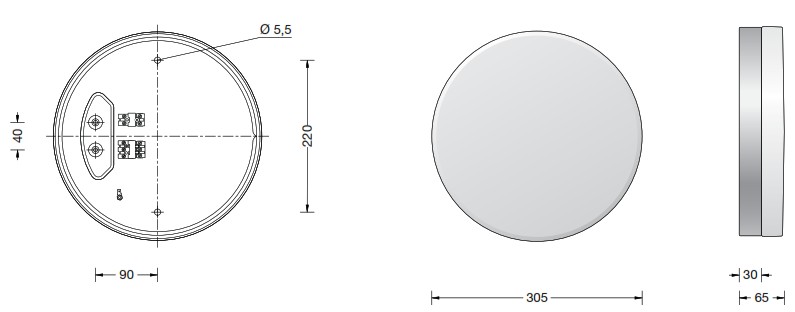

2 mounting holes ø 5.5 mm
Distance apart 220 mm
Connecting terminal 2.5@ with plug connection
Earth conductor connection
2-pole connecting terminal for digital control
LED power supply unit
220-240 V x 0/50-60 Hz
DC 170-280 V
DALI-controllable
Number of DALI addresses: 1
Basic insulation is provided between the mains and control cables
BEGA Thermal Control®Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire
Safety class I
Protection class IP 64
Dust-tight and protection against splash water
Impact strength IK05
Protection against mechanical impacts < 0.7 joule
– Safety mark
– Conformity mark
Weight: 2.9 kg
This product contains light sources of energy efficiency class(es) D
Safety
The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.
Lamp
| Module connected wattage | 19.3 W |
| Luminaire connected wattage | 22.2 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 40 °C |
12 131.3 K3
| Module designation | LED-0832/930 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 90 |
| Module luminous flux | 3165 lm |
| Luminaire luminous flux | 1939 lm |
| Luminaire luminous efficiency | 87,3 lm / W |
Installation
LED are high-quality electronic components!
Please avoid touching the light output opening of the LED directly during installation or relamping.
Remove glass from luminaire housing by turning it counter-clockwise.
Disassemble LED module.
Disconnect plug connection.
Lead the mains supply cable through the cable entry into the luminaire housing.
Fix luminaire housing with enclosed or any other suitable fixing material onto the mounting surface.
It is absolutely essential to use the enclosed gaskets.
Push silicone sleeves over the lines, make ground and electrical connection to the terminal – plug connection.
For digital control please use the 2-pole plug connector (DALI).
In case this connector is not used the luminaire will be operated at full light output.
Push plug into coupler as far as it will go.
Assemble LED module.
Screw glass with gasket firmly into the luminaire housing by turning it clock-wise.
Make sure that gasket is positioned correctly.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free
cleansers from dirt.
Defective glass must be replaced.
Replacing the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced.
Close the luminaire.
Spares
| Spare glass | 11 003 083 40R G |
| LED power supply unit | DEV-0365/500 |
| LED module 3000 K | LED-0832/930 |
| Gasket glass | 83 000 372 |
BEGA Gantenbrink-Leuchten KG
Postfach 31 60
58689 Menden
[email protected]
www.bega.com
