Barkbusters SAB19 Sabre MX Handguards Instruction Manual

FITTING INSTRUCTIONS for
SABRE MX/Enduro Handguard
Instruction Manual

FITTING INSTRUCTIONS

Assemble handguard as per Diagram.

1. Attach top and bottom deflectors to the main handguard.
   NOTE: Match A and B markings on plugs (6) & (7) to A and B markings on deflectors (2), (3), (4), & (5).
   Caution: DO NOT overtighten screws (13) when securing deflectors to the handguard.
2. Attach aluminium clamp frame (8) and clamp saddle (10) to the handlebar in preferred position.
3. Attach L-bracket (9) to either side of the clamp frame (8) depending on preferred lateral position of the handguard.
4. There are two positions on the handguard to attach the L-bracket (9). Choose the one that works best for your preferred position.
5. Fit spacer (11) in the alternate position before installing bolt (12) and nut (14).
   Caution: DO NOT overtighten bolt (12).

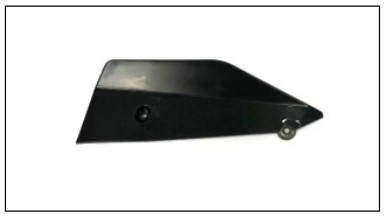

1 SABRE Guard	2 Deflector LEFT Top	3 Deflector RIGHT Top
PN: SAB19 Pcs. Left/Right Pair	PN: SAB-DLT Pcs. 1	PN: SAB-DRT Pcs. 1

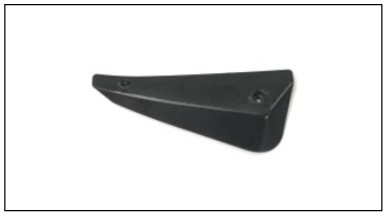

4 Deflector LEFT Bottom	5 Deflector RIGHT Bottom	6 Plug A
PN: SAB-DLB Pcs. 1	PN: SAB-DRB Pcs. 1	PN: SAB-PA Pcs. Set of 2
7 Plug B	8 MX Clamp Frame	9 MX L-Bracket
PN: SAB-PB Pcs. Set of 2	PN: CF19-12 Pcs. 2	PN: LB23-12 Pcs. 2
10 MX Clamp Saddle	11 Spacer	12 Hex Head Bolt 35mm
PN: CS19-12 Pcs. 2	PN: SP10-12-5 Pcs. 2	PN: M5X35 HHFZP Pcs. 2
13 Screw 10mm	14 Nylock Nut Flange	15 Socket Head Bolt 25mm
PN: SCREWPT 3.5X10 Pcs. 8	PN: M5FLN Pcs. 2	PN: M5X25 SHCSZP Pcs. 8

CAUTION:
Installation of the handguard is safety-relevant work and can be complicated. We recommend the installation be performed by a motorcycle service technician. Rideworx accepts no liability for damages caused by improper mounting. All screws, bolts and nuts, incl uding all replacement hardware provided by Rideworx, should be tightened to the torque specified in the table. After the first 50km of riding check all screws, bolts and nuts are tightened to the correct torque. We recommend a medium strength liquid thread lock product on all fasteners.

WARNING:
Check operation of all handlebar controls, specifically the throttle, front brake, kill switch and clutch to ensure they are operating correctly and are in accordance with the OEM specifications. Do not ride the motorcycle if any controls are not operating correctly. Check per iodically that all bolts are tight.

Disclaimer:

A failure to follow these fitting instructions could cause serious injury, death or property damage. These handguards are intended solely for use with motorcycles/ATV/snowmobiles/scooters that have not been modified. They are not designed to prevent injury or death while riding or in an accident or crash. The user must ensure that all controls are free of the handguards every time that they ride. By installing and/or using this product you acknowledge that you accept these terms and have followed the fitting instructions.
INS-SAB-1-02
