Parts List & Exploded View
Contents

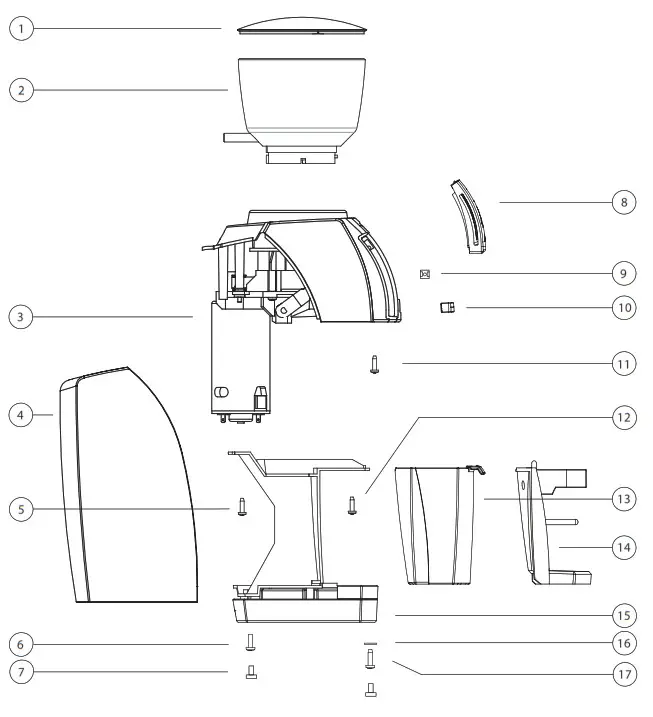

PRIMARY COMPONENTS
| Item # | Part # | Part Description | Total Used |
| 1 | 1010** | Hopper Lid Clear | 1 |
| 2 | 1012** | Shut off Hopper (rev. 1.2) with spring ball | 1 |
| 3 | NA | Grind Chamber Top Casting (Assembly) | 1 |
| 4 | 8037-BLK | Black Plastic Rear Housing (Baratza Logo) (Vario+, Vario W+) | 1 |
| 4 | 8037-WHT | White Plastic Rear Housing (Baratza Logo) (Vario+, Vario W+) | 1 |
| 5 | F8029* | M3x12 machine screw | 2 |
| 6 | F8235* | M3x18 Self-Tapping Screw | 2 |
| 7 | 6049* | Rubber Foot | 4 |
| 8 | 8078-BLK* | Black Vario+ Display Assembly | 1 |
| 8 | 8078-WHT* | White Vario+ Display Assembly | 1 |
| 9 | 8057 | Knob Mount (Black) (Vario+, Vario W+) | 2 |
| 10 | 8055 | Knob (Metal) (Vario+, Vario W+) | 2 |
| 11 | F8275* | M3x5 Countersunk Self-Tapping Screw | 1 |
| 12 | F8214* | M3x4 Countersunk Machine Screw | 2 |
| 13 | 8160* | Grounds Bin (Vario) | 1 |
| 14 | 1050* | Metal Porta-Holder (Complete Assembly) | 1 |
| 15 | NA | Main Structure (Assembly) | 1 |
| 16 | F8093 | M3 External Tooth Star Lock Washer | 2 |
| 17 | F8029* | M3x12 Machine Screw | 2 |
** Frequently needed service parts * Occasionally needed service parts NOTE: No need to stock parts without asterisks

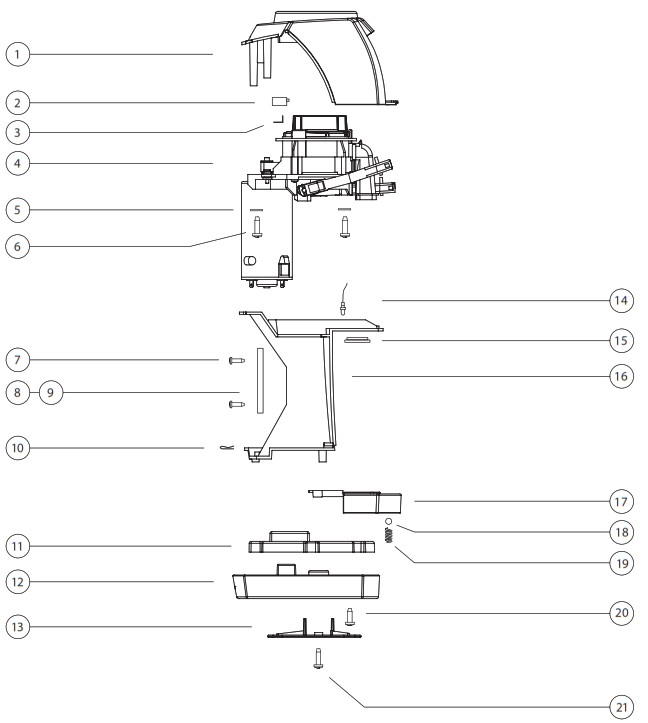

MAIN BODY ASSEMBLY
| Item # | Part # | Part Description | Total Used |
| 1 | 8330-BLK | Black Top Casting with nickel plating and pad printing (Vario+) | 1 |
| 1 | 8330-WHT | White Top Casting with painting and pad printing (Vario+) | 1 |
| 2 | 6032* | Micro Switch | 1 |
| 3 | 8032* | L-Bracket for Microswitch | 1 |
| 4 | NA | Grinding Chamber Assembly | 1 |
| 5 | F8093 | M3 external tooth star lock washer | 6 |
| 6 | F8029* | M3x12 Machine Screw | 6 |
| 7 | FS714* | M3x8 Self Tapping Screw | 4 |
| 8 | 8060** | 110v Power Board (Vario) | 1 |
| 9 | 8061** | 230v Power Board (Vario) | 1 |
| 10 | F8223 | Tinnerman Clip | 2 |
| 11 | 8020 | Ballast for Vario/W/Forte | 1 |
| 12 | 8321 | Black Plastic Base | 1 |
| 12 | 8321-WHT | White Plastic Base (Vario(+), Vario W(+)) | 1 |
| 13 | 1022 | Black Plastic Cord Cover (Vario(+), Vario-W(+), Forte) | 1 |
| 13 | 1022-WHT | White Plastic Cord Cover (Vario+, Vario W+) | 1 |
| 14 | 1369 | LED into Grounds Bin | 2 |
| 15 | 8094 | Calibration Grommet | 1 |
| 16 | 8023 | Chassis (Vario/W/Forte) | 1 |
| 16 | 8023-WHT | White Chassis (Vario+, Vario W+) | 1 |
| 17 | 8028 | Vario Belt Casting | 1 |
| 18 | 8127 | PortaHolder Ball | 1 |
| 19 | 8128 | PortaHolder Ball Spring | 1 |
| 20 | F6122 | M6-1.25×8 Machine Screw | 2 |
| 21 | F6121 | M3.5×11 plastic thread cutting screw | 5 |
| NS | 6028 | Motor Ground Wire | 1 |
** Frequently needed service parts * Occasionally needed service parts NOTE: No need to stock parts without asterisks

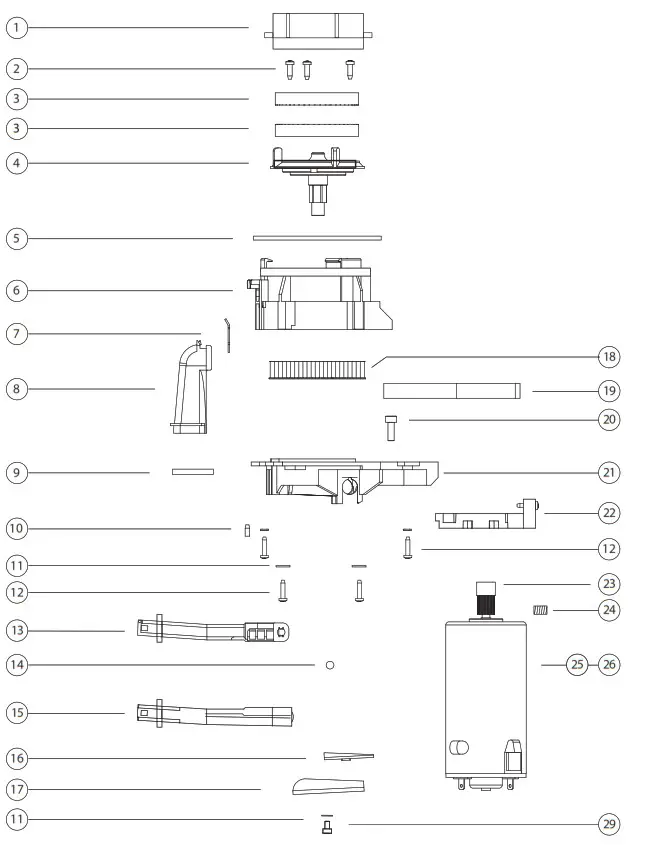

GRIND MOTOR ASSEMBLY
| Item # | Part # | Part Description | Total Used |
| 1 | 8067 | Upper Burr Carrier (rev. 1.2) (Vario/Vario-W) | 1 |
| 2 | F8175* | M4x8 Cheese Head Machine Screw for Ceramic Burr | 6 |
| 3 | 8174* | Ceramic Burrs (each) (with 3 screws (F8175)) | 2 |
| 4 | 8070 | Vario Rotating Burr Carrier | 1 |
| 5 | 8224 | Grind Chamber Gasket | 1 |
| 6 | 1024 | Metal Threaded Grind Chamber (With Bushing) | 1 |
| 7 | 8087 | Anti-Static Flapper | 1 |
| 8 | 8088 | Discharge Chute | 1 |
| 9 | 8089 | Ground Chute Gasket (Vario/W/Forte) | 1 |
| 10 | F8096* | M4x6.5 Set Screw with Custom Tip | 1 |
| 11 | F8093 | M3 External Tooth Star Lock Washer | 5 |
| 12 | F8302* | M3.5×16 Plastic Thread Cutting Screw | 4 |
| 13 | 8053 | Plastic Micro Adjustment Arm | 1 |
| 14 | 8051 | Micro Cam | 1 |
| 15 | 8052 | Plastic Macro Adjustment Arm | 1 |
| 16 | 8046 | Grind Adjustment Spline | 1 |
| 17 | 8045 | Adjustment Rocker | 1 |
| 18 | 8056* | Vario/Vario-W Main Drive Gear w/ metal sleeve | 1 |
| 19 | 8077 | HTD Belt 112mxl (Not Sold Seperately) | 1 |
| 20 | F6189* | M5x12 Machine Screw | 2 |
| 21 | 8091* | Motor Plate (W/4 Grommet Sleeve Assemblies And Bushing) | 1 |
| 22 | 8078 | Belt Tensioning Bracket w/ screw for Vario Series | 1 |
| 23 | 8099 | Vario/W D-Shaft Motor Drive Pulley w/ Set Screw (F8296) | 1 |
| 24 | F8296* | M4x5 Point Tip Hardened Set Screw | 1 |
| 25 | 1036* | 120V Motor D-Shaft (Vario/W, Forte) (use w/6394) | 1 |
| 26 | 1037* | 230V Motor D-Shaft (Vario/W, Forte) (use w/6394) | 1 |
| 27 | F8095* | M3x8 Machine Screw | 1 |
| NS | 6394** | Vario/Vario-W D-shaft Pulley w/ Set Screw & BELT (only compatible w/1036 or 1037) | 1 |
| NS | 8097 | Jumper Wire: Power Board to Display Board (Vario/W/Sette) | 1 |
| NS | 8098 | Jumper Wire: Power Board to Microswitch (Vario/W/Forte) | 1 |
| NS | 6022 | Motor Cable – Red & Black | 1 |
| NS | 8054 | Adjustment Arm Shim | 2 |
** Frequently needed service parts * Occasionally needed service parts NOTE: No need to stock parts without asterisks
www.baratza.com
[email protected]
04/12/2022 (v1)
