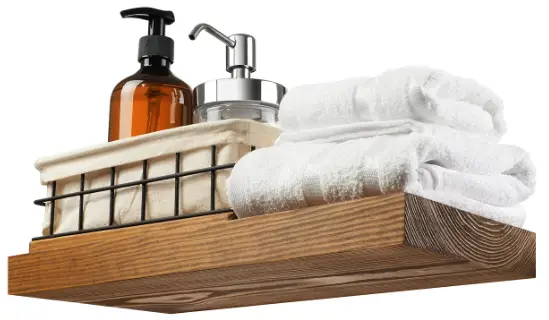

BAOBAB WORKSHOP 16 Inch Wood Floating Shelves
HOW TO USE SMART BRACKETS
STEP 01 MARKS
- Make marks opposite the holes in the brackets
- Move marks on the wall
- Determine if there are studs behind the wall where you want to mount the bracket
STEP 02
HOW TO INSTALL BRACKETS
Option N91: without studs
Assembly
The open part of the wings should be facing the head of the bolt.
Thread the bolt to a depth of about four or five threads.
Drill holes with a 3/8″ bit.
PULL towards you while you tighten the bolt
Wall mounting
Shut the pair of wings.
Push the toggle bolt (with the bracket attached) into the hole in the wall until you can feel the wings spring open.
Pull the bracket and the bolt forward (toward you until the pair of wings contact the back of the wall. Keep this pressure constant as you turn the boit clockwise.
Continue to turn the toggle boit until the bracket Is tightly attached to the wall.
Tips
Maintain pressure on the screw outside the wall when using the screwdriver and tighten the boits in 3-5 turns alternately step by step.
Option N92: in studs

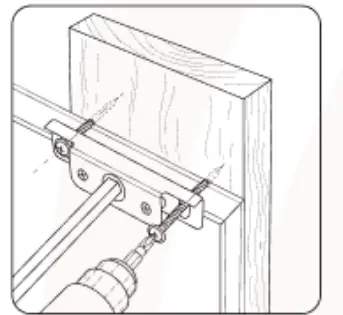

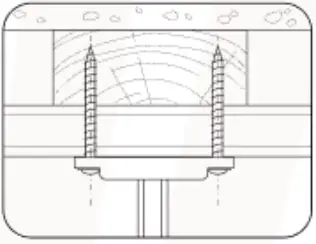

Mount the screws (Included) with bracket into the wall where there is a stud
STEP 03
INSERT THE SHELF
Insert the shelf onto the installed brackets.
If the shelf does not mount on the brackets, go back to the step on “How to use brackets” and adjust the brackets or contect us.
