Instructions for use / assembly instructions
Starck
40874000
Contents
Product description
The Axor Starck Shower Collection speaker type 40874000 is used to create sound in baths and showers.
Symbol description
 |
Read the installation instructions |
| Beware of dangerous electrical current | |
| Important notice | |
 |
Do not use silicone that contains acidic acid. |
 |

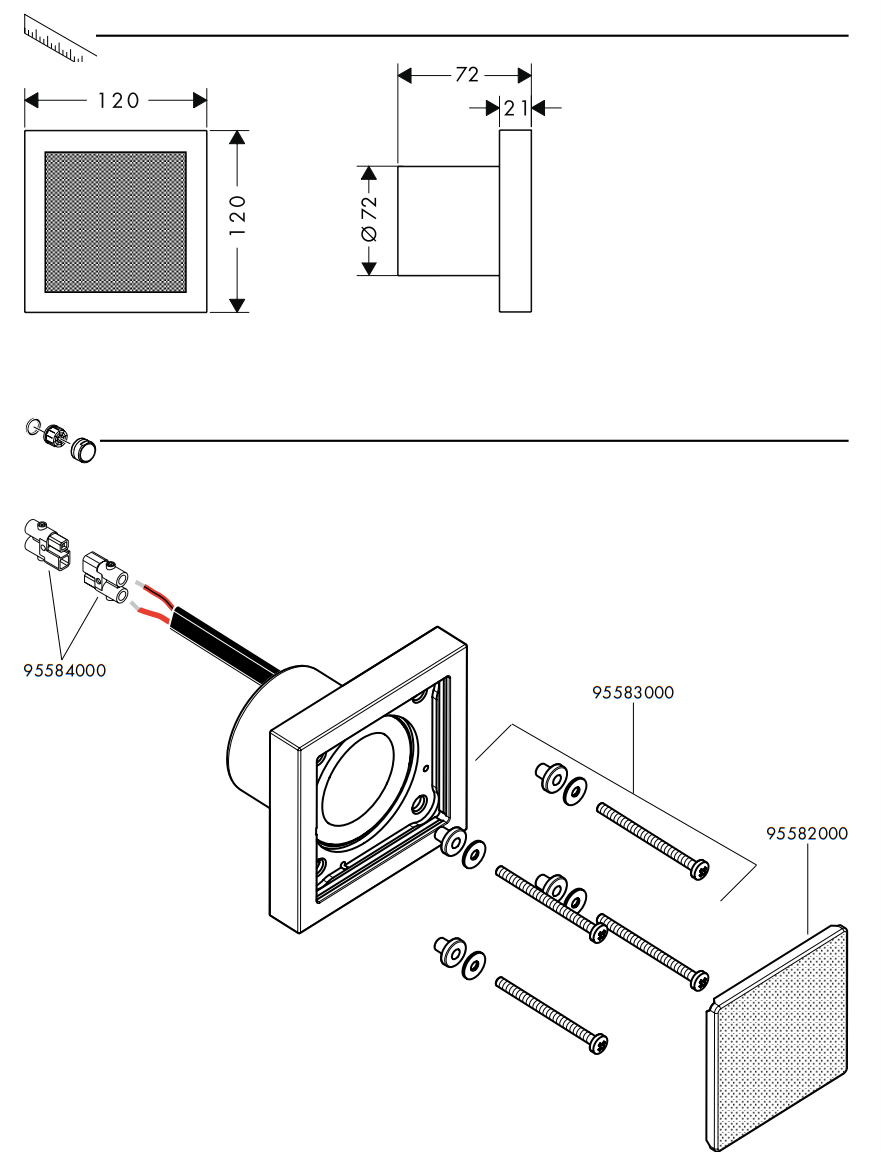

Dimensions (see page 46) |
 |
Spare parts (see page 46) |
 |
Assembly (see page 47) |
 |
Repair (see page 49) |
Safety Notes
Any work may only be carried out in a de-energized state. Here, the voltage supply must be safely separatedvia the main switch or mains plugs.
Consistency of installation surface
Please also make sure that the installation surface is even. If there are deep ridges or offset tiles, it is necessary to even out this unevenness using silicone in order to conform to the protection type IP X5. Only standardized materials may be used for the installation.
All components must remain accessible.
The ambient temperature must not exceed 40 ºC.
Standards and guidelines
If installed and used as intended, the speaker fulfills the standard EN 60335-2-105 as well as the low voltage and EMC guidelines.
Technical Data
| Protection class: | IP X5 |
| voltage: | 18 V AC |
| Music performance: | max. 40 W |
| Rated power: | 30 W |
| resistance: | 8 Ω |
| weight: | 1468 g |
Cleaning / Repair
Cleaning recommendations, see enclosed brochure.
Repair
Only by Hansgrohe trained personnel or persons or companies appointed by Hansgrohe.
Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
12/2009
9.04893.01
