avsl BP4A Active 12v Indoor-Outdoor Speaker User Manual
Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty

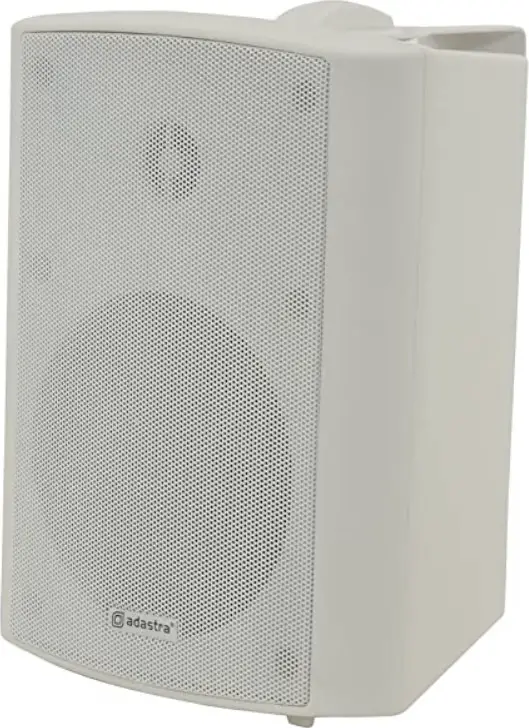

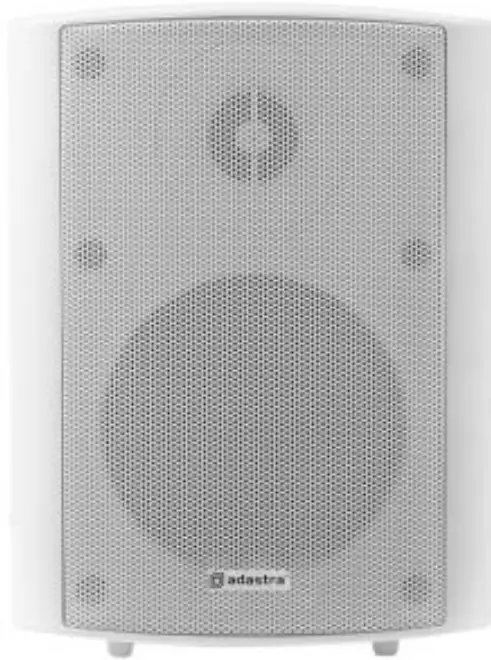

The BP4A is a weatherproof background speaker with a built-in amplifier, which can be installed indoors or in a sheltered outdoor area, onto a wall or other surface, from its adjustable mounting bracket.

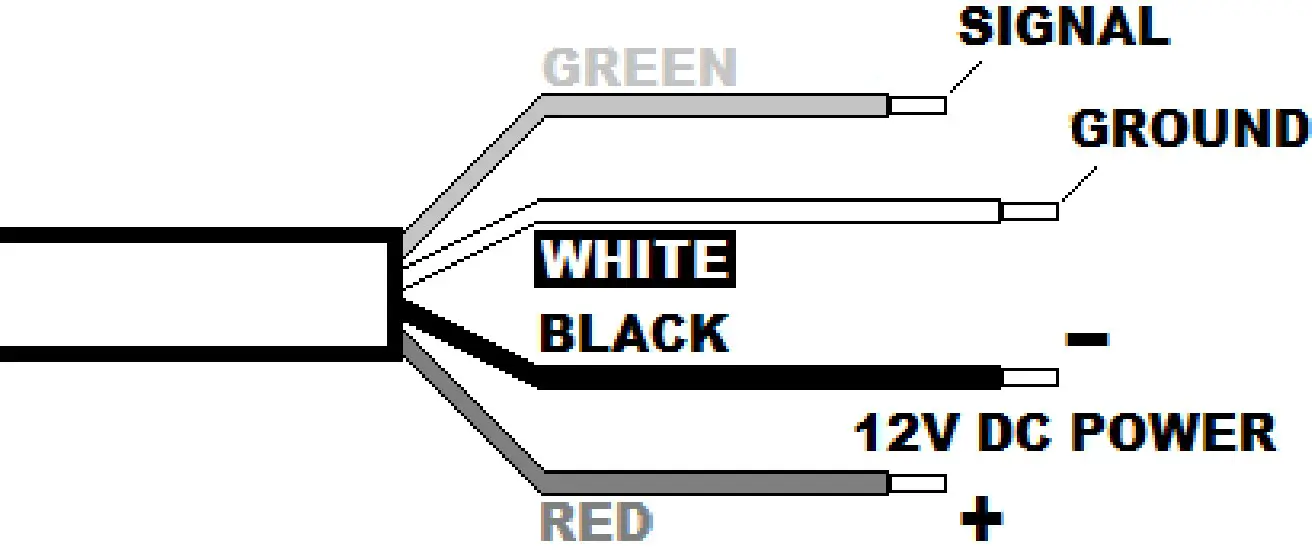

Follow the wiring guide below for power and signal connections to the 4 core cable (connections should be sealed or sheltered from the elements)
The internal amplifier can be operated from any 12Vdc power supply capable of delivering up to 2A current.
Connect the Line Level Audio (0dB = 0.775Vrms) input to the green wire and Ground to the white wire.
For the 12Vdc power supply, connect “+” to the red wire and “-” to the black wire.
Specifications
| Power supply | 12Vdc, 2A min. (not included) |
| Construction | ABS moulded body, aluminium grille |
| Connection | Hard-wired cable (power + line in) |
| Woofer | 100mmØ (4”) polypropylene cone |
| Tweeter | 25mmØ (1”) balanced dome |
| Output power: max. | 12W |
| IP rating | IP54 |
| Dimensions | 195 x 150 x 150mm |
| Weight | 1.298kg |
Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted. Copyright© 2022.
