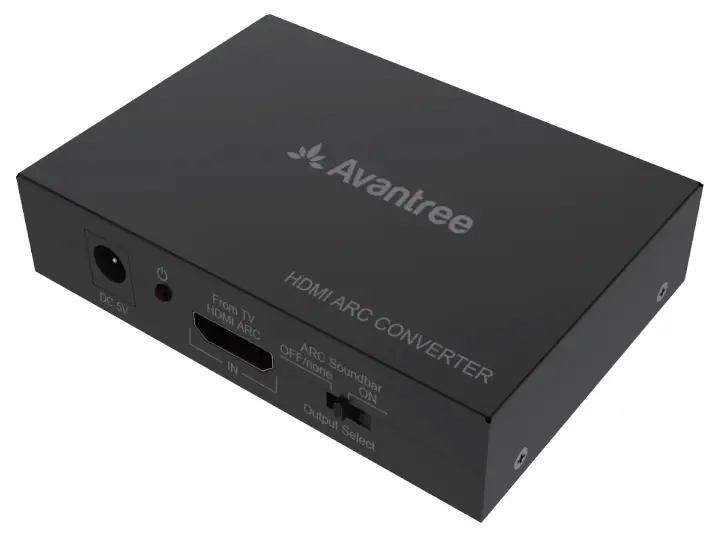

HAX05 HDMI ARC Audio Converter
User Guide
Contents
HAX05 HDMI ARC Audio Converter
Add-Ons
Erweiterungen
 |
Orbit 5.1CH Bluetooth Transmitter |
 |
Opera Bluetooth Transmitter Headphones |
 |
Medley Clear Bluetooth Transmitter Headphones |
Extract Audio from HDMI ARC port
Audio vom HDMI ARC-Anschluss extrahieren

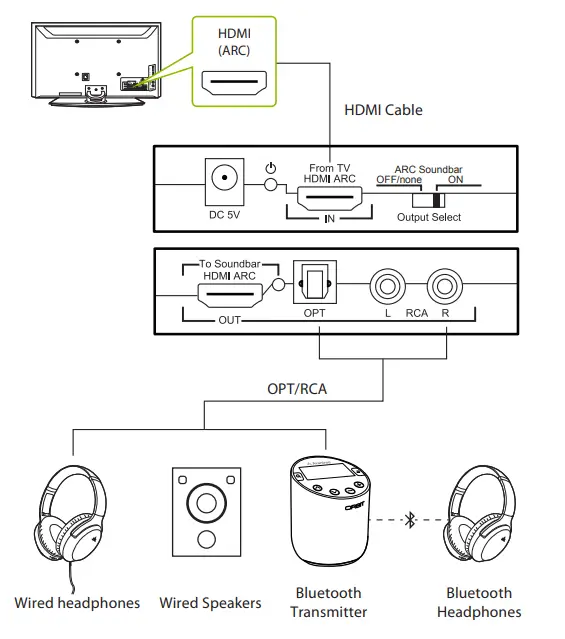

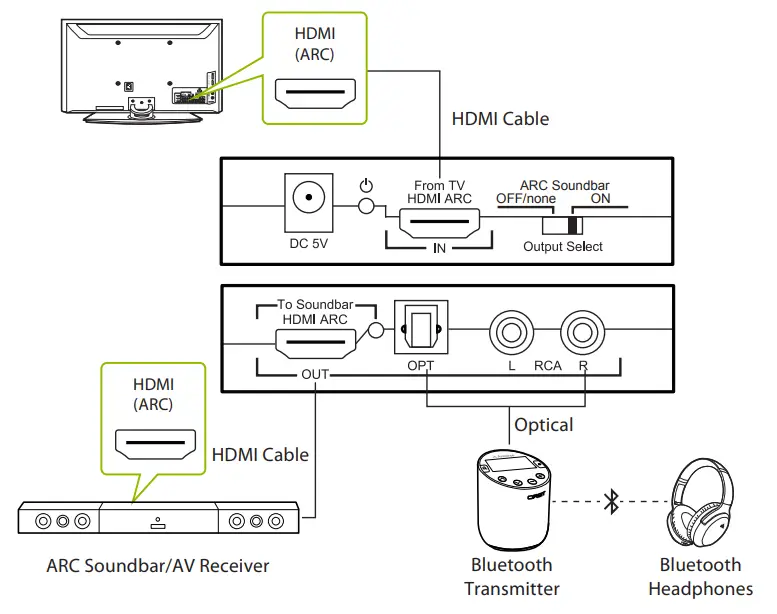

1.1 Connect devices
1.2 Set up devices

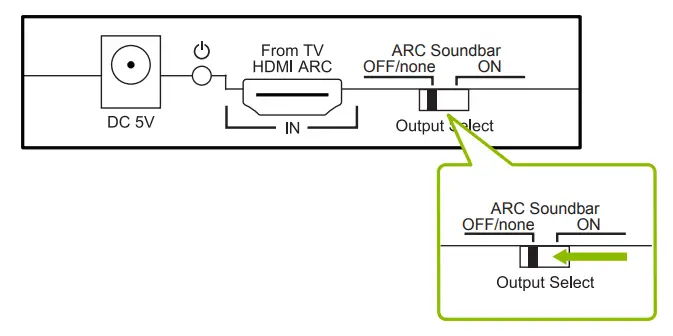

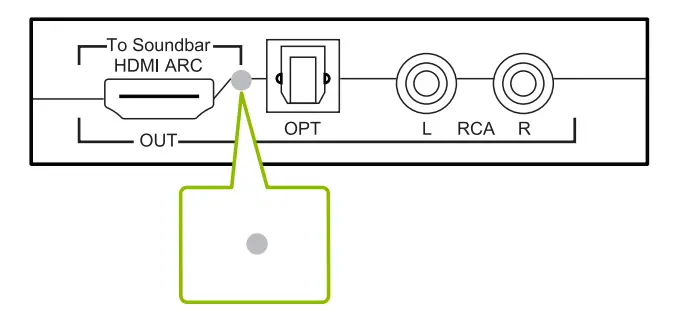

- Slide the output select to “ARC Soundbar OFF/none”
- LED is OFF
1.3 TV set up
- If no sound, please set to PCM audio
REMOTE CONTROL

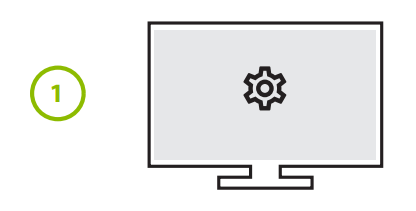

Go to SETTINGS > AUDIO > HDMI ARC > PCM
REMOTE CONTROL

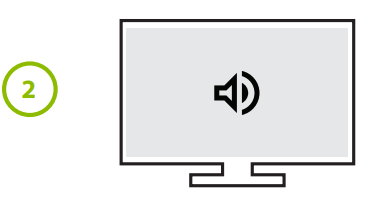

Go to SETTINGS > Sound > Sound output > HDMI ARC > PCM
AUDIO SETTING GUIDE
https://avantree.com/product-support/OTHR-HAX05#general-lg-tv
https://avantree.com/product-support/OTHR-HAX05#general-sony-tv
https://avantree.com/product-support/OTHR-HAX05#general-samsung-tv
Important Notice
We recommend the Aventred Orbit Bluetooth Transmitter for wireless streaming. There is no need to switch your TV audio to PCM and you can receive 5.1CH audio from your ARC soundbar (with HAX05 in passthrough mode) and 2.0CH when streaming to Bluetooth headphones.
Extract Audio from occupied HDMI ARC port
Audio HDMI ARC-Anschluss extrahieren
2.1 Connect devices
2.2 Set up devices
- Turn on your ARC soundbar

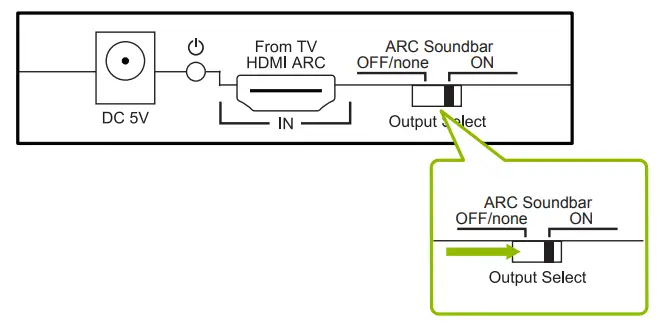

- Slide the output select switch to “ON”

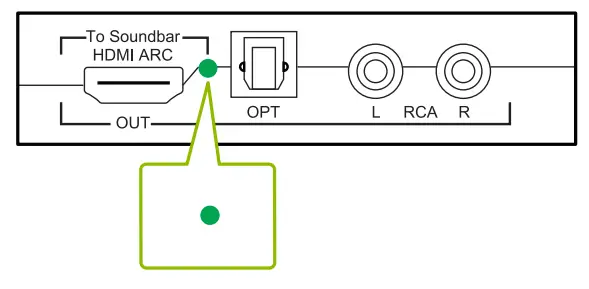

- Green LED should light up
2.3 TV Set up
