CL 0.8 Cord Lift
Contents

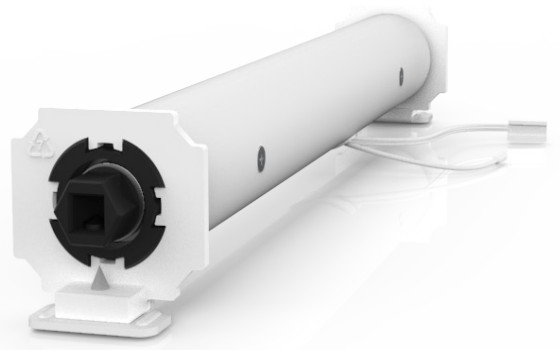

MT01-3001 Cord Lift DC 08 Motor
Cord lift technology. Low voltage. Dual shaft.
The CL motor can provide continuous power and its simplified wiring solution is directly compatible with roman shading systems and cellular shades.
 |
Bidirectional Communication Automate Radio Communication utilizes two-way communication to provide up-to-date feedback on battery levels and shade positioning via the Automate Pulse 2 app. |
 |
Favorite Positioning Add a programmable shade position in addition to the upper and lower limits that can be defined as your “favorite.” |
 |
Precise Limit Adjustment Incremental steps during limit settingallows for precise positioning of the shade. |
 |
Elegant Soft Stop Slows the motor down for a smooth stop to prevent damage to the shade, and preserves the life of the battery. |
 |
Interchangeable Power Source Choose to have your shades hard wired for continuous power or opt for a wire-free setup – choose from a rechargeable battery pack or a tube that holds AA batteries. |
 |
Simplified Setup Whether using a remote control or app for shade setup, Automate programming instructions are streamlined to have your shades moving as quickly as possible. |
 |
Battery Check Action When paired with Push5 remote, motor will move shade to indicate battery percentage. |
7 YEAR WARRANTY
ARC™ (Automate Radio Communication) is Rollease Acmeda’s proprietary technology utilizing 433MHz radio communication with bi-directional feedback that brings Automate motorized shading systems together.
Product Specifications
Part #: MT01-3001-069002
Cord Lift 0.8 Nm Motor
| Voltage | 12V DC | Limit Switch Type | Electronic |
| Torque | 0.8 Nm | Current | 1.18 A |
| Max Run Time | 6 min | Battery Size/Type | External Battery Pack |
| Speed | 33, 39, 50 RPM | Temp Working Range | 32°F to 140°F (0°C to 60°C) |
| Radio Frequency | 433.92 MHz | Insulation Class | I.CL.B |
| RF Modulation | FSK | Sound Level | 60dB |
| IP Rating | IP40 | Power | 14W |

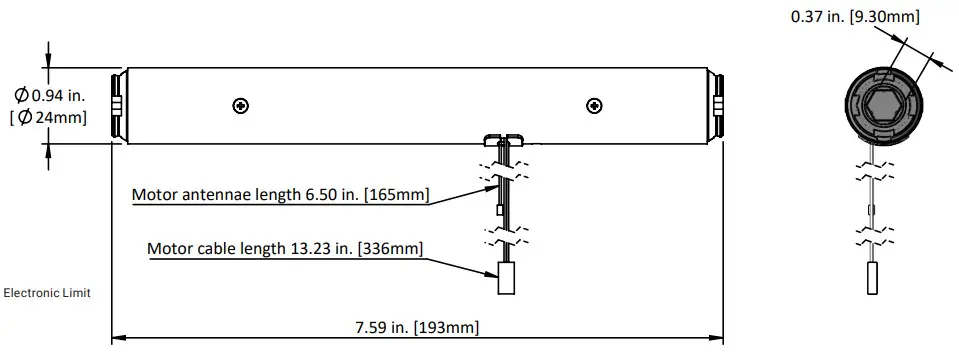

Dimensions

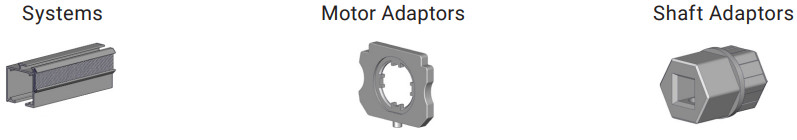

Compatible Parts
| BTG Headrail | MTAD-CLHR-BTGC | MTAD-CLSA-4MMSQ |
| Turnils Headrail | MTAD-CLHR-TUR | MTAD-CLSA-V |
| SS38 Headrail | MTAD-CLHRSS38KT | – |
| – | MTAD-CLHR_US-ROM | MTAD-CLSA-D |
| – | – | MTAD-CLSA-5mmSQ |
Compatible products (Refer to catalog for full item listings)

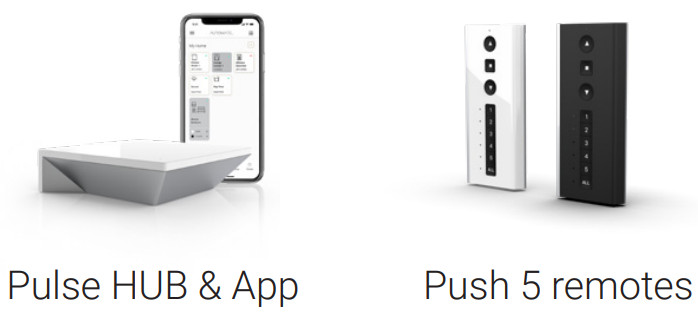

Controllers

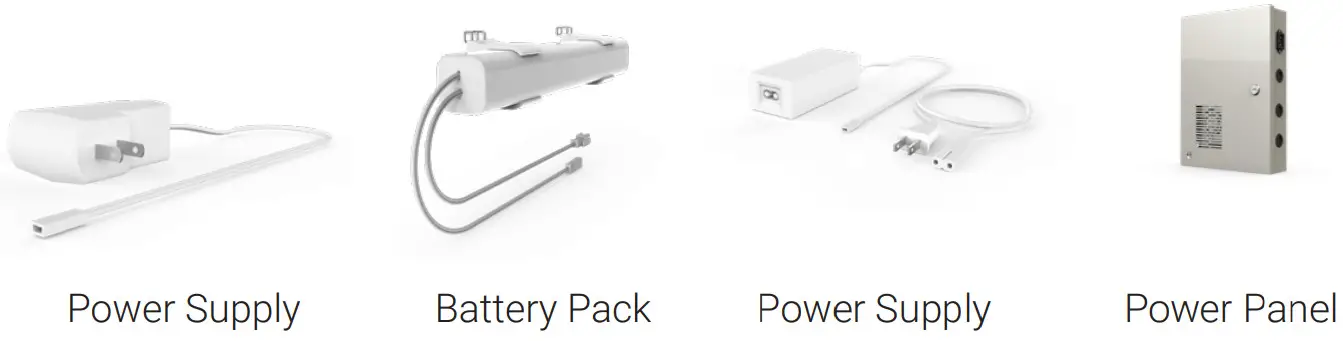

Power Options
MT01-3001-069002_CL 0.8 Cord Lift_07122023
A Division of Rollease Acmeda
