86 FUEL attwoodmarine.com
Fuel Tank & Hose Fittings
Attwood fuel tank fittings and hose fittings are suitable for use with leaded, unleaded, ethanol blended and alcoholblended fuels. Unless otherwise specified, threaded fittings have 1/4″ male NPT threads; barbed fittings fit 3/8″ I.D. hose. Clamps are not included. Use thread sealant on all threads.
| Fitting | Description | Material Construction | Mates to | Notes | Part # |
| Mercury/Mariner | |||||
| 1/4″ NPT Thread | Tank Male | Brass | 8890LP6 | Mercury Tank Fitting | 8873-6 |
| 3/8″ Barb | Hose Female | Acetal | 8873-6 | Mercury Tank Fitting | 8890LP6 |
| 3/8″ Barb | Hose Female | Acetal | Mercury Engine End | 8896LP6 | |
| 1/4″ NPT Thread | Twist-lock Tank Female | Nylon | 14532-6 | w/90° Elbow, 2-Piece | 8882-6 |
| 1/4″ NPT Thread | Twist-lock Tank Female | Die-cast Zinc | 14532-6 | w/90° Elbow, 1-P iece | 14530-6 |
| 3/8″ Barb | Twist-lock Hose Male | Die-cast Zinc | 8882-6, 14530-6 | 14532-6 | |
| Johnson/Envinrude/OMC | |||||
| 1/4″ NPT Thread | Tank Male | Brass | 8889LP6, 88FHE516-6 | 8883-6 | |
| 5/16″ Barb | Hose Female | Acetal | 8883-6 | Tank or Engine End | 88FHE516-6 |
| 3/8″ Barb | Hose Female | Acetal | 8883-6 | Tank or Engine End | 8889LP6 |
| Yamaha | |||||
| 1/4″ NPT Thread | Tank Male | Brass | 8896LP6, 88FHY516-6 | 8897-6 | |
| 5/16″ Barb | Hose Female | Acetal | 8897-6 | Tank or Engine End | 88FHY516-6 |
| 3/8″ Barb | Hose Female | Acetal | 8897-6 | Tank or Engine End | 8896LP6 |
| Honda | |||||
| 1/4″ NPT Thread | Tank Male | Chrome-plated Brass | 8902-6 | 90HP+ (Large Bore) | 8901-6 |
| 3/8″ Barb | Hose Female | Chrome-plated Brass | 8901-6 | 90HP+ (Large Bore) | 8902-6 |
| 3/8″ Barb | Hose Female | Acetal | Engine End | 8900-6 | |
| Chrysler | |||||
| 1/4″ NPT Thread | Tank Male | Chrome-plated Brass | 8884-6 | 14509-6 | |
| 3/8″ Barb | Hose Female | Chrome-plated Brass | 14509-6 | 8884-6 | |
| Suzuki | |||||
| 1/4″ NPT Thread | Tank Male | Chrome-plated Brass | 88FTS014-6 | Under 75HP (Small Bore) | 14509-6 |
| 3/8″ Barb | Hose Female | Chrome-plated Brass | 14509-6 | Under 75HP (Small Bore) | 88FTS014-6 |
| Universal | |||||
| 1/4″ NPT x 1/4″ NPTF | 90° Elbow | Brass | 8887-6 | ||
| 1/4″ NPT x 5/16″ Barb | Male Thread, Hose Barb | Brass | 88FBM101-6 | ||
| 1/4″ NPT x 3/8″ Barb | Male Thread, Hose Barb | Brass | 14540-6 | ||
| 3/8″ NPT x 3/8″ Barb | Male Thread, Hose Barb | Aluminum | 88FBMA102-6 | ||
| 1/4″ NPT x 3/8″ Barb | Male Thread, Anti-Siphon Valve | Aluminum | 88FAS014-6 | ||
| 3/8″ NPT x 3/8″ Barb | Male Thread, Anti-Siphon Valve | Aluminum | 88FAS038-6 | ||
| 3/8″ Hose Mender | In-line Fuel Splice Kit | Brass | Includes (2) Stainless Steel Hose Clamps | 11822-6 | |
| 5/16″ Hose Mender | In-line Fuel Splice Kit | Brass | Includes (2) Stainless Steel Hose Clamps | 11823-6 | |
| 1/4″ Hose Mender | In-line Fuel Splice Kit | Brass | Includes (2) Stainless Steel Hose Clamps | 11824-6 | |

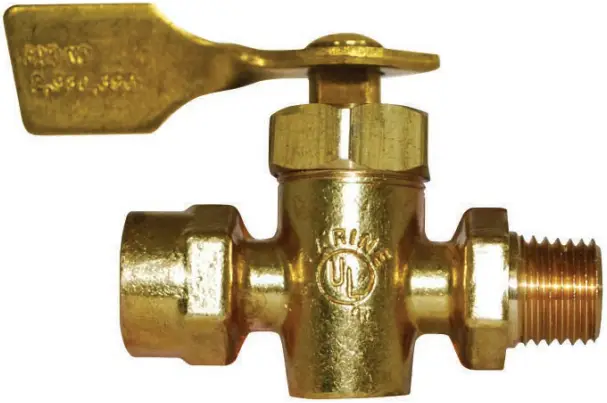

Fuel Tank Shut Off Valve
| Description | OEM Part # | Part # |
| Brass: ¼” NPT x ¼” NPTF | – | 88FV200-6 |
88FV200
