ATC-ECOTAP-D ECO Tap Washroom Range
Wash & Dry your hands in 40 seconds!
Contents
Key Features Include:
- Taps installed in situ within sink, or above
- Hygienic, no-touch automatic operation
- Simple to use
- Energy saving, temperature control hand dryer
- Quiet operation
- Concealed mechanisms for easy maintenance
With a sleek, modern design the ECO Tap is designed to complement high traffic bathrooms as a complete set of soap dispenser, auto tap, and high speed hand dryer.
Product Codes
Sink Mounted
ATC-ECOTAP-D
ATC-ECOTAP-D-FAUCET
ATC-ECOTAP-D-SOAP
Wall Mounted
ATC-ECOTAP-W
ATC-ECOTAP-W-FAUCET
ATC-ECOTAP-W-SOAP
Description
| Cover Material | 304 Stainless steel |
| Finish | Brushed |
| Activation | Automatic |
| Electrical Specifications Hand Dryerc | Wall / Sink |
| Voltage | 220 – 240Vac |
| Frequency (Hz) | 50-60Hz |
| Motor speed | 22000-29000RPM |
| Power Output | 840-1000W |
| Motor Power | 500W |
| Heating Power (off/min/max) | 0/340-500W |
| Sensor Range | 130mm ± 20mm (Auto Adjust) |
| Drying Time | 12-15 Second |
| Approvals |  |
Safety Features
| Motor Thermal Protection | 102°C Auto Resetting |
| Heater Thermal Protection | 139°C Auto Resetting |
| Time Protection | 60s Auto shut off |
| Cover | 304 Stainless steel |
| Protection | I.P. 35 |

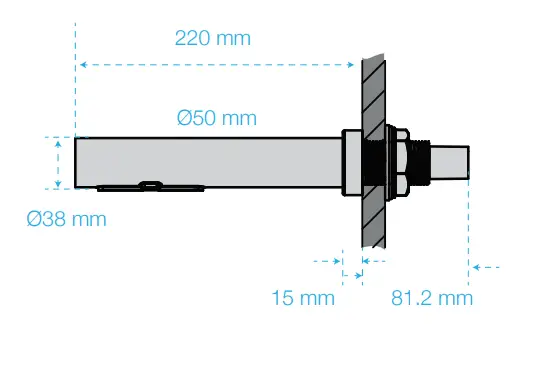

Dimensions
Sink mounted
Wall mounted
