RS720A-E12 Servers and Workstations
Product Information:
The RS720A-E12 is a server motherboard designed for high-performance computing. It comes with various FRU (Field Replaceable Unit) parts and upgrade kits that allow for customization and expansion.
FRU Parts & Upgrade Kits:
- Motherboard Converted Board: Part Number:
90SB0AS0-M0XBN0 - Backplane: Part Number: 90SC0G10-M0XBN0
- Front I/O Board Cable: Part Number:
90SC0F80-M0XBN0 - Riser Card: Part Number: 90SC0F70-M0XBN0
- Riser Kit: Part Number: 90SC0JU0-M1XBN0
- Fan (Include fan cables): Part Number:
90SC0IC0-M0XBN1 - Heatsink (Include thermal grease/pad): Part
Number: 90SC0K60-M1XBN0 - HDD Tray: Part Number: 90SC0JD0-M0XBN0 /
90SC0JE0-M0XBN0 - Power Supply: Part Numbers: 90SKP000-M4PAN0,
90SKP000-M4UAN0, 90SKP000-M4FAN0, 90SKP000-M28AN0
Upgrade Kits:
- Double-deck GPU upgrade kit: Part Number: 8038 FAN 6PIN 16300RPM DELTA (13070-01270200)
- AMD SP5 1U EVAC HS(GPU SKU): Part Number: 13SF02D0M03011
- AMD SP5 2U STD HS(non-GPU SKU): Part Number: 13SF02E0M04011
- 2.5 HDD TRAY TOOLLESS (Front/Rear): Part Number: 13SF02E0AM0101
- 3.5 HDD TRAY TOOLLESS: Part Number: 13SF01A0AM110113SV0005M10011
Note: Some parts may be unavailable for repair due to Customer Induced Damage (CID). Please contact Customer Service Center for assistance.
Product Usage Instructions
1. To replace the Motherboard Converted Board, Backplane, Front I/O Board Cable, Riser Card, Riser Kit, Fan, Heatsink, HDD Tray, or Power Supply, follow these steps:
- Ensure the server is powered off and unplugged.
- Locate the specific part that needs replacement.
- Remove any screws or connectors holding the current part in place.
- Gently disconnect the cables attached to the part.
- Take out the old part and replace it with the new one.
- Secure the new part with screws or connectors.
- Reconnect any cables previously disconnected.
- Power on the server and ensure the new part is functioning properly.
To install an Upgrade Kit, follow these steps:
- Ensure the server is powered off and unplugged.
- Locate the specific Upgrade Kit you want to install.
- Refer to the provided manual or instructions for detailed installation steps.
- Follow the instructions to properly install the Upgrade Kit.
- Secure all connections and ensure everything is properly seated.
- Power on the server and verify that the Upgrade Kit is functioning as intended.
For any further assistance or questions, please refer to the user manual or contact Customer Service Center.

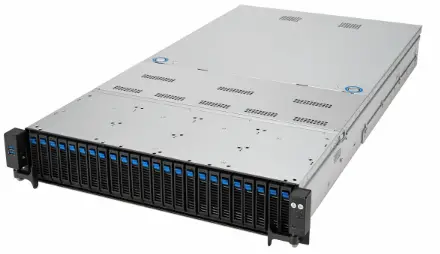

The illustrations below show the components of RS720A-E12 (Illustration model may not be the same, for more detailed information, please refer to the SN)
FRU Parts & Upgrade Kits list
| Part Number | MOQ | Description | |
| Motherboard | 90SB0AS0-M0XBN0 | 1 | K14PP-D24 |
| 90SC0G10-M0XBN0 | 1 | FPB-R2P-B | |
| Converted Board | 90SC0F80-M0XBN0 | 1 | CB12LE16G-R2PB/Gen4 support |
| Backplane | 90SC0F70-M0XBN0 | 1 | BP24LE16G-25-R2PBD (RS24U) |
| 90SC0JU0-M1XBN0 | 1 | BP24LE32G-25-R2PD (RS24) | |
| 90SC0IC0-M0XBN1 | 1 | BP12LE32G-35-R2PD (RS12) | |
| 90SC0K60-M1XBN0 | 1 | BP2LE32G-25-R2PD//R1.03 (RS12 Rear BP) | |
| Front I/O Board | 90SC0JD0-M0XBN0 | T | CBI-10G-X710-R1PB |
| 90SC0JE0-M0XBN0 | 1 | CBI-1G-I350-R1PB | |
| Cable | 90SK0000-MMRAN0 | 1 set | 8SATA Cable Kit/RS720A-E12-RS24U |
| (14022-00270000*2) | |||
| 90SKS000-M21BN0 | 1 set | 8SATA Cable Kit (RS720A-E12-RS24) | |
| (14022-00130600) | |||
| 90SKS000-M3JAN0 | 1 set | 8NVMe Cable Kit (RS720A-E12-RS24 GPU SKU)
(14022-00362400*2、14022-00250900*2) |
|
| 90SKS000-M3KAN0 | 1 set | 16NVMe Cable Kit (Non-GPU SKU)
(14022-00250900*4、14022-00310900*2) |
|
| 90SKS000-M3LAN0 | 1 set | 8NVMe Cable Kit (For RS720A-E12-RS12)
(14022-00250900*4) |
|
| 90SKS000-M3MAN0 | 1 set | 4NVMe Cable Kit (For RS720A-E12-RS12)
(14022-00250900*2) |
|
| 90SKS000-M3NAN0 | 1 set | 9560 RAID Cable Kit/Support NVMe/SATA/SAS (RS24U)
(14022-00270000*2、14022-00330200) |
|
| 90SKS000-M3PAN0 | 1 set | 9560 RAID Cable Kit/Support NVMe/SATA/SAS (RS24/RS12)
(14022-00130600*2、14022-00330200、14022-00137700*2) |
|
| Riser Card | 90SC0H10-M0XBN0 | 1 | RF16RG8L-R1PB(Low Profile Slot) |
| 90SC0IA0-M0XBN0 | 1 | RF16LX4-D-R2PD(4 Slots) | |
| 90SC0IB0-M0XBN0 | 1 | RF16LX2-D-R2PD(2 Slots) | |
| Riser Kit | 90SKS000-M4RAN0 | 1 set | Double-deck GPU upgrade kit |
| Fan (Include fan cables) | 90SK0000-MJDBN0 | 1 set | 8038 FAN 6PIN 16300RPM DELTA
(13070-01270200) |
| Heatsink (Include thermal grease/pad) | 90SKS000-M4PAN0
90SKS000-M4LAN0 |
1
1 |
AMD SP5 1U EVAC HS(GPU SKU) (13SF02D0M03011)
AMD SP5 2U STD HS(non-GPU SKU) (13SF02E0M04011) |
| HDD Tray | 90SKH000-MPPBN0 | 10 | 2.5” HDD TRAY TOOLLESS (Front/Rear) (13SF02E0AM0101) |
| 90SKH000-MPRBN0 | 10 | 3.5” HDD TRAY TOOLLESS | |
| (13SF01A0AM1101、13SV0005M10011) | |||
| Power Supply | 90SKP000-M4PAN0 | 1 | PSU CRPS 2600W TITANIUM/GOSPOWER |
| (0A100-00450700、U:0A100-00450400 ) | |||
| 90SKP000-M4UAN0 | 1 | PSU CRPS 1600W TITANIUM/GOSPOWER
(0A100-00251400、S:0A100-00252000) |
|
| 90SKP000-M4FAN0 | 1 | PSU CRPS 2000W PLATINUM/ACBEL
(0A100-00310900) |
|
| 90SKP000-M28AN0 | 1 | PSU CRPS 1600W PLATINUM/CHICONY
(0A100-00251700、U:0A100-00251200) |
Parts unavailable
If there is any CID (Customer Induced Damage) related repair demand, below spares parts are not available and suggest to go through SC Customer Service Center) process:
- Chassis
- Screws
- M.2 stand off
- Ear BKT with front panel board
- HDD Cage
- COM port
Riser Kit
- Please select by model / SKU / configuration
| Component | Part No. | MOQ | Remark |
4-slot Riser Kit(GPU SKU) |
90SKXXXX-XXX | 1 set | Include:
long riser bracket riser card (RF16LX4-D-R2PD) assembly screws (no cables included) |
| 4-slot Riser Kit(Non-GPU SKU) | 90SKXXXX-XXX | 1 set | Include:
short riser bracket riser card (RF16LX4-D-R2PD) assembly screws (no cables included) *The riser card do not support OCP3.0 |
2-slot Riser Kit(GPU SKU) |
90SKXXXX-XXX |
1 set |
Include: long riser bracket riser card (RF16LX4-D-R2PD) assembly screws (no cables included) |
| 2-slot Riser Kit(Non-GPU SKU) | 90SKXXXX-XXX | 1 set | Include:
short riser bracket riser card (RF16RG8L-R1PB) assembly screws (no cables included) |
1-slot Low Profile Riser Kit |
90SKXXXX-XXX | 1 set | Include:
short riser bracket riser card (RF16RG8L-R1PB) assembly screws (no cables included) |
| Double-deck GPU upgrade kit | 90SKXXXX-XXX | 1 set |
Include: external fan duct for single-deck GPU GPU power cable assembly screws |
| Single-deck GPU upgrade kit | 90SKXXXX-XXX | 1 set | Include:
external fan duct for double-deck GPU GPU power cable assembly screws |
| SKU | Part No. | Description |
|
RS720A-E12-RS12 |
VSSF02E0-AA0400 | RS720A-E12-RS12//SUPPORT 8NVME |
| VSSF02E0-AA0470 | RS720A-E12-RS12//SUPPORT 4NVME | |
| VSSF02E0-AA0370 | RS720A-E12-RS24/RS12//SUPPORT 8SATA | |
| TBD | Rear HDD cable kit | |
|
RS720A-E12-RS24 |
VSSF02E0-AA0350 | RS720A-E12-RS24//SUPPORT 16NVME FOR RS24 (Non-GPU SKU) |
| VSSF02E0-AA0740 | RS720A-E12-RS24/GPU SKU//SUPPORT 8NVME (GPU SKU) | |
| VSSF02E0-AA0370 | RS720A-E12-RS24/RS12//SUPPORT 8SATA | |
|
RS720A-E12-RS24U |
VSSF02E0-AA0080 | RS720A-E12-RS24U//SUPPORT ON BOARD 8 SATA CABLE |
| TBD | RS720A-E12-RS24U//SUPPORT 24 NVME CABLE | |
|
RS700A-E12-RS4U |
VSSF02D0-AA0340 | RS700A-E12-RS4U/SUPPORT 4NVME// |
| VSSF02D0-AA0350 | RS700A-E12-RS4U/SUPPORT SATA// | |
|
RS700A-E12-RS12U |
VSSF02D0-AA0080 | RS700A-E12-RS12U//SUPPORT 12NVME |
| VSSF02D0-AA0130 | RS700A-E12-RS12U//SUPPORT 12 SATA |
