ASD A-MPR-5D10CCWH(6p) LED Flush Mount Ceiling Light Installation Guide
Contents
LED FLUSHMOUNT COMFORT
- DESIGN – LED FLUSH MOUNT COMFORT has a modern, multipurpose design and a stylish look with efficient lighting. Durable housing resistant to rust and impact along with a acrylic lens provide many years of use. It is designed to operate on 120V circuits.
- COLOR SELECTABLE – You can choose either a 2,700K soft white, 3,000K warm white, 3,500K neutral white, 4,000K cool white, or 5,000K daylight color temperature.
- DIMMING – Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.
- APP CONTROL – Use your smartphone with the ASD smart app to control your fixtures. Set up brightness, color temperature and use RGB backlight. Create groups to customize lighting scenes and scenarios. Alexa voice control, sleep timer and nightlight mode are also available.
- REMOTE CONTROL – Also use the included remote controller to operate your fixtures. One remote to control all COMFORT series fixtures.
- The Starlight Effect creates an elegant atmosphere.
- APPLICATION – The LED FLUSHMOUNT COMFORT provides bright, yet smooth lighting for your family room, bedroom, hallway, corridor, or any other common area in your living space. This fixture is also Damp Locations rated.
- ADVANTAGES – With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty top quality products and safety
- AFINA
- STONE
- DIAMOND
- MYSTERY
- WOOD
- HONEY
- GALAXY RGB
- MYSTERY RGB
| Model | Size | Watts | Voltage | Dimmable | Lumens | CCT | Finish | Dimensions (LxWxH) |
| ASD-LFC-SN-16D28-AC | 16 inch | 28W | 120 V | TRIAC | 1,758/1,896/2,036/2,126/2,053 lm | 5CCT (2,700/3,000/3,500/4,000/5,000 K) | White | 16-15/16″ x 16-15/16″ x 3-3/4″ |
| ASD-LFC-AF-20D42-AC | 20 inch | 42W | 120 V | TRIAC | 2,158/2,315/2,497/2,638/2,468 lm | 5CCT (2,700/3,000/3,500/4,000/5,000 K) | Black | 19-1/8″ x 19-1/8″ x 3-9/16″ |
| ASD-LFC-SN-20D42-AC | 20 inch | 42W | 120 V | TRIAC | 2,818/3,026/3,263/3,430/3,206 lm | 5CCT (2,700/3,000/3,500/4,000/5,000 K) | White | 20-13/16″ x 19-5/16″ x 4-1/8″ |
| ASD-LFC-DD-20D42-AC | 20 inch | 42W | 120 V | TRIAC | 2,818/3,026/3,263/3,430/3,206 lm | 5CCT (2,700/3,000/3,500/4,000/5,000 K) | White | 19-5/16″ x 19-5/16″ x 3-9/16″ |
| ASD-LFC-MY-20D42-AC | 20 inch | 42W | 120 V | TRIAC | 2,818/3,026/3,263/3,430/3,206 lm | 5CCT (2,700/3,000/3,500/4,000/5,000 K) | White | 19-1/2″ x 19-1/2″ x 3-1/8″ |
| ASD-LFC-WD-20D42-AC | 20 inch | 42W | 120 V | TRIAC | 1,824/1,957/2,112/2,230/2,098 lm | 5CCT (2,700/3,000/3,500/4,000/5,000 K) | Wood | 19-1/8″ x 19-1/8″ x 3-9/16″ |
| ASD-LFC-HN-20D42-AC | 20 inch | 42W | 120 V | TRIAC | 2,138/2,249/2,544/2,372/2,381 lm | 5CCT (2,700/3,000/3,500/4,000/5,000 K) | Gold | 18-7/8″ x 18-7/8″ x 4-3/4″ |
| LFC-RGB-SMART | ||||||||
| ASD-LFC-GX-20D42S-RGB-SMART | 20 inch | 42W | 120 V | TRIAC | 2,855/2,959/3,282/3,327/3,229 lm | 2,700-5,000 K | White | 21-7/8″ x 21-7/8″ x 3-1/4″ |
| ASD-LFC-MY-20D42S-RGB-SMART | 20 inch | 42W | 120 V | TRIAC | 2,195/2,357/2,470/3,386/3,287 lm | 2,700-5,000 K | White | 19-1/2″ x 19-1/2″ x 3-3/16″ |
PRODUCT SPECIFICATIONS
| Construction & Materials | ||||||||||||
| Housing | Iron | |||||||||||
| Lens | Acrylic | |||||||||||
| Finish | Black, White, Wood, Gold | |||||||||||
| Weight | ASD-LFC-SN-16D28-AC | 2 lbs (0.9 kg) | ASD-LFC-WD-20D42-AC | 3.3 lbs (1.5 kg) | ||||||||
| ASD-LFC-AF-20D42-AC | 3.1 lbs (1.4 kg) | ASD-LFC-HN-20D42-AC | 3.1 lbs (1.4 kg) | |||||||||
| ASD-LFC-SN-20D42-AC | 2.9 lbs (1.3 kg) | ASD-LFC-GX-20D42S-RGB-SMART | 7.1 lbs (3.2 kg) | |||||||||
| ASD-LFC-DD-20D42-AC | 3.3 lbs (1.5 kg) | ASD-LFC-MY-20D42S-RGB-SMART | 5.7 lbs (2.6 kg) | |||||||||
| ASD-LFC-MY-20D42-AC | ||||||||||||
| Environmental system | ||||||||||||
| Work environment | Suitable for Damp Locations | |||||||||||
| Operating temperature | -4°F to 104°F (-20°C to 40°C) | |||||||||||
| L-70 Life | > 50,000 hrs | |||||||||||
| Optical system | ||||||||||||
| Luminous flux | ASD-LFC-SN-16D28-AC | 1,758/1,896/2,036/2,126/2,053 lm | ASD-LFC-WD-20D42-AC | 1,824/1,957/2,112/2,230/2,098 lm | ||||||||
| ASD-LFC-AF-20D42-AC | 2,158/2,315/2,497/2,638/2,468 lm | ASD-LFC-HN-20D42-AC | 2,138/2,249/2,544/2,372/2,381 lm | |||||||||
| ASD-LFC-SN-20D42-AC | 2,818/3,026/3,263/3,430/3,206 lm | ASD-LFC-GX-20D42S-RGB-SMART | 2,855/2,959/3,282/3,327/3,229 lm | |||||||||
| ASD-LFC-DD-20D42-AC | ASD-LFC-MY-20D42S-RGB-SMART | 2,195/2,357/2,470/3,386/3,287 lm | ||||||||||
| ASD-LFC-MY-20D42-AC | ||||||||||||
| Color temperature | 5CCT switch (2,700/3,000/3,500/4,000/5,000 K) | |||||||||||
| From 2,700 K to 5,000 K with remote control | ||||||||||||
| CRI | > 80 | |||||||||||
| Electrical system | ||||||||||||
| Input voltage | 120 V | |||||||||||
| Max input current | 0.4 A | |||||||||||
| Inrush current (Action time) | 20 A (0.5 S) | |||||||||||
| Off state power | 0W | |||||||||||
| Power consumption | 42W | for ASD-LFC-SN-16D28-AC: 28W | ||||||||||
| Power factor | > 0.9 | |||||||||||
| Output voltage | 126 V | for SMART models: 36-40 V | ||||||||||
| Max output current | 0.27 A | for SMART models: 0.95 A | ||||||||||
| Surge protection DM/CM | 1.5 kV / 3.6 kV | |||||||||||
| Dimming range | ||||||||||||
| 10-100% | ||||||||||||
| Dimming compatible controls | ||||||||||||
| Brand | Lutron | Leviton | ||||||||||
| Models | MACL-153MLH-WH | STCL-153PH-WH | PD-6WCL-WH-R | DVCL-153PR | P-PKG1W | R02-DW6HD-2RW | R00-RNL06-0TW | R68-06674-P0T | DSL06 | |||
| Regular and voluntary certifications | ||||||||||||
| 5-year limited warranty | ||||||||||||
PACKAGE CONTENTS
| Description | Q-ty |
| LED Flushmount Comfort | 1 |
| Remote control (A) only for RGB-SMART models | 1 |
| Wire nut (B) | 3 |
| Screw (C) | 2 |
| Box | 1 |
REMOTE CONTROL=
| Button | Remarks | Button | Remarks |
 |
ON/OFF | K+ | Increase color-temperature |
| Adjust color temperature: 2,700/3,000/3,500/4,000/5,000 K | K- | Decrease color temperature | |
| Timer 30 minutes | RGB | RGB backlight | |
 |
Night light | 2700K | Color temperature preset 2,700 K |
 |
Increase brightness | 3500K | Color temperature preset 3,500 K |
| Decrease brightness | 5000K | Color temperature preset 5,000 K |
INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION
Please read all the instructions below before installation.
- Make sure that the supply voltage corresponds to the rated product voltage.
- The product must be installed by a qualified electrician in accordance with the National Electrical Code and corresponding local codes.
- If the product is damaged, do not use it.

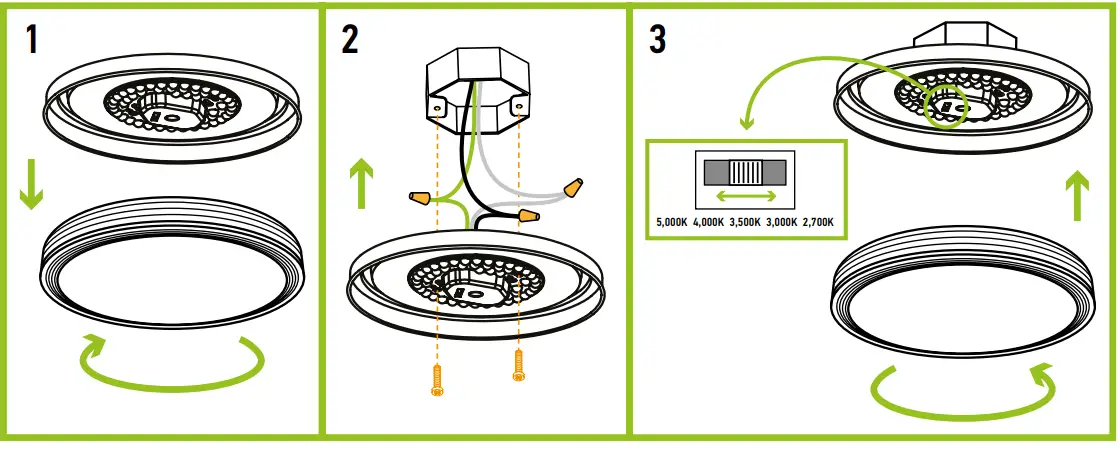

INSTALLATION STEPS:
- Remove the lens by rotating it clockwise.
- Attach the two screws to the outlet box. Connect the wires: Black to Black, White to White, Ground to Ground. Secure the connection with wire nuts. Carefully tuck all the wires back into the outlet box.
- Choose either 2,700K, 3,000K, 3,500K, 4,000K or 5,000K with a simple switch (for RGB-SMART models use remote or App). Attach the lens and rotate it сounter-clockwise to secure it to the fixture.
For SMART RGB Series please see manual by link or QR-code below
WARNING
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions. Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician to ensure correct branch circuit conductor.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
ELECTRICAL SCHEMATIC DIAGRAM:
ASD SMART APP DOWNLOAD:
Android
Occasion
ORDERING INFORMATION
| Model | UPC | Pcs. per carton | Carton size | Carton weight | GTIN 14 |
| ASD-LFC-SN-16D28-AC | 810050737883 | 4 | 20.5″ x 18.1″ x 18.3″ | 16.6 lbs | 10810050737880 |
| ASD-LFC-AF-20D42-AC | 810050737159 | 4 | 21.8″ x 18.1″ x 22.1″ | 23.1 lbs | 10810050737156 |
| ASD-LFC-SN-20D42-AC | 810050737173 | 4 | 23″ x 20.3″ x 23.5″ | 24.3 lbs | 10810050737170 |
| ASD-LFC-DD-20D42-AC | 810050737838 | 4 | 21.8″ x 22.1″ x 18.1″ | 24 lbs | 10810050737835 |
| ASD-LFC-MY-20D42-AC | 810050737845 | 4 | 21.8″ x 22.1″ x 18.1″ | 24 lbs | 10810050737842 |
| ASD-LFC-WD-20D42-AC | 810050737166 | 4 | 21.8″ x 18.1″ x 22.1″ | 24 lbs | 10810050737163 |
| ASD-LFC-HN-20D42-AC | 810050737852 | 4 | 21.4″ x 21.7″ x 23.6″ | 23.1 lbs | 10810050737859 |
| LFC-RGB-SMART | |||||
| ASD-LFC-GX-20D42S-RGB-SMART | 810050737890 | 4 | 24.1″ x 16.5″ x 24.4″ | 31.7 lbs | 10810050737897 |
| ASD-LFC-MY-20D42S-RGB-SMART | 810050737906 | 4 | 22″ x 15.8″ x 22.2″ | 27.3 lbs | 10810050737903 |
For most up-to-date spec sheets please refer to asd-lighting.com
ASD LIGHTING CORP
E-mail: [email protected]
Web site: www.asd-lighting.com
