Flush Anywhere Niche [Luxe]
Installation Guide
Flush Anywhere Niche Luxe Ultra-Minimal Recessed Shelf
Note
▪ LED light strip must be integrated prior to installation.
*See back for more instructions*
Dry fit body into vent opening
Filler material (i.e. wood, foam) may be added between back panel and the joist for additional support.
Ensure flange is flat to the wall.
Use screws to fasten as needed.

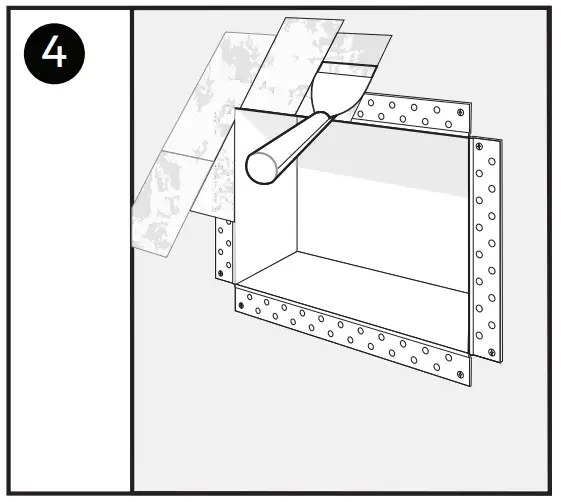

Mud and tape drywall compound to cover flange. Allow to dry.

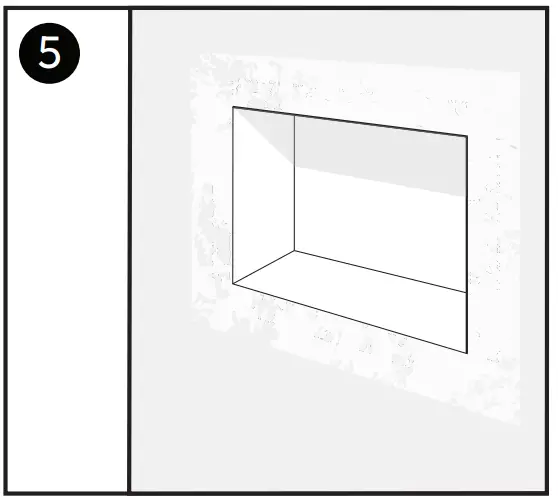

Sand mud so surface transitions smoothly. Repeat steps 3, 4 as needed.

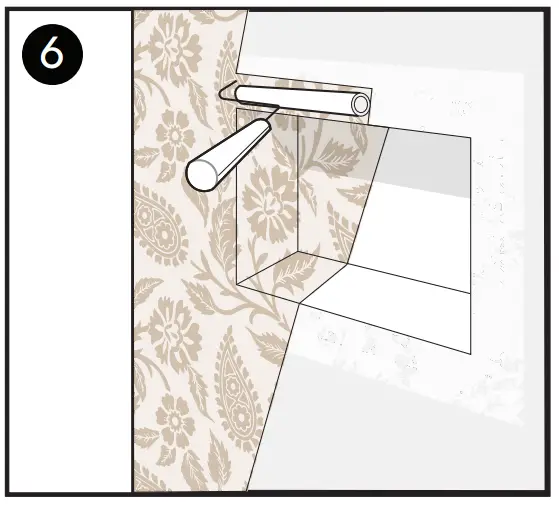

Paint walls, and all surfaces. *can also be used with wallpaper
Note
▪ LED light strip must be integrated prior to installation.
Line LED light strip along the inner top channel. Strip should not exceed channel width of ½ inch.

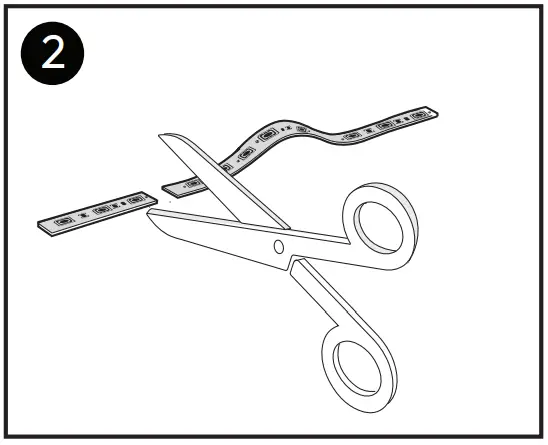

Cut LED light strip length to size.
Use adhesive to secure the LED strip to the roof of the channel.
Connect the solderless clamp to the LED Strip, and attach the converter.
Lay the converter along the top support. Drift and connect power.
Maintenance post installation can be done through the concealed hinge doors.
Note
- LED light strip must be integrated prior to installation.
*See back for more instructions*
Dry fit body into drywall opening. Hinged doors must be on the top.
Material (wood, foam etc.) may be added between rear and stud for added support.
Apply adhesive around the perimeter of the drywall opening.
Insert body. Bend hinged doors to access screw holes. Secure body to drywall studs.

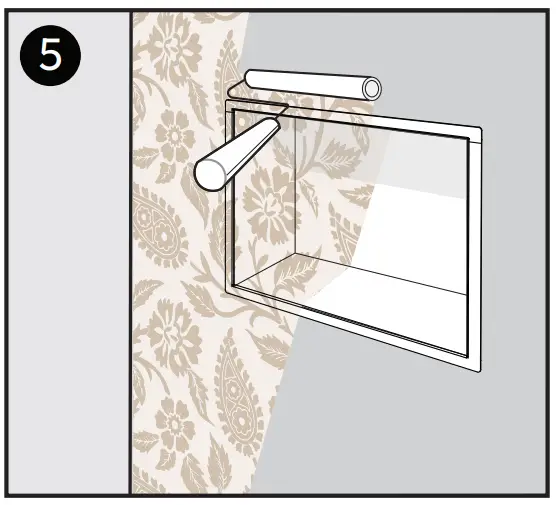

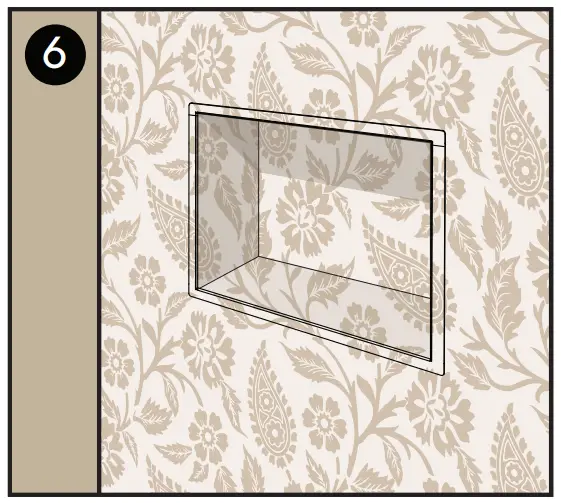

Paint or wallpaper to customize.
Enjoy!
Note
▪ LED light strip must be integrated prior to installation.
Line LED light strip inside the top channel. Strip should not exceed width of ½ inch.
Cut LED light strip length to size.
Use adhesive to secure the LED strip to the roof of the channel.
Connect the solderless clamp to the LED strip and attach the converter.
Lay the converter along the top support. Dry fit and connect power.
Maintenance post installation can be done through the concealed hinge doors.
Additional Support / Soutine Supplement
Aire [email protected] / www.ariavent.com
Patent Information / Information’s sur les
Brevets www.ariavent.com/pages/patents
Made in Canada
