ARDUINO ROBOTIC ARM 4 DOF
Contents
Introduction

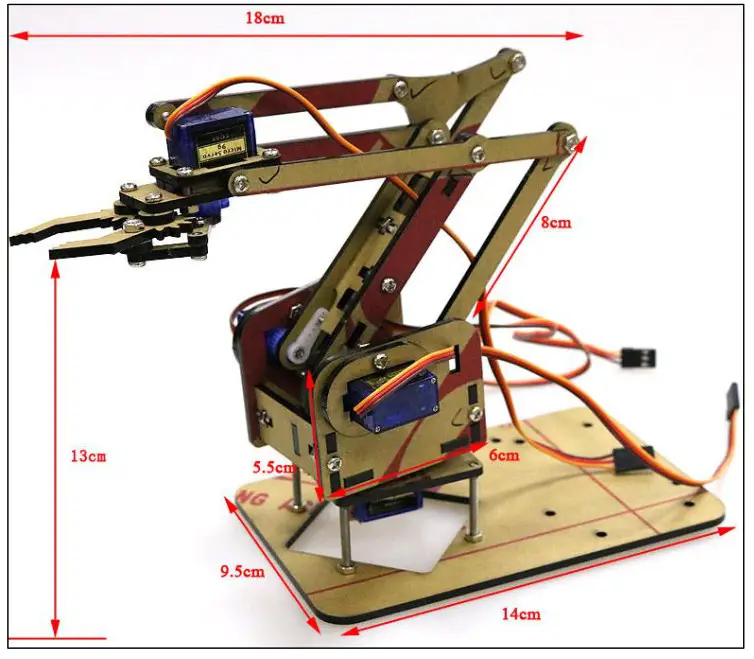

The MeArm project aims to bring a simple Robot Arm well within the reach and budget of the average educator, student, parent or child. The design brief that has been set out with was to build a full robot arm kit with standard low cost screws, low cost servomotors and using less than 300 x 200mm (~A4) of acrylic. While trying to solve the robotic problem, user also can get to learn about science, technology, engineering, arts and mathematics or STEAM.
The more people who are involved with these STEAM activities the more chance they have of solving all of life’s problems. The MeArm is an Open Sourced Robot Arm. It’s small, like pocket sized and that’s for a reason. It can be cut entirely from an A4 (or more accurately 300x200mm) sheet of acrylic and built with 4pcs cheap hobby servos. It supposed to be an educational aid, or more accurately a toy. It still needs some tinkering but is at a good first draft state.

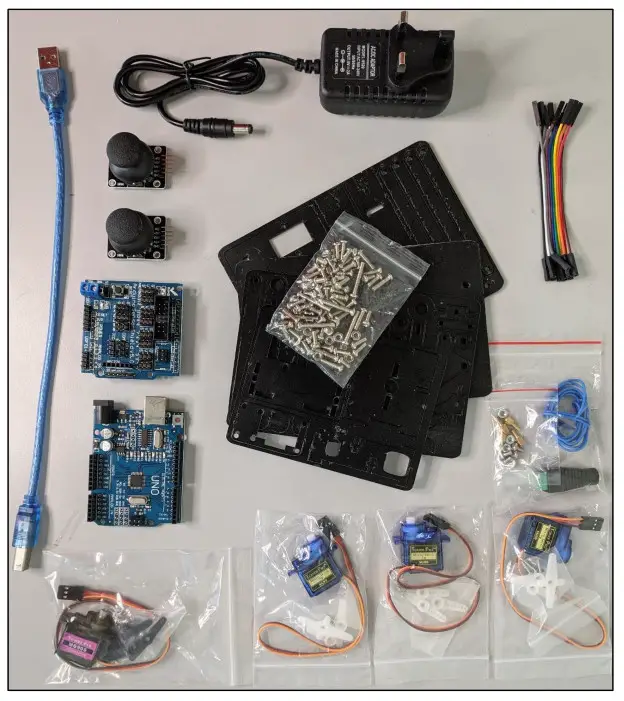

Component List
- Servo Motor SG90S (Blue) – 3set
- Servo Motor MG90S (Black) – 1set
- Robotic Arm Acrylic Kit – 1set
- Arduino UNO R3 (CH340) + Cable – 1pcs
- Arduino Sensor Shield V5 – 1pcs
- Joystick Module – 2pcs
- Jumper Wire Female to Female – 10pcs
- Power Adapter DC 5v 2A – 1pcs
- DC Jack (Female) Plug Converter – 1pcs
- Single Core Cable – 1m

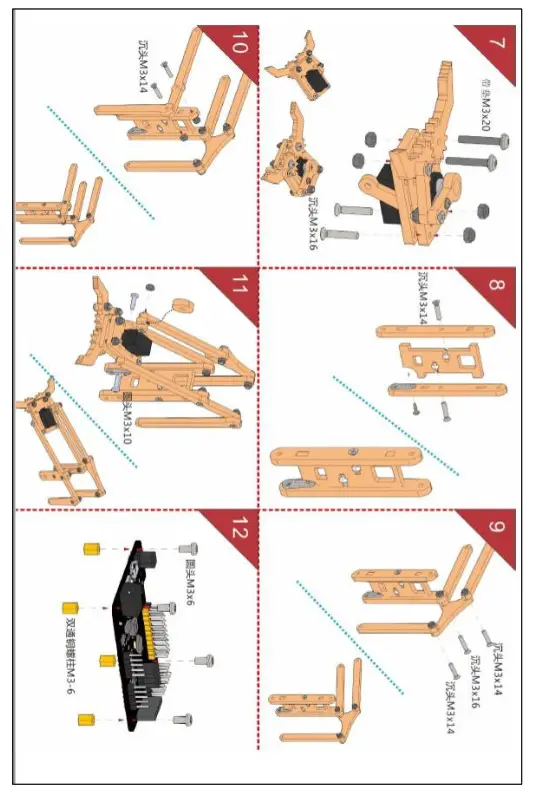

Installation Manual
Reference: Assembly of MeArm Mechanical Arm (gitnova.com)

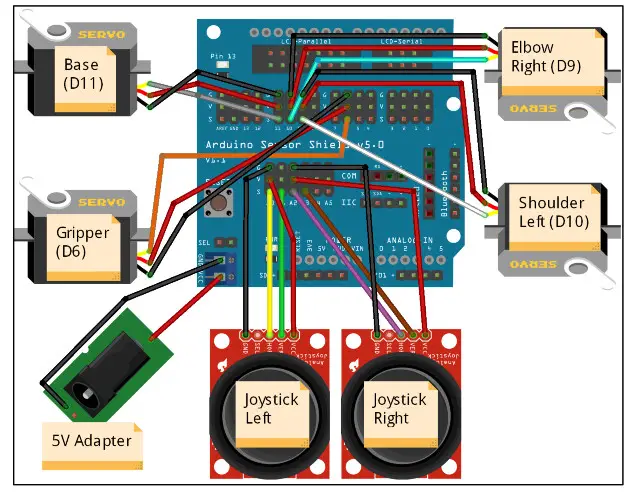

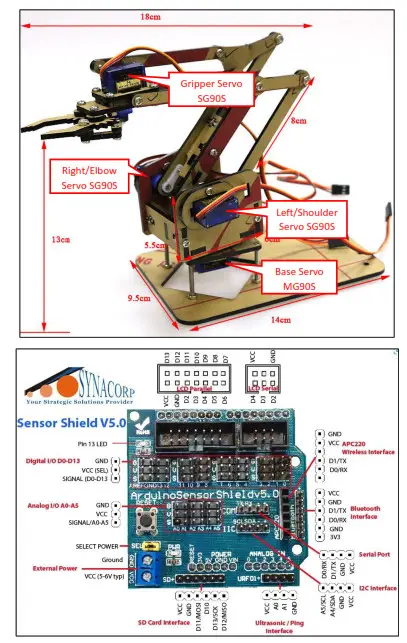

Circuit Diagram
| Arduino Sensor Shield V5 | Servo MG9OS (Base) *Black Color* |
| Data 11 (D11) | Signal (S) |
| VCC | VCC |
| GND | GND |
| Arduino Sensor Shield V5 |
Servo SG9OS (Gripper) |
| Data 6 (D6) | Signal (S) |
| VCC | VCC |
| GND | GND |
| Arduino Sensor Shield V5 |
Servo SG9OS (Shoulder/Left) |
| Data 10 (D10) | Signal (S) |
| VCC | VCC |
| GND | GND |
| Arduino Sensor Shield V5 | Servo SG9OS (Elbow/Right) |
| Data 9 (D9) | Signal (S) |
| VCC | VCC |
| GND | GND |
| Arduino Sensor Shield V5 |
Joystick Module Left |
| Analog 0 (A0) | VRX |
| Analog 1 (A1) | VRY |
| VCC | VCC |
| GND | GND |
| Arduino Sensor Shield V5 |
Joystick Module Right |
| Analog 0 (A0) | VRX |
| Analog 1 (A1) | VRY |
| VCC | VCC |
| GND | GND |
| Arduino Sensor Shield V5 |
DC Power Jack |
| VCC | Positive Terminal (+) |
| GND | Negative Terminal (-) |

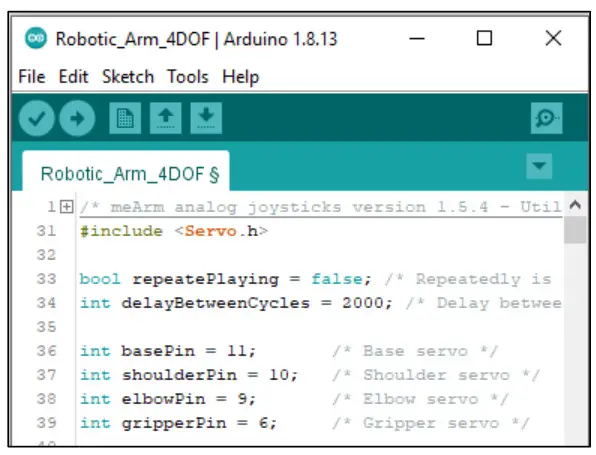

Sample Code
Upload this code after finish Kit installation.
(https://home.mycloud.com/action/share/5b03c4d0-a74d-4ab5-9680-c84c75a17a70)

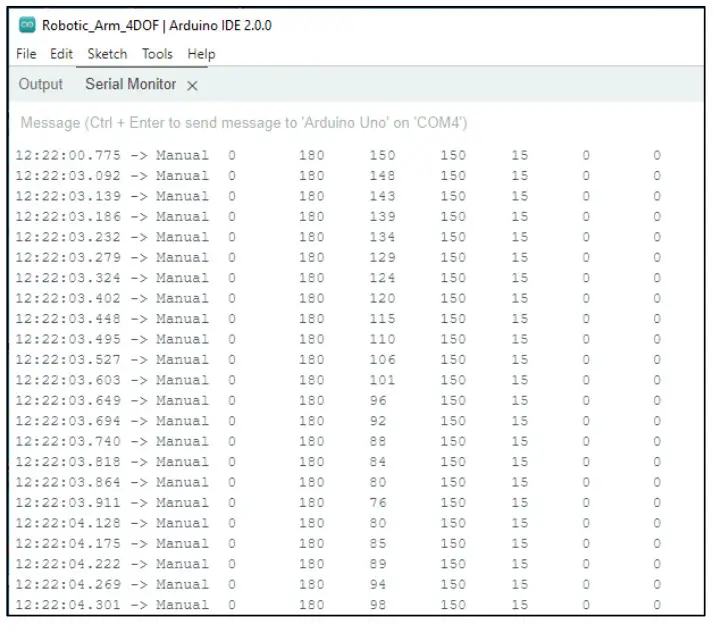

You can check servo angle via Serial Monitor

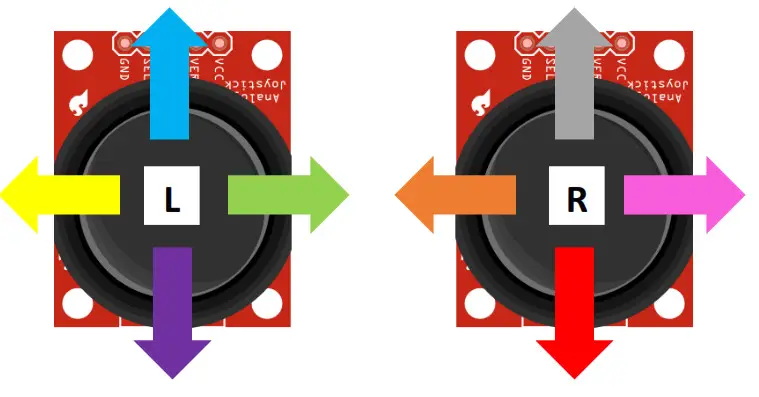

Control / Movement Set
| Color | Servo | Action |
| L | Base | Turn Base to Right |
| L | Base | Turn Base to Left |
| L | Shoulder/Left | Move Upward |
| L | Shoulder/Left | Move Downward |
| R | Gripper | Open |
| R | Gripper | Close |
| R | Elbow/Right | Move Backward |
| R | Elbow/Right | Move Forward |
