AR RG Solid Shaft Pump Owner’s Manual

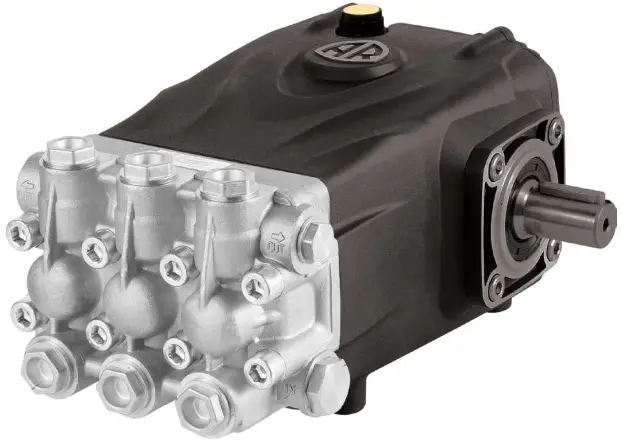

AR RG Solid Shaft Pump

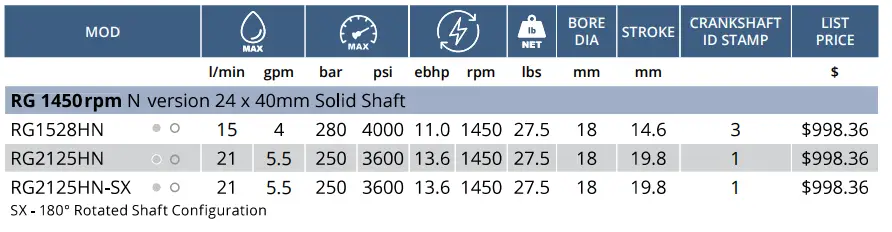

Product Information

• Specifications
  • Model: RG Solid Shaft Pump
  • Head Material: Nickel Plated Brass
  • Connecting Rods Material: Aluminum
  • Flow Rate: 15 l/min / 3 gpm
  • Pressure: 5.5 bar / 80 psi
  • Bore Diameter: 1 mm
  • Stroke: 5.5 mm
  • Crankshaft ID Stamp: 1
  • List Price: $58

Product Usage Instructions

• Installation
  • Ensure the pump is securely mounted on a stable surface.
  • Connect the necessary hoses to the inlet and outlet ports.
  • Prime the pump by filling the pump chamber with liquid before starting.
• Maintenance
  • Regularly check for leaks, worn-out seals, or damaged components. Replace any faulty parts promptly to ensure optimal performance.
• Cleaning
  • After each use, flush the pump with clean water to remove any residue or debris that may affect its operation.

FAQs

• Q: How often should I replace the pistons and seals?
  • A: It is recommended to replace pistons and seals as part of regular maintenance, typically every 6-12 months depending on usage.
• Q: Can I use this pump for pumping corrosive liquids?
  • A: This pump is designed for general use. Consult the manufacturer for specific recommendations regarding corrosive liquids.

COMMERCIAL

• 140° F – Max Water Temp
• 1/2” F – Inlet Thread
• 3/8” F – Discharge Thread
• 32 oz – Oil Capacity

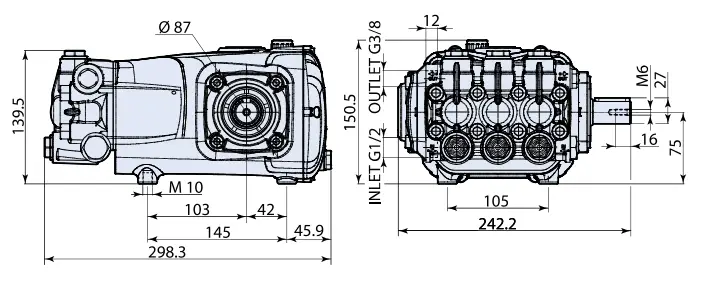

DIMENSION

N version

PARTS KITS

SPECIAL PARTS / KITS

MOD	DESCRIPTION	LIST PRICE
AR2748	Rail Kit 1-1/4” (2 rails & 4 bolts)	$26.67
AR2748H	Rail Kit 2-1/2” (2 rails & 4 bolts)	$74.62
AR64516	Oil (16 oz)	$15.80
AR43619	Piston     20	$90.08
AR43620	Water Seal     20	$90.87
AR43621	Piston Guide     20	$77.92

REPAIR KITS

MOD	DESCRIPTION	QTY	LIST PRICE
AR2864	Valves	6	$72.86
AR2548	Pistons     18	3	$261.53
AR46848	Water Seals     18	3	$38.28
AR47083	Oil Seals	4	$36.03
AR42172	Piston Guides     18	3	229.20
AR2780	Valves     22	6	156.20
AR2543	Piston     22	3	$302.18
AR2783	Water Seal     22	3	$165.54
AR2785	Piston Guide     22	3	$142.78
