INSTALLATION INSTRUCTIONS

Applicable Installation Environment

Make sure that the wall is in smoothness, and do not stick on any wallpaper.

Applicable installation environment Not Applicable installation environment
Aoibox SNMX-501 Rectangle Gold Alloy Framed Full Length Wall Mounted Standing Mirror - icon Wood wall / tile wall / metal wall / glass wall / latex paint wall Aoibox SNMX-501 Rectangle Gold Alloy Framed Full Length Wall Mounted Standing Mirror - icon1 long-term in moist wall / wallpaper / dusty wall

Installation Step

Load-Carrying Check
Check the load-carrying capacity of the wall, and make sure it can bear the weight of the mirror.
Measure off
Mark the distance on the wall at a required height.
Aoibox SNMX-501 Rectangle Gold Alloy Framed Full Length Wall Mounted Standing Mirror - Aoibox SNMX-501 Rectangle Gold Alloy Framed Full Length Wall Mounted Standing Mirror - Fig 1
Punch Holes
Drill two holes of 0.23-0.31 inches in diameter and 1.98 inches in depth at arranged position.
Expansion screw
Put the metal screws into the plastic expansion screws
Aoibox SNMX-501 Rectangle Gold Alloy Framed Full Length Wall Mounted Standing Mirror - Fig 2 Aoibox SNMX-501 Rectangle Gold Alloy Framed Full Length Wall Mounted Standing Mirror - Fig 3

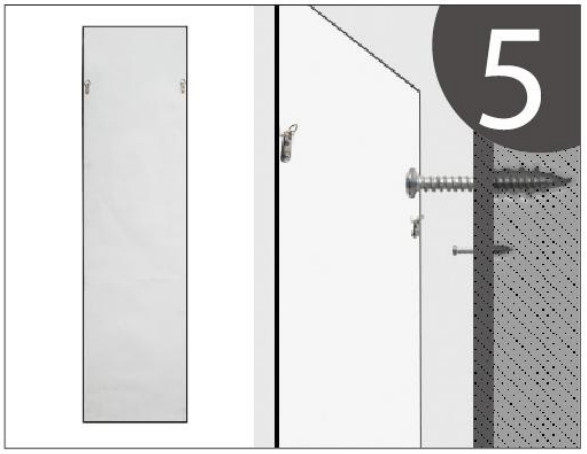

Hang Mirror
Hang the mirror onto the wall then install the mirror holders.

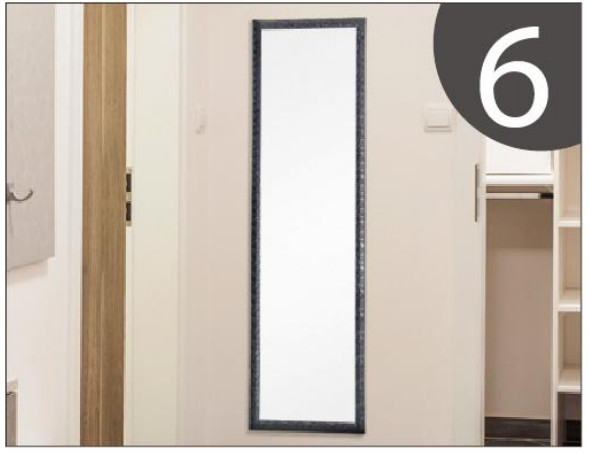

Complete Installation
Make sure the mirror is securely mounted and there are no signs of looseness.
Aoibox SNMX-501 Rectangle Gold Alloy Framed Full Length Wall Mounted Standing Mirror - Fig 4
