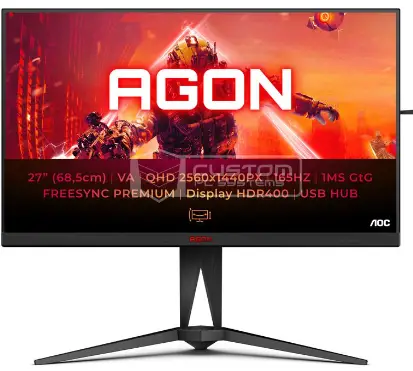

AOC AG275QXN 27 Inch QHD VA 165Hz Gaming Monitor
Product Information
The AG275QXN is a 27-inch wide-screen TFT color LCD monitor with a maximum resolution of 2560×1440 at 144Hz (HDMI) or 165Hz (DP) and a pixel pitch of 0.2331mm (H) x 0.2331mm (V). It has a driving system that makes use of TFT Color LCD technology. The monitor has a viewable image size of 68.5cm diagonal and a horizontal scan range of 30k-230kHz (HDMI) or 30k-250kHz (DP). The AG275QXN is equipped with HDMIx2/DPx2/USBx4/Earphone connectors, and comes with detachable signal cables.
Product Usage
- Unpack the box and ensure that all the following items are included: the monitor, stand, base, power cable, warranty card, HDMI cable, DP cable, and USB cable. These items may differ according to the country or region.

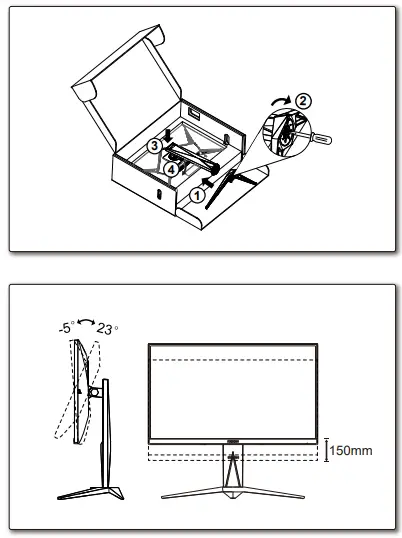

- Place the base on a stable surface and attach the stand to the base.

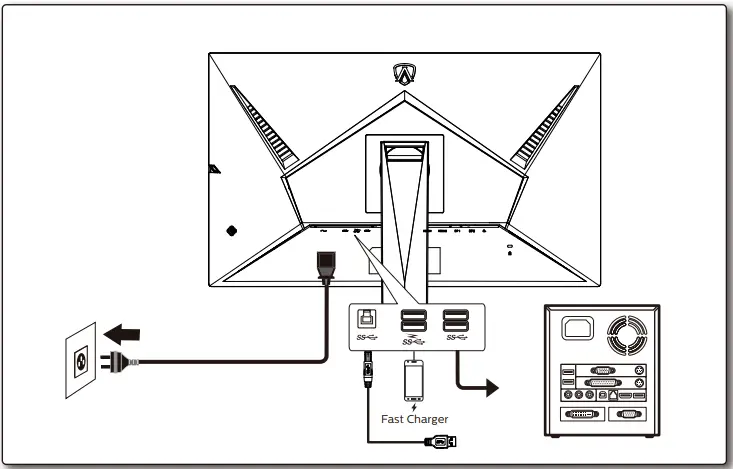

- Connect the power cable to the monitor and plug it into an electrical outlet.

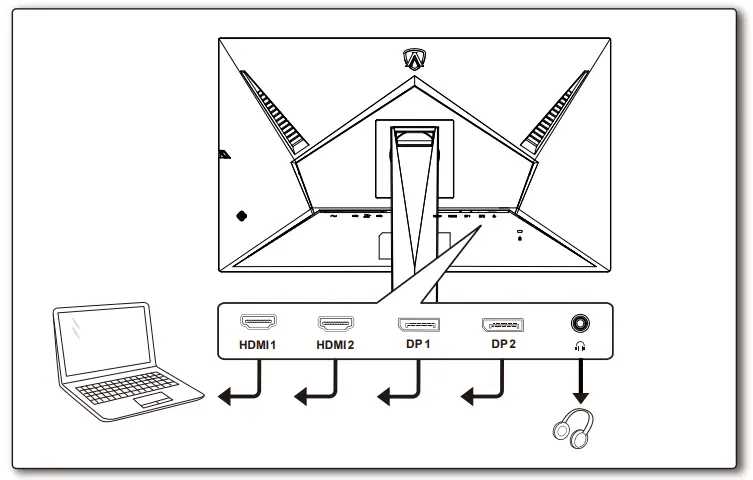

- Connect the HDMI or DP cable to your computer or other device and to the corresponding port on the monitor.
- Turn on your computer or device, and then turn on the monitor.

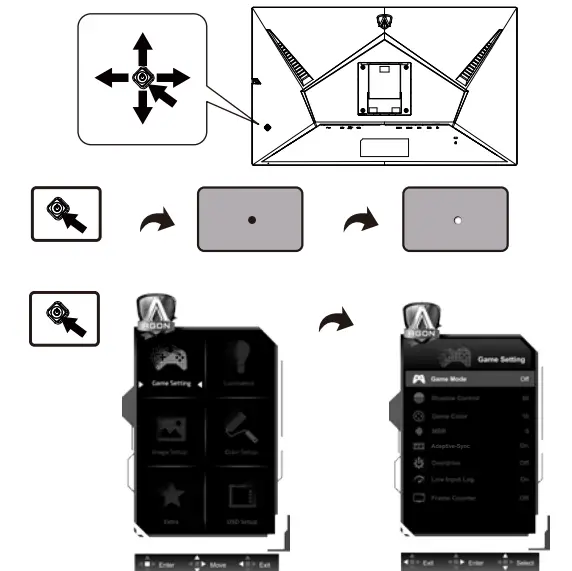

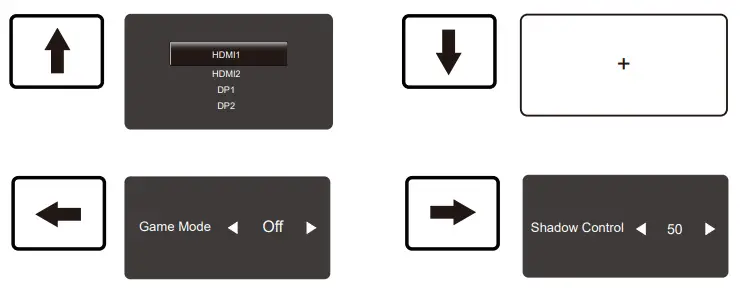

- Adjust the monitor settings as needed using the control buttons on the underside of the monitor.
Note: The display design may differ from what is illustrated in the manual. For further support, please refer to the links provided in the manual for your country or region.
In The Box
Different according to countries/regions
Display design may differ from that illustrated
INSTRUCTIONS

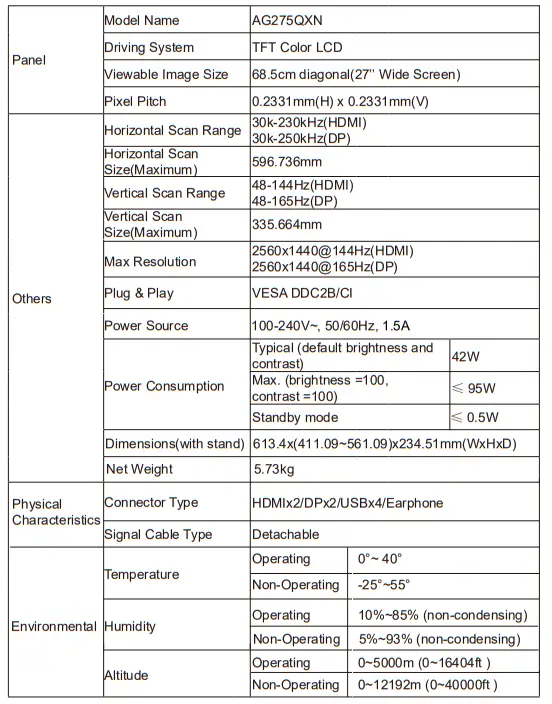

General Specification

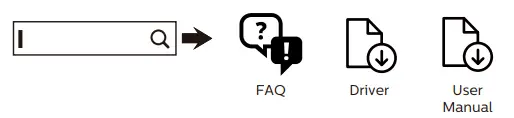

Find your product and get support
Europe https://eu.aoc.com/en/support
