ANTDALIS AK-002 Sunrise Alarm Clock Wake Light

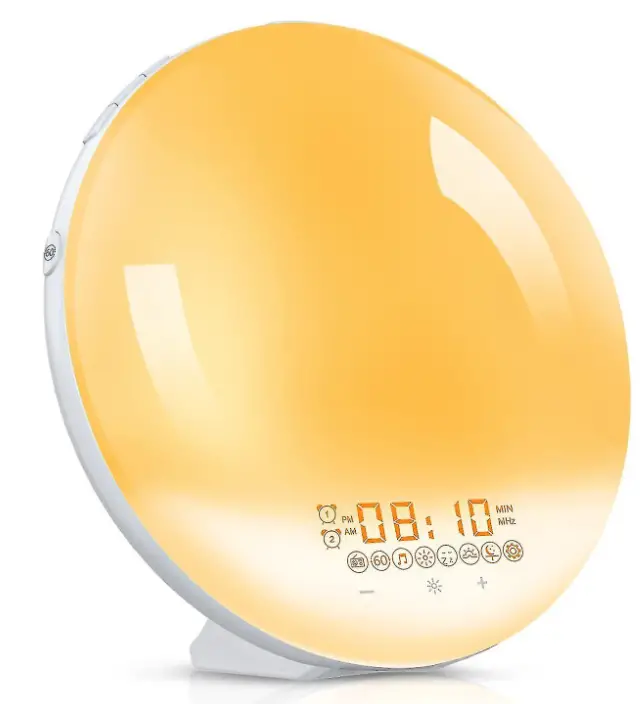

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-product

Product Diagram-Top and front side

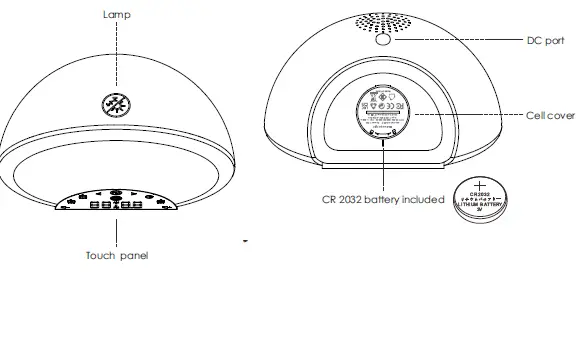

Product Diagram-Bottom and back side

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-01

Touch buttons ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-02

Package Content

1xWake up light 1xQuick user guide
1xAdapter (DC12V, 1A) 1xUser manual

Specification

Model AK-002
Power 10W
Light source LED SMD2835 69Pcs+RGB SMD5050 15Pcs
CCT 5200K/1700K
CRI ＞80Ra
White light mode 3 Light mode (2500K, 3000K, 3500K)
Color light mode 8 Single color & 1 Color gradient
Dimming mode Stepless dimming
Snooze time 9 minutes
Wake up/Fall asleep sounds 7 Sounds/7 Sounds
Sound volume 0-10 levels
Fall asleep timer 30,60,90 Mins, 2Hrs, 12Hrs
FM radio channel 76-108MHz
Display brightness levels 4 Levels (15%/40%/70%/100%/OFF)
Adapter specification Input: AC100-240V; Output: DC12V, 1A
Power back up CR2032 Lithium battery ( 3.0V/210mAh)
Lamp materials ABS+PC+PMMA
Lamp color White
Lamp size L180XW117XH153mm

Setting the clock time

Place the wake up light at 40-50cm from your head on a bedside table.
when powered on, the timeANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-03 will be displayed at 70% brightness on the screen by default.

  1. Press and hold the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-05for 1.5 seconds to enter hours setting, hours ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-06icon will flash.
  2. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04to set hours.
  3. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 to confirm hours setting and move to minutes setting, minutes iconANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-07 will flash.
  4. Press the button or ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 to set minutes.
  5. Press the button toANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 confirm minutes setting and move to 12H/24H setting, the icon ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-08will flash.
  6. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to set 12H or 24H.
  7. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-05 to confirm 12H/24H setting and exit, and the set clock time will display immediately.
    Note: Wait for 30 seconds with no operations to exit the setting mode.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-09

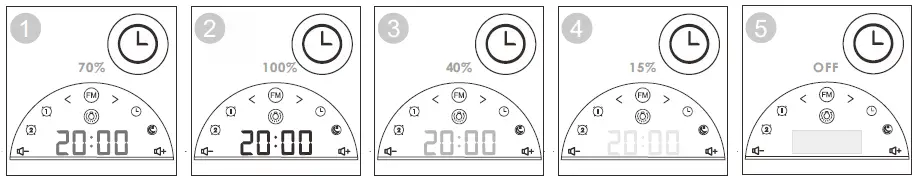

Adjusting the display brightness

  • Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-05 to set the display brightness (70%-100%-OFF-15%-40%). ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-010

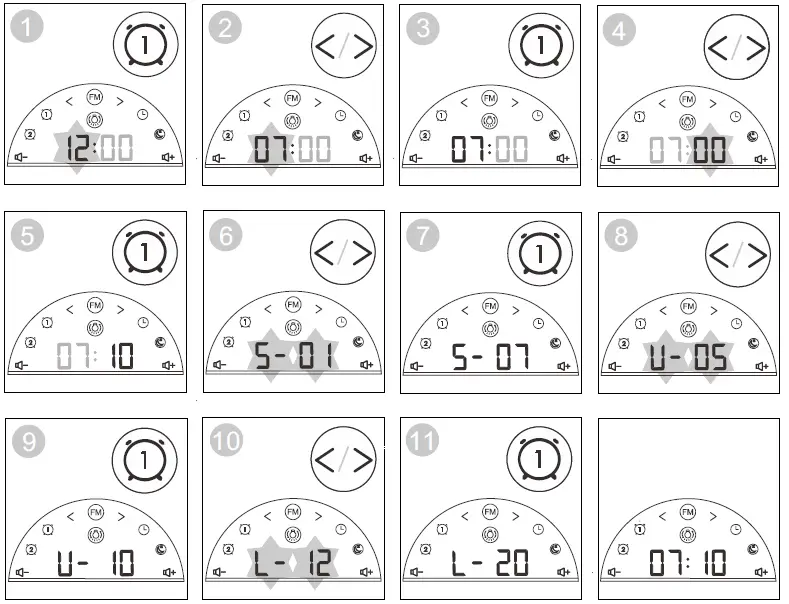

Setting Alarm 1/Alarm 2

Please set the clock time before setting the alarm, now take “Clock time 12:00 and Alarm 1″ for example.

  1. Press and hold the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-05 for 1.5 seconds to enter hours settings, hours iconANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-06 will flash.
  2. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04or to set hours.
  3. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-05 to confirm hours setting and move to minutes setting, minutes iconANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-07 will flash.
  4. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to set minutes.
  5. Press the button toANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 confirm minutes setting and move to sounds setting, sounds icon ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-012will flash.
  6. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to set 7 alarm sounds.
  7. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-05 to confirm sounds setting and move to volume setting, volume icon ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-013will flash.
  8. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to set 0-10 volume level.
  9. Press the button  to confirm volume setting and move to light intensity setting, the light intensity icon will flash.
  10. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04  or to set 20 light intensity.
  11. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-05  to confirm light intensity setting and exit, the indicator light is on, and the clock time will display immediately. Note: Wait for 30 seconds with no operations to exit the setting mode.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-014

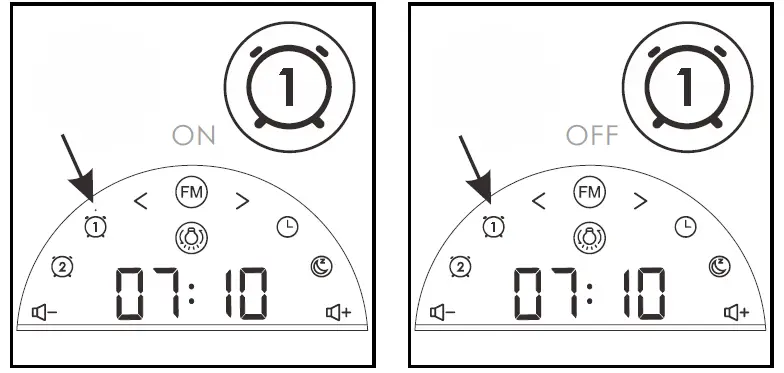

Switching the alarm on/off

Take the alarm 1 for example,

  • Press the alarm button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-011to switch the alarm on, the indicator light will be turned on immediately, the display screen will display the alarm time for 2 seconds simultaneously, then it will display the clock time immediately.
  • Press the alarm button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-011 to switch the alarm off, the indicator light will be turned off immediately.
  • Note: When switches on the alarm, the light intensity will gradually increase to the set level 30 minutes before the alarm sound is played. When reaching to the alarm time, the alarm will keep ringing for 20 minutes if not activating the snooze function.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-015

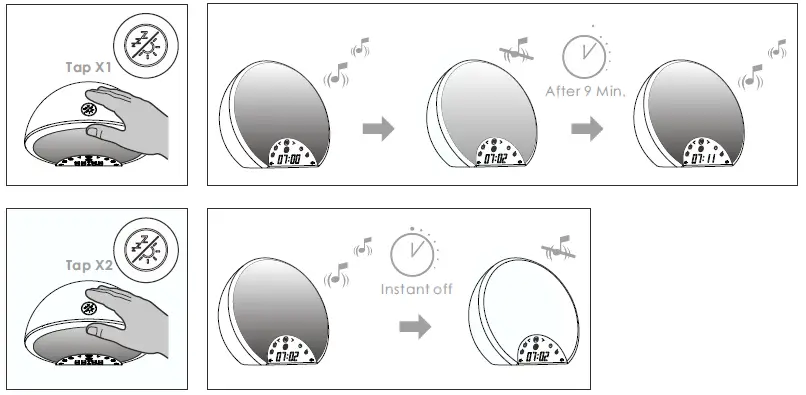

Snoozing & Turn off the alarm

  • Double-tap the button to turn off the alarm for the day.
    Tap once the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-016to snooze for 9 Mins. The light stays at the half brightness, but the alarm sound stops. After 9 Mins, the alarm sound is automatically played again, and the light returns to the full brightness.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-017

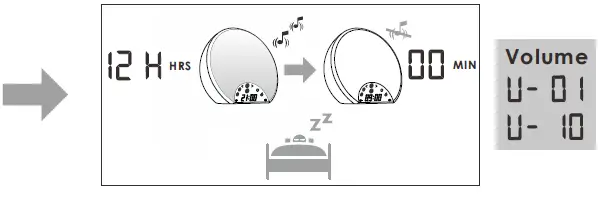

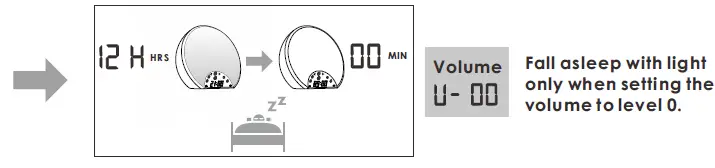

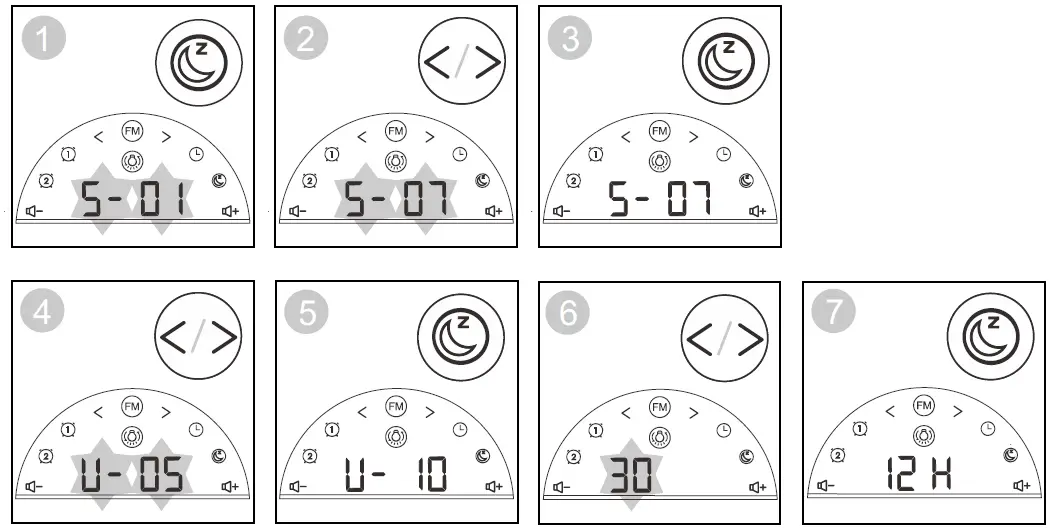

Setting the fall asleep function

Set the fall asleep function when you want the soft night light and/or the sleep sound to stay on during a set period time (30Mins-12Hrs) to help you fall asleep. The night light and/or sleep sound will switch off automatically after the set time.

  1. Press and hold the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-018for 1.5 seconds to enter sounds setting, sounds ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-012icon will flash,
  2. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to set 7 sleep sounds.
  3. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-018 to confirm sounds setting and move to volume setting, volume icon ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-013will flash,
  4. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to set 0-10 volume level.
  5. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-018 to confirm volume setting and move to sleep timer setting, timer icon ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-019 will flash,
  6. Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to set 30/60/90/2H/12H timer.
  7. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-018 to confirm sleep timer setting and exit, the indicator light is on, and the clock time will display immediately.

Note: Wait for 30 seconds with no operations to exit the setting mode.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-020 ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-021

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-021

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-023

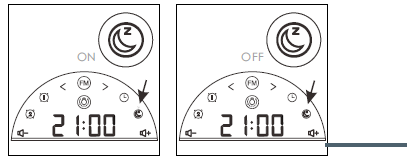

Switching the fall asleep on/off

  • Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-018 to switch on the fall asleep function, the indicator light will be turned on immediately.
  • Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-018 to switch off the fall asleep function, the indicator light will be turned off immediately.

Note: The fall asleep function has a memory function, it can memorize the previous sleep sound and sound level automatically.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-024

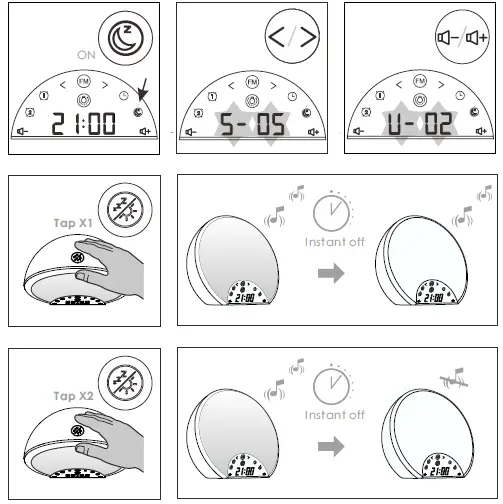

Adjusting the fall asleep function

When switches on the fall asleep function, you can adjust the sleep sound, sound volume or turn off the night light.

  • Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 or to change the sleep sounds.
  • Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-025or to adjust the sound volume.
  • Tap once the button to turn off the night light.
  • Double tap the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-026 to turn off the fall asleep function (night light and/ or sleep sound)

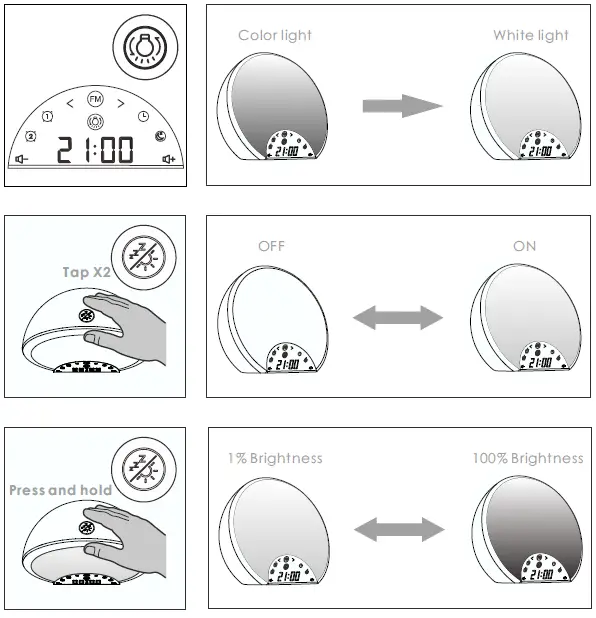

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-027Setting the lamp (White light mode)

  • Press the buttonANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-028  to switch the light to white light mode at first,
  • Double-tap the button to turn on/off the white light.
  • Press and hold the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-029to adjust the brightness from1% to 100% or from 100% to 1%.

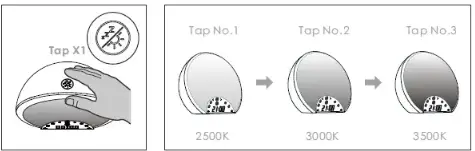

  • Tap once the lamp button in turn to change 3 light colors (2500K, 3000K, 3500K)..

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-030

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-001

Setting the lamp (Color light mode)

  • Press the button againANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-028 to switch the light to color light mode,
  • Double-tap the button to turn on/off the color light.
  • Press and hold the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-029 to adjust the brightness from1% to 100% or from 100% to 1%.
  • Tap once the lamp button in turn to change 8 colors (Red, Orange, Yellow, Green, Cyan, Blue, Purple, Pink, Color gradient). Note: Both the white light mode and color light mode have a light memory function, it can memorize the previous color and brightness automatically.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-030

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-032

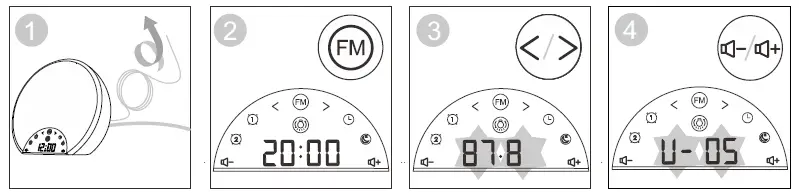

Switching the FM radio on/off

  1. Unfold the radio antenna at first.
  2. Press theANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-04 FM button to switch on/off the FM radio.
  3. Press the button FM or to select the scanned radio channels.
  4. Press the button ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-025 or to adjust 1-10 volume level.

Note: Press and hold the FM button to scan radio frequencies automatically at first, it will play the lowest channel automatically when finishing scanning.

ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-033

IMPORTANT SAFETY INSTRUCTIONS

WARNING – To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

  • Read this user manual carefully before using the wake up light and save it for future reference,
  • Do not look directly at lighted wake up light.
  • f the Wake up light, power supply cord has been damaged in any way, liquid has spilled or objects have fallen into the appliance, it has been exposed to rain or moisture, does not operate normally or has been dropped or damaged, it should not be operated.
  • Water and electricity are a dangerous combination. Do not use this wake up light in wet surroundings.
  • This Wake up light is for indoor use only. Make sure that the power adapter does not get wet.
  • Do not let water run into the appliance or spill water onto the wake up light.
  • Use the original adapter ONLY. The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this will cause a hazardous situation.
  • Make sure the gas vents on the wake up light remain open during use.
  • Protect the power cord and antenna from being walked on or pinched, particularly at plugs, outlet and point where they exit from lamp.
  •  The appliance has no On/Off switch. If the appliance will not be used for an extended period of time, remove the power cord from the wall outlet and store the appliance in a safe, dry location.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions

  1. this device may not cause harmful interference, and
  2.  this device must withstand any interference received, including interference that may cause undesired operation.ANTDALIS-AK-002-Sunrise-Alarm-Clock-Wake-Ligh-034
