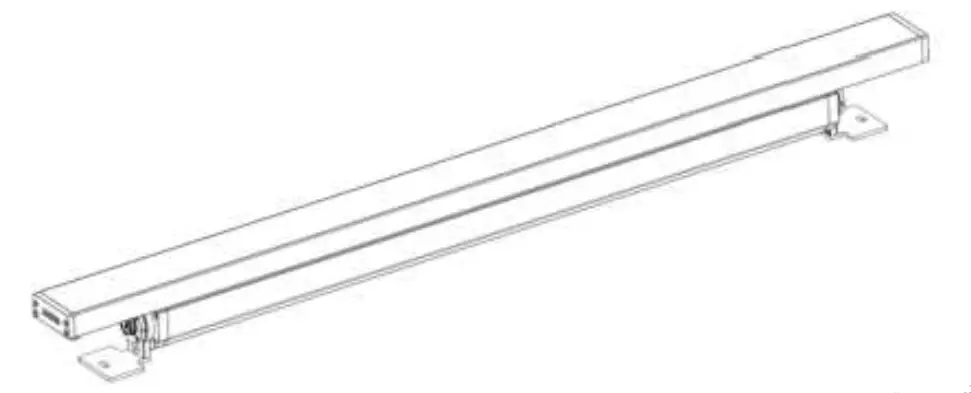

Anolis 13053438 Eminere 1 LED Lighting User Guide
Contents

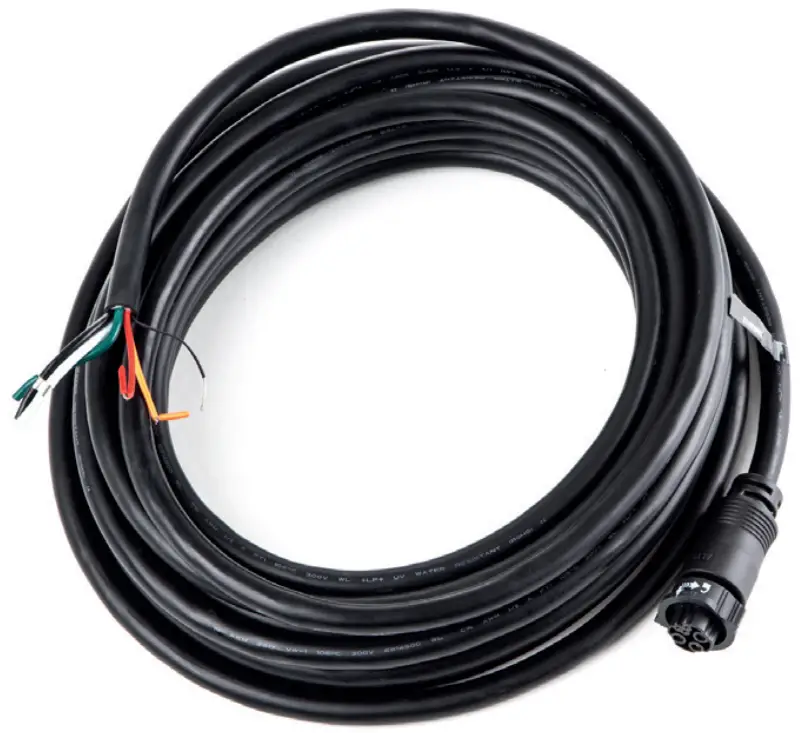

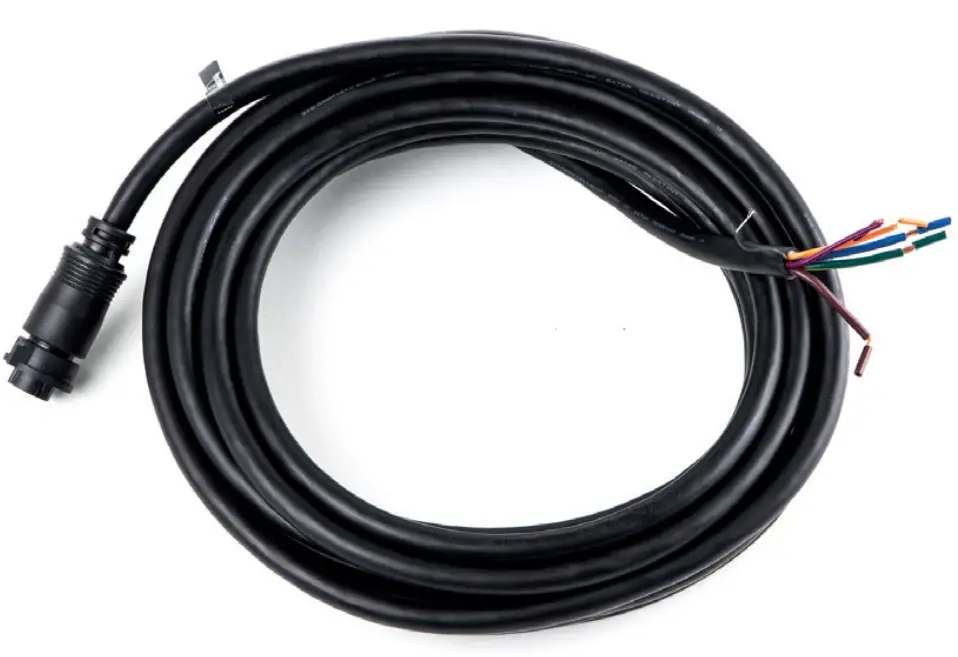

LEADER CABLE
- for connecting E-box with first Eminere. Order together with Waterproof End Cap which has to be installed to the last Eminere‘s output connector.
Cable CE Leader – LED Output
| WIRE | POWER CONNECTION |
WIRE | DATA CONNECTION |
| Brown | L | Orange | Data – (D-) |
| Blue | N | Purple | Data + (D+) |
| Green | Ground | Shielding | Data Ground (0V) |
Cable US Leader – LED Output
| WIRE | POWER CONNECTION |
WIRE | DATA CONNECTION |
| Black | L | Orange | Data – (D-) |
| White | N | Red | Data + (D+) |
| Green | Ground | Shielding | Data Ground (0V) |

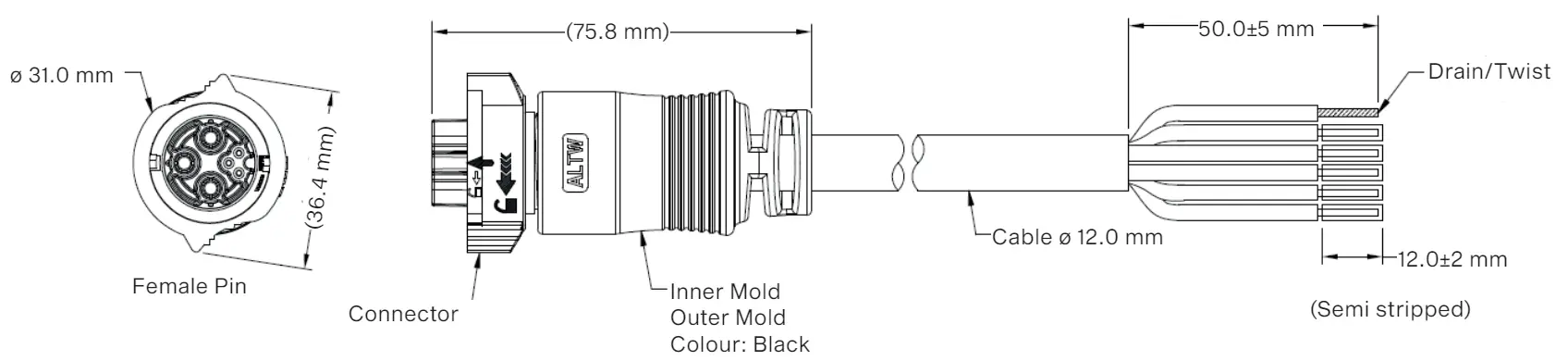

DIMENSION
SPECIFICATION
| FEATURES | Length | Standard | 2m | 5m | 10m | 25m | 50m | |
| On Request | Other lengths | |||
| Outer diameter | ø 12.0mm | |||
| Colour | Cable & Connector | Black | ||
| ELECTRICAL & CONTROL | Cable Type | CE: 2m (13053438), 5m (13053440), 10m (13053436), 25m (13053437), 50m (13053439) US: 2m (13053433), 5m (13053435), 10m (13053431), 25m (13053432), 50m (13053434) | ||
| Conductors | CE | US | ||
| Power conductors | 3x 2 mm2 | 3x 14AWG | ||
| Data conductors | 2x 0.2 mm2 | 3x 24AWG | ||
| Fixture Voltage | 120 – 277 V | |||
| Operating Temperature | -40 °C / +105 °C (-40 °F / +221 °F) | |||
| RATINGS & CERTIFICATIONS | IP Rating | IP67 unmated | ||
| Certifications | ETL / cETL, CE, RoHS, UKCA | |||

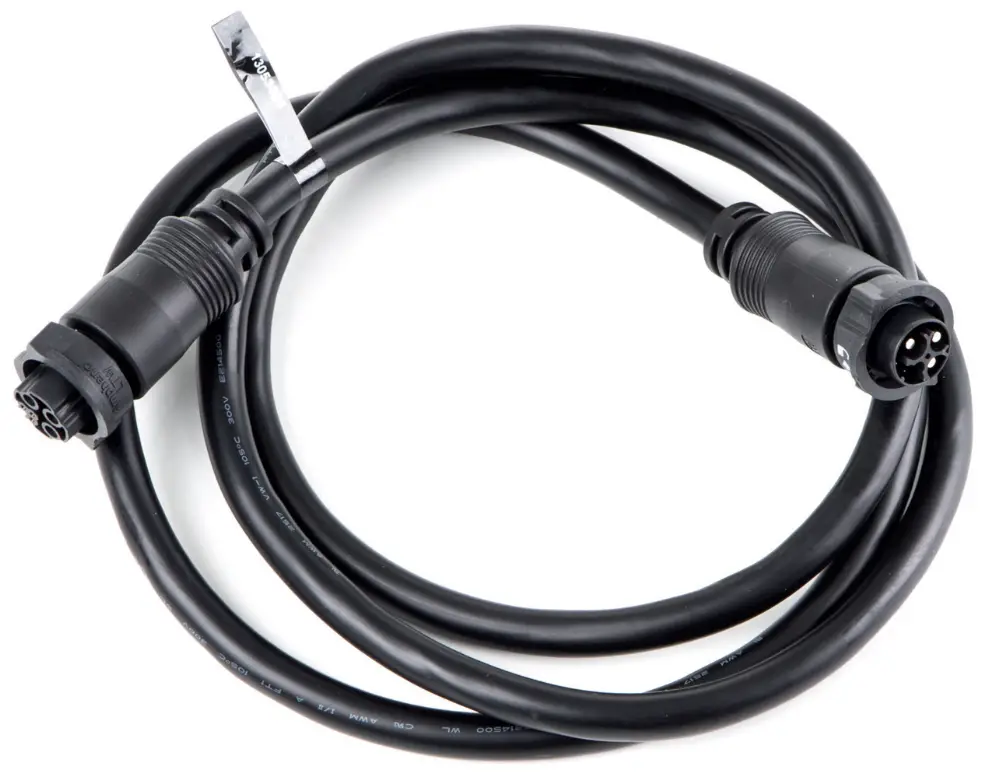

JUMPER CABLE
- for connection between two Emineres.

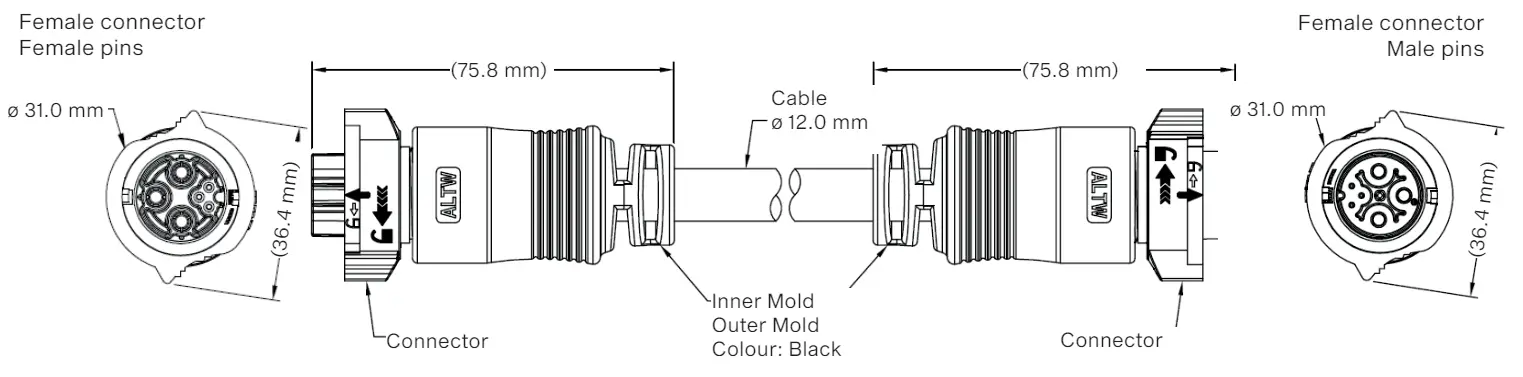

DIMENSION

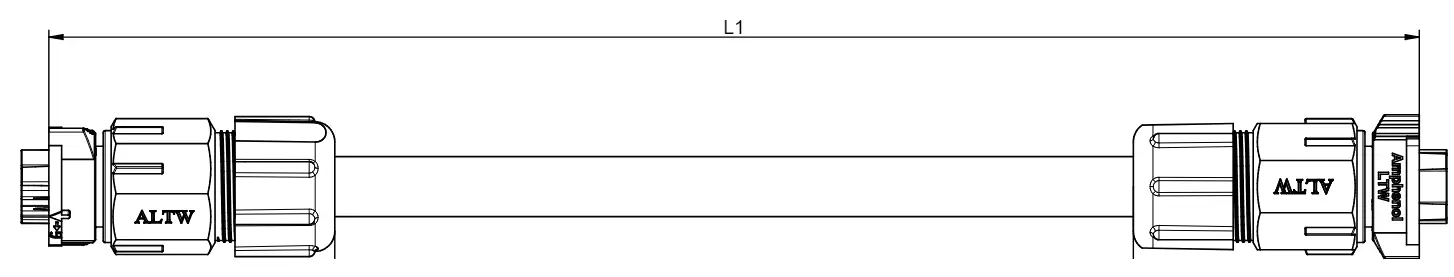

CUSTOM LENGTH
- Custom length of Jumper cable depends on the distance between two Eminere luminaires (length includes cable and connectors).
SPECIFICATION
| FEATURES | Length | Standard | 0,25m (13053422), 0,5m (13053423), 1m (13053425), 2m (13053427), 3m (13053428), 5m (13053430), 10m (13053424) |
| On Request | Other lengths | ||
| Outer diameter | ø 12.0 mm | ||
| Colour | Cable & Connector | Black | |
| PHYSICAL | Fixture Voltage | 120 – 277 V | |
| Operating Temperature | -40 °C / +105 °C (-40 °F / +221 °F) | ||
| RATINGS & CERTIFICATIONS | IP Rating | IP67 unmated | |
| Certifications | ETL / cETL, CE, RoHS, UKCA | ||

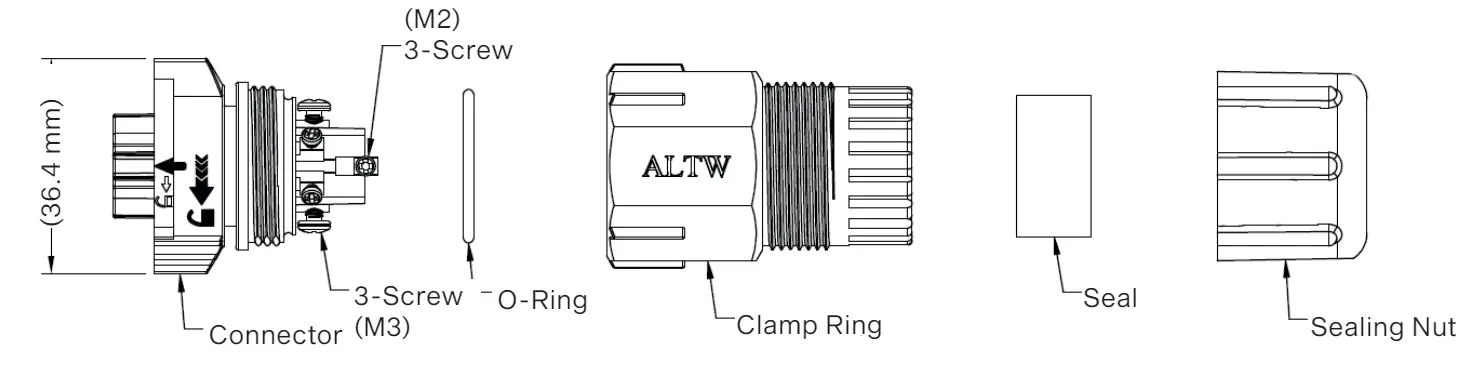

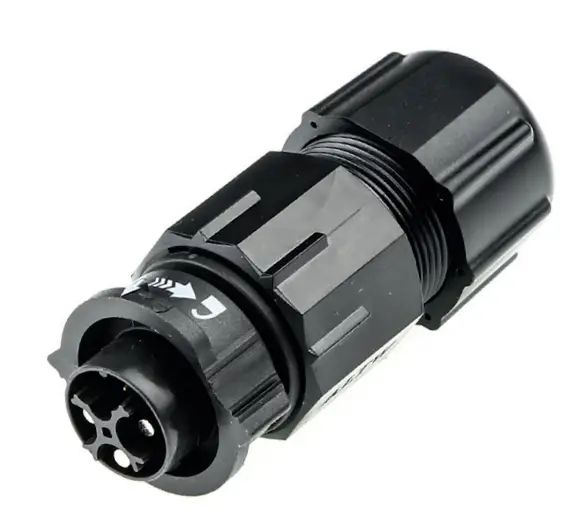

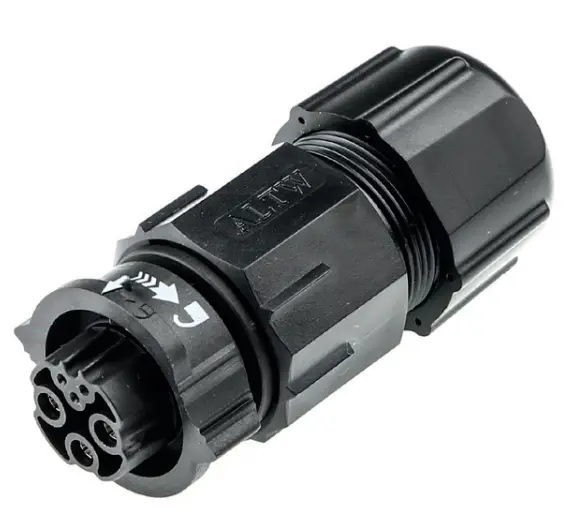

FIELD INSTALLABLE CONNECTOR
- for special cases, where Jumper Cable can´t be used. Then use Leader Cable with Field installable connector to make a connection between Emineres. According the diameter of cable choose the right size of seal which should fit tightly to cable jacket (two sizes of Seal included).
Female connector Female pins
Female connector Male pins

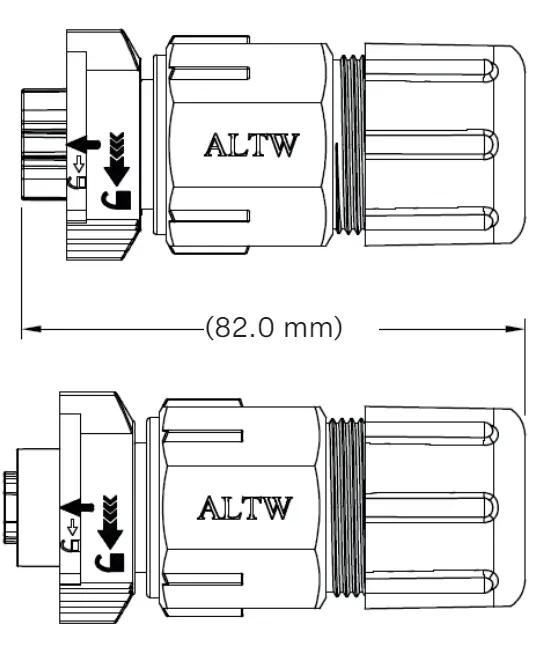

DIMENSION
Female connector Female pins
Female connector Male pins

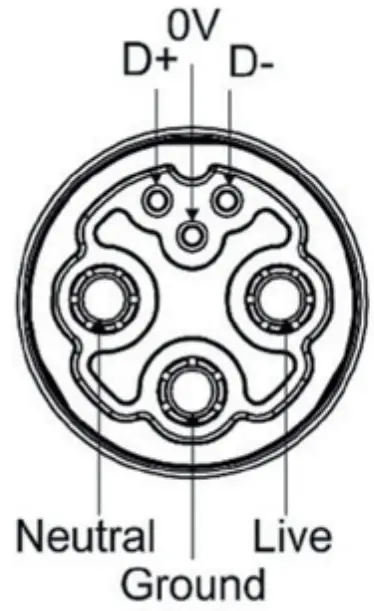

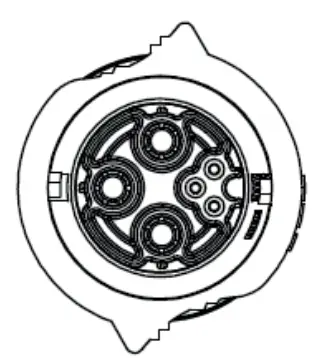

Output – panel connector (front view)

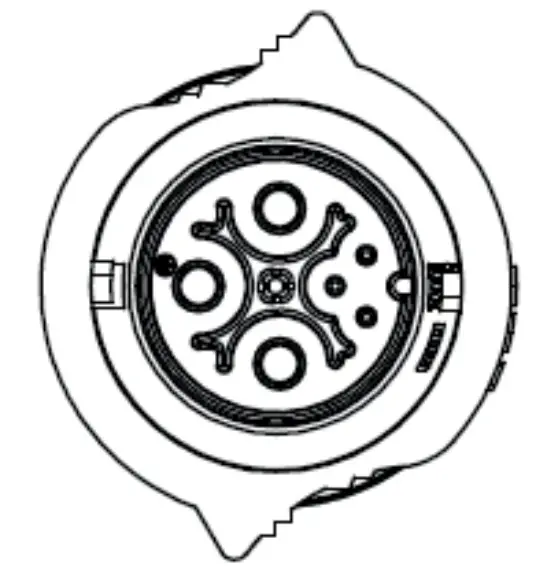

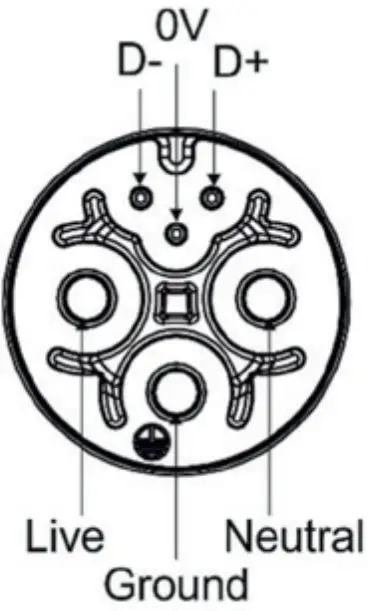

Input – panel connector (front view)
SPECIFICATION
| FEATURES | Colour | Black | |
| Connector type | FF (13053003) | FM (13053004) | ||
| Seal | ø 8.0 ~10.0mm | ø 10.0 ~14.5mm | |
| Operating Temperature | -40 °C / +105 °C (-40 °F / +221 °F) | ||
| RATINGS & CERTIFICATIONS | IP Rating | IP67 mated | |
| Certifications | ETL / cETL, CE, RoHS, UKCA | ||

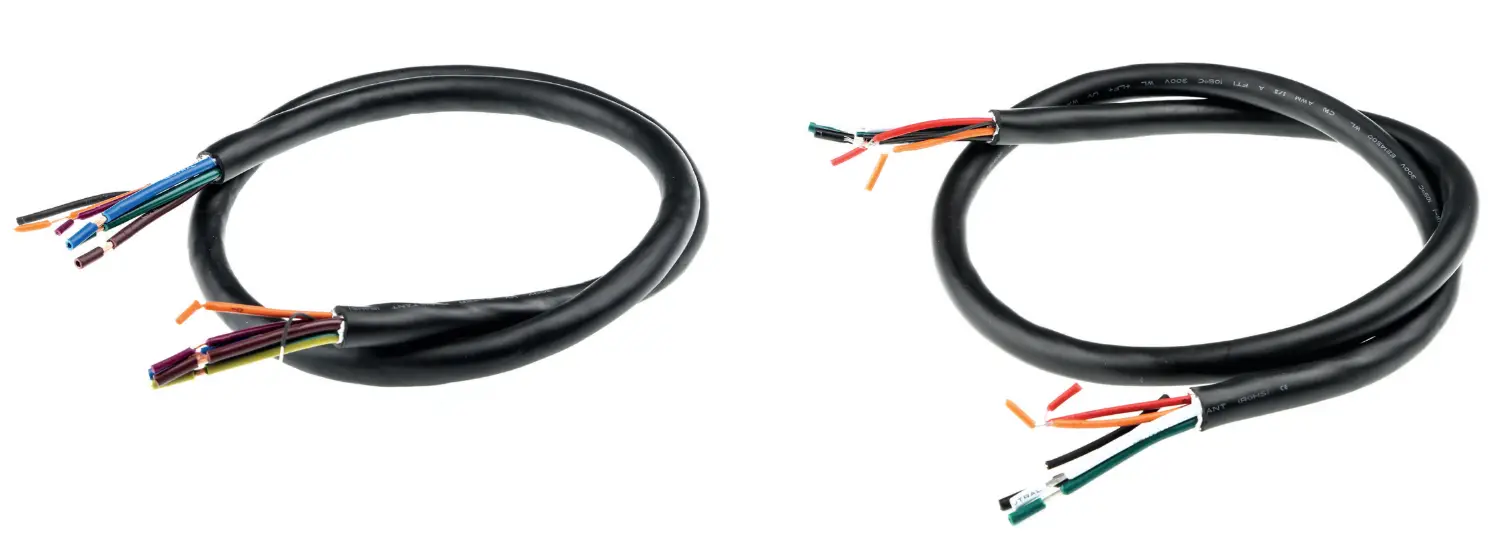

CABLE CE / US
Cable CE Leader – LED Output
| WIRE | POWER CONNECTION | WIRE | DATA CONNECTION |
| Brown | L | Orange | Data – (D-) |
| Blue | N | Purple | Data + (D+) |
| Green | Ground | Shielding | Data Ground (0V) |
Cable US Leader – LED Output
| WIRE | POWER CONNECTION | WIRE | DATA CONNECTION |
| Black | L | Orange | Data – (D-) |
| White | N | Red | Data + (D+) |
| Green | Ground | Shielding | Data Ground (0V) |
| FEATURES | Length | On Request | ||
| Outer diameter | ø 12.0 mm | |||
| Colour | Black | |||
| ELECTRICAL & CONTROL | Cable Type | CE | US | ||
| Conductors | Power conductors | CE | US | |
| Data conductors | 3x 2 mm2 | 3x 14AWG | ||
| Data conductors | 2x 0.2 mm2 | 3x 24AWG | ||
| Fixture Voltage | 120 – 277 V | |||
| Operating Temperature | -40 °C / +105 °C (-40 °F / +221 °F) | |||
| RATINGS & CERTIFICATIONS | IP Rating | IP67 unmated | ||
| Certifications | ETL / cETL, CE, RoHS, UKCA | |||

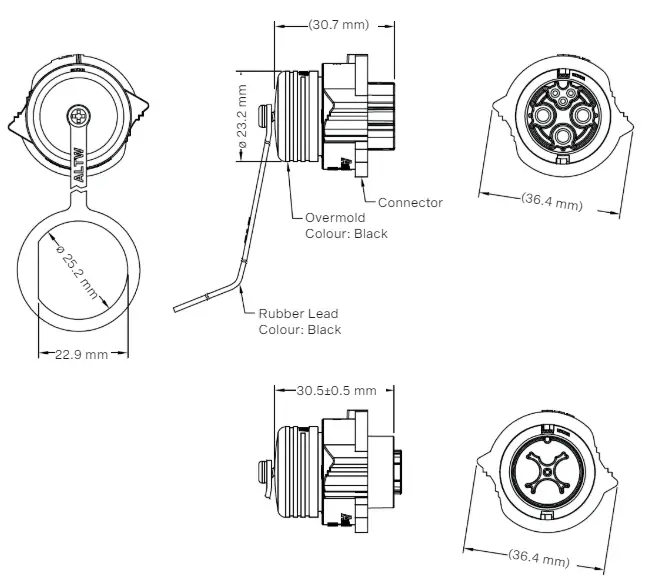

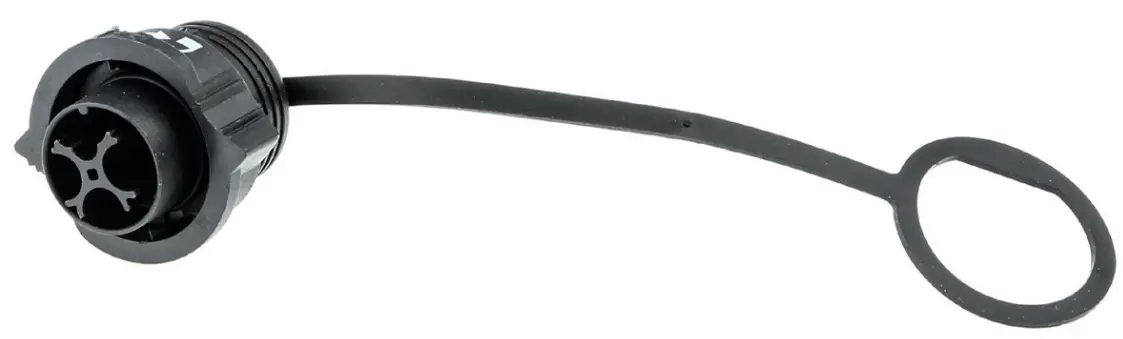

WATERPROOF END CAP
- Install at the end of line to the last Emineres output connector.
DIMENSION
SPECIFICATION
| FEATURES | Colour | Black |
| Ordering Number | 17031173 | |
| Operating Temperature | -40 °C / +105 °C (-40 °F / +221 °F) | |
| RATINGS & CERTIFICATIONS | IP Rating | IP67 mated |
| Certifications | ETL / cETL, CE, RoHS, UKCA |

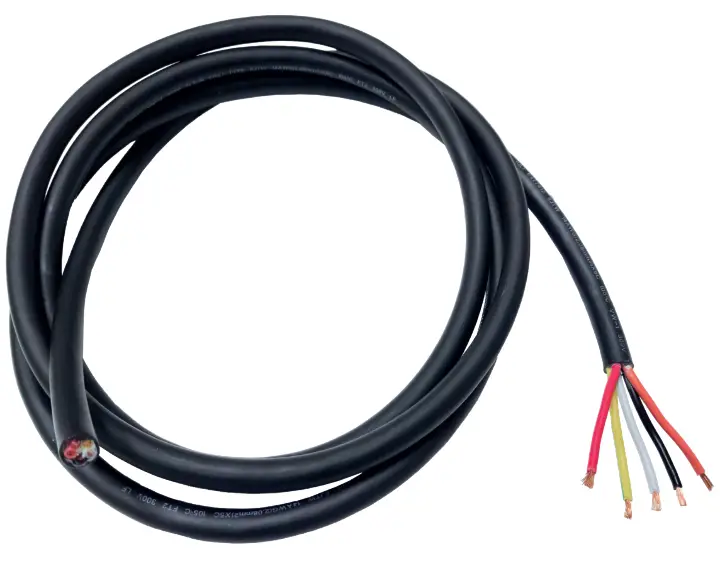

EMINERE TM REMOTE CABLE
- for connecting E-box Remote or Remote basic with Eminere Remote and Remote UV luminaires.
| CE VERSION | CONNECTOR | Vcc | D+ | D- | 0V |  |
| Function | LEDs + | Data + | Data – | LEDs – | Ground | |
| Colour of wire | Red | Orange | Black | White | Not connected |
| US VERSION | CONNECTOR | Vcc | D+ | D- | D- | |
| Function | LEDs + | Data + | Data – | LEDs – | Ground | |
| Colour of wire | Red | Orange | Black | White | Green |
SPECIFICATION
| FEATURES | Length | On Request |
| Outer diameter | ø 11.5±0.25 mm | |
| Colour | Black | |
| ELECTRICAL & CONTROL | Cable Type | CE | US |
| Conductors | 5 x 14 AWG | |
| Fixture Voltage | 120 – 277 V | |
| Operating Temperature | -40 °C / +105 °C (-40 °F / +221 °F) | |
| CERTIFICATIONS | Certifications | ETL / cETL, CE, RoHS, UKCA |
