USER MANUAL
POP UP OUTLET FOR COUNTERTOP
* Please read this manual completely before installing
WARNING!!
- If the socket can’t close properly or gets stuck, check whether the power cord at the bottom if it’s coiled or trapped. Don’t tie up the power cord or else the outlet can’t be popped up.
- Please avoid strong knocks, collisions or drops.
- DO NOT contact with water, corrosive liquid, flammable and explosive materials to clean.
- If there’s any issue during using, please contact us and we will replace or refund to you.
- We guarantee to the all buyers that our products are covered by 1-year warranty. For warranty service, please contact us through the order detail page. Please note that unauthorized modification, abuse or negligence are not covered by this warranty.
Contents
SPECIFICATIONS
- Charging Option: 3 AC Outlets, 2 USB-C Port, 2 USB-A Port, 1 Wireless Charger
- AC Plug: 12A 125V 1500W Max
- QC3.0 USB-A Port: 5V/3A,9V/2A,12V/1.5A
- PD3.0 USB-C Port: 5V/3A,9V/2A,12V/1.5A
- USB-A+USB-C: 5V/3A Max
- Wireless Charger: 15W Max
- Power Cord: 2M/6FT
- Material: Fireproof ABS
- Stock & Use Temperature: 14°F(-10°C)to104°F (40°C)
PACKAGE CONTENT
- Please note: We DO NOT recommend any drilling or cutting in advance until you receive your product.
INSTALLATION STEPS
Step 1

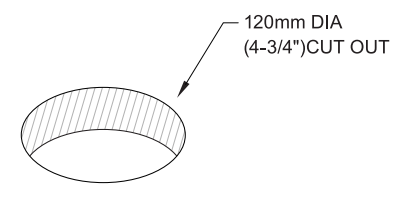

Before installing, make sure that there’s a 6inch depth under the desk, mark the position and cut out the hole for 120mm/4.7inch.
Step 2

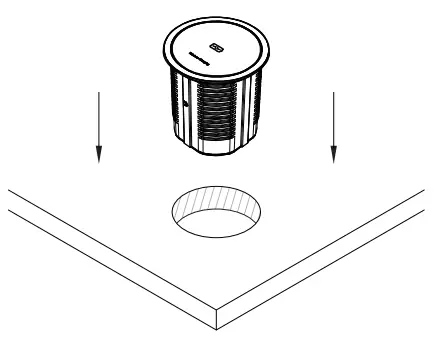

Take off the lock ring, Install the pop up outlet into the hole and DO place the cable straight up and don’t be coiled and trapped.
Step 3

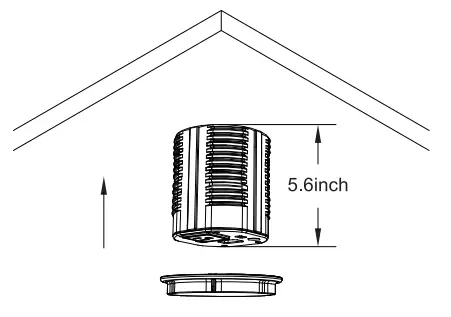

Tighten up the lock ring clockwisely between socket and countertop.
Step 4

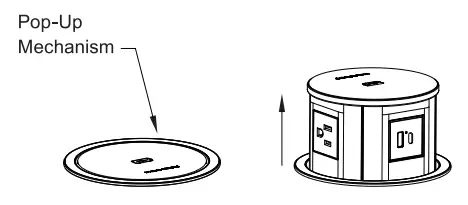

Press down on the pop up surface to pop it up or hide.
