Live Charged.
Anker Prime
20,000mAh Power Bank (200W)
QUICK START GUIDE

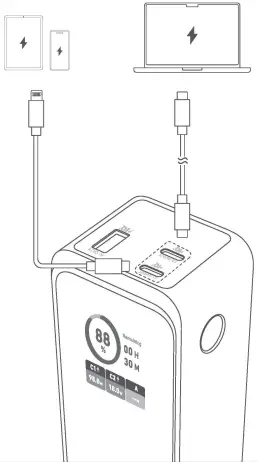

Charging Your Devices
Recharging Your Power Bank

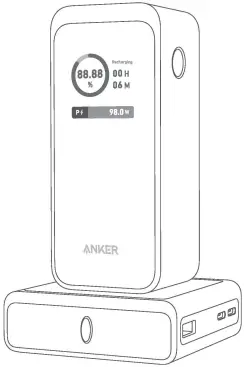

Note: If you have purchased Anker 100W Charging Base, you can use it to recharge the power bank.
Trickle-Charging Mode
(1)

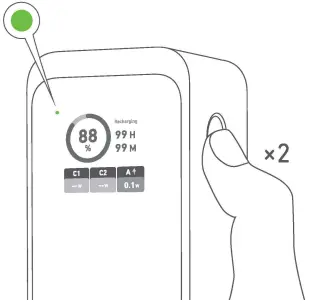

Activate trickle-charging mode.
(2)

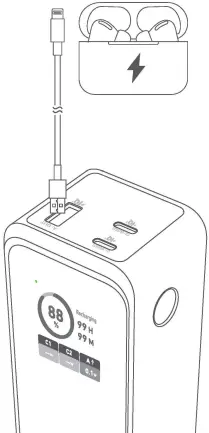

Charge your accessories in trickle-charging mode.
(3)
Exit trickle-charging mode.

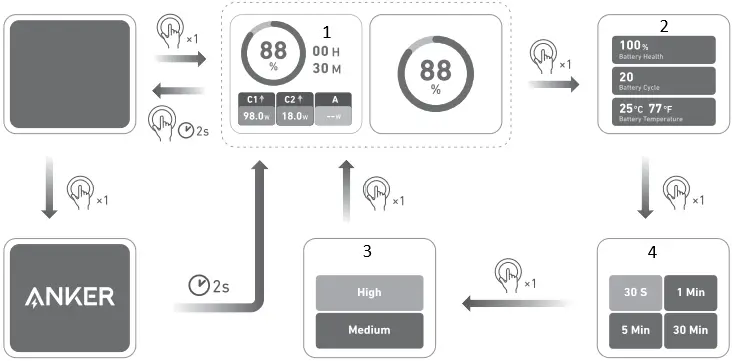

LCD Screen Guide
- Remaining
- Battery Information
- Screen Brightness
Press 2s to Enter/Exit Settings - Auto Screen Timeout
Press 2s to Enter/Exit Settings
Auto Screen Timeout Setting
- Auto Screen Timeout
Press 2s to Enter/Exit Settings

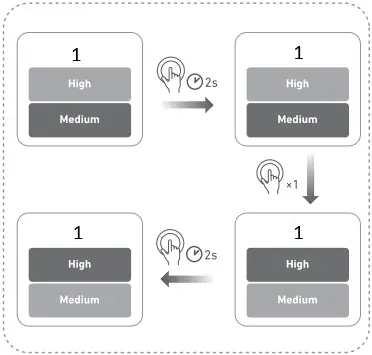

Screen Brightness Setting
- Screen Brightness
Press 2s to Enter/Exit Settings

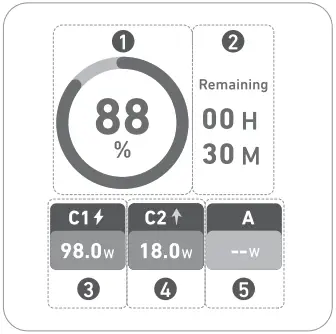

- Remaining Battery
- Recharging Time/ Remaining Battery in Hours and Minutes
- USB-C 1 Input
- USB-C 2 Output
- USB-A Output
Specifications
| Cell Capacity | 20,000mAh (5,000mAhx4) |
| Input | USB-C: 100W Max (5V⎓3A / 9V⎓3A / 10V⎓2.25A/ 12V⎓1.5A/ 15V⎓3A/ 20V⎓5A) Charging Base : 100W Max |
| Output | USB-C: 100W Max (5V⎓3A / 9V⎓3A / 10V⎓2,25A / 12V⎓1.5A / 15V⎓3A /20V⎓5A) USB-A: 65W Max (5V⎓3A / 9V⎓2A / 10V⎓6,5A/ 12V⎓1.5A) |
| Total Output | 200WMax |
Note: Figures shown on the screen are for illustration LD purposes and subject to change. Please refer to the actual product.
For tutorial videos, FAQs, manuals, and more information, please visit:
https://support.anker.com
Or scan the QR code below:
@anker _official @AnkerDeutschland @AnkerOfficial
@anker_Jp @AnkerJapan @Anker_JP
@Anker
Product Number: A 1336
51005003973 V01
