PARTS MANUAL
BACK TO MAIN SECTION
Contents
MOBILITY DEVICES
LEGEND
CURRENT
- These parts and assemblies are currently being produced and delivered.*
SERVICEABLE PARTS
- These parts and assemblies are not currently being produced or delivered on new chairs, but they are available as replacement service parts.*
DISCONTINUED
- These parts and assemblies are no longer being produced or delivered on new chairs, and they are not available as replacement service parts.*
* Please contact Technical Support for information on the replacement parts and assemblies.
STELLA ROLLATOR
| STELLA ROLATOR | |||
| PART # | ITEM # | DESCRIPTION | PRIOR TO |
| 1A,2,3 | 1001287 | BACK STRAP ASSEMBLY STD | 2021-09-01 |
| 1B,2,3 | 1000943 | BACK STRAP ASSEMBLY HD | 2021-09-01 |
| 3 | 1000944 | PLASTIC KNOB FOR BACK STRAP -GRAY | 2021-09-01 |
| 4,13 | 1001033 | 8’’ WHEEL ASSEMBLY – FRONT | 2021-09-01 |
| 7A,39 | 1000952 | SEAT SLING FOR STELLA – STD 17.5’’ WIDE, INCL. HDW | 2021-09-01 |
| 7B,39 | 1000954 | SEAT SLING FOR STELLA – HD 19.5’’ WIDE, INCL. HDW | 2021-09-01 |
| 8 | 1000955 | RELEASE SEAT STRAP | 2021-09-01 |
| 8,23A-27 | 1000956 | RELEASE SEAT STRAP TO UNLOCK STELLA, 18’’ | 2021-09-01 |
| 8,23B-27 | 1000965 | RELEASE SEAT STRAP TO UNLOCK STELLA, 20’’ | 2021-09-01 |
| 8,23C-27 | 1000978 | RELEASE SEAT STRAP TO UNLOCK STELLA, 23’’ | 2021-09-01 |
| 9A | 1001291 | STELLA BAG STD | 2021-09-01 |
| 9B | 1001292 | STELLA BAG HD | 2021-09-01 |
| 15,16,18-20 | 1001053 | FRONT FORK ASS’Y | 2021-09-01 |
| 11,12,14 | 1001102 | FRONT WHEEL AXLE ASS’Y | 2021-09-01 |
| 20 | 1001209 | FRONT CASTER ‘CG’ CHROME CAP | 2021-09-01 |
| 39 | 1001245 | CROSS-BRACE END CAP | 2021-09-01 |
| 41-46 | 1001288 | PUSH HANDLE ADJUSTMENT BUTTON ASSEMBLY | 2021-09-01 |
| 55A | 1001289 | CURB CLIMBER, LEFT | 2021-09-01 |
| 55B | 1001290 | CURB CLIMBER, RIGHT | 2021-09-01 |
| 57,58,59,61,62 | 1001208 | 8’’ WHEEL ASSEMBLY – REAR | 2021-09-01 |
| 71 | 1001255 | ERGONOMIC HAND GRIPS INCLUDES REFLECTOR | 2019-09-27 |
| NOT SHOWN | 1001295 | END RUBBER ON BAG SUPPORT | 2021-09-01 |
| STELLA ROLATOR | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1-3A,4,5,23 | 1000956 | RELEASE SEAT STRAP TO UNLOCK STELLA, 18’’ | 2021-09-01 |
| 1-3B,4,5,23 | 1000965 | RELEASE SEAT STRAP TO UNLOCK STELLA, 20’’ | 2021-09-01 |
| 1-3C,4,5,23 | 1000978 | RELEASE SEAT STRAP TO UNLOCK STELLA, 23’’ | 2021-09-01 |
| 6A | 1001289 | CURB CLIMBER LEFT | 2021-09-01 |
| 6B | 1001290 | CURB CLIMBER RIGHT | 2021-09-01 |
| 7-11 | 1001208 | 8’’ WHEEL ASSEMBLY – REAR | 2021-09-01 |
| 12,13,19 | 1001102 | FRONT WHEEL AXLE ASS’Y | 2021-09-01 |
| 14-16, 20 | 1001053 | FRONT FORK ASS’Y | 2021-09-01 |
| 17,18 | 1001033 | 8” WHEEL ASSEMBLY – FRONT | 2021-09-01 |
| 20 | 1001209 | CHROME CAP FOR FRONT CASTER STELLA – CG | 2021-09-01 |
| 21A | 1001291 | STELLA BAG STD | 2021-09-01 |
| 21B | 1001292 | STELLA BAG HD | 2021-09-01 |
| 22A,24 | 1000952 | SEAT SLING FOR STELLA – STD 17.5’’ WIDE, INCL. HDW | 2021-09-01 |
| 22B,24 | 1000954 | SEAT SLING FOR STELLA – HD 19.5’’ WIDE, INCL. HDW | 2021-09-01 |
| 23 | 1000955 | RELEASE SEAT STRAP | 2021-09-01 |
| BACKREST | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1-5 | 1003413 | KIT – STD FOLDING BACKREST | 2021-09-01 |
| 1-5 | 1003414 | KIT – HD FOLDING BACKREST | 2021-09-01 |
| 2,4,5 | 1003415 | KIT – FOLDING BACKREST HARDWARE, LH | 2021-09-01 |
| 3,4,5 | 1003416 | KIT – FOLDING BACKREST HARDWARE, RH | 2021-09-01 |
| 5 | 1003417 | HDW FOR FOLDING BACK STRAP SUPPORT BRACKET, STELLA | 2021-09-01 |
| ARMREST | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1 | 1003418 | TUBULAR ARM SUPPORT PAD | 2021-09-01 |
| 2 | 1003419 | KIT – ARMREST RELEASE LEVER | 2021-09-01 |
| 2,3 | 1003420 | COMPLETE ARMREST ASS’Y, LH | 2021-09-01 |
| 2,4 | 1003421 | COMPLETE ARMREST ASS’Y, RH | 2021-09-01 |
| FOOTREST | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1 | 1003422 | KIT – FOOTREST, LH | 2021-09-01 |
| 2 | 1003423 | KIT – FOOTREST, RH | 2021-09-01 |
| 3 | 1003424 | KIT – HEEL LOOPS | 2021-09-01 |
| 4A | 1003425 | BLUE FOOTREST ASS’Y (NO FOOTPLATES & ATTACH.) – LH | 2021-09-01 |
| 4B | 1003426 | RED FOOTREST ASS’Y (NO FOOTPLATES & ATTACH.) – LH | 2021-09-01 |
| 4C | 1003427 | BLK FOOTREST ASS’Y (NO FOOTPLATES & ATTACH.) – LH | 2021-09-01 |
| 5A | 1003428 | BLUE FOOTREST ASS’Y (NO FOOTPLATES & ATTACH.) – RH | 2021-09-01 |
| 5B | 1003429 | RED FOOTREST ASS’Y (NO FOOTPLATES & ATTACH.) – RH | 2021-09-01 |
| 5C | 1003430 | BLK FOOTREST ASS’Y (NO FOOTPLATES & ATTACH.) – RH | 2021-09-01 |
| BRAKES | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1 | 1003433 | BRAKE HANDLE, STELLA | 2021-09-01 |
| 4A | 1003939 | BRAKE CABLE 18IN, INCLUDES CRIMP | 2021-09-01 |
| 4B | 1003940 | BRAKE CABLE 20IN, INCLUDES CRIMP | 2021-09-01 |
| 4C | 1001246 | BRAKE CABLE STELLA 23IN, INCLUDES CRIMP | 2021-09-01 |
| 1A-4A | 1003935 | KIT, BRAKE HANDLE CABLE ASS’Y, STELLA 18 IN, LH | 2021-09-01 |
| 1B-4B | 1003936 | KIT, BRAKE HANDLE CABLE ASS’Y, STELLA 18 IN, RH | 2021-09-01 |
| 1C-4C | 1003937 | KIT, BRAKE HANDLE CABLE ASS’Y, STELLA 20 IN, LH | 2021-09-01 |
| 1D-4D | 1003938 | KIT, BRAKE HANDLE CABLE ASS’Y, STELLA 20 IN, RH | 2021-09-01 |
| 1E-4E | 1003431 | KIT, BRAKE HANDLE CABLE ASS’Y, STELLA 23 IN, LH | 2021-09-01 |
| 1F-4F | 1003432 | KIT, BRAKE HANDLE CABLE ASS’Y, STELLA 23 IN, RH | 2021-09-01 |
| 5A-12A | 1001253 | BRAKE ASSEMBLY, LEFT | 2021-09-01 |
| 5B-12B | 1001254 | BRAKE ASSEMBLY, RIGHT | 2021-09-01 |
| 13A | 1003434 | SLOW DOWN BRAKES FOR STELLA ROLLATOR, LH | 2021-09-01 |
| 13B | 1003435 | SLOW DOWN BRAKES FOR STELLA ROLLATOR, RH | 2021-09-01 |

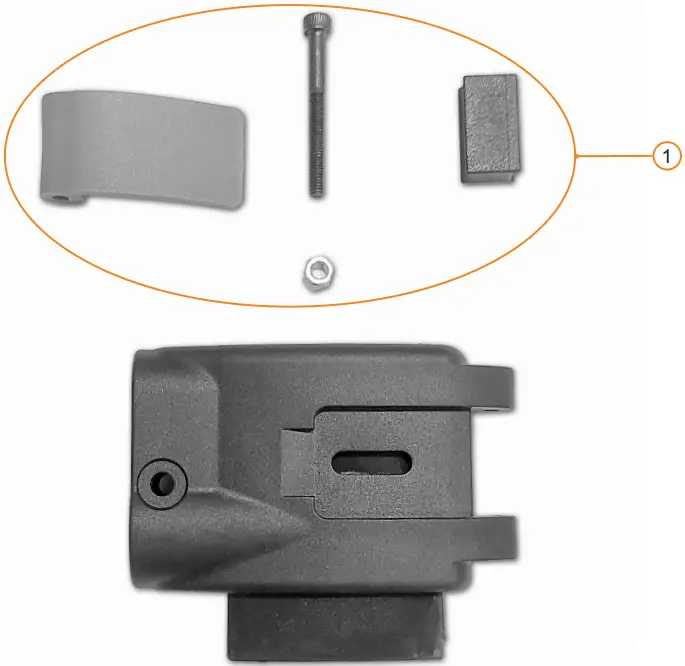

| LOCKING LEVER FOR HEIGHT ADJUSTMENT | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1 | 1003436 | LOCKING LEVER FOR PUSH HANDLE HEIGHT ADJ., STELLA | 2021-09-01 |
| CANE HOLDER ASSEMBLY | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1,2 | 1001293 | CANE HOLDER ASSEMBLY | 2021-09-01 |
| CUP HOLDER | |||
| PART # | ITEM # | DESCRIPTION | EFFECTIVE |
| 1 | 1001294 | CUP HOLDER | 2021-09-01 |
PM | P22030 | R06.1 | Section Updated on: 2023/11/23
