AMTOVL GT791uk Electric Wood Hand Trimmer Laminator
800W Wood Trimming
THE WOOD TRIMMER widely used in wood processing, furniture manufacturing and other industries. Apply to wood, plastic sheeting, wood veneer and other similar materials chamfering, grooving, surface finishing, curve cutting, pattern processing operations activities.
Specification
- Trimming Machine Chuck: 6.35mm Chuck
- Material: Aluminum alloy
- Rated voltage: 220V
- Rated frequency: 50 / 60HZ
- Motor speed: 30000R / MIN
- Trimming diameter: 6.35MM
- Motor material: copper wire motor

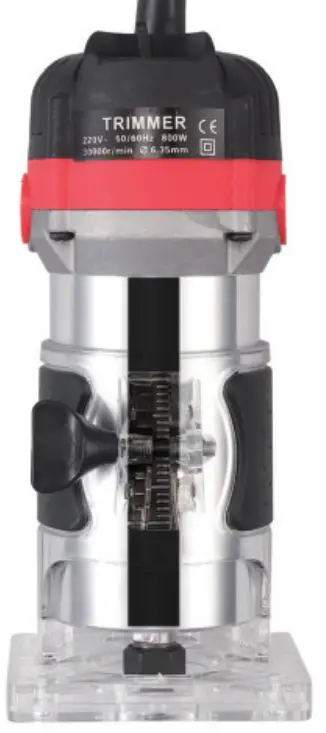

Product Overview
Installation Instructions
Tool head installation method

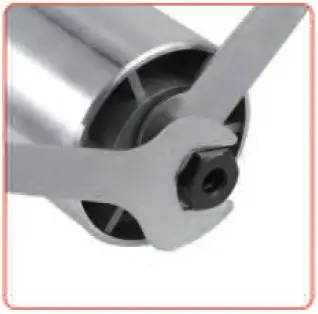

- Loosen the chuck with wrenches.

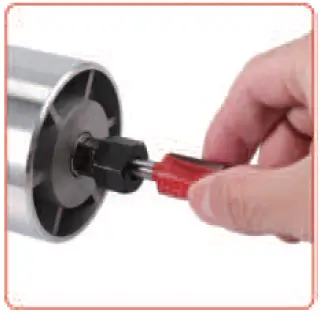

- Install the trimming knife.

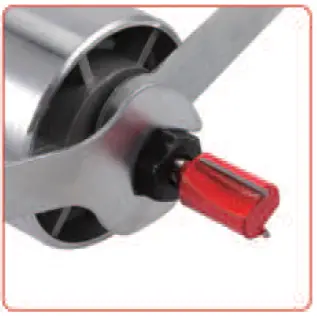

- Tighten the chuck with wrenches.

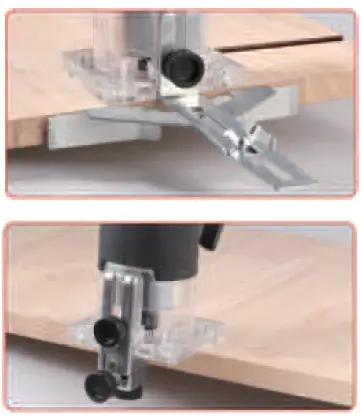

How to use accessories
- Straight Guide: It can help you move forward steadily in straight line processing, suitable for stable straight processing on thicker models.
- Curve Guide: It is suitable to help you move forward steadily in irregular curves, and the rollers fit the curved surface to ensure your machining accuracy

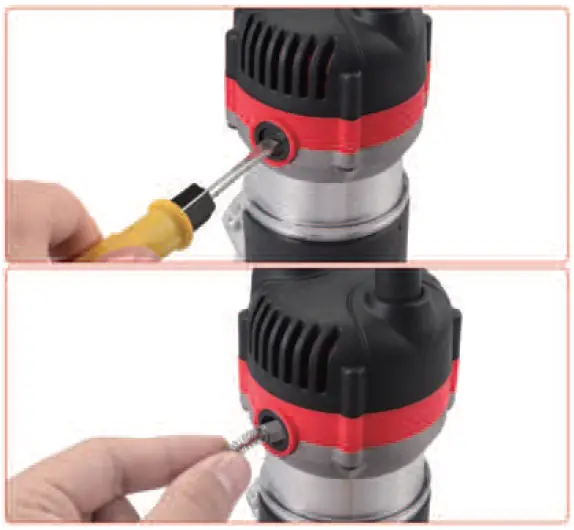

Carbon brush replacement method
- Use a flat-blade screwdriver to unscrew the carbon brush protective shell, take out the carbon brush, and replace it with a new one.
Made in China
