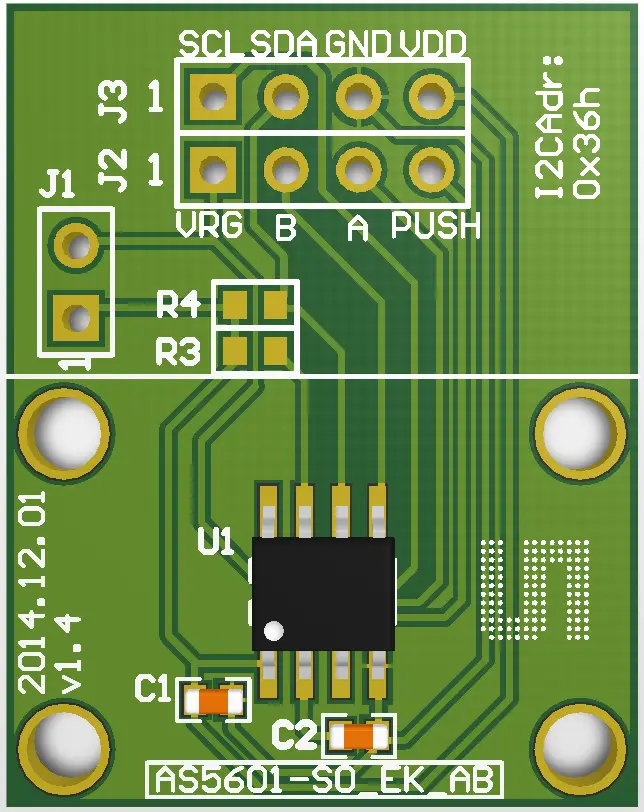

ams AS5601-SO_EK_AB Adapter Board
Product Information
The product is AS5601-SO_EK_AB, an adapter board that is used in conjunction with the AS5000-MD6H-1 sensor. It is designed to provide additional functionality and ease of use when working with the AS5000-MD6H-1 sensor.
Kit Content
| No. | Item |
|---|---|
| 1 | AS5601-SO_EK_AB |
| 2 | AS5000-MD6H-1 |
Pin Description
| Hdr Pin | J3 | |
|---|---|---|
| J3 | 1 | |
| J3 | 2 | |
| Symbo Description l | SCL | I2C Clock |
| SDA | I2C Data | |
| J3 | 3 | |
| J3 | 4 | |
| J2 | 1 | |
| J2 | 2 | |
| J2 | 3 | |
| J2 | 4 | |
| GND | Ground | |
| VDD | Power Supply | |
| VRG | LDO Pin in 5V Mode | |
| B | Incremental signal B | |
| A | Incremental signal A | |
| Contactless pushbutton function output |
Board Description
The adapter board is designed with a mechanical configuration that ensures proper compatibility and connection with the AS5000-MD6H-1 sensor.
Contact Information
If you have any questions or need further assistance, you can contact ams AG at:
Tobelbader Strasse 30 8141 Unterpremstaetten Austria
T. +43 (0) 3136 500 0
For Sales Offices, Distributors, and Representatives, please visit: https://www.ams.com/contact
Product Usage Instructions
- Ensure that the kit contains the following items:
- AS5601-SO_EK_AB
- AS5000-MD6H-1
- Refer to the pin description to understand the functionality of each pin on the adapter board. This will help in correctly connecting the board to other devices.
- Take note of the mechanical configuration of the adapter board to ensure proper compatibility and connection with the AS5000-MD6H-1 sensor.
- If you have any questions or need assistance, refer to the contact information provided to get in touch with ams AG.
Kit Content
No./Item
- AS5601-SO_EK_AB
- AS5000-MD6H-1
Pin Description
| Hdr | Pin | Symbo l | Description |
| J3 | 1 | SCL | I2C Clock |
| J3 | 2 | SDA | I2C Data |
| J3 | 3 | GND | Ground |
| J3 | 4 | VDD | Power Supply |
| J2 | 1 | VRG | LDO Pin in 5V Mode |
| J2 | 2 | B | Incremental signal B |
| J2 | 3 | A | Incremental signal A |
| J2 | 4 | Push | Contactless pushbutton function output |
Board description
Adapterboard Description
Mechanical Configuration
Using the board in 12C mode
Using the board in incremental mode
Contact Information
Headquarters
ams AG
- Tobelbader Strasse 30 8141 Unterpremstaetten Austria.
- T. +43 (0) 3136 500 0
- For Sales Offices, Distributors, and Representatives, please visit https://www.ams.com/contact.
