Free Standing Single Monitor Stand
Instruction Manual
TPM-MA04-10PT-US1.0
If you have any questions , please contact our customer service.
Contents
TPM-MA04-10PT-US1.0 Free Standing Single Monitor Stand
WARNING!
If you have any confusions or are not quite sure about the installation, please do not hesitate to ask for our help.
Before assembly, please check and make sure all necessary accessories are included and undamaged. Improper installation, such as use the product for monitors over its load capacity or for any purpose not explicitly specified, may cause damage or serious injury. We would not be liable for any damage or injury caused by improper mounting or inappropriate use.
The kit contains small items that could be choking hazards if swallowed. Please keep them OUT OF REACH OF CHILDREN UNDER 3 YEARS OLD. ADULT SUPERVISION IS REQUIRED.
PACKAGE CONTENTS
DO NOT EXCEED WEIGHT CAPACITY.
ASSEMBLY STEPS

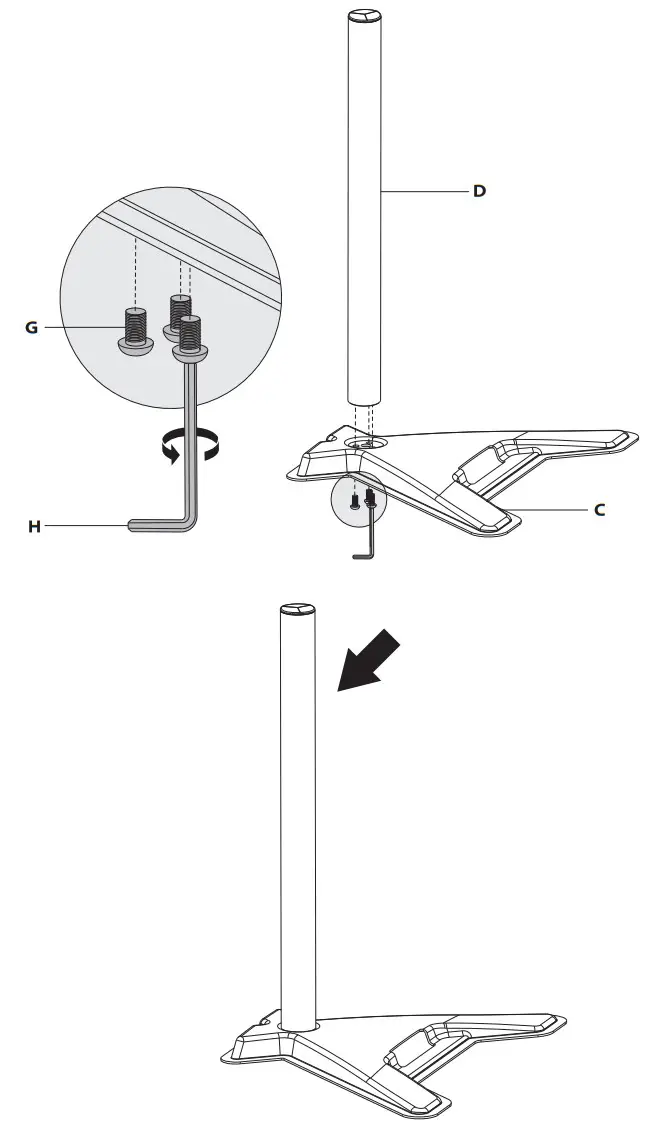

STEP 1: Pole Installation
Use the 4mm Allen Key (H) to tighten the screws (G) into the pole (D) from the bottom of the base (C).

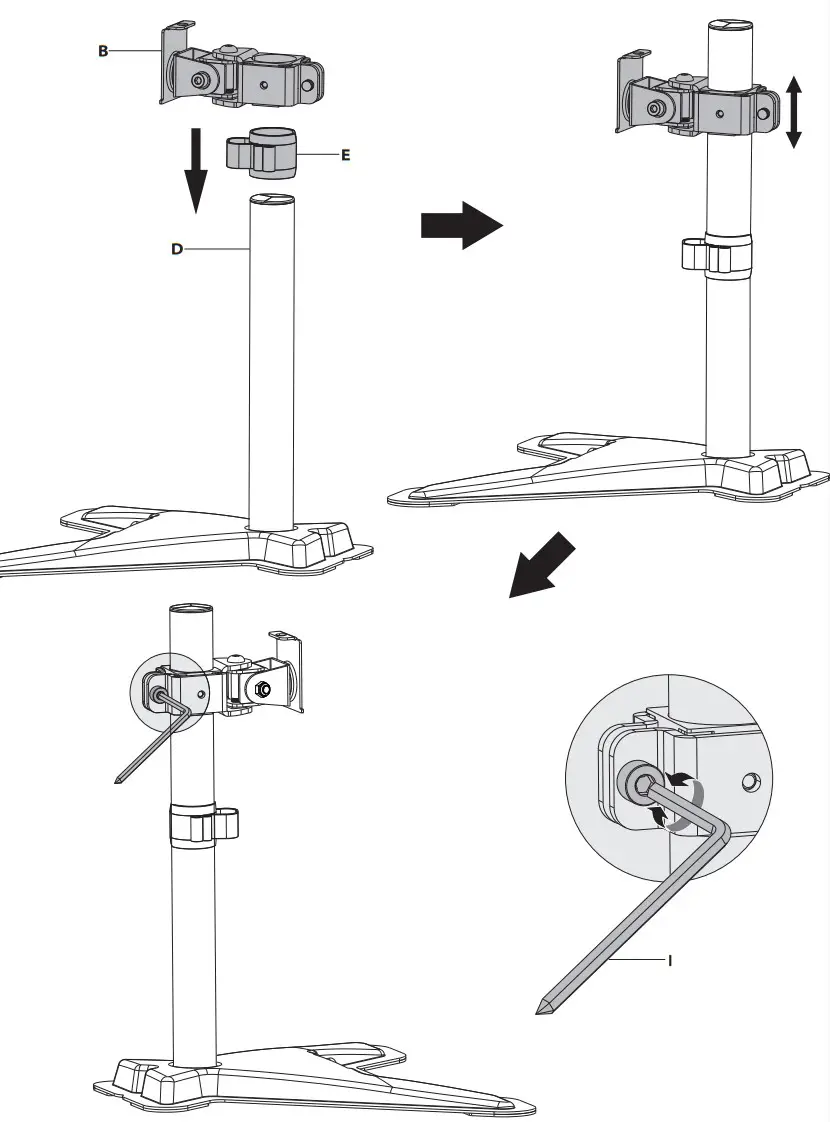

STEP 2: Bracket Installation
Slide the cable clip (E) onto the pole(D). Slide the mounting bracket (B) onto the pole(D).
Tighten the mounting bracket (B) on the pole(D) using a 6mm Allen Key (I)
STEP 3: Attach Monitor
OPTION A: Flat Back Monitor
Attach the VESA plate (A) to back of monitor and secure with screws(M-A)or(M-C) with washers(M-E) using 6 mm Allen Key (I). Do not tighten the screws excessively or your monitor might be damaged.
OPTION B: Curved Back Monitor
Attach the VESA plate (A) to back of monitor and secure it with screws (M-B) or (M-D) and washers (M-E) and spacers (M-F) using 6 mm Allen Key (I). Do not tighten the screws excessively or it might damage your monitor.
STEP 4: Hang Monitor
Slide monitor with VESA plate onto mounting bracket. Secure with thumbscrew (F).
STEP 5: Tilt Adjustment
Tighten or loosen tilt joint using 6mm Allen Key (I).
STEP 6: Cable Management
Manage cables with installed cable clip (E).
STEP 7: Tool Management
Store 4mm Allen Key (H) and 6mm Allen Key (I) in cable clip (E).
STEP 8: Adjust as Desired
Adjust monitor position and rotation.
Product Dimensions
CAUTION AND MAINTENANCE:
- Never allow children to climb, stand, hang, or play on any part of monitor or stand.
- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
- Check that the bracket is secure and safe to use at regular intervals (at least every three months).
