Modular Diagnostic Station

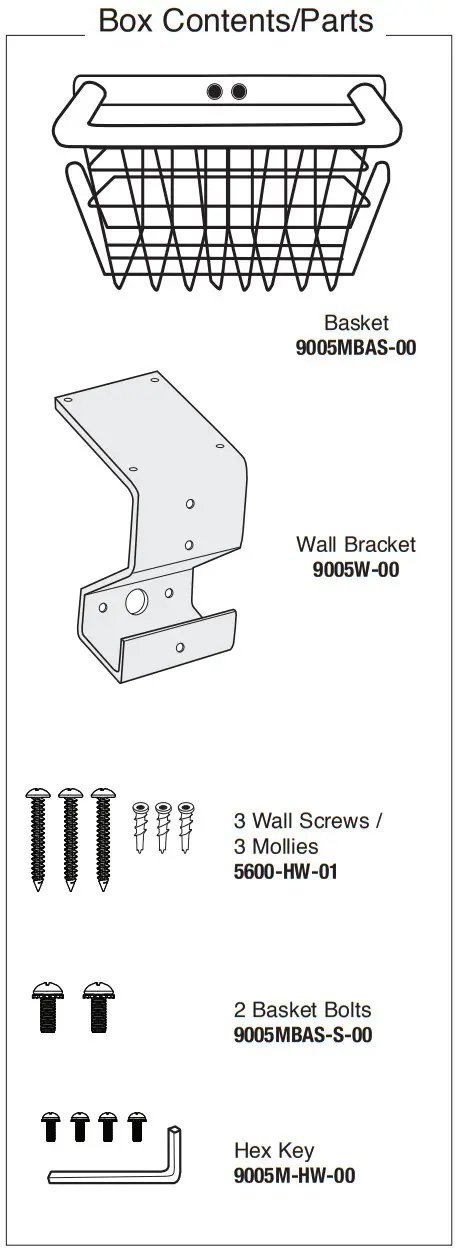

Contents
WALL MOUNT ASSEMBLY INSTRUCTIONS
Assembly

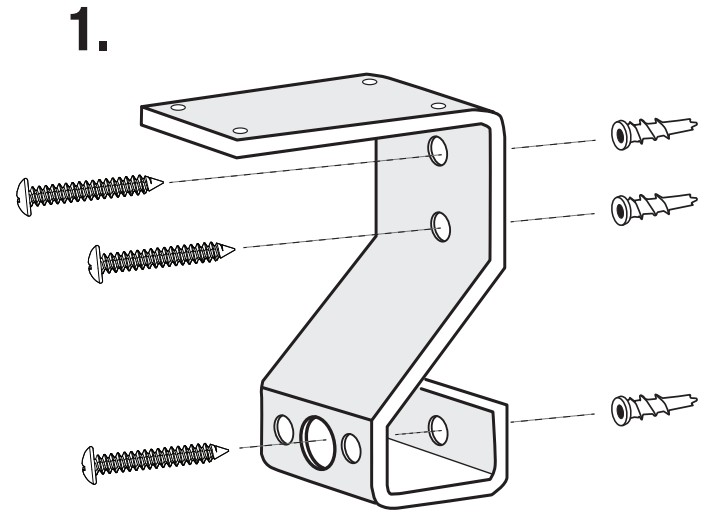

- Attach wall bracket to wall before assembling basket. For optimum viewing, it is suggested that you measure 60” from the floor to the top of the wall mounting bracket (or adjust as needed). Once positioned to desired height, mark screw positions on the wall making sure bracket is level. Screw in the three supplied screws (5600-HW-01) firmly into a stud, or use the three supplied mollies and secure to the wall.

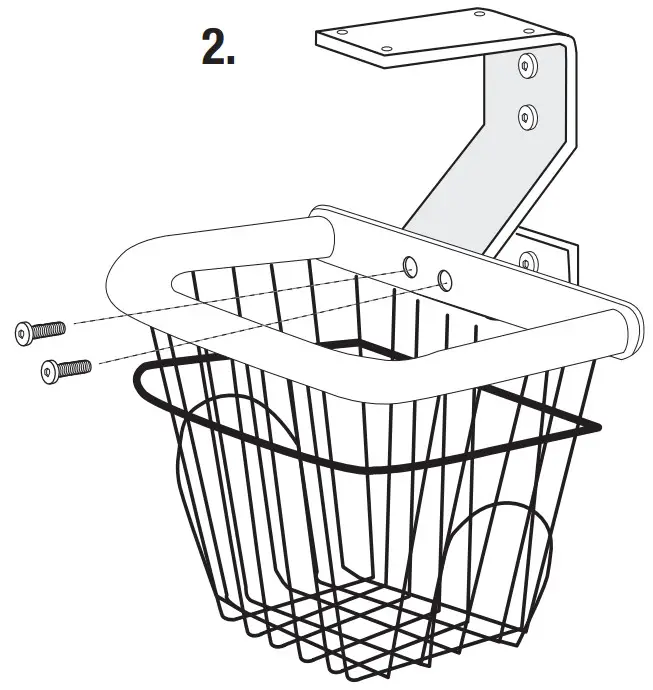

- After the wall bracket has been attached to the wall, position the basket onto the bracket and screw the two basket bolts (9005MBAS-S-00) through the basket openings and tighten.

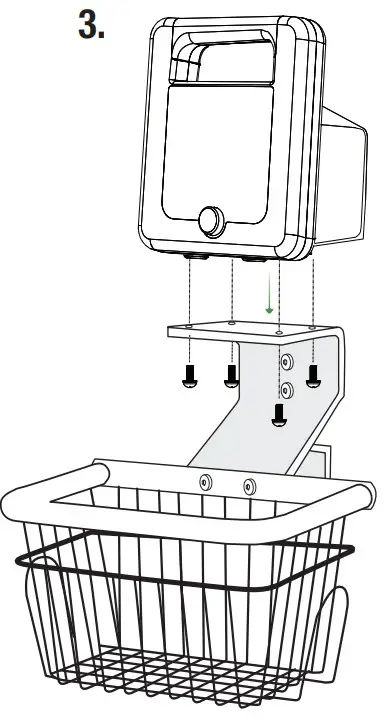

- Align holes on bottom of the ADView 2 with the four holes on the mounting bracket as shown.
Insert the four hex mounting bolts (9005M-HW-00) through the bottom of mounting bracket into the ADView 2 and tighten.
American Diagnostic Corporation
55 Commerce Drive
Hauppauge, NY 11788
tel: 631-273-9600
toll free: 1-800-232-2670
fax: 631-273-9659
www.adctoday.com/adview2
[email protected]
IB pan 93-9005W-00 rev 1 (09/26/2022)
