A504002310 Egg-Shaped Portable Charcoal Grill
Instruction Manual
WE HAVE YOU IN MIND,
LET US SERVE YOU!
Contents
WARNINGS AND CAUTIONS
WARNINGS:
- Paint on this product might peel off if it is hit seriously or used improperly. Use and carry it with care, and apply touch-up paint whenever necessary.
- Some parts may contain sharp edges. Wear protective gloves as necessary.
- CARBON MONOXIDE HAZARD
- Burning charcoal indoors can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal inside vehicles or tents.
- MOST SURFACES ON THIS UNIT ARE HOT WHEN IN USE.
- USE EXTREME CAUTION. KEEP OTHERS AWAY FROM UNIT.
- ALWAYS WEAR PROTECTIVE CLOTHING TO PREVENT INJURY.
CAUTIONS:
- Read and follow all instructions before assembly.
- Repeated assembly can weaken the locking ability of the washers. Periodically check all bolted connections on your grill to make sure they are tight and secure. Retain these instructions for future reference.
- Do NOT overtighten any of the nuts as this may damage the threads. Tighten each nut firmly and properly.
- THIS UNIT IS HEAVY! DO NOT assemble without a helper.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram on page 5 to 8. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Tools required for assembly: Wrench (included) and Phillips Screwdriver (not included)
Warranty: 1 Year
WHAT IS COVER?
The limited warranty is extended to the original purchaser and applies to material and manufacturer’s defect provided the item is maintained with care and used only for personal, residential purposes.
IMPORTANT
KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
How many people needed for the installation work

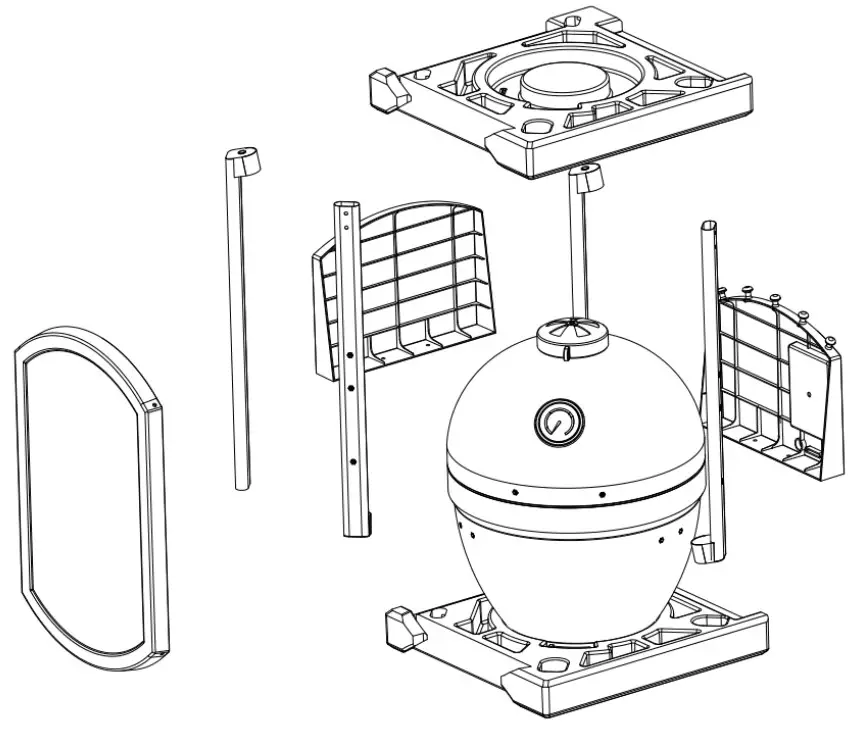

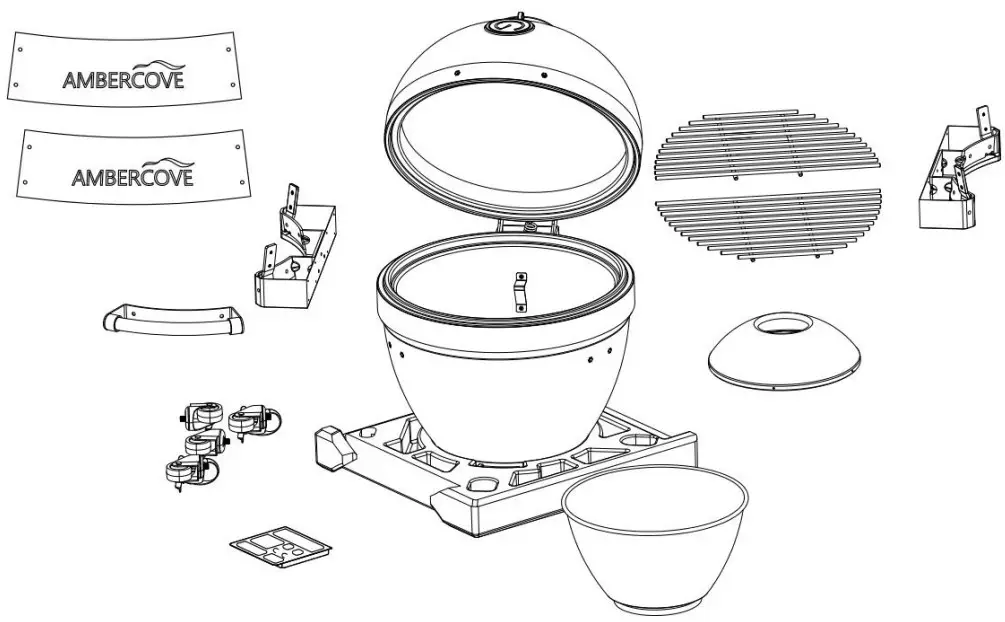

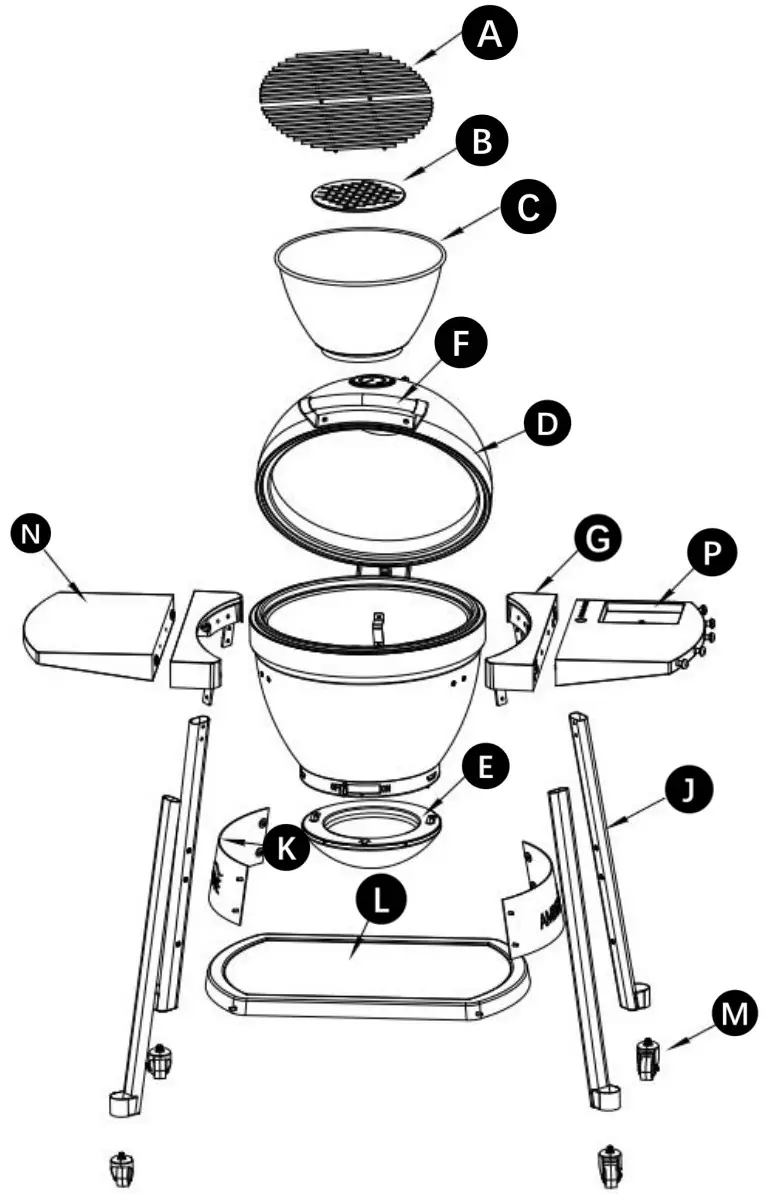

EXPLODED DRAWING
| Parts List | ||||
| Label | Part Number | Description | Qty | Part Image |
| A | P00290001501 | Cooking grid | 1 |  |
| B | P00280003701 | Carbon Plate | 1 |  |
| C | P00250015001 | Carbon pot | 1 |  |
| D | P00310013201 | Lid | 1 |  |
| E | P00300001801 | Ash Basin | 1 |  |
| F | P00760020601 | Handle | 1 |  |
| G | P00050183301 | Hinge | 2 |  |
| J | P00540067601 | Foot | 4 |  |
| K | P00560049901 | Trim panel | 2 |  |
| L | P00230010201 | Bottom shelf | 1 |  |
| M | P00330006801 | Wheel | 4 |  |
| N | P00230010101 | Left Shelf | 1 |  |
| P | P00230010001 | Right Shelf | 1 |  |
| Parts List | ||||
| Label | Part Number | Description | Qty | Part Image |
| H1 | H010060023 | Bolt M6*16 | 34 |  |
| H2 | H050050023 | Flat washer M6 | 4 |  |
| HH1 | P00530011601 | Flat washer | 2 |  |
| HH2 | P00530011701 | Flat washer | 2 |  |
| HW1 | H090030002 | Socket headM6 wrench | 1 |  |
| HW2 | H090010015 | Wrench M10 | 1 |  |
CARE AND MAINTENANCE
- Before cooking with your unit, the following steps should be closely followed.
- Failure to properly follow these steps may damage the finish and/or impart metallic flavors to your first foods.
- Brush all interior surfaces including grates with vegetable cooking oil.
- Charcoal or Wood may be used as the fuel source for grilling, with the fuel source placed and ignited on the ash pan. Do not build the fire too large. We recommend starting a fire with no more than 4 pounds of charcoal (approximately 60 briquettes) and adding more as needed during cooking. After allowing the fire to burn down, place the cooking grate on the unit. Failure to read and follow instructions for lighting charcoal may result in serious personal injury and/or property damage.
- Frequency of cleanup is determined by how often the grill is used. Make sure coals are completely extinguished before cleaning inside of unit. Thoroughly rinse with water and allow to air dry before using again. Wipe out the interior of unit with cloth or paper towel.
