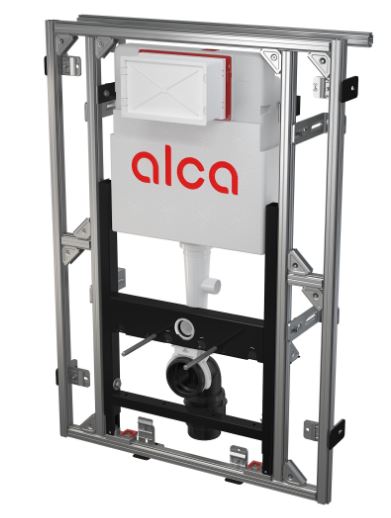

AM101-1120E Alcadrain Drywall Module

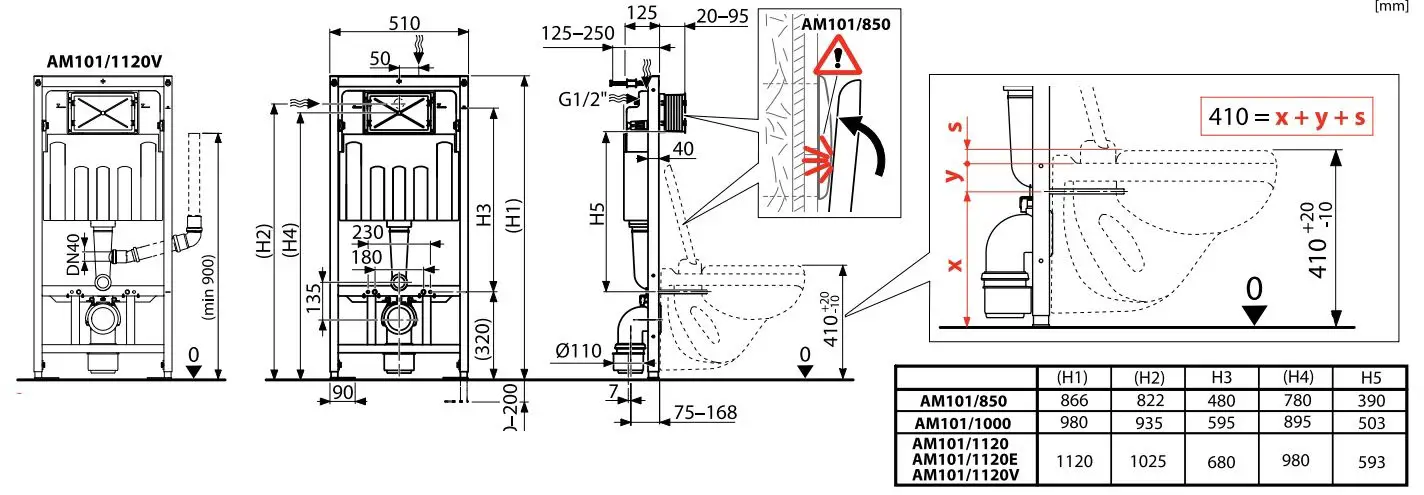

Dimensions
- AM101/850
- AM101/1000
- AM101/1120
- AM101/1120E
- AM101/1120V
The dimensions indicated in parentheses are for reference only. If the abbreviation .,CZ” is indicated for any dimension in the picture, it means that this dimension corresponds to the legal regulations and standards of the Czech Republic. If the installation is carried out in another country, the person carrying out the installation is obliged to adjust such a dimension in accordance with the legal regulations and standards of the other country. The person carrying out the installation is responsible for the correct installation and height adjustment of the pre-wall installaton system. The height adjustment of the pre-wall installaton system is determined by the type of toilet bowl used, the toilet seat and the content of legal regulations and standards of the country in which the installation is performed.

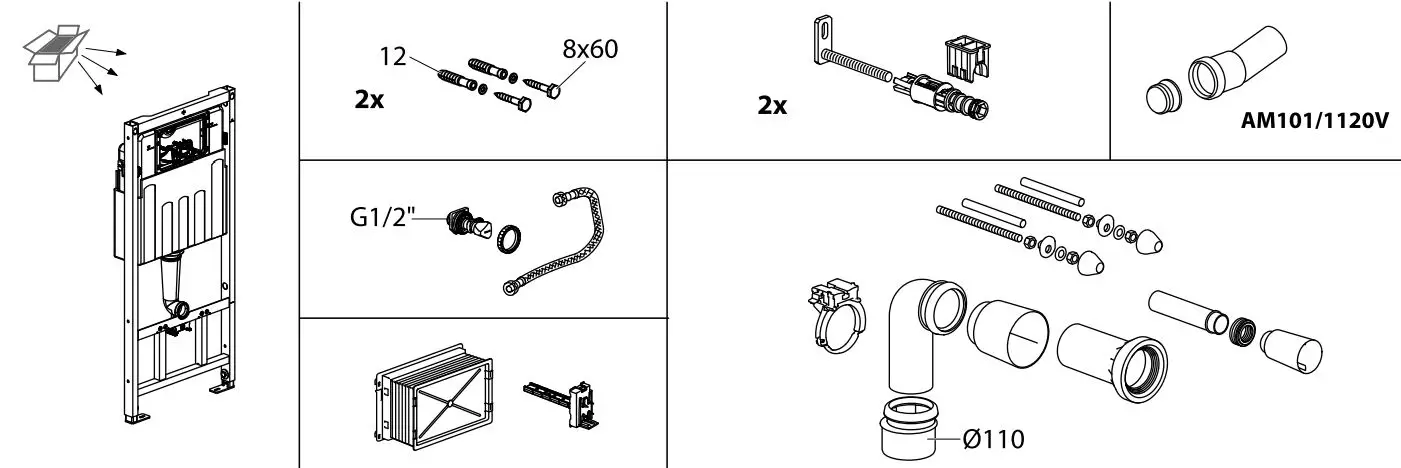

IN THE BOX

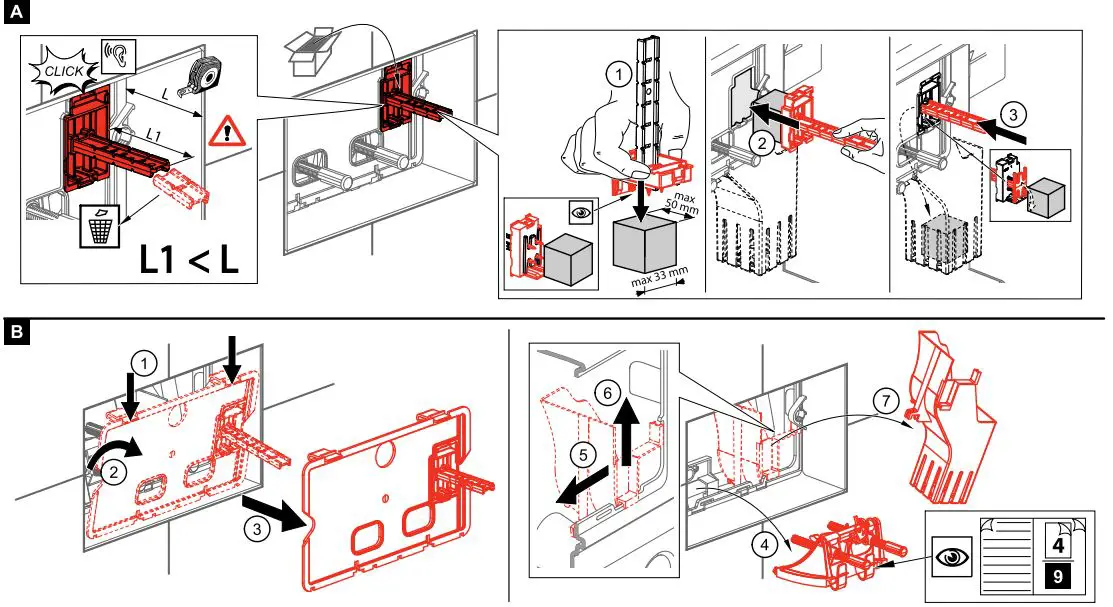

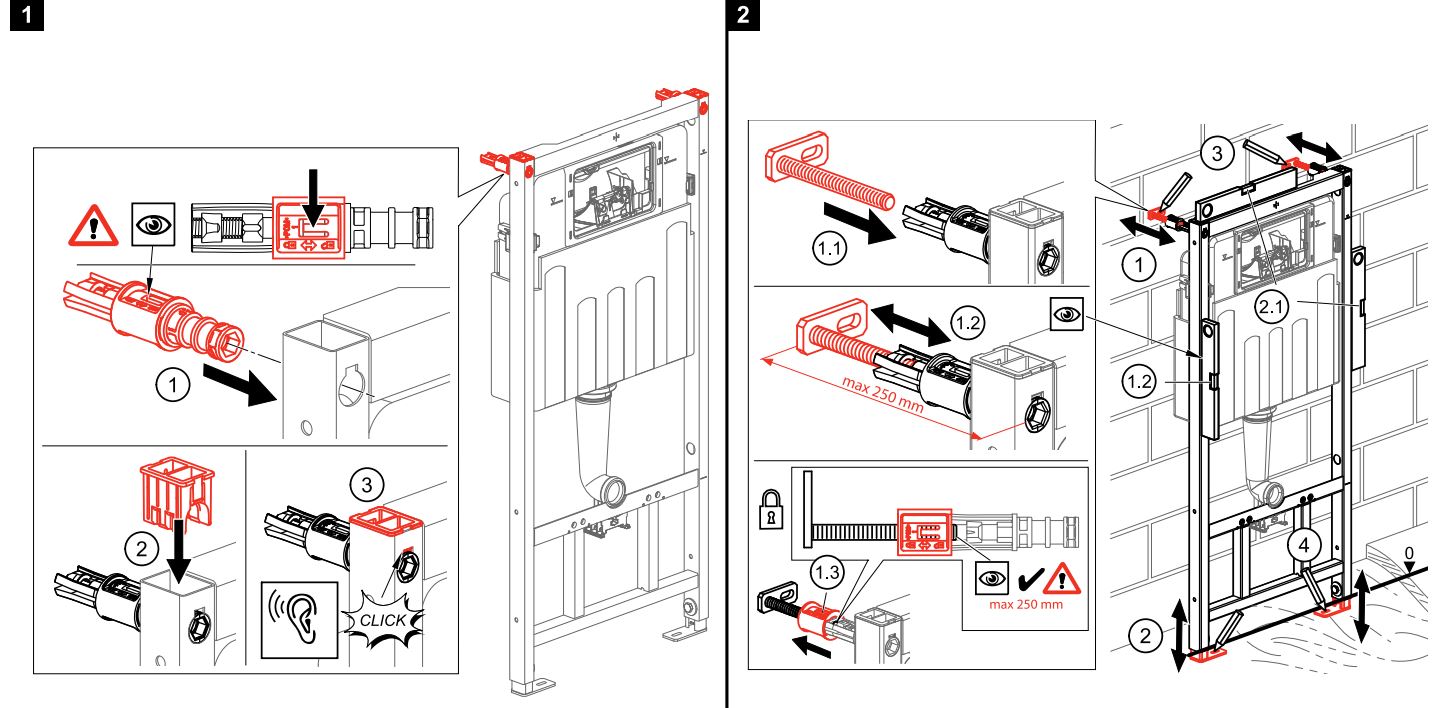

INSTRUCTIONS
SERVICE
