ALTAIR 754048-MIR-GF Framed Wall Bathroom Vanity Mirror
Contents
Exploded view
| Part | Description |
| 1 | Aluminum Frame |
| 2 | Mirror |
| 3 | EVA |
| 4 | 4 Description Aluminum Frame Mirror EVA Hanging Bracket |
Hanging bar Installation Manual (Instruction for bathroom mirror)
- Horizontal the hanging bar mark with a pen in the hanging bar hole
- To use the drill to have the holes
- (A just apply to the solid wall)

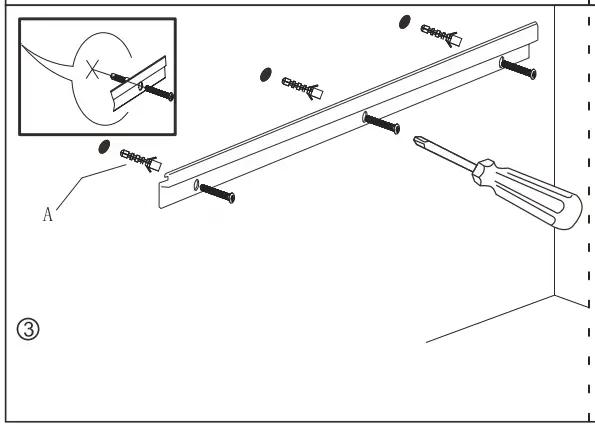

Put the expansion plug into the wall hole both the wall holes and the hanging bar holes are match.
to use the screwdriver to make the screw tightly.

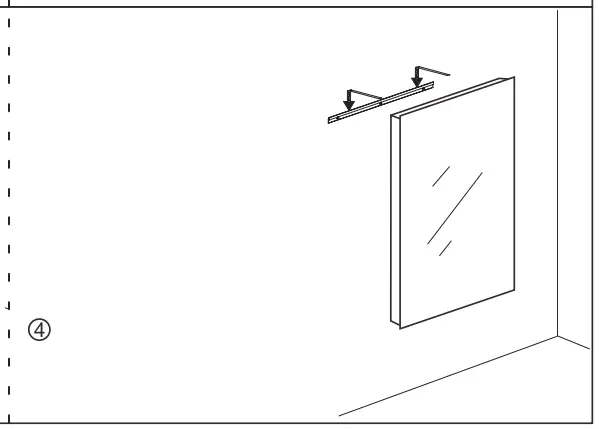

- Hang up the mirror shake left and right to see if it is stable
Parts list

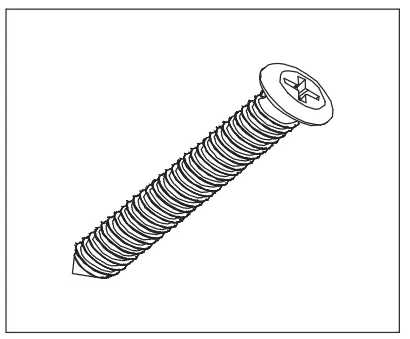

- ST4.2 screw
- D8 expansion screw

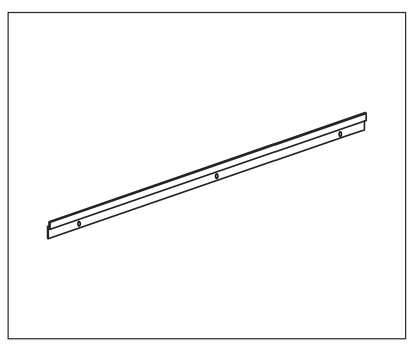

- Aluminum hanging bar
Installation tools ( as shown below)
- Flexible rule
- Leveling instrument
- Churn drill
- Screwdriver

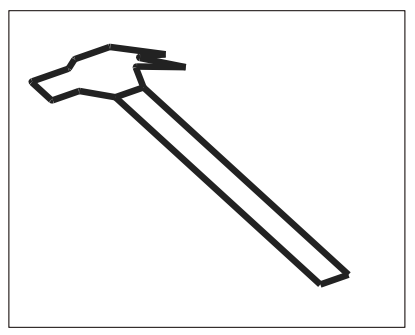

- Hammer
Warm tips:
- Please do not use, if the product have any broken.
- During operation, never put hard and sharp materials directly against the mirror surface.
