T101 Portable Power Supply Quick Start Guide
Contents
How To Use The Power Supply
a. Using with DC 12V Devices
Connect the DC appliance to the power supply’s 5.5mm 12V DC port, press the ”
” button to switch on DC output. Long press the ” ” button for 3 seconds to switch off.
Note: The power supply will automatically turn off after 30 seconds if it does not detect a connected device.

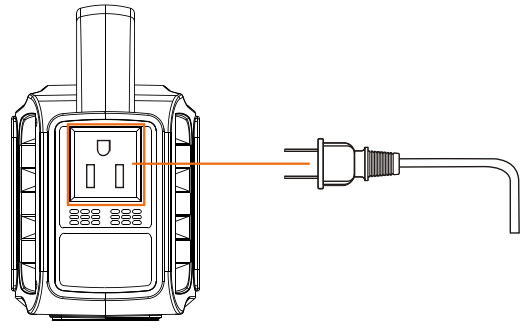

b. Using with AC Devices
Long press Connect the AC appliance to one of the T101 power supply’s AC outlet. button for 3 seconds to switch on the power button and the “AC” unit will start providing power to your appliances. Long press the button for 3 seconds to switch off.
c. Using with USB Devices
Connect the USB cable to one of the T101 power supply’s USB sockets. Connect the other end to your USB device.
Press the ” ” button to turn on USB output. Long press the button for 3 seconds to switch off.
Note: The power supply will automatically turn off after 30 seconds if it does not detect a connected device.
d. Using the LED Flashlight
- Turn on
Double press ” ” button to switch on the LED lamp. - Change light modes
Double press ” ” button to switch between modes Flashlight / Blink / SOS. - To turn off
Long press ” ” button 3 seconds to switch off the LED lamp.
Charging The Power Supply

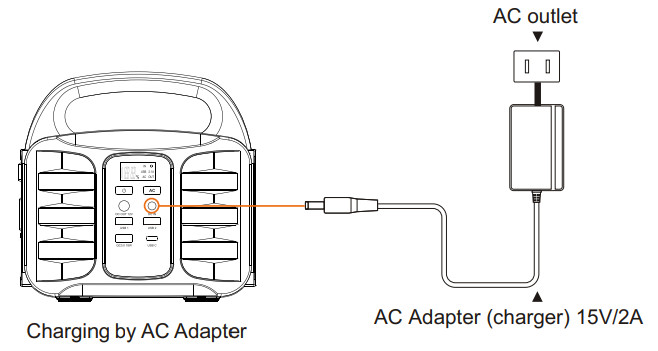

a. With an AC Power Source
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will know the unit is charging when “IN” ton the LED display is blinking. The unit is fully charged when “IN” stop blinking and LED display displays “100%”. After the unit is fully charged, please remove the AC wall charger in time.
b. With Solar Panel
Place your solar panel where it will get as much direct sunlight as possible.
Plug the output of the solar panel into the input of the unit to start charging.
You will know the unit is charging when the “IN” on the LED display is blinking.
The unit is fully charged when “IN” stop blinking and LED display displays “100%”.
Charging by solar panel (Solar Panel is not included, recommend to choose 18V/35W~ 40W solar panels)

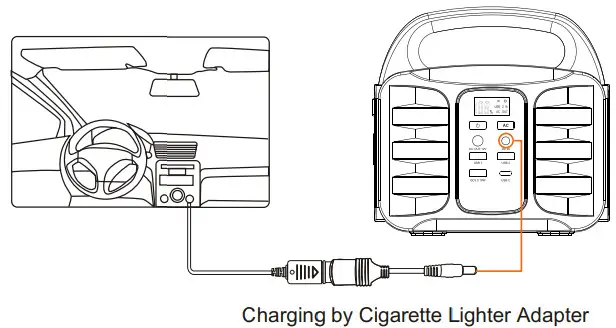

c. With a Vehicle Charging Cable
Connect one end of the charging lead to the DC Input Port.
Start your vehicle’s engine and connect the other end of the charging lead to your vehicles auxiliary/cigarette lighter port.
Warning: The AC output ports can not be used when charging the power station
For any support or comments concerning our products, please send an email to: [email protected] or toll free number in the USA: 800-473-5156
