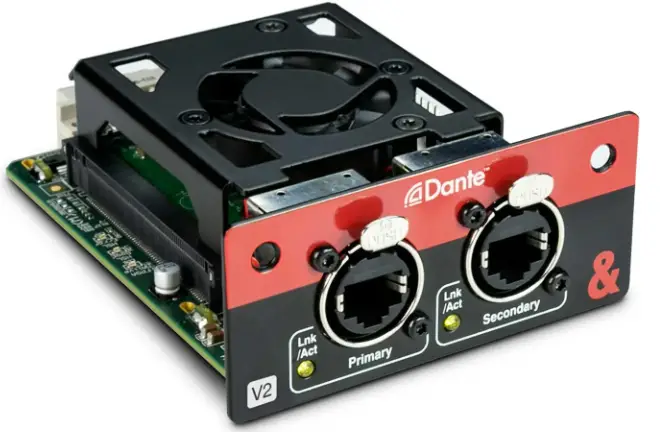

ALLEN HEATH SQ Dante Audio Interface Card
Contents
Important Instructions
Refer to www.allen-heath.com for instructions on how to update the Dante cards and important notes about the update.
This update is for SQ V3 DANTE 64×64 and SQ V3 DANTE 32×32 cards only.
The current version of SQ V3 DANTE 64×64 and SQ V3 DANTE 32×32
- Max number of DT168 / DT164-W on a Dante network: 16
- Max number of DT168 / DT164-W within a Dante Domain Manager network: 8
V1.0.2 October 2023
Feature Release
New features
ID24 Support of SMPTE-ST2110-30 streams in Dante Domain Manager.
Fixes
ID21 Improved multicast reliability on Secondary Link.
ID24 Support for AES67 and SMTPE-2110-30 when used as part of a DDM network.
Known Issues
ID29 In certain circumstances with specific third-party hardware, card will crash when attempting to acquire a DHCP address requiring a reboot.
ID1326 Adjusting preamp settings after a DT device is disconnected can result in mismatched settings when reconnecting the device.
DT preamp controls might be missing, unavailable or work incorrectly in the following circumstances:
ID73 Adding DHCP to an active Dante network.
ID75 Hot-plugging a DT device in large networks with several DT devices.
ID77 3 or more A&H Dante cards sharing DT expanders.
V1.0.1 March 2023
This was the first release of V3 Dante firmware for SQ Dante 32×32
V1.0.0 Feb 2023
This was the first release of V3 Dante firmware for SQ Dante 64×64
