ALFATRON ALF-MUH88E GEN2 HDBaseT Matrix Switcher
Product Information
| Product Name | ALF MUH88E GEN2 |
|---|---|
| Description | 8×8 HDMI Matrix Switcher with HDBaseT Outputs |
| Features | HDMI 2.0b, HDCP 2.2, and HDCP 1.4 compliant Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI and HDBaseT ports 8 HDMI inputs, 8 HDMI and HDBaseT mirrored outputs HDMI ports transmit 18Gbps lossless uncompressed video bandwidth Supports 18Gbps lossless compressed HDBaseT signal transmission Supports 4K->1080P Downscaling for each output port HDR, HDR10, HDR10+, and HLG are supported HDBaseT output can extend video transmission a distance up to 492ft / 150m for 1080p or 328ft / 100m for 4K2 via a single CAT 6/7 cable HDMI audio pass-through up to 7.1CH HD audio (LPCM, TrueHD, and DTS-HD Master Audio) Supports IR matrix Audio de-embedded is supported via analog and coax ports Advanced EDID management and CEC control are supported 24V POC on all HDBaseT ports 2U rack mounted design with front panel OLED display Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI |
| Website | www.alfatronelectronics.com |
Product Usage Instructions
To use the ALF MUH88E GEN2 HDMI Matrix Switcher, please follow these instructions:
- Connect up to 8 HDMI sources to the HDMI inputs of the switcher.
- Connect the desired display devices or receivers to the HDMI and HDBaseT mirrored outputs of the switcher.
- If necessary, connect a CAT 6/7 cable to the HDBaseT output port of the switcher to extend the video transmission distance. For 1080p, the maximum distance is 492ft / 150m, and for 4K2, the maximum distance is 328ft / 100m.
- Power on the switcher and the connected devices.
- Use the front panel buttons, IR remote, RS-232, LAN, or Web GUI to control the switcher as per your preference.
- To downscale the video resolution from 4K to 1080P for each output port, configure the settings accordingly.
- If you wish to de-embed audio, use the analog and coax ports of the switcher.
- For advanced EDID management and CEC control, utilize the supported features.
- The OLED display on the front panel provides visual feedback and status information.
For further information or troubleshooting, please refer to the user manual or visit the official website: www.alfatronelectronics.com
DESCRIPTION

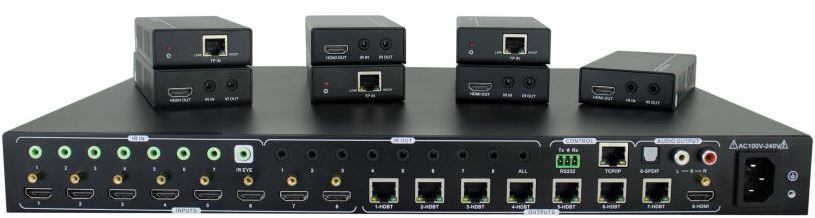

The ALF-MUH88E 18 Gbps 8×8 HDBaseT (492 ft / 150M) Matrix can connect 8 HDMI sources to 16 displays. It features 8 HDMI outputs, and each HDMI output is mirrored to provide a CAT Cable output that runs simultaneously. The HDBaseT output can extend video transmission up to 492ft / 150m (1080p) via a single Cat 6/7 cable. The product supports video resolution up to 4K2K@60Hz 4:4:4 with a distance of up to 328ft / 100m. Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to 1080P downscaled independently. The product supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows the HDMI video channel at the HDBaseT Receiver end. The product provides an intuitive set of front panel buttons with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
FEATURES
- HDMI 2.0b, HDCP 2.2, and HDCP 1.4 compliant
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI and HDBaseT ports
- 8 HDMI inputs, 8 HDMI and HDBaseT mirrored outputs
- HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
- Supports 18Gbps lossless compressed HDBaseT signal transmission
- Support 4K->1080P Downscaling for each output port
- Support 4K->1080P Downscaling for each output port
- HDR, HDR10, HDR10+, and HLG are supported
- HDBaseT output can extend video transmission a distance up to 492ft / 150m for 1080p or 328ft / 100m for 4K2 via a single CAT 6/7 cable
- DMI audio pass-through up to 7.1CH HD audio (LPCM, TrueHD, and DTS-HD Master Audio)
- Supports IR matrix
- Audio de-embedded is supported via analog and coax ports
- Advanced EDID management and CEC control are supported
- 24V POC on all HDBaseT ports
- 2U rack-mounted design with front panel OLED display
- Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI
- www.alfatronelectronics.com
