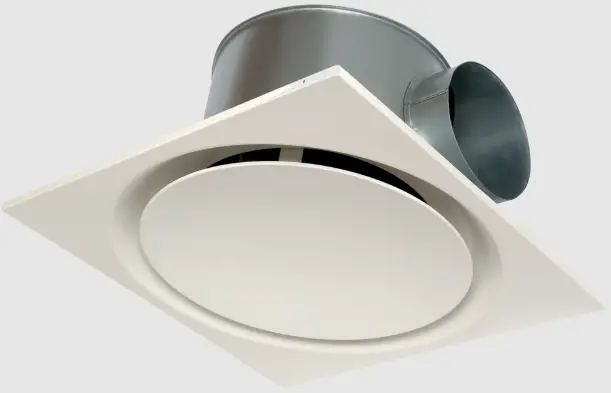

aldes TWISTED 850 High Induction Twisted Helicoidal Air Jet Diffuser
Product Information
| Model | Dimensions (mm) | Product Code | Flow Rate (m3/h) | Power (W) |
|---|---|---|---|---|
| TWISTED 850 | 600 x 600 | 11003361 | 366 | 200/250 |
| TWISTED 850 | 625 x 625 | 11003365 | 366 | 200/250 |
| TWISTED 850 | 675 x 675 | 11003363 | 366 | 200/250 |
| TWISTED 850 | – | 11003374 | 535 | 200/250 |
Product Usage Instructions
- Ensure that the product is properly installed following the installation instructions provided in the user manual.
- Connect the power supply to the product using the appropriate power cable.
- Adjust the desired flow rate using the flow rate control settings.
- Monitor the product’s performance and maintain it regularly as per the maintenance instructions provided in the user manual.
- For any troubleshooting or further assistance, refer to the manufacturer’s website at www.aldes.com.

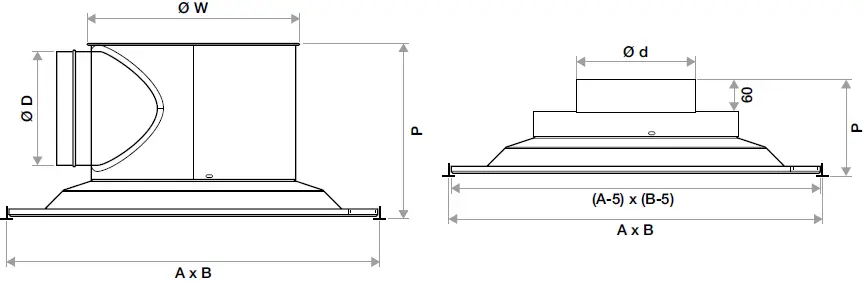

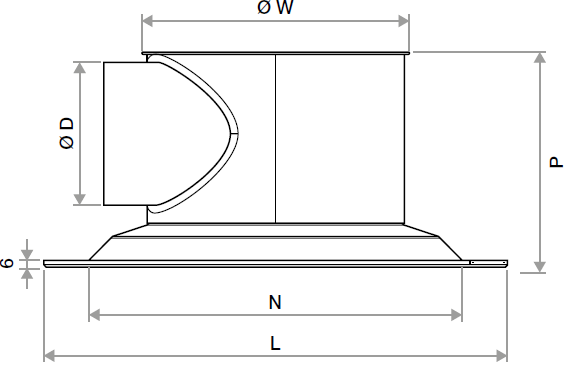

DIMENSIONS
| AxB (mm) | Ø N (mm) |
Ø L (mm) |
Ø W (mm) |
Ø D (mm) |
Ø d (mm) | P (mm) |
Q (m3/h) |
1 Réf. / Ref. / Art. |
2 Réf. / Ref. / Art. |
|

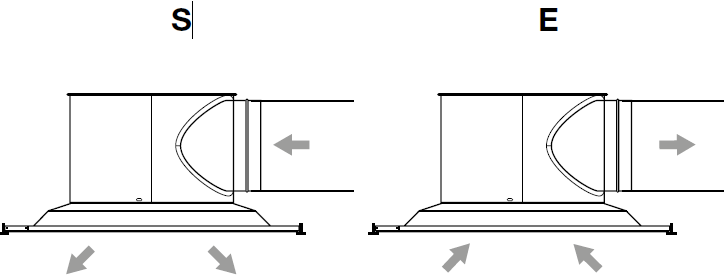

| S | E | E | ||||||||
| 600 x 600 | – | – | 366 | 200/250 | 200/250 | 298/348 | 150 – 600 | 11003361 11051163 11051165 |
11003362 11051164 11003372 |
11003366 |
| 625 x 625 | – | – | 366 | 200/250 | 200/250 | 298/348 | 150 – 600 | 11003365 | 11003365 | 11003367 |
| 675 x 675 | – | – | 366 | 200/250 | 200/250 | 298/348 | 150 – 600 | 11003363 | 11003364 | 11003368 |
| – | 535 | 555 | 366 | 200/250 | 200/250 | 298/348 | 150 – 600 | 11003374 11051166 |
11003374 | 11003376 |

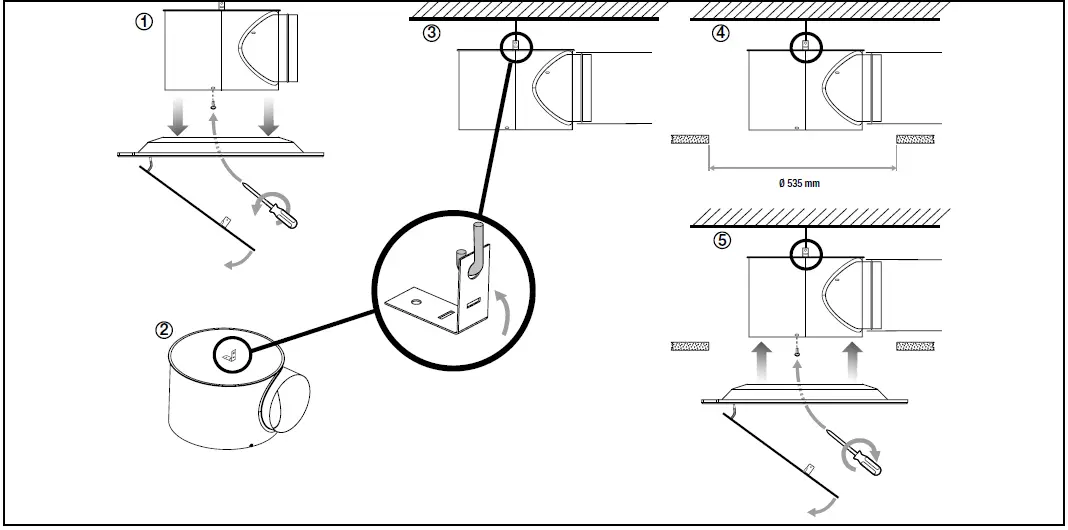

ASSEMBLY

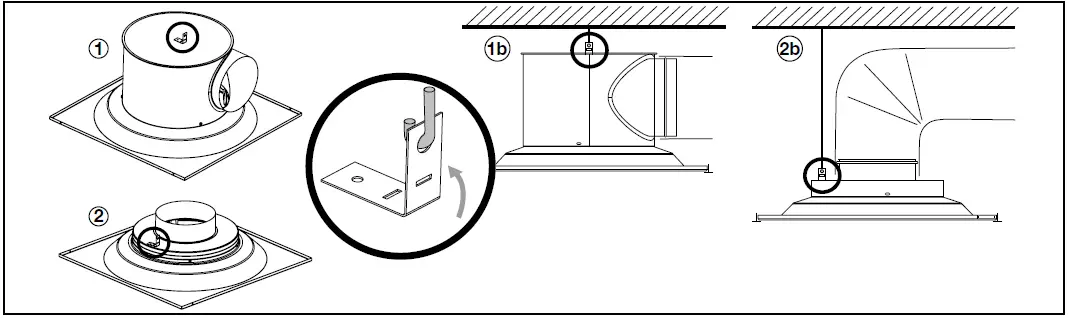

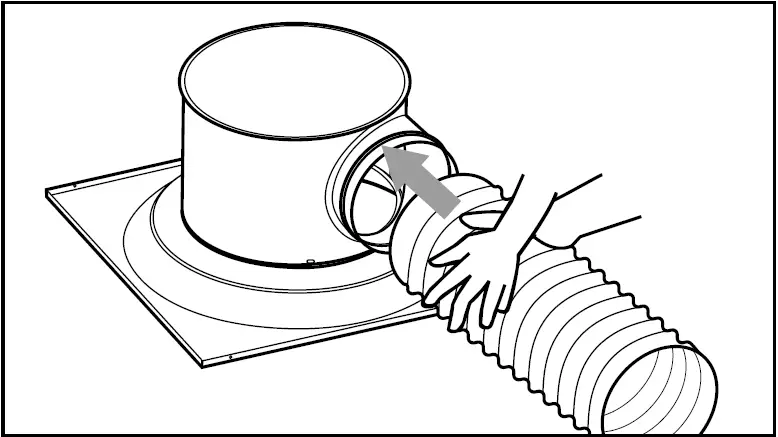

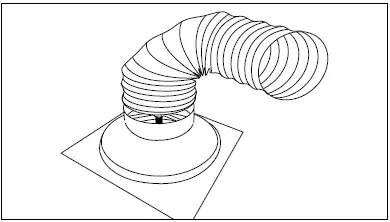

- Air duct connection
- Dropped Ceiling fitting
- The weight of the diffuser must not be supported by the suspended ceiling

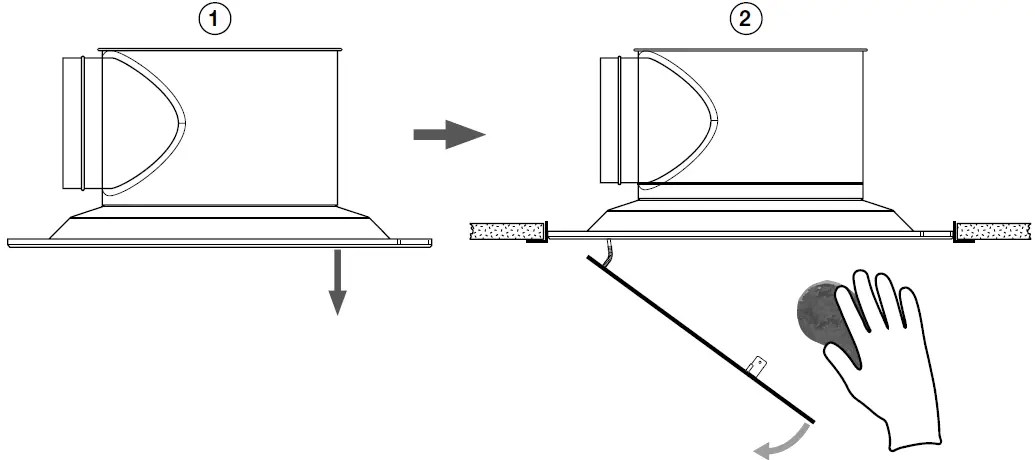

- Plaster ceiling fitting (staff-BA13)
- F7 Fixing only
FILTER MAINTENANCE
www.aldes.com
