Congratulations!

Congratulations, your dwelling is fitted with a T.Flow® Hygro+ or a T.Flow® Nano!
As ventilation specialist, Aldes has successfully reconciled air quality and domestic hot water.

The T.Flow® Hygro+/T.Flow® Nano systems use the calories from the air extracted from your dwelling – a free, inexhaustible energy source – to heat your domestic water.
The entire family thus enjoys healthy air and hot water throughout the year at minimum cost.

Increased savings
T.Flow® produces up to 73% hot water free of charge.

More comfort
T.Flow® Hygro+ / T.Flow® Nano range easily covers the domestic hot water requirements of a family up to 6 people.

More control
AldesConnect TM can be used to monitor and manage your domestic hot water production in real time, directly from a smartphone.

Improved air quality
Thanks to its ventilation function, the air within the dwelling is constantly renewed, providing a healthier environment.

More discretion
The T.Flow® Hygro+ connected is the quietest(2) and slimmest unit in its class, designed to be built into a standard cupboard or laundry room.

Standards and regulations

B200-FAN_T.Flow® Hygro+ (11023198)
B200 T.Flow® Hygro+ (11023199)
B100-FAN _T.Flow® Nano (11023394)
B100 T.Flow® Nano (11023395)

B200-FAN_T.Flow® Hygro+ (with built-in fan – 11023198) and B100-FAN_T.Flow® Nano (with built-in fan – 11023394):
French CSTB Technical Report no. 14.5/17-2266 and certification QB 70/02-CHY5-2266

B200_T.Flow® Hygro+ (without fan) and B100_T.Flow® Nano (without fan): French CSTB Technical Report no. 14.5/17-2267

T.Flow® Hygro+ / T.Flow® Nano have a fluorinated greenhouse gas contained within a hermetically-sealed unit.
Refrigerant R513a (PRG: 631).
T.Flow® Hygro+: initial load of 650 g i.e. 0.41 tCO2eq.
T.Flow® Nano: initial load of 580 g i.e. 0.37 tCO2eq.

COP at 20°C at maximum airflow (222,8 m3/h) of T.Flow® for Individual Houses.
Multi-occupancy housing version: less than 21 dB(A) – Max. value at 150 m3/h, Lp at 2 m in free air

Complies with eco-design regulation 814/2013 and energy labelling regulation 812/2014 for domestic hot water.
Complies with eco-design regulation 1253/2014 and energy labelling regulation 1254/2014 for ventilation
Energy class – ventilation
Energy class – domestic hot water

Description

A T.Flow® Hygro+/T.Flow® Nano
B Filter access hatch
C G4 filter*
D Aldes ConnectTM app (connected version)
E Alde sConnectTM Box (connected version)

* Filter class G4 as per EN 779 and ISO Coarse 65% as per ISO 16890.

F Active elements running: heat pump ON heating element ON
G Modes: Auto – Boost – Comfort/Guests – Holidays
H Selection – Configuration – Navigation
I Anti-Legionella option ON
J Filter clogging Indicator (Example opposite: 75%)
K Hot water temperature setpoint
L Quantity of hot water available (Example opposite: 66%)

SELECT YOUR MODE

The mode is used to adjust your hot water production:

Automatically (1.1)
Occasionally:
- Boost (1.2)
- Comfort/Guests (1.3)
- Holidays (1.4)

Auto Mode (default)
“I set my temperature setpoint and the water heater controls the production automatically.”

Boost Mode
“I need hot water urgently!”

The product then moves automatically into Auto mode once the setpoint is reached.

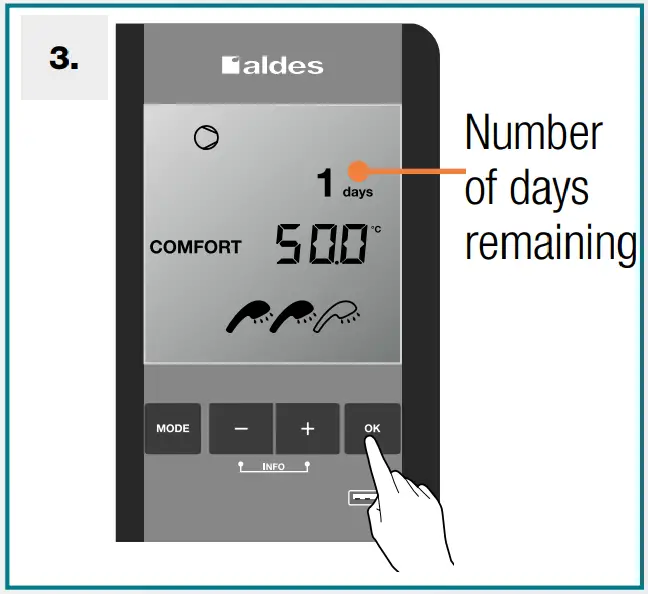

Comfort/Guests Mode
“My guests are arriving! I need more hot water for one or more days.”

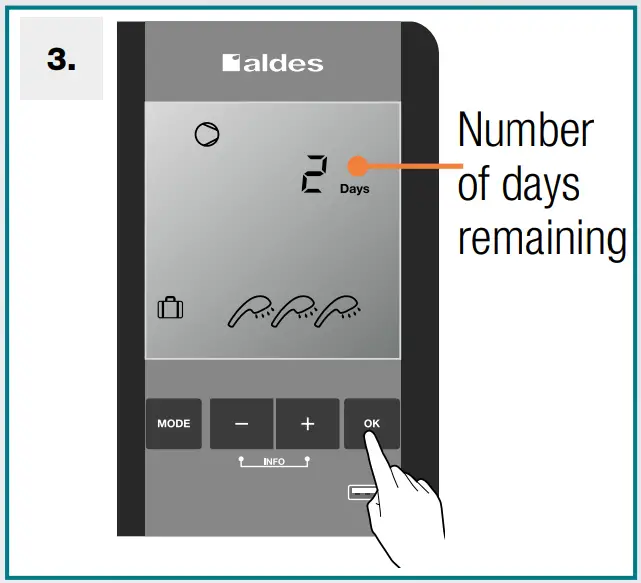

Holiday Mode
“I wish to pause heating my water during my holidays! The ventilation continues to protect my dwelling.”

Hot water production is reactivated one day before halting the mode, so that hot water is available on your return.

ADJUSTING YOUR DAILY QUANTITY OF HOT WATER

To save on hot water production, set a temperature setpoint of less than 55°C.
For more hot water, increase the temperature setpoint.

T.Flow® Hygro+
Temperature setpoint	Nbr. of people
45 to 48°C.	2-3
48.5 to 50°C.	4-5
50.5 to 53.5°C.	5-6
54 to 57.5°C.	6-7
58 to 65°C.	7-8

T.Flow® Nano
Temperature setpoint	Nbr. of people
50°C	1+
50.5 to 53°C.	2
53.5 to 59°C.	2+
59.5 to 65°C.	3

These settings are given as a guide only. As use profiles are specific, do not hesitate to fine tune the setting to find the optimum for your daily requirement and your energy saving goals.

MONITORING ELECTRICAL CONSUMPTION AND RESETTING (FILTER)

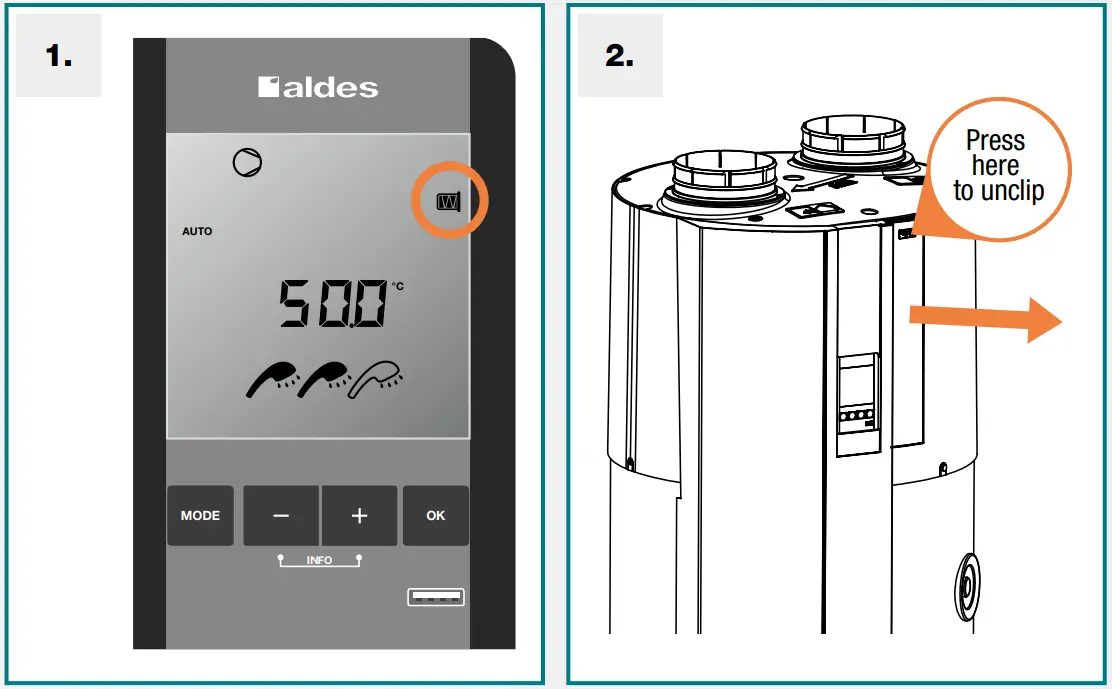

REPLACING YOUR FILTER

When the filter is full, a “filter full” alarm appears on the screen and the backlighting remains lit.
It is advisable to change the filter at least once a year.
