LED FLOODLIGHT
Contents
SPECIFICATIONS
| Item No. | uncertain | uncertain | uncertain | uncertain | uncertain |
| Wattage | 10W | 20W | 30W | 50W | 100W |
| Voltage | 220-240V— 50/60Hz | ||||
| Input current | 50mA | 100mA | 150mA | 250mA | 500mA |
| Displacement Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Lamp type | LED 2835 | ||||
| Material | Aluminum Die-casting | ||||
| Products size | 98*87.5*26.5 | 128*1 03.5*26.5 | 157*1 24*26.5 | 210*1 73*26.5 | 277*222*26.5 |
| Color Temperature | RGB | ||||
| Work Temperature | -20°C∼+40°C | ||||
| Protection | IP65 | ||||
| Housing color | Black/white | ||||
| Use position | Wall installation | ||||
| Net weight | 180g | 250g | 360g | 690g | 1310g |

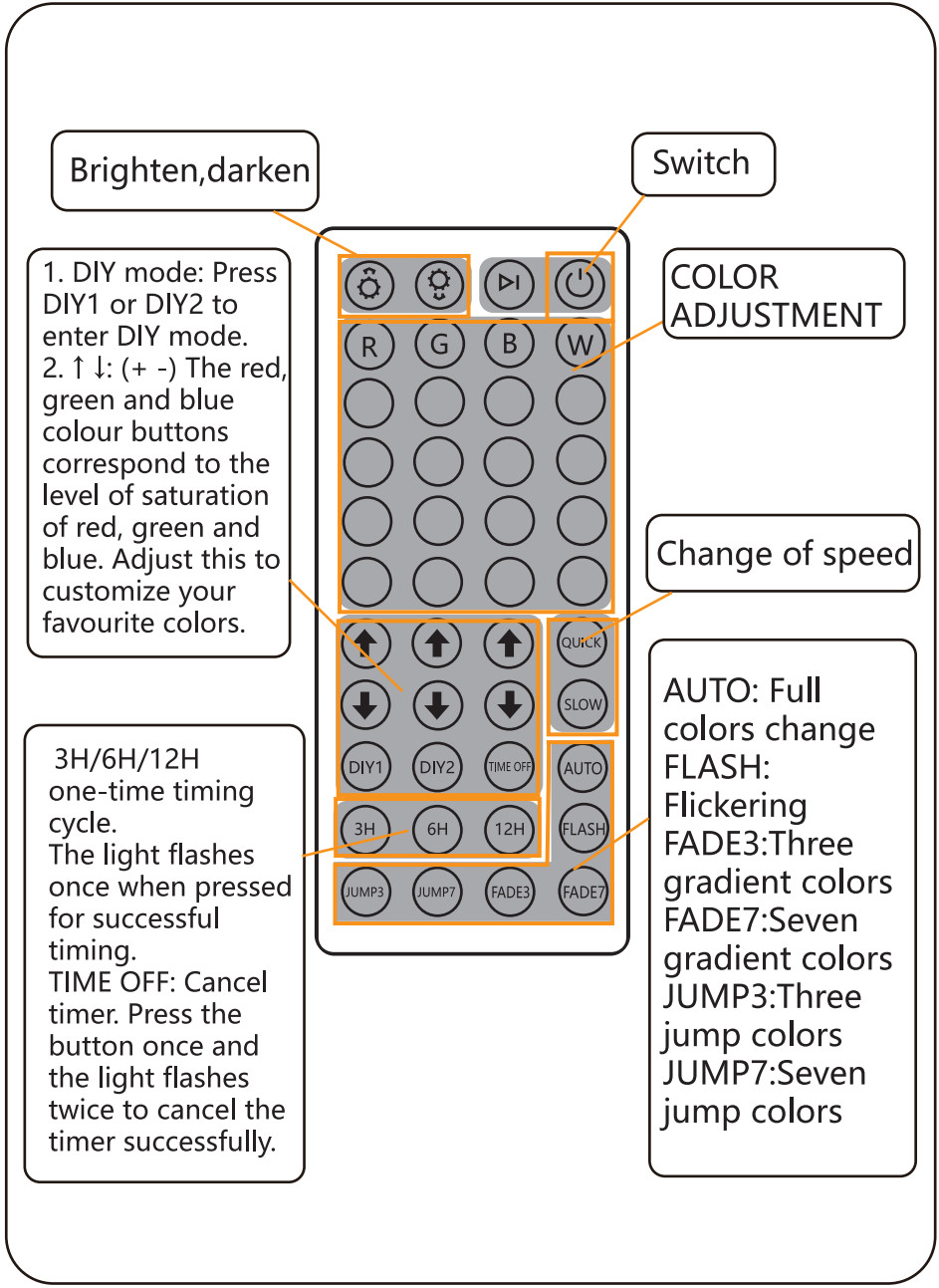

| Remote control distance | 6m | ||||
| Max projected area | 73.8-204.8m² | 73.9-204.9m² | 74.2-205.3m² | 75-206.7m² | 75.5-207.5m² |
| Working environment | Outdoor | ||||
| The installation height less than 5m, relevant glass panel protection methods and fixing device | Glue sticks/Tempered glass | ||||
LIFETIME: UP TO 25,000 HOURS
TOOLS REQUIRED:
ADJUSTABLE SPANNER MAY NEED SOME OF THE POWER CABLE
NOTICE
Read thoroughly before installing. The luminaire shall be installed by a qualified electrician,and hand over these introductions to user for maintenance afterwards.
WARNING
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Turn off the main power before maintenance. If not, may cause the risk of electric shock and fire. Check the strength of installation material.
If installed incorrectly, it may cause the luminaire to drop down.
Having issued this warning the company accepts NO responsibility for issues arising from any failure to comply with this clear instruction.The Corp.
Will not accept responsibility for any other issues arising from improper use or fitting of this product as these matters are beyond our control.
WARRANTY:
This product is warranted from manufacturing defect only.
This warranty is valid for 2 year from the date of purchase.
This warranty does not apply to damage caused by user wrong installation or abnormal wear and tear. The Corp. gives no warranty against damage to any surface due to incorrect removing or applying this product.
INSTALLATION
Strictly follow these instructions for installing to avoid the intensity of power cable during installing.(Supply connection and other external wiring conductor shall be at least 3*1.0 mnfand compliant with 602451EC57)

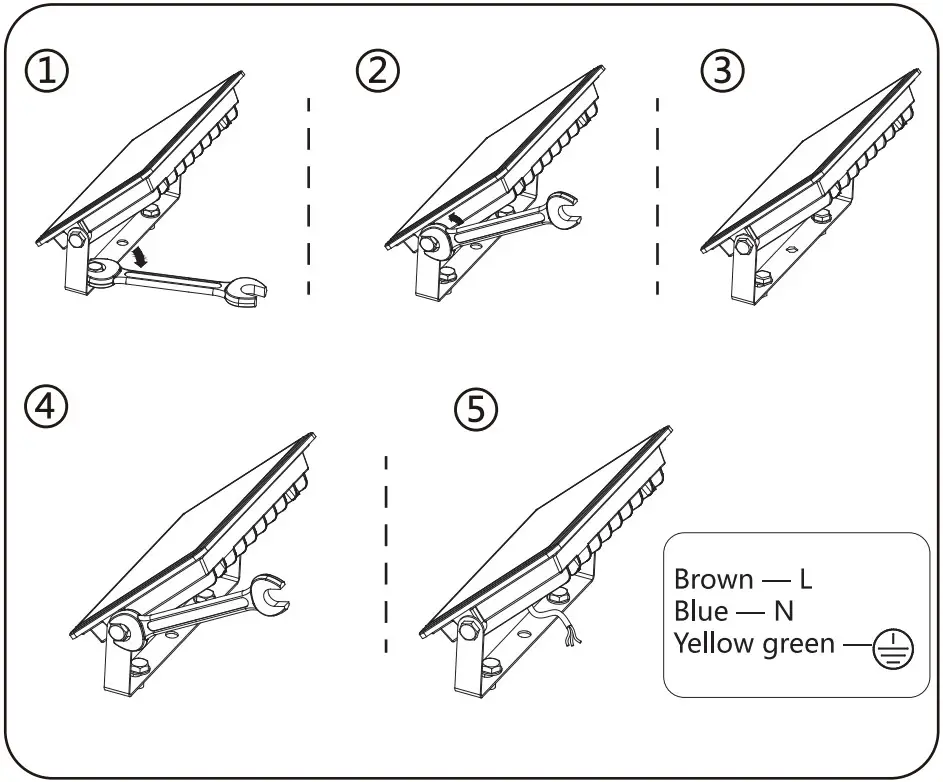

As photo:
- Install the brackets.
- Loosen the bolts on both sides of the bracket.
- Adjust the flooding angle of the flood light.
- Tighten the bolts on both sides of the bracket.
- Connect the wiring of the flood light.
Turn on the power to make sure the light is working.
