ADUB NG-LHB-100W LED Linear High Bay Light Instructions

ADUB NG-LHB-100W LED Linear High Bay Light

Contents

KEY FEATURES

Unique and exquisite appearance design
Stretched aluminum shell, better heat dissipation performance, longer lifespan
Ultra-thin design, larger area illumination
Front light-emitting structure, high-transmittance PC diffusion cover, uniform light
Available wattages: 100W/ 150W/ 200W/ 240W/ 300W/ 400W
CCT: 5000K
Voltage rating: 100-277V AC
5-Year warranty
UL CUL CE DLC rated
No Plug. The light needs hard-wired.

APPLICATIONS

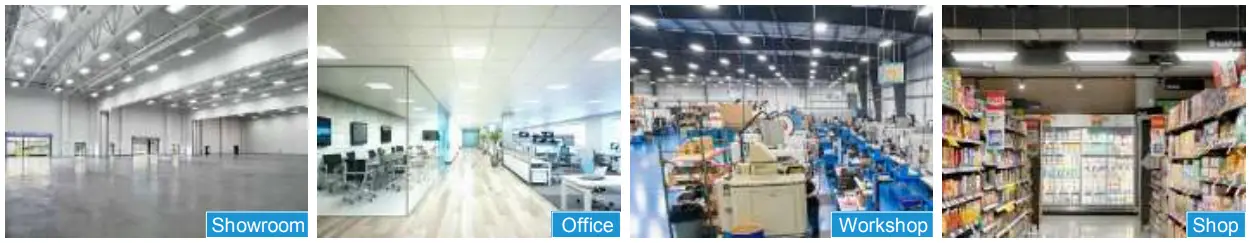

Widely used in offices, workshops, hospitals, shops, corridors, parking lots, showrooms, clubs and other indoor places.

DIMENSIONS

Model

CCT

Lumen (±10%lm)

Efficacy (±10%)

Beam Angle

LED/ Qty.

Power (±10%)

Voltage/ Frequency

Working Temperature

Protection Grade

CRI

Dimming

NG-LHB-100W

3000K
4000K
5000K

15000

150LM/W

120°

SMD3030 – 200pcs

100W

AC100-277V 50/60Hz

-40 ~40 (-40 ~104 )

IP44

>280

>0.9

0-10V

NG-LHB-150W

22500

150W

NG-LHB-200W

30000

SMD3030 – 320pcs

200W

NG-LHB-240W

36000

240W

NG-LHB-300W

45000

SMD3030 – 480pcs

300W

NG-LHB-400W

60000

SMD3030 – 588pcs

400W

*The number of LED chips in the adjustable CCT version is doubled.

STRUCTURE

* The accessories of the light may differ as per the function changes.

ACCESSORIES

M4 Screws
Plastic Anchors
Mounting Clips
Hook
Suspend Chain 4ft

INSTALLATION INSTRUCTIONS

IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

NGTLIGHT fixtures must be wired by qualified electrician. Proper grounding is required for safety.

Make sure power is OFF before installing or maintaining fixture.

CAUTION: Be sure fixture temperature is cool enough to touch. Do not clean or maintain while fixture is energized.

The fixture is suitable only for INDOOR RECESSED CEILING application.

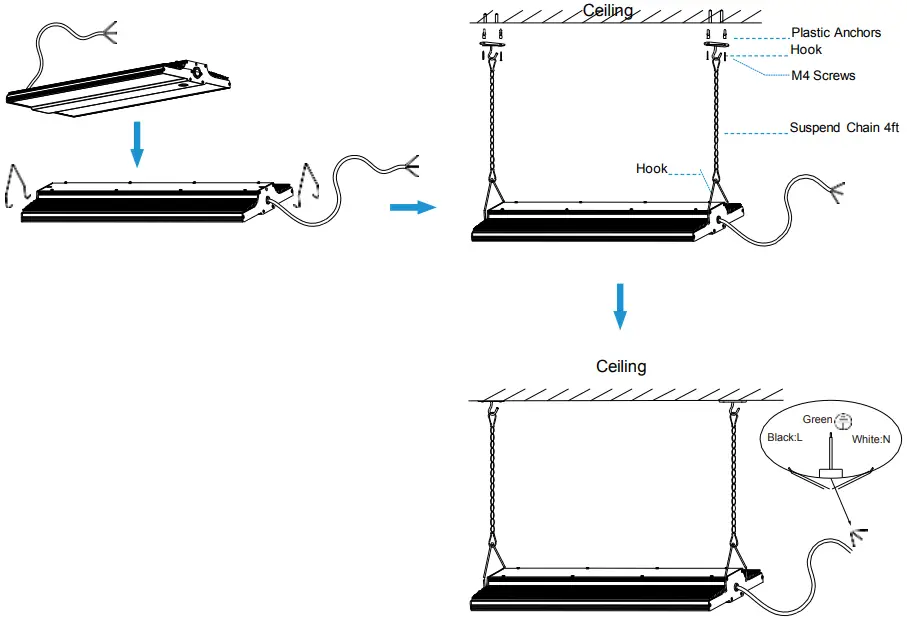

Drill 4 φ6mm holes in ceiling, put plastic anchors into the 4 holes.
Fix hook by M4 screws and attach into ceiling.
Hang suspend chain and adjust chain clasp according to
installation height you need.
Hook the bottom side of the suspend chain in the mounting clips on the background of light.
Connect the wire into electricity, turn on the light.

TEST DATA

150W LED LINEAR HIGH BAY

Color Parameters:

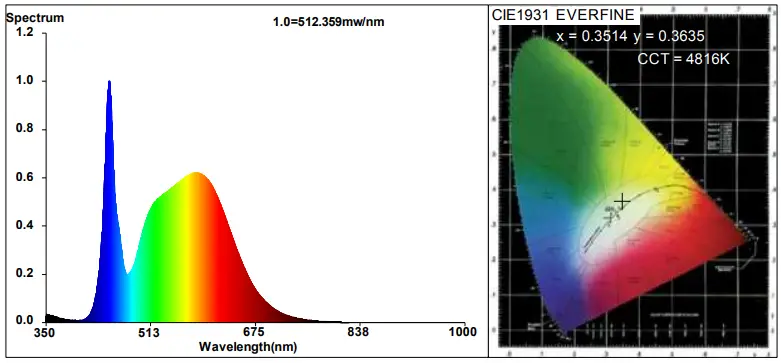

Chromaticity Coordinate:x=0.3514 y=0.3635/u’=0.2111 v’=0.4913
CCT=4816K(Duv=0.0034) Dominant WL:Ld =572.0nm WL:Lc=–nm Purity=14.5%

Ratio:R=15.7% G=80.2% B=4.1%
Peak WL:Lp=448.1nm FWHM=18.1nm
Render Index:Ra=81.2 AvgR=73.5 TM30:Rf=82 Rg=95

R1=79	R2=86	R3=92	R4 =81	R5=79	R6=81	R7 =87
R8=65	R9=0	R10=67	R11=80	R12=57	R13=80	R14=96	R15=73

Electrical parameters:
V=119.69V I=1.234A P=147.3W PF=0.9971
LEVEL: OUT WHITE:ANSI_5000K

Status: Integral T = 76 ms Ip = 50638 (77%)

200W LED LINEAR HIGH BAY

Color Parameters:

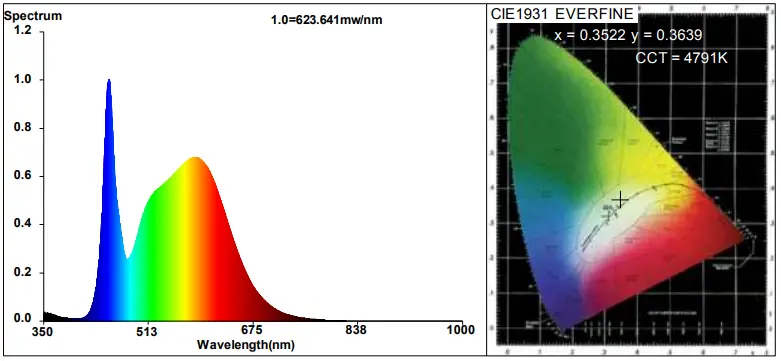

Chromaticity Coordinate:x=0.3522 y=0.3639/u’=0.2115 v’=0.4916
CCT=4791K(Duv=0.0033) Dominant WL:Ld =572.3nm WL:Lc=–nm Purity=14.9%
Ratio:R=15.8% G=79.8% B=4.4% Peak WL:Lp=451.1nm FWHM=21.7nm

Render Index:Ra=81.8 AvgR=74.2 TM30:Rf=83 Rg=94

R1=79	R2=88	R3=94	R4 =80	R5=80	R6=83	R7 =86
R8=64	R9=0	R10=72	R11=79	R12=57	R13=82	R14=97	R15=73

Photo Parameters:
Flux= 29804.13 lm Eff.: 151.29lm/w Fe =79.14 W

Electrical parameters:
V=119.73V I=1.654A P=197.6W PF=0.9979
LEVEL: OUT WHITE:ANSI_5000K

Status: Integral T = 62 ms Ip = 52324 (80%)

240W LED LINEAR HIGH BAY

Color Parameters:
Chromaticity Coordinate:x=0.4434 y=0.4069/u’=0.2535 v’=0.5235
CCT=2917K(Duv=0.0003) Dominant WL:Ld =583.1nm WL:Lc=–nm Purity=55.2%
Ratio:R=23.1% G=74.4% B=2.5% Peak WL:Lp=602.3nm FWHM=116.3nm

Render Index:Ra=80.4 AvgR=74.5 TM30:Rf=83 Rg=95

R1=78	R2=90	R3=95	R4 =78	R5=79	R6=89	R7 =80
R8=54	R9=0	R10=78	R11=77	R12=70	R13=81	R14=98	R15=70

Photo Parameters:
Flux= 36354.01 lm Eff.: 152.3lm/w Fe =77.33 W

Electrical parameters:
V=119.69V I=1.996A P=238.7W PF=0.9989
LEVEL: OUT WHITE:ANSI_3000K

Status: Integral T = 52 ms Ip = 51250 (78%)

300W LED LINEAR HIGH BAY

Color Parameters:
Chromaticity Coordinate:x=0.3486 y=0.3626u’=0.2095 v’=0.4904
CCT=4913K(Duv=0.0041) Dominant WL:Ld =570.4nm WL:Lc=–nm Purity=13.4%
Ratio:R=15.7% G=79.8% B=4.5% Peak WL:Lp=451.8nm FWHM=20.3nm

Render Index:Ra=82.5 AvgR=75.0 TM30:Rf=84 Rg=94

R1=80	R2=88	R3=94	R4 =81	R5=80	R6=84	R7 =87
R8=66	R9=3	R10=72	R11=80	R12=56	R13=82	R14=97	R15=74

Photo Parameters:
Flux= 45035.1 lm Eff.: 152.3lm/w Fe =95.88 W

Electrical parameters:
V=119.63V I=2.485A P=295.7W PF=0.9943
LEVEL: OUT WHITE:ANSI_5000K

Status: Integral T = 45 ms Ip = 48501 (74%)

400W LED LINEAR HIGH BAY

Color Parameters:

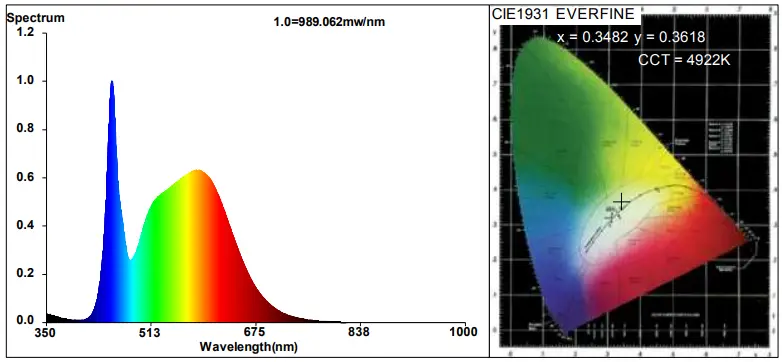

Chromaticity Coordinate:x=0.3482 y=0.3626u’=0.2096 v’=0.4900
CCT=4922K(Duv=0.0038) Dominant WL:Ld =570.4nm WL:Lc=–nm Purity=13.0%
Ratio:R=15.7% G=79.8% B=4.6% Peak WL:Lp=451.8nm FWHM=21.0nm

Render Index:Ra=82.6 AvgR=75.1 TM30:Rf=84 Rg=94

R1=80	R2=89	R3=94	R4 =81	R5=80	R6=84	R7 =87
R8=66	R9=3	R10=73	R11=80	R12=57	R13=83	R14=97	R15=74

Photo Parameters:
Flux= 59386.37 lm Eff.: 150.88lm/w Fe =120.5 W

Electrical parameters:
V=119.50V I=3.299A P=393.6W PF=0.9984
LEVEL: OUT WHITE:ANSI_5000K

Status: Integral T = 36 ms Ip = 48271 (74%)

PACKAGE

Power	Unit	Size	Gross Weight	Volume
NG-LHB-100W NG-LHB-150W	1 PC	420x270x80mm/ 16.54″ 10.63″ 3.15′	3.7 KG/8.16 lbs	0.009m³
NG-LHB-100W NG-LHB-150W	4 PCS	435x375x295mm/ 17.13″ 14.76″ 11.61′	16 KG/35.27 lbs	0.048m³
NG-LHB-200W NG-LHB-240W	1 PC	520x270x80mm/ 20.47″ 10.63″ 3.15′	4.2 KG/9.26 lbs	0.012m³
NG-LHB-200W NG-LHB-240W	4 PCS	535x375x295mm/ 21.06″ 14.76″11.61′	18 KG /39.68 lbs	0.059m³
NG-LHB-300W	1 PC	600x270x80mm/ 23.62″ 14.76″ 11.61″	4.8 KG/10.58 lbs	0.013m³
NG-LHB-300W	4 PCS	615x375x295mm/ 24.21″14.76″ 11.61′	20.5 KG/45.19 lbs	0.068m³
NG-LHB-400W	1 PC	700x270x8Omm/ 27.56″14.76″ 11.61′	5.4 KG/11.90 lbs	0.015m³
NG-LHB-400W	4 PCS	715x285x295mm/ 28.15″ 11.22″ 11.61′	17.5 KG/38.58 lbs	0.06m3
