QUICK GUIDE
Contents
NEXTGEN TV Box with Remote Control
- STB
- Power Adapter
- Quick Guide
- Remote Control
- Battery
- HDMI Cable
DEVICE INFORMATION
- DC 12V
- AV OUT
- USB
- LAN
- OPTICAL
- HDMI
- Antenna

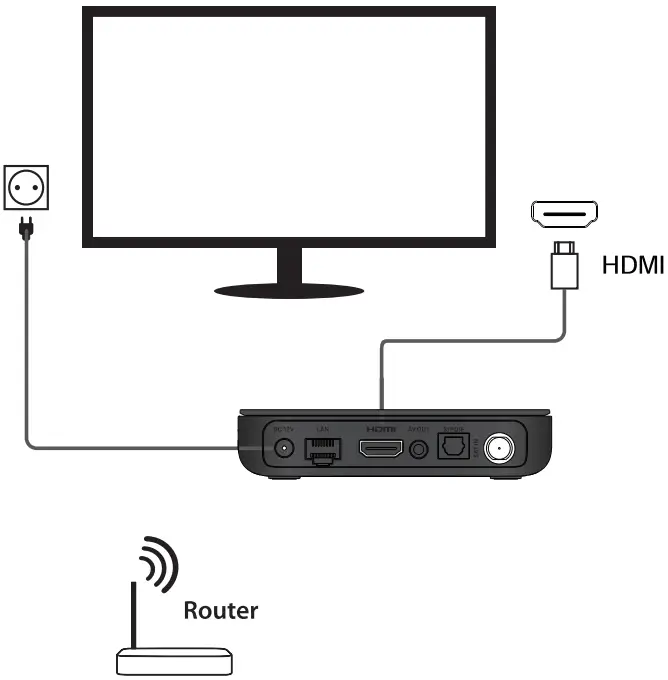

SETUP DIAGRAM
REMOTE CONTROL
Do more on your TV with your voice
Search for shows, get recommendations, even control your TV – faster – with your voice.
Pairing guide
Long press the Back and Home button at the same time until the red light flashes quickly, then release. This means the remote control has entered pairing mode. Wait for a few seconds without pressing any buttons until a message pops up on the screen that the remote has paired successfully.
SPECIFICATION
| Chipset | Amlogic 3905Y4 |
| RAM | 2GB DDR |
| Flash | eMMC 8GB |
| Video | |
| Video Decoding | AV1 [email protected] up to 4Kx2K@60fps VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC [email protected] up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WmV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11 172)RealVideo 8/9/10 up to 1080P@60fps |
| Video File Format | Supports*.mkv ,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *. mov , *.iso, *.mp4, *.rm and *.jpgfile formats |
| Video Output | HDMI 2.1 , HDCP2.2 |
| Aspect Ratio | Auto, Full screen |
| Video Resolution | 4801/p, 576i/p, 720p, 1080i/p and 4Kx2K |
| Power | |
| DC Input Range | 12V 1.5A |
| Power Consumption | Maximum 18W |
SAFETY INFORMATION
CAUTION!
NOTICE: To prevent fire and electric shock, do not expose this device to rain or moisture. In order to avoid any possible risk of electric shock, never attempt to open the unit. In case of the unit breaking down, repair of the unit should be carried out by qualified technicians. No port of this unit should be repaired by users
WARNING!
- Place the device in a well-ventilated location to prevent accumulation of internal heat.
- Protect the device from high temperatures, humidity, water and dust.
- Do not place ony objects that might damage your unit near it (e.g. liquid filled objects or candles).
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
