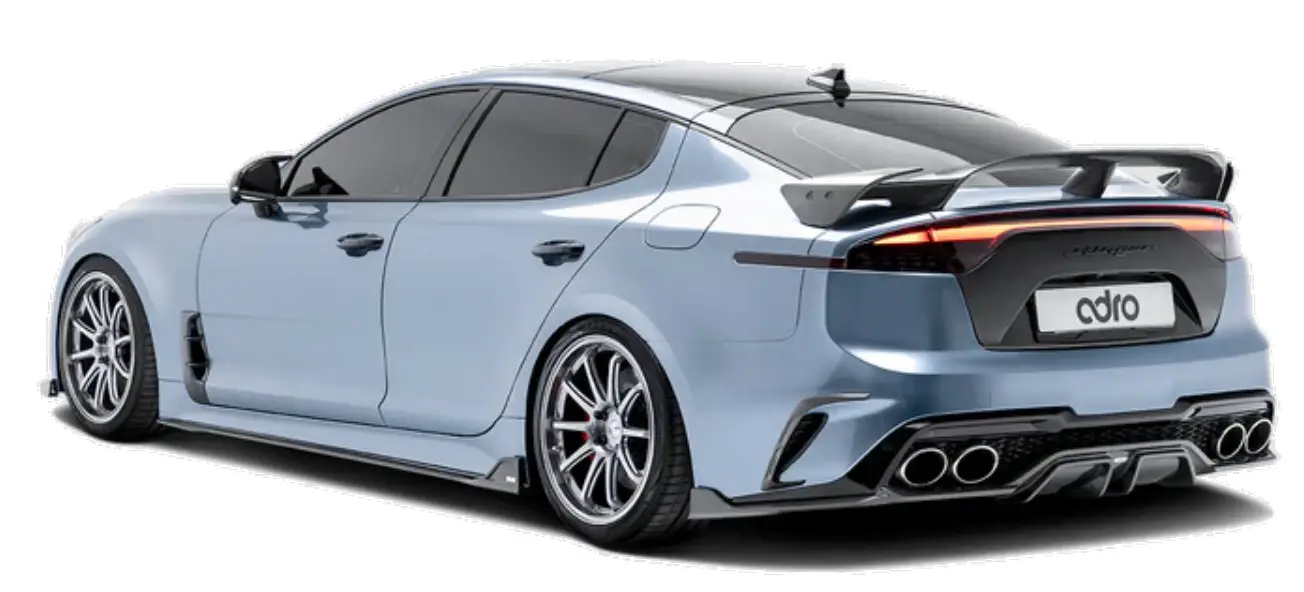

adro V3 Carbon Fiber Trunk Spoiler
Contents
INCLUDES

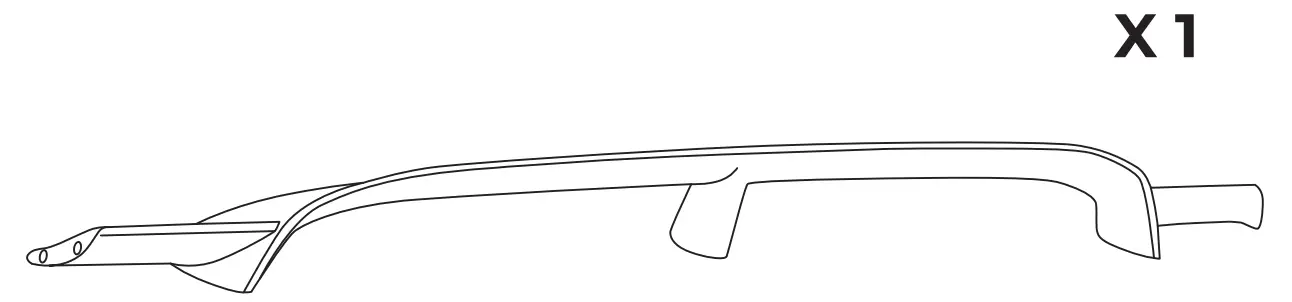

- Carbon Fiber Rear Spoiler
- End Plates

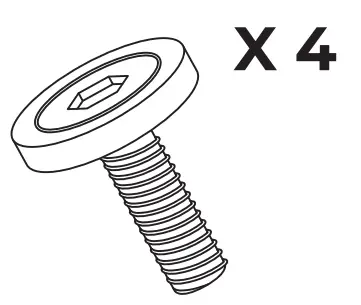

- Bolts
- Washers
- Hex Bolts
Prep
Apply masking tape to protect the rear glass and remove the trunk cover, as well as the nuts and other elements.
Position the carbon fiber rear spoiler over the trunk cover and check the alignment.
Mark the position with masking tape.
Drill
Drill through the trunk cover using a power tool to match the holes located on the spoiler’s mounting surface (total 6 places).
Using either a grinder or a hole saw, cut through the bottom of the trunk cover in the areas shown below to create space for the hex bolts (total 6 places).
Install
Remove the masking tape and position the spoiler over the trunk cover so that the holes line up.
Secure the spoiler to the trunk cover using the provided [bolts] and [washers] with appropriate torque.
Reattach the trunk cover with the installed spoiler to the vehicle.
Remove the masking tape and secure the [end plates] in the correct position using the provided [hex bolts].
Note, that excessive torque can cause deformation and damage.
