ADP HD Series Premier Horizontal Evaporator Coil

ADP-HD-Series-Premier-Horizontal-Evaporator-Coil-PRODUCT

Product Features

  • Rifled copper tubing.
  • Lanced fin design.
  • Dual 3/4″ FPT condensate drains on front of the coil.
  • Refrigerant connections are 3/8″ ODF liquid and 7/8″ ODF suction.
  • Non-captive panels allow access to the inside of the cabinet without the need to cut refrigerant lines.
  • Optional painted or embossed galvanized steel cabinets.
  • Side panel with only six screws for fast and easy coil access.
  • UV-resistant drain pans are molded of high-temperature (450 deg. F) engineered polymer.
  • Coils are air pressure tested at 500 psi, leak tested with Helium, sealed with rubber plugs and then charged with dry air.
  • “No-hassle” 5-year warranty. 10-year Limited Warranty available.
  • Threaded expansion valves are available factory-installed or as a field-installed kit.
  • Heavy 24 gauge embossed galvanized cabinets fully lined with 5/8″ foil-faced insulation.
  • All coils are foam-packed and include bar coding on the label.
  • Easy to use filler strip, if coil dimensions are larger than furnace.
  • The drain pan has a trough to fully drain condensate away.
  • Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan.

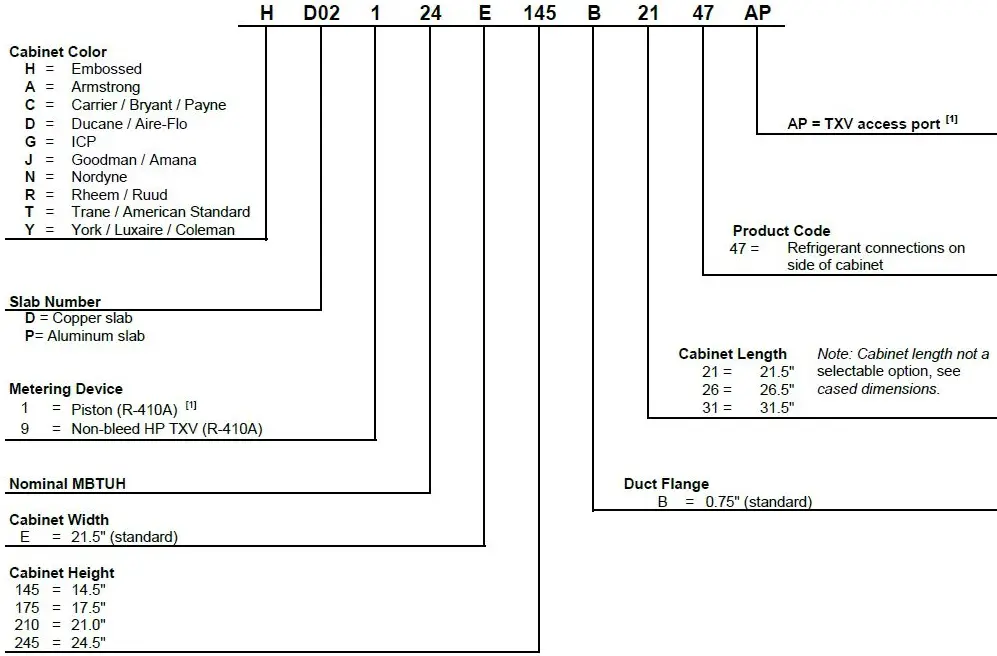

Nomenclature

ADP-HD-Series-Premier-Horizontal-Evaporator-Coil-FIG-1 (1)

  1. Piston will always be sized to match the nominal MBTUH rating of the coil.ADP-HD-Series-Premier-Horizontal-Evaporator-Coil-FIG-1 (3)

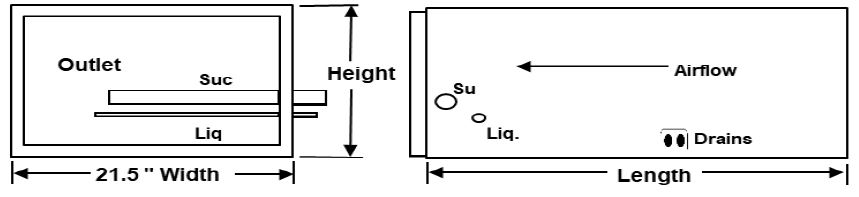

Dimensions

Slab * Number Nominal

Tonnage

 Dimensions (in) Pallet Qty Weight (lbs)
Height Length CU AL
Core Slabs (D,P) 12 2.0 – 3.0 14.5 26.5 8 50 40
(D,P) 13 2.5 – 3.5 17.5 21.5 8 50 40
(D,P) 14 2.5 – 4.0 17.5 26.5 8 50 40
(D,P) 15 3.0 – 4.0 17.5 26.5 8 56 45
(D,P) 16 3.0 – 5.0 21 26.5 4 61 49
(D,P) 17 3.5 – 5.0 21 26.5 4 64 52
(D,P) 19 3.5 – 5.0 21 26.5 4 60 48
(D,P) 21 1.5 – 3.0 14.5 31.5 4 55 43
(D,P) 29 3.5 – 5.0 21 31.5 2 64 52
(D,P) 38 3.0 – 4.0 17.5 31.5 4 56 45
(D,P) 42 1.5 – 3.0 14.5 26.5 8 50 40
(D,P) 44 1.5 – 3.0 14.5 31.5 4 58 47
(D,P) 45 2.5 – 3.5 17.5 26.5 8 56 45
(D,P) 52 3.5 – 5.0 21 31.5 2 63 51
(D,P) 74 3.0 – 4.0 21 21.5 4 50 40
(D,P) 75 3.0 – 4.0 21 21.5 4 50 40
(D,P) 78 2.0 – 4.0 17.5 31.5 4 70 56
Non-Core Slabs (D,P) 03 2.0 – 3.0 14.5 26.5 8 49 40
(D,P) 04 2.5 – 3.5 17.5 21.5 8 45 36
(D,P) 05 2.5 – 4.0 17.5 26.5 8 47 38
(D,P) 06 3.0 – 4.0 17.5 26.5 8 50 40
(D,P) 07 3.0 – 5.0 21 26.5 4 51 41
(D,P) 11 1.5 – 2.5 14.5 21.5 8 50 40
(D,P) 18 3.0 – 5.0 24.5 26.5 4 58 47
(D,P) 26 2.0 – 4.0 17.5 31.5 4 53 43
(D,P) 27 3.0 – 5.0 21 31.5 2 63 51
(D,P) 47 3.0 – 4.0 21 26.5 4 60 48
(D,P) 50 3.5 – 5.0 21 31.5 2 63 51
(D,P) 57 3.5 – 4.0 21 31.5 2 63 51
(D,P) 72 2.0 – 3.0 17.5 21.5 8 53 43
(D,P) 76 4.0 – 5.0 24.5 21.5 4 64 52
(D,P) 77 4.0 – 5.0 24.5 26.5 4 74 60
(D,P) 79 3.5 – 5.0 24.5 26.5 4 75 60

D = Copper slab; P = Aluminum slab

Opening Dimensions by Cabinet Height
Opening Type 14.5″ 17.5″ 21″ 24.5″
          Supply opening (Height x Width)

Return opening (Height x Width)

 13″ x 19.75″ 16″ x 19.75″ 19.5″ x 19.75″ 23″ x 19.75″
13.5″ x 20.25″ 16.5″ x 20.25″ 20″ x 20.25″ 23.5″ x 20.25″
Refrigerant Connections
Liquid Line – 3/8″ ODF
Suction Line – 7/8″ ODF

ADP-HD-Series-Premier-Horizontal-Evaporator-Coil-FIG-1 (4)ADP-HD-Series-Premier-Horizontal-Evaporator-Coil-FIG-1 (2)

Airflow Data

Slab

Number

 Nominal

Tonnage

 ^ Air Pressure Drop (in WC) by CFM
600 800 1000 1200 1400 1600 1800 2000
Core Slabs (D,P) 12 1.5 – 3.0 0.11 0.17 0.25 0.35 – – – –
(D,P) 13 1.5 – 3.5 0.08 0.14 0.20 0.27 0.36 – – –
(D,P) 14 2.5 – 4.0 – – 0.17 0.24 0.32 0.41 – –
(D,P) 15 3.0 – 4.0 – – 0.14 0.20 0.28 0.35 – –
(D,P) 16 3.0 – 5.0 – – – 0.17 0.23 0.29 0.36 0.43
(D,P) 17 3.0 – 5.0 – – 0.10 0.14 0.19 0.24 0.25 0.36
(D,P) 19 3.5 – 5.0 – – – – 0.22 0.33 0.41 0.48
(D,P) 21 1.5 – 3.0 0.09 0.13 0.20 0.27 – – – –
(D,P) 29 3.5 – 5.0 – – – – 0.12 0.15 0.19 0.23
(D,P) 38 3.0 – 4.0 – – – 0.18 0.25 0.31 – –
(D,P) 42 1.5 – 3.0 0.09 0.14 0.20 0.28 – – – –
(D,P) 44 1.5 – 3.0 0.06 0.10 0.14 0.20 – – – –
(D,P) 45 2.5 – 3.5 – – 0.19 0.27 0.35 – – –
(D,P) 52 3.5 – 5.0 – – 0.12 0.16 0.20 0.26 0.32 0.39
(D,P) 74 3.0 – 4.0 – – 0.19 0.25 0.33 0.41 – –
(D,P) 75 3.0 – 5.0 – – – 0.20 0.26 0.33 – –
(D,P) 78 2.0 – 4.0 – 0.09 0.12 0.17 0.23 0.30 – –
Non-Core Slabs (D,P) 03 2.0 – 3.0 – 0.16 0.25 0.35 – – – –
(D,P) 04 2.5 – 3.5 – – 0.17 0.23 0.34 – – –
(D,P) 05 2.5 – 4.0 – – 0.13 0.19 0.25 0.32 – –
(D,P) 06 2.5 – 4.0 – 0.09 0.13 0.18 0.24 0.27 – –
(D,P) 07 3.0 – 5.0 – – – 0.14 0.19 0.24 0.30 0.35
(D,P) 11 1.5 – 2.5 0.15 0.25 0.37 – – – – –
(D,P) 18 3.0 – 5.0 – – – 0.11 0.14 0.18 0.23 0.28
(D,P) 26 2.0 – 4.0 – 0.08 0.11 0.16 0.21 0.27 – –
(D,P) 27 3.0 – 5.0 – – – 0.11 0.15 0.18 0.23 0.28
(D,P) 47 2.0 – 3.0 – 0.11 0.16 0.17 – – – –
(D,P) 50 3.5 – 5.0 – – – – 0.16 0.21 0.27 0.33
(D,P) 57 3.0 – 4.0 – – – 0.14 0.18 0.22 – –
(D,P) 72 2.0 – 3.0 – 0.19 0.27 0.37 – – – –
(D,P) 76 3.0 – 5.0 – – – 0.17 0.22 0.28 0.34 0.40
(D,P) 77 3.5 – 5.0 – – 0.11 0.14 0.19 0.21 0.27 0.34
(D,P) 79 3.5 – 5.0 – – – – 0.22 0.28 0.34 0.40
  • D = Copper slab; P = Aluminum slab
  • Air pressure drop data is under dry coil conditions. For wet coil conversion at standard AHRI conditions, use 1.3 multiplier.

CONTACT

  • Product improvement is a continuous process at Advanced Distributor Products.
  • Therefore, product specifications are subject to change without notice and without obligation on our part.
  • Please contact your ADP representative or distributor to verify the details.
  • © by Advanced Distributor Products. All rights reserved.
  • 2175 West Park Place Blvd., Stone Mountain, GA 30087
  • www.adpnow.com.
  • 2175 West Park Place Boulevard
  • Stone Mountain, GA 30087
