T-19x Treadmill

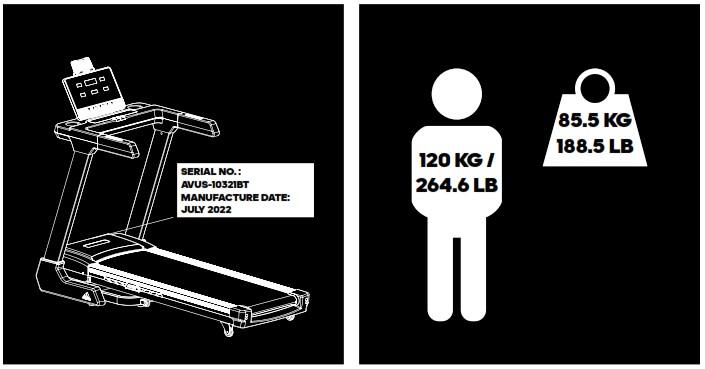

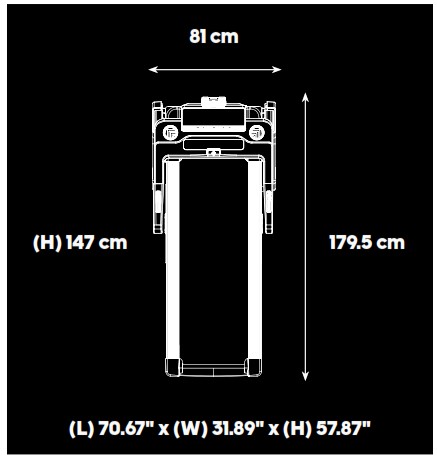

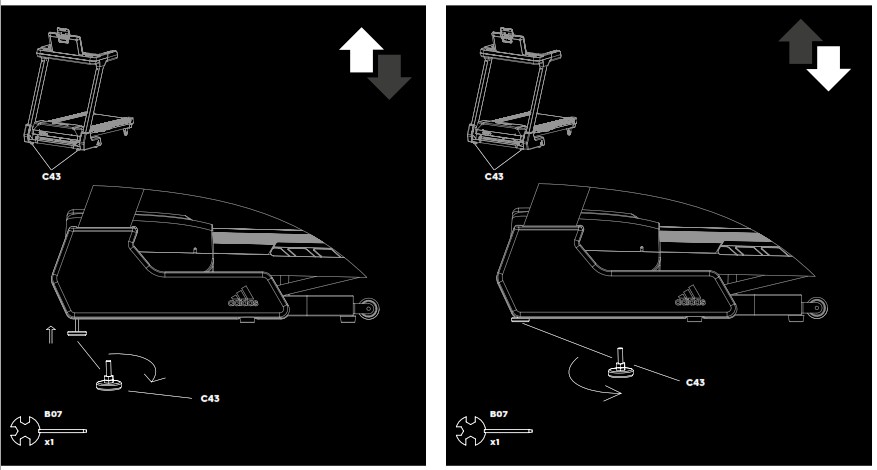

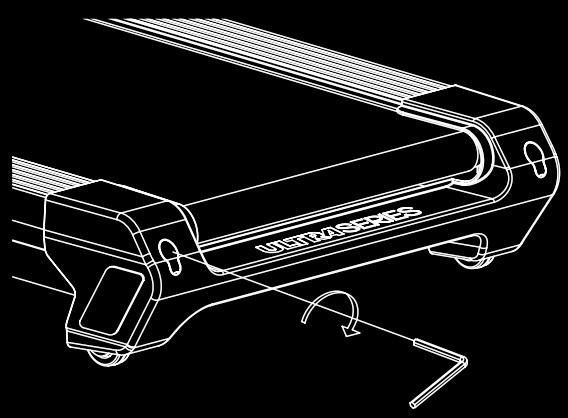

LEVEL ADJUSTMENT

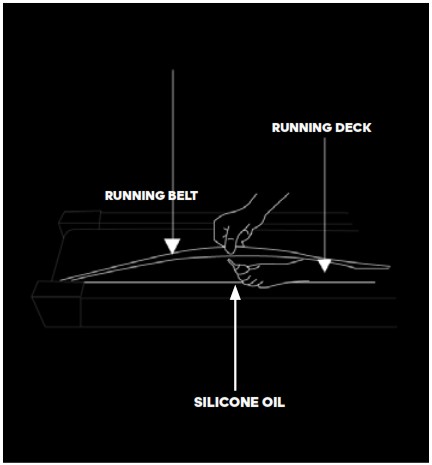

LUBRICATION

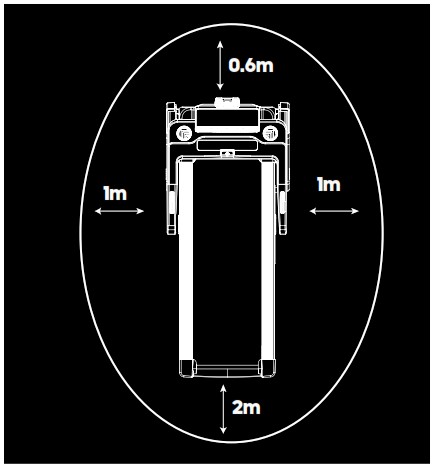

SAFETY PERIMETER
Product Registration and Support
WWW.ADIDASHARDWARE.COM/PRODUCT-SUPPORT
 |
 |

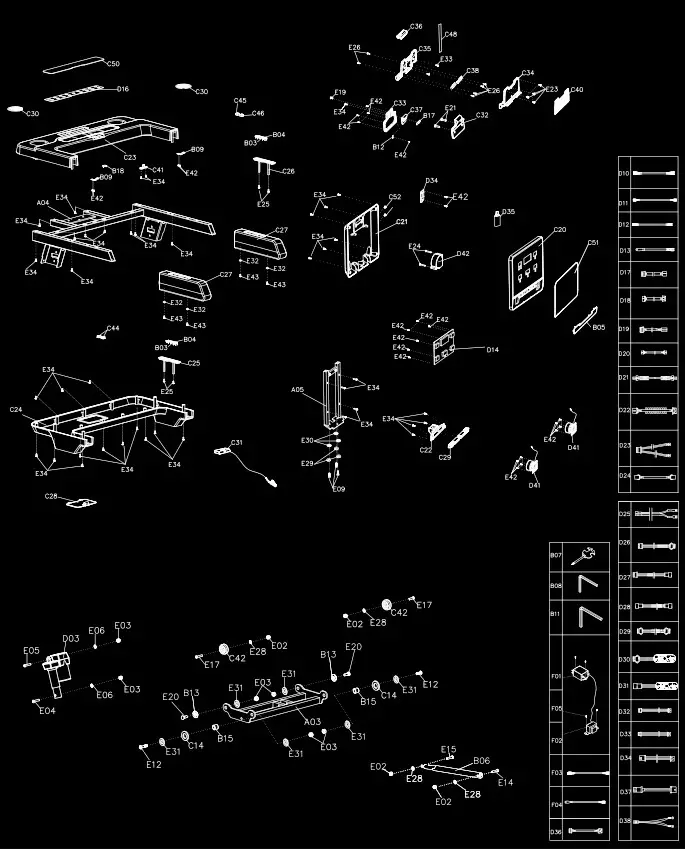

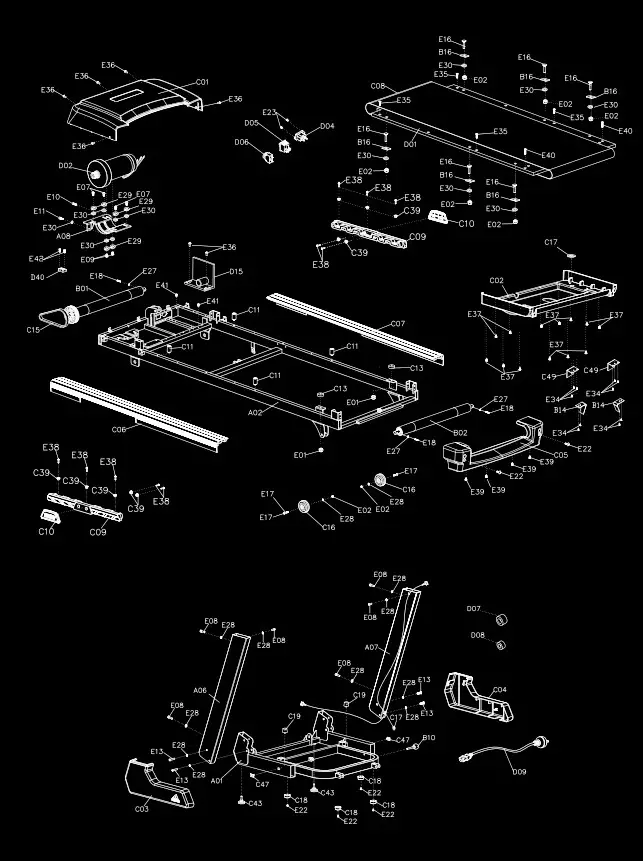

| Q T Y. | ||
| A01 | Base frame | 1 |
| A02 | Main frame | 1 |
| A03 | Incline bracket | 1 |
| A04 | Console bracket | 1 |
| A05 | Panel support bracket | 1 |
| A06 | Left upright tube | 1 |
| A07 | Right upright tube | 1 |
| A08 | Motor bracket | 1 |
| B01 | Front roller | 1 |
| B02 | Rear roller | 1 |
| B03 | Left pulse steel plate | 2 |
| B04 | Right pulse steel plate | 2 |
| B05 | Speaker net | 1 |
| B06 | Cylinder | 1 |
| B07 | Cross wrench with screw driver | 1 |
| B08 | 5# Allen wrench | 1 |
| B09 | Spring plate | 2 |
| B10 | Locking pin | 1 |
| B11 | 6# Allen wrench | 1 |
| B12 | Metal sheet | 1 |
| B13 | Step bush | 2 |
| B14 | Belt hook | 2 |
| B15 | Bushing | 2 |
| B16 | Side rail pressing plate | 6 |
| B17 | Tension plate | 1 |
| B18 | Safety key plate | 1 |
| C01 | Motor top cover | 1 |
| C02 | Motor bottom cover | 1 |
| C03 | Left upright tube cover | 1 |
| C04 | Right upright tube cover | 1 |
| C05 | Back end cover | 1 |
| C06 | Left side rail | 1 |
| C07 | Right side rail | 1 |
| C08 | Running belt | 1 |
| C09 | Cushion | 2 |
| C10 | Cushion side cover | 2 |
| C11 | Black cushion | 4 |
| C13 | Black Cushion | 2 |
| C14 | Plastic Pad | 2 |
| C15 | Motor Belt | 1 |
| C16 | Adjustable Wheel | 2 |
| C17 | Ring Protecting Wire Plug | 2 |
| C18 | Flat Foot Pad | 4 |
| C19 | Cone-Shape Cushion | 2 |
| C20 | Console Panel Top Cover | 1 |
| C21 | Console Panel Bottom Cover | 1 |
| C22 | Fan Guider | 1 |
| C23 | Console Top Cover | 1 |
| C24 | Console Bottom Cover | 1 |
| C25 | Base of Instant Incline Button | 1 |
| C26 | Base of Instant Speed Button | 1 |
| C27 | Handle Bar | 2 |
| C28 | Console Back Cover | 1 |
| C29 | Fan Rotation Bush | 1 |
| C30 | Bottle Mat | 2 |
| C31 | Safety Key | 1 |
| C32 | Holder Fixed Support Top Cover | 1 |
| C33 | Holder Fixed Support Bottom Cover | 1 |
| C34 | Holder Top Cover | 1 |
| C35 | Holder Bottom Cover | 1 |
| C36 | Holder Splint | 1 |
| C37 | Lock Button | 1 |
| C38 | Pressing Plate | 1 |
| C39 | Fixed Step Bushing | 10 |
| C40 | Holder Anti-Slip Mat | 1 |
| C41 | Safety Key Base | 1 |
| C42 | Moving Wheel | 2 |
| C43 | Adjustable Foot Pad | 2 |
| C44 | Button | 2 |
| C45 | Button + | 1 |
| C46 | Button – | 1 |
| C47 | Tube Buckle | 2 |
| C48 | Elastic Rope | 1 |
| C49 | Hide Board II | 2 |
| C50 | Key Board Overlay | 1 |
| C51 | Console Overlay | 1 |
| C52 | MP3 CAP | 2 |
| D01 | Running Board | 1 |
| D02 | DC Motor | 1 |
| D03 | Incline Motor | 1 |
| D04 | Power Socket | 1 |
| D05 | Square Switch Button | 1 |
| D06 | Overload Protector | 1 |
| D07 | Magnet Ring | 1 |
| D08 | Magnet Core | 1 |
| D09 | Power Wire | 1 |
| D10 | AC Single Wire (200) | 1 |
| D11 | AC Single Wire (350) | 2 |
| D12 | AC Single Wire (350) | 2 |
| D13 | Grounding Wire | 1 |
| D14 | Console Board | 1 |
| D15 | Control Board | 1 |
| D16 | Key Board | 1 |
| D17 | Key Board Connecting Top Wire | 1 |
| D18 | Key Board Connecting Bottom Wire | 1 |
| D19 | Console Top Signal Wire | 1 |
| D20 | Console Middle Signal Wire 1 | 1 |
| D21 | Console Middle Signal Wire 2 | 1 |
| D22 | Console Bottom Signal Wire | 1 |
| D23 | Pulse Top Signal Wire | 1 |
| D24 | Pulse Middle Signal Wire | 2 |
| D25 | Pulse Bottom Signal Wire | 2 |
| D26 | Instant Speed External Top Wire | 1 |
| D27 | Instant Incline External Top Wire | 1 |
| D28 | Instant Speed Top Wire | 1 |
| D29 | Instant Incline Top Wire | 1 |
| D30 | Instant Speed Bottom Wire | 1 |
| D31 | Instant Incline Bottom Wire | 1 |
| D32 | Amplifier Connecting Wire 1 | 1 |
| D33 | Amplifier Connecting Wire 2 | 1 |
| D34 | Bluetooth transfer module | 1 |
| D35 | Dongle | 1 |
| D36 | Bluetooth transfer module wire | 1 |
| D37 | Safety Switch Top Wire | 1 |
| D38 | Safety Switch Bottom Wire | 1 |
| D40 | Speed Sensor | 1 |
| D41 | Speaker | 2 |
| D42 | Fan | 1 |
| E01 | M6 Nut | 2 |
| E02 | M8 Nut | 12 |
| E03 | M10 Nut | 6 |
| E04 | M10x90mm Bolt | 1 |
| E05 | M10x45mm Bolt | 1 |
| E06 | Lock Washer Ø10 | 2 |
| E07 | M8x20mm Bolt | 4 |
| E08 | M8x15mm Bolt | 6 |
| E09 | M8x15mm Bolt | 5 |
| E10 | M8x40mm Bolt | 1 |
| E11 | M8x35mm Bolt | 1 |
| E12 | M10x30mm Bolt | 2 |
| E13 | M8x55mm Bolt | 4 |
| E14 | M8x45mm Bolt | 1 |
| E15 | M8x30mm Bolt | 1 |
| E16 | M8x35mm Bolt | 6 |
| E17 | M8x40mm Bolt | 4 |
| E18 | M6x55mm Bolt | 3 |
| E19 | M5x15mm Bolt | 1 |
| E20 | M10x30mm Bolt | 2 |
| E21 | M6x25mm Bolt | 2 |
| E22 | M5x12mm Bolt | 6 |
| E23 | Screw ST2.9x8mm | 6 |
| E24 | Screw ST4.2x40mm | 2 |
| E25 | Screw ST4.2x30mm | 4 |
| E26 | Screw ST3.5x12mm | 6 |
| E27 | Lock Washer Ø6 | 3 |
| E28 | Lock Washer Ø8 | 16 |
| E29 | Spring Washer Ø8 | 9 |
| E30 | Flat Washer Ø8 | 16 |
| E31 | Big Washer Ø10xØ26×2.0mm | 6 |
| E32 | Big Flat Washer Ø6 | 4 |
| E33 | Screw ST3.5x5mm | 2 |
| E34 | Screw ST4.2x12mm | 50 |
| E35 | M6x25mm Bolt | 4 |
| E36 | M5x8mm Bolt | 7 |
| E37 | Screw ST4.2x12mm | 13 |
| E38 | Screw ST4.2x19mm | 10 |
| E39 | Screw ST4.2x20mm | 4 |
| E40 | M6x40mm Bolt | 2 |
| E41 | Screw ST4.2x12mm | 2 |
| E42 | Screw ST2.9x8mm | 29 |
| E43 | M5x25mm Bolt | 4 |
| F01 | Filter | 1 |
| F02 | Inductance | 1 |
| F03 | AC Single Wire (500mm) | 1 |
| F04 | Grounding Wire (350mm) | 1 |
| F05 | Screw ST4.2x12mm | 4 |

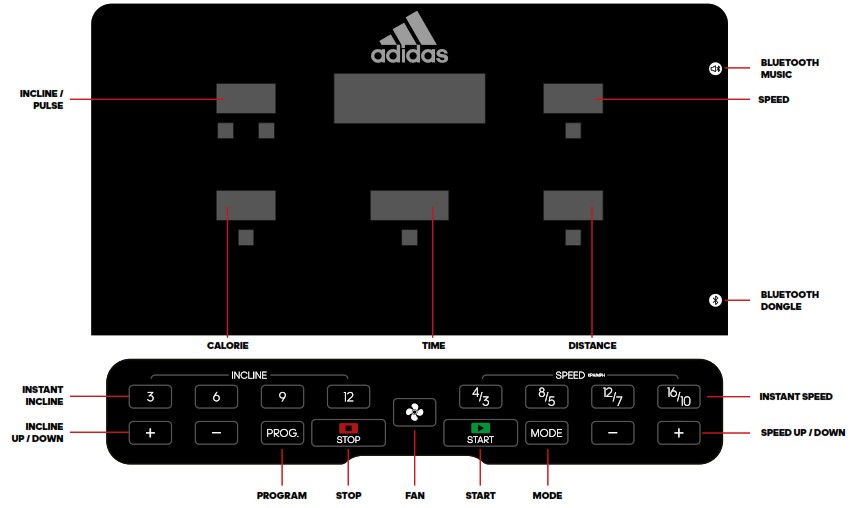

CONSOLE
INSTANT INCLINE
Press 3-6-9-12 to choose incline quickly.
FAN
Press this button to turn on or turn off the fan.
INSTANT SPEED
Press 4/3,8/5,12/7,16/10 to choose speed quickly.
INCLINE+/INCLINE-
Press this button to adjust the incline.
PROGRAM
Press this button to choose 24 programs, 3 users and body fat.
STOP/PAUSE
Press this button to either pause or stop the machine.
START
Press this button at any time to start the machine.
MODE
Press this button to choose between time, distance, calories workout targets.
SPEED+/SPEED-
Press this button to adjust the speed.
BLUETOOTH MUSIC
The user can connect their device to the treadmill via Bluetooth and select adidas to play music. Adjust the volume of music from your device directly.
BLUETOOTH DONGLE
Insert DONGLE into port. Connect to DONGLE via Bluetooth using the APP and your unique adidas code “adidas****”.
COMPUTER FUNCTIONS
QUICK START
Press START, the system will count down for 3 seconds, and make a sound.
SPEED+/SPEED-
Press SPEED+/- to adjust the speed of the machine.
INCLINE+/INCLINE-
Press INCLINE+/- to adjust the incline of the machine.
MODE
- Press MODE to enter TIME, DISTANCE, CALORIES.
- Press SPEED+/- or INCLINE+/- to set the workout target value.
- Press START button, treadmill will run after 3 seconds.
- Press SPEED+/- and INCLINE+/- to adjust the speed and incline.
PROGRAMS
Press PROG button, you can choose 24 programs, 3 users, body fat.
(1) Set of 24 build-in programs:
From standby mode, press PROG button, display will show 24 programs, select between 24 programs.
- Press SPEED+/- or INCLINE+/- to set the workout time.
- Each program can be divided into 10 sections; machine will beep 3 times when starting a new section.
- Press SPEED+/- or INCLINE+/- to change the speed or incline during each section.
- Machine will beep 3 times and stop when the program is finished.
(2) Set of 3 user programs:
From standby mode, press PROG button until you see U1,U2,U3;
- Press SPEED+/- or INCLINE+/- to set the time.
- Press MODE button to confirm and enter next section, repeat until you finish the setting of all 10 sections.
- Press SPEED+/- or INCLINE+/- to change the speed or incline.
- Set the running time and press START to begin.
(3) Set of body fat test:
From standby mode, press PROG button until you get to FAT.
- Press MODE to enter information.
- Set value with SPEED+/- or INCLINE+/- from F-1 to F-4(F-1 GENDER, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT)
- Press MODE to enter F-5(F—5 BODY FAT TEST), hold hands on the hand pulse sensors, the console will display your body fat value after 3 seconds.
- The body fat value is intended as a guide, and is not medical data:
| F-1 | GENDEF | 01 MALE | 02 FEMALE |
| F-2 | AGE | 10-99 | |
| F-3 | HEIGHT | 100-200CM(40-80INCH) | |
| F-4 | WEIGHT | 20-150KG(44-330LB) | |
| F-5 | FAT | ≤19 | UNDER WEIGHT |
| AT | =(20—25) | NORMAL WEIGHT | |
| AT | 26—29) | OVERWEIGHT | |
| AT | ≥30 | OBESITY | |
HAND PULSE
Please hold on the pulse sensor on handle bar and hold on about 3 seconds, the display will show heart rate value.This value is intended as a guide, can not used as medical data.
HOW TO TRANSFER BETWEEN KPH TO MPH
Under standby mode, insert safety key, press SPEED + and INCLINE+ buttons together and hold on about 5 seconds until you hear one sound, and then you can finish the transfer between kph and mph.
LUBRICATION REMIND FUNCTION
This machine has lubrication remind function. After every total running distance of 300km (188miles), your treadmill needs to be maintained with oil. The system will remind with sound for every 10 seconds, and window will show “OIL”. This means that your treadmill needs to be lubricated with oil. Please read the user’s manual first, and add the oil to the middle part of running board. After you finishing lubrication, please hold on “STOP” button for 3 seconds, and the system warning sound will disappear.
SAFETY KEY
Included with this machine is a red safety key, the machine will not operate unless this is inserted. Its purpose is to immediately stop the machine in the event of an emergency. The computer will display “safety key disconnected” if not correctly attached to the treadmill. The clip on the other end of the safety key must be attached to the user at all times during your workout to ensure the machine stops immediately in the event of an emergency.
POWER SAVE FUNCTION
The machine is with energy saving function. Under standby mode, at the state of waiting for operation, if without any operation, the saving on power function will be available after 10 minutes, the display will be closed up. You can press any button to turn on the display.
POWER OFF
Switch off the power: You can switch off the power to stop the treadmill, which won’t be damaged at any time.
CAUTION
- We recommend that you maintain a slow speed at the beginning of a session and hold on to the handrails until you become comfortable and familiar with the treadmill.
- Attach the magnet end of the safety pulling rope to the computer and also attach the clip of the safety pulling rope to your clothing.
- To end your workout safely, press the STOP button or pull out the safety pulling rope, then the treadmill will stop immediately.
MAINTENANCE AND CARE
PLACE THE TREADMILL ON LEVEL GROUND AND SET IT AT 5-8KPH (3-5MPH) TO CHECK IF THE RUNNING BELT DRIFTS.
IF THE RUNNING BELT MOVES TO THE LEFT, TURN THE BOLTS ON THE LEFT SIDE ¼ OF A TURN CLOCKWISE, THEN TURN THE RIGHT BOLT ¼ TURN COUNTER-CLOCKWISE. IF THE BELT DOES NOT MOVE, REPEAT UNTIL IT CENTRES.
