01-08 Air Trampoline
Instruction Manual
Trampoline
ACON AIR TRAMPOLINE
Assembly instructions & Product specifications
Contents
01-08 Air Trampoline
All rights reserved 2022. ACON Finland OY LTD. All artworks and illustrations are owned by ACON Finland OY LTD. Copying or reusing them are prohibited by law.
ACON AIR TRAMPOLINE
Assembly instructions & Product specifications
- CAUTION: This is an assembly instruction manual for Akon AIR Trampoline. Ensure that you have read and understood the trampoline user manual before assembling this product.
- The owner and/or supervisor of the trampoline are responsible for making all users aware of the practices and information specified in the trampoline user manual.
- ACON Trampoline E-Manuals & more can be downloaded by scanning the QR-code below or from: www.acon-manuals.com/trampoline-manuals
https://www.acon-manuals.com/trampoline-manuals
PARTS LIST
This is the parts list for your trampoline. Choose your trampoline model from the lists and make sure that you have all the parts listed. If any parts are missing, please contact ACON customer sup- port.
ACON AIR 3.0 /10 ft
ACON AIR 3.7 /12 ft
ACON AIR 4.3 /14 ft
ACON AIR 4.6 /15 ft
4X: AIR3.0M0 ft, 372 ft, 4.3 /14 ft
5X: AR46/151
Assemble the legs. Slide vertical leg extensions (#3) onto the leg bases (#4).

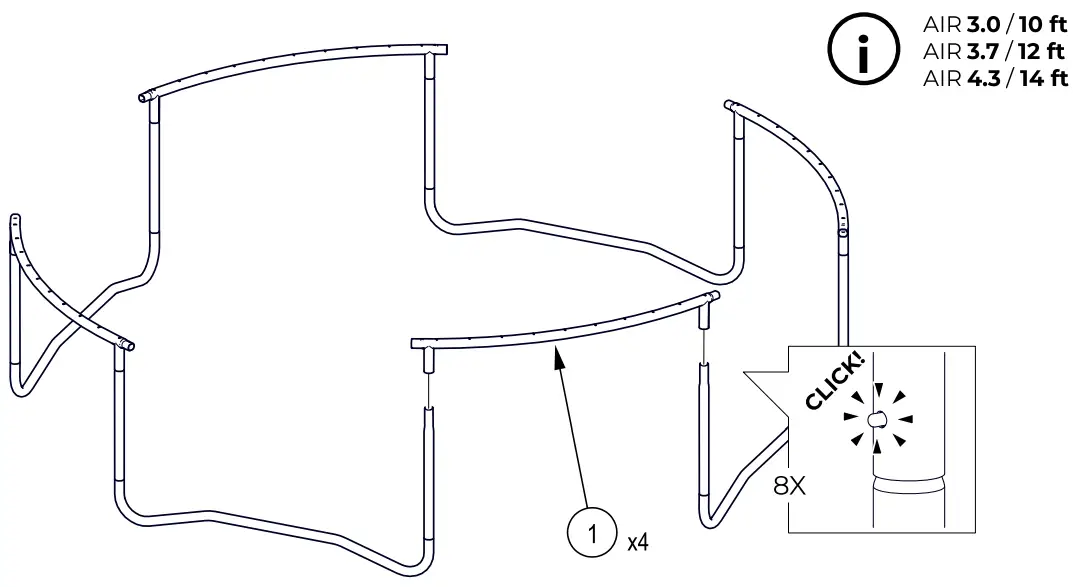

Insert top rail with sockets (#1) onto the legs as instructed below.

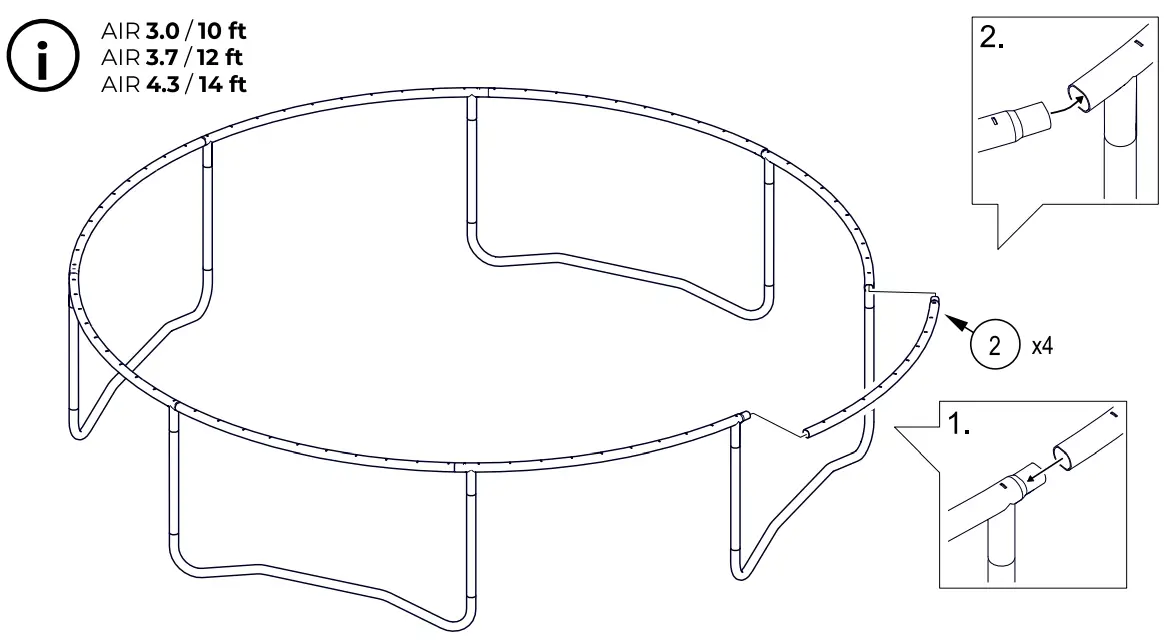

Install the top rails (#2) into the gaps between the vertical leg extensions by inserting them into the slots as shown in figure below.
ACON AIR3.0/10 ft

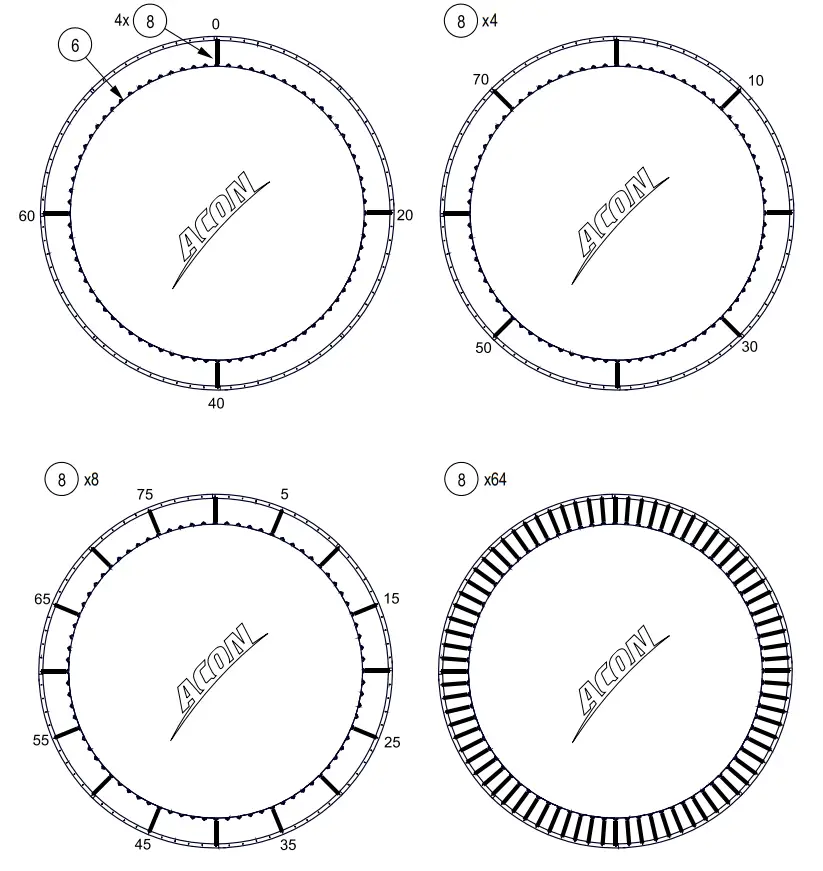

Connect springs (#8) to v-rings of the mat (#6) and pull towards your- self with the spring pull tool to connect to frame.
CAUTION! PINCH PONT. Pay attention to hand position when handling springs.
ACON AIR3.7 /12 ft
Connect springs (#8) to v-rings of the mat (#6) and pull towards your- self with the spring pull tool to connect to frame.
CAUTION! PINCH PONT. Pay attention to hand position when handling springs.
ACON AR 4.3 /14 ft
Connect springs (#8) to v-rings of the mat (#6) and pull towards yourself with the spring pull tool to connect to frame.
CAUTION! PINCH PONT. Pay attention to hand position when handling springs.
ACON AIR 4.6 /15 ft
Connect springs (#8) to v-rings of the mat (#6) and pull towards yourself with the spring pull tool to connect to frame.
CAUTION! PINCH PONT. Pay attention to hand position when handling springs.

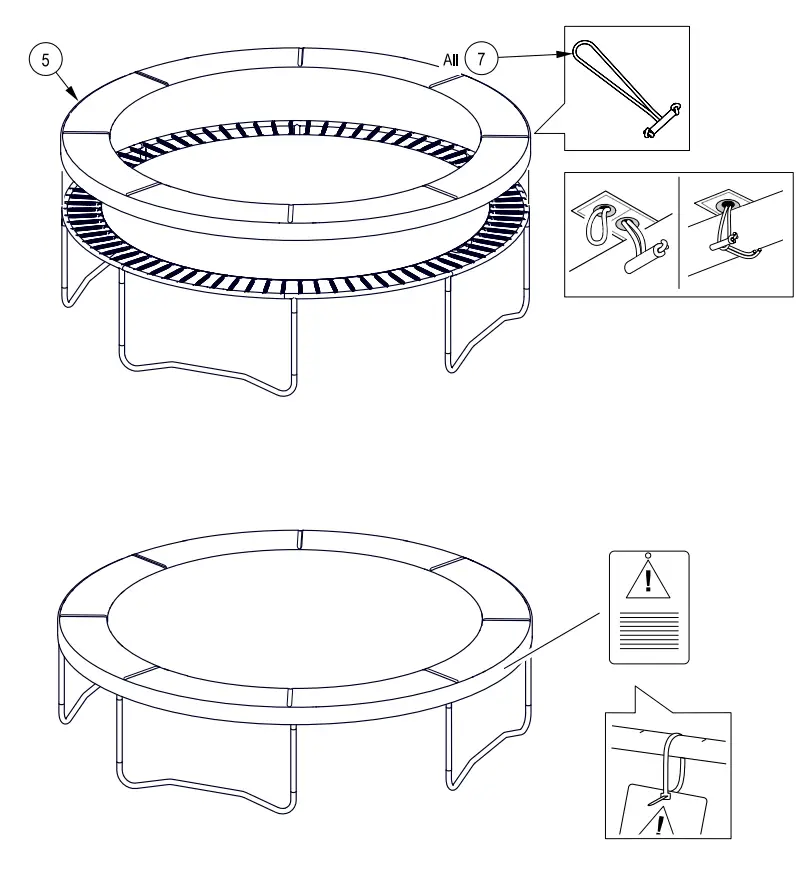

Attach the safety pad to the frame (#5) with bungee cords (#7). Tip: using the spring pull tool is helpful. Attach the safety instructions card to the trampoline frame tube with the zip tie provided. After this step, install the enclosure and accessories if applicable. Your trampoline is now ready. Have fun!
ACON AIR TRAMPOLINE

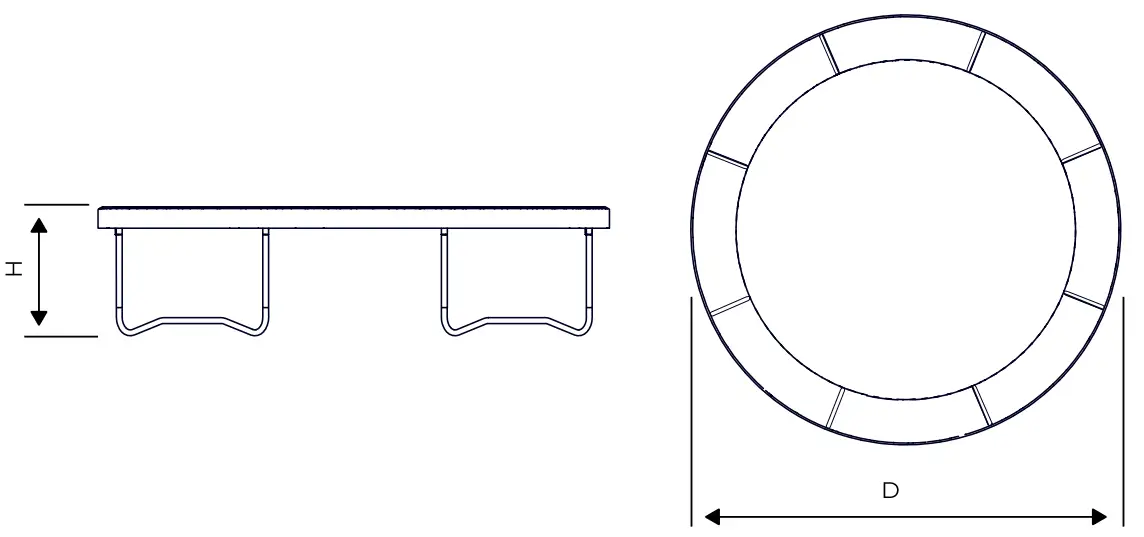

Product dimensions and ASTM / CE —certified weight limits:
| ACON AIR 3.0 H=08m/26ft D=3m/10ft WARNING! maximum user weight: 265 IBM (120 kg) |
ACON AIR 4.3 H09m/29ft D=43m/14ft WARNING! maximum user weight: 330 IBM (150 kg) |
| ACON AIR 3.7 H=09m/29ft D=37m/12ft WARNING! maximum user weight: 330 IBM (150 kg) |
ACON AIR 4.6 H09m/29ft D=46m/15ft WARNING! maximum user weight: 330 IBM (150 kg) |
