ACCURATE LOCK HARDWARE M9134E Motor Drive Electrified Mortise Lock
Contents
INTRODUCTION
Mortise lock with motorized locking/unlocking and mechanical deadbolt.
Key Cylinder (by others) will override electronics to retract latch bolt.
DS deadbolt security for enhanced privacy (when ordered).
DS – DEADBOLT SECURE
Extension of the deadbolt will disable the electrical control of a fail secure lockset locking the OUTSIDE trim.
Retracting the deadbolt will enable the electrical control.
Free egress at all times.
| DISTANCE 12V/24V | WIRE GAUGE |
| 125’ | 22 |
| 200’ | 20 |
| 350’ | 18 |
| 500’ | 16 |
| 800’ | 14 |
| 1250’ | 12 |
ELECTRICAL SPECIFICATIONS
Provides 12/24V Fail Safe/Fail Secure Operation with low power consumption.
Voltage: 12-24V AC/DC (11V-30V)
Current: 250mA MAX Inrush, 10mA MAX Holding Non-polarized leads
PRODUCT DESCRIPTION

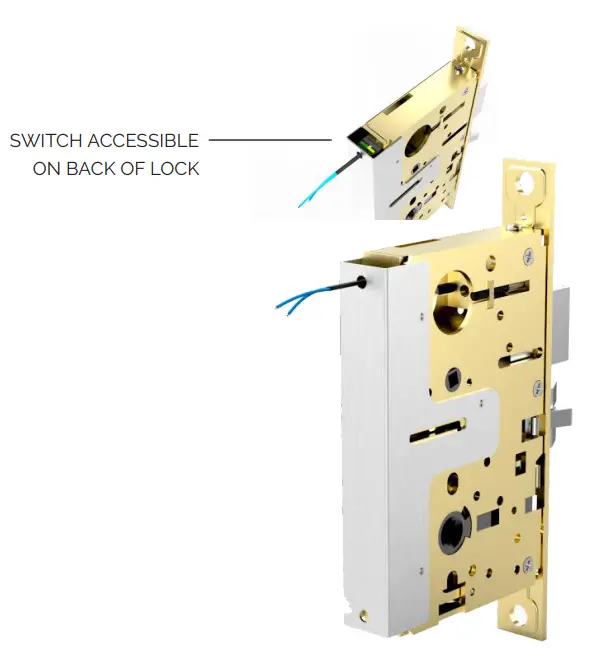

Lock is furnished as FAIL SECURE and can be easily changed to FAIL SAFE via a switch.
Cycle power once after switching from one function to the other

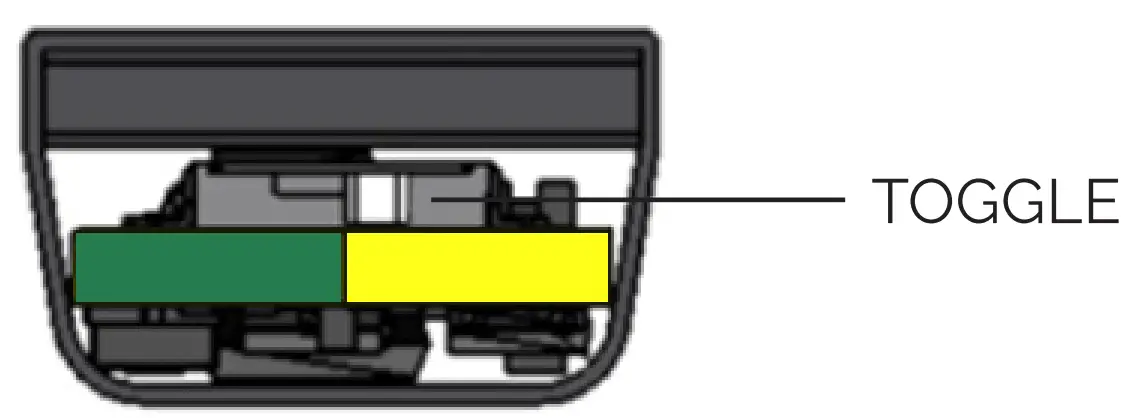

GREEN: FAIL SAFE
YELLOW: FAIL SECURE
