NAPOLEON R525PK1 Rogue Gas Grill Installation Guide

NAPOLEON R525PK1 Rogue Gas Grill

IMPORTANT

• EASY STEP-BY-STEP
• 3D INTERACTIVE INSTRUCTIONS

DOWNLOAD THE FREE APP

• Available for some models in this guide: R365-1, R425-1, R525-1,

WELCOME TO NAPOLEON!

Congratulations on upgrading your grilling game and welcome to the Napoleon family! Register your grill today. We want to be by your side as you live memorable moments.

Ready to assemble your new grill?…

• There may be visual differences between illustrations and model purchased.

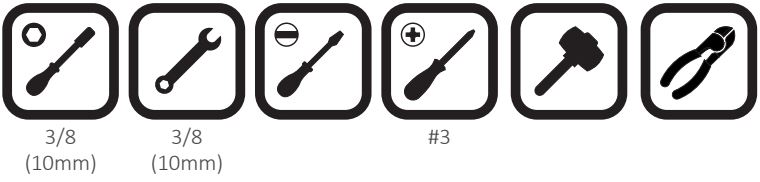

• These are the tools you’ll need (not included)

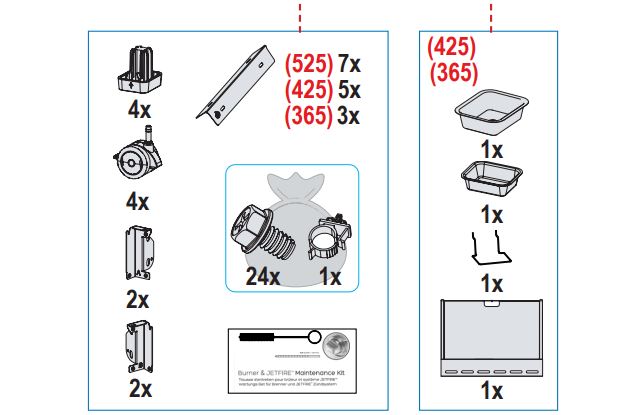

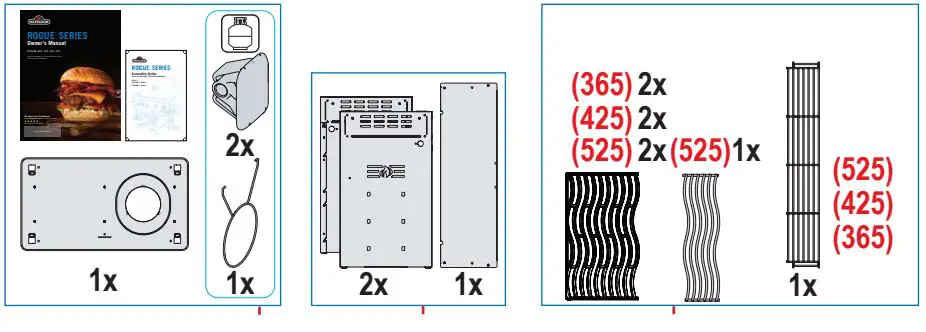

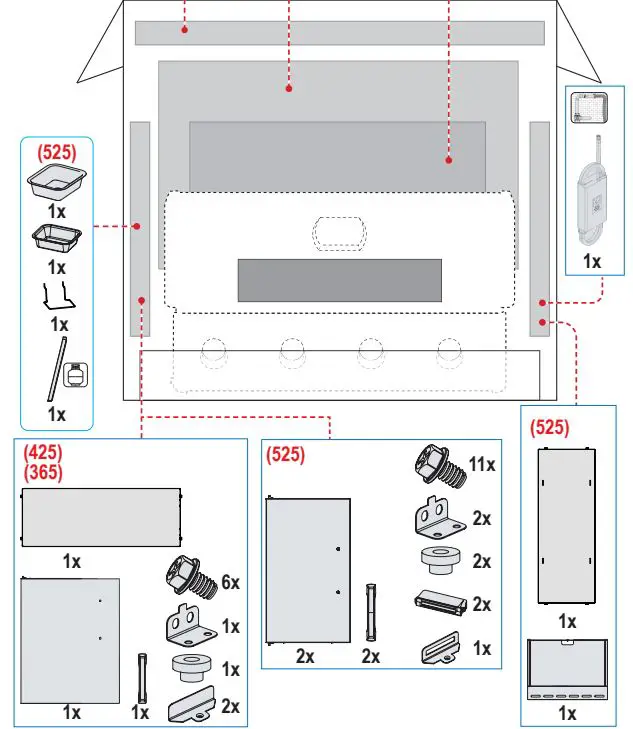

WHAT IN THE BOX

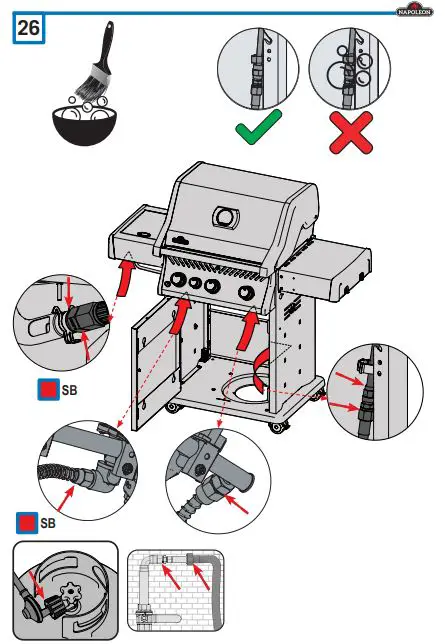

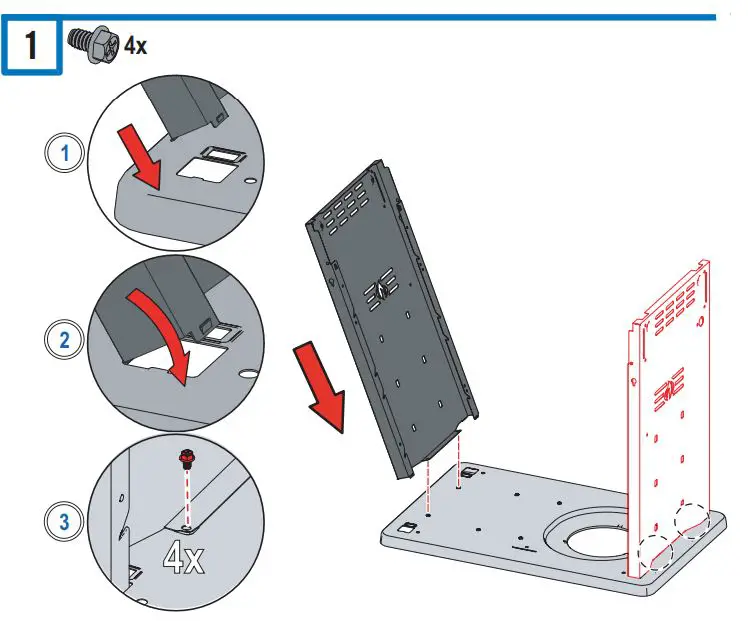

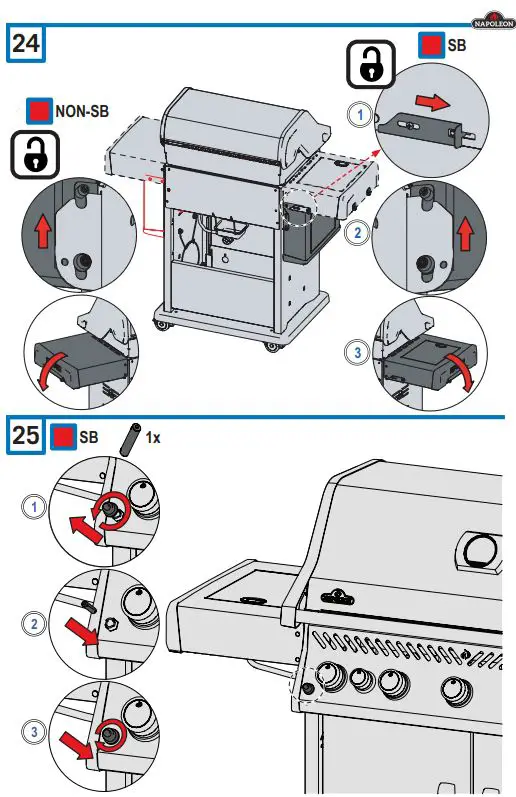

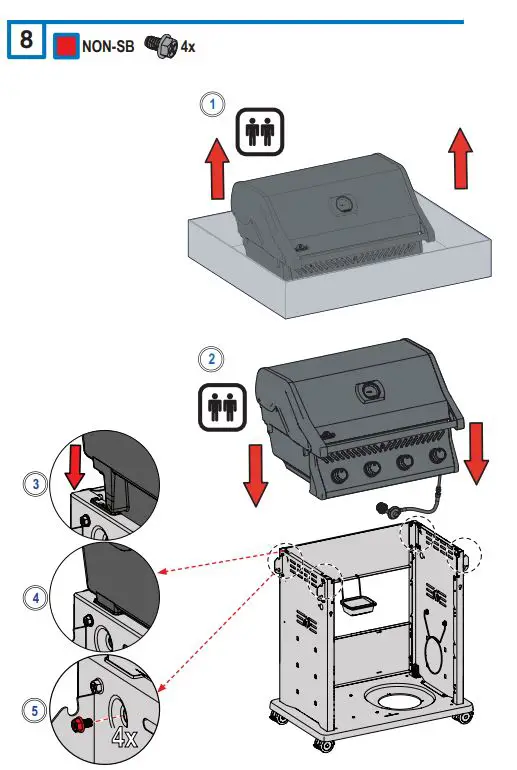

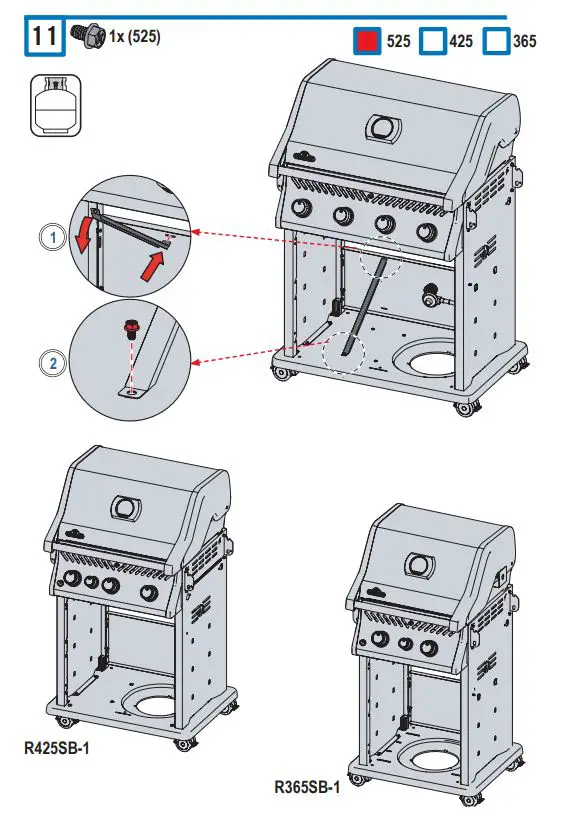

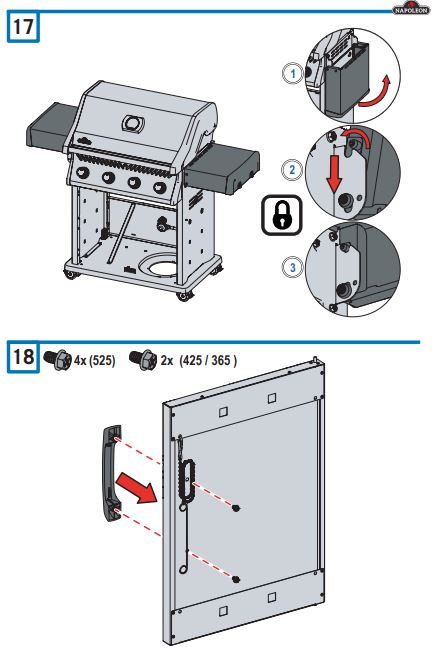

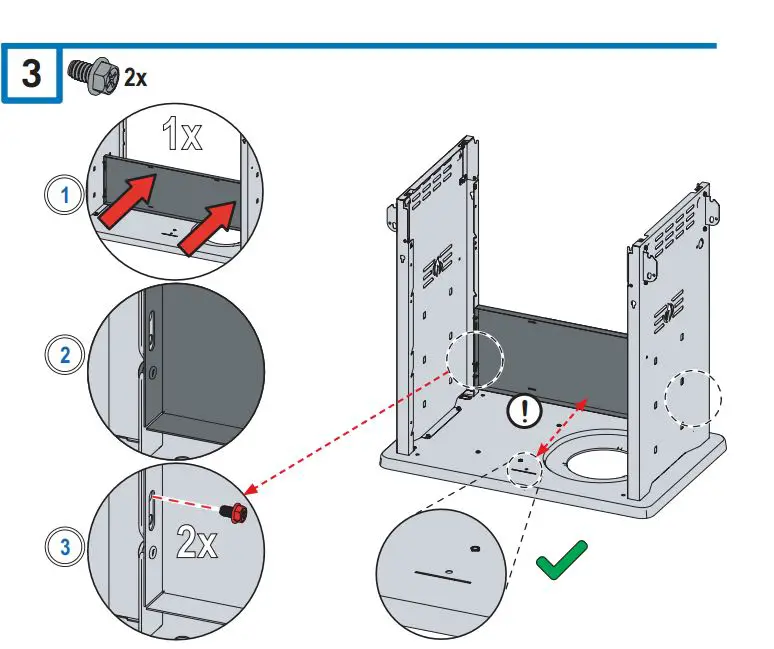

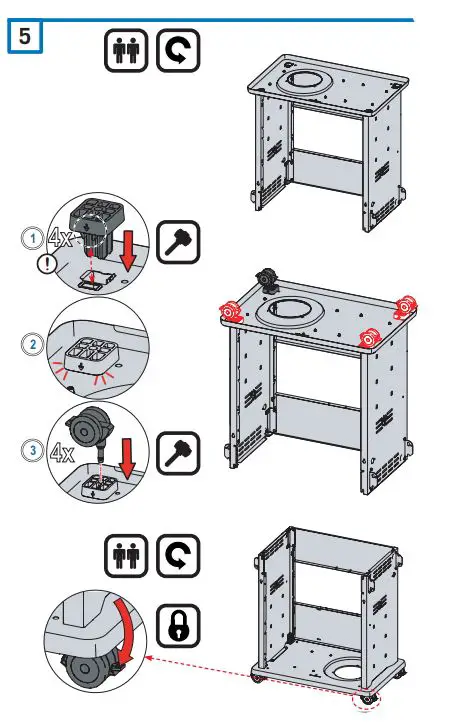

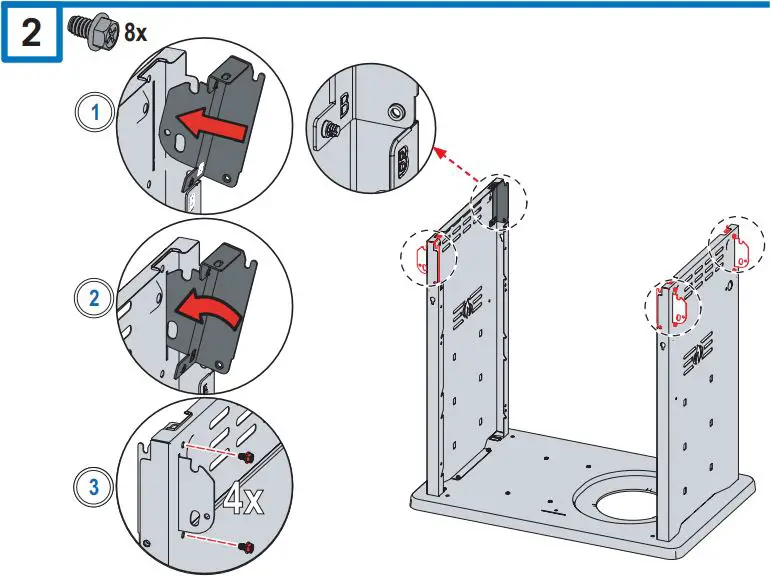

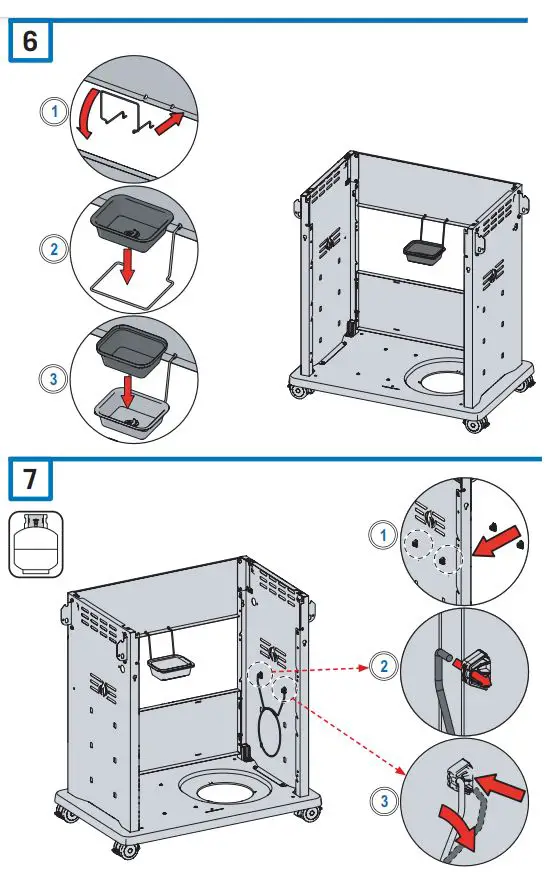

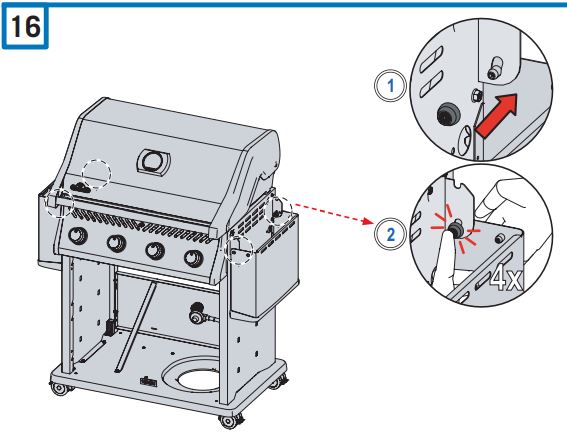

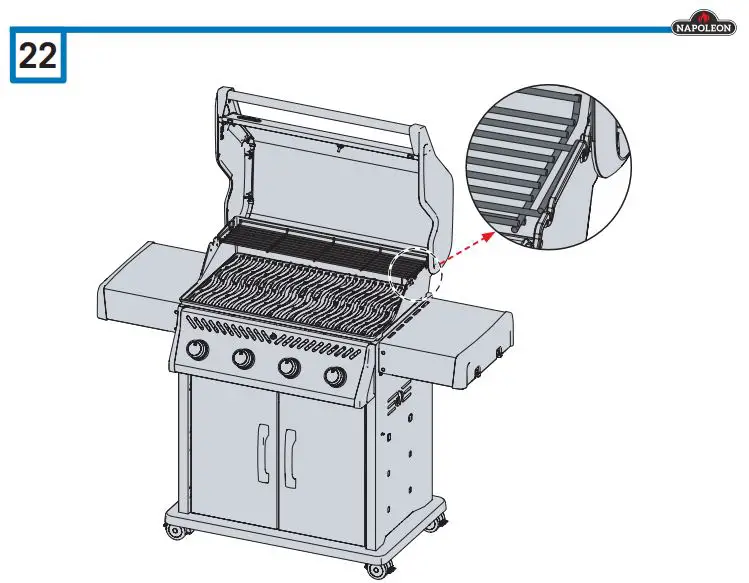

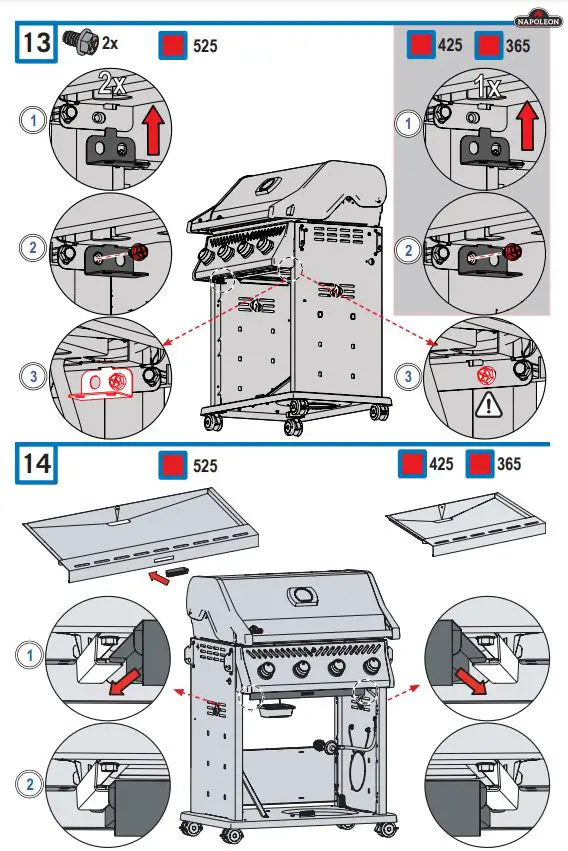

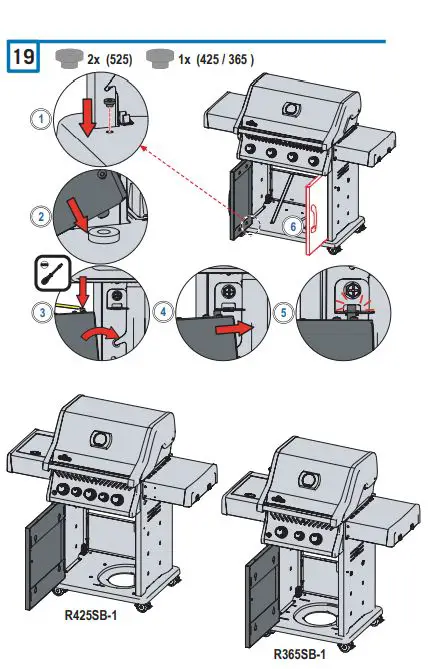

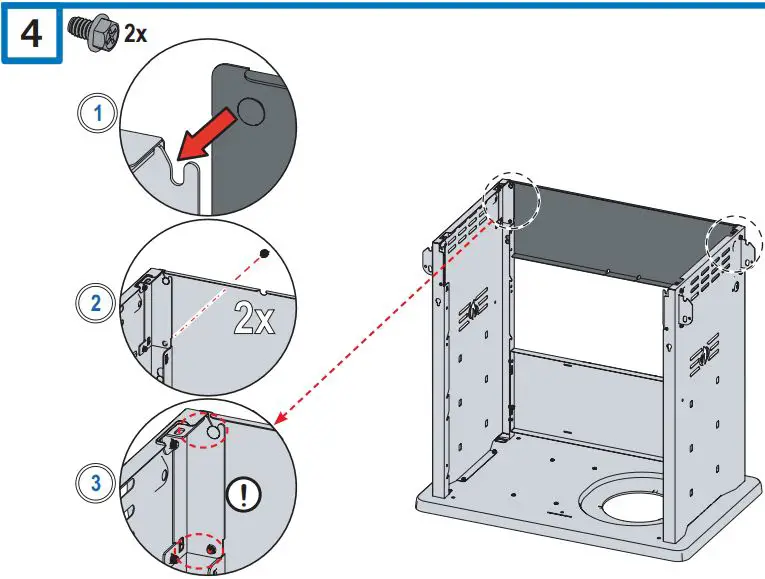

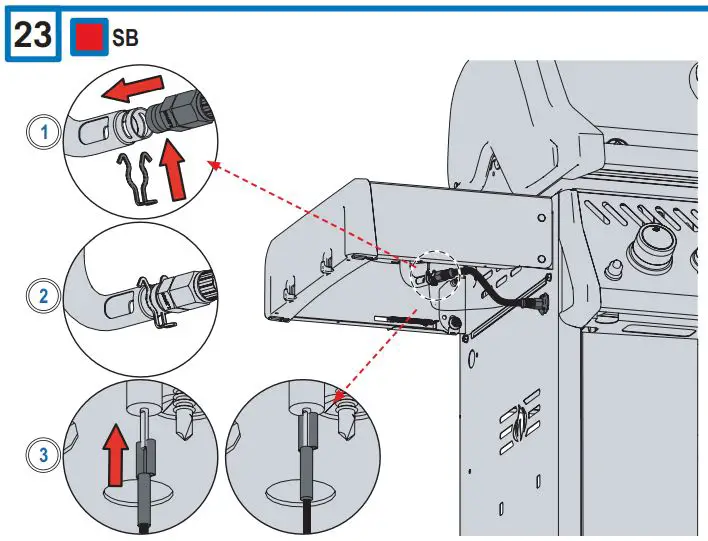

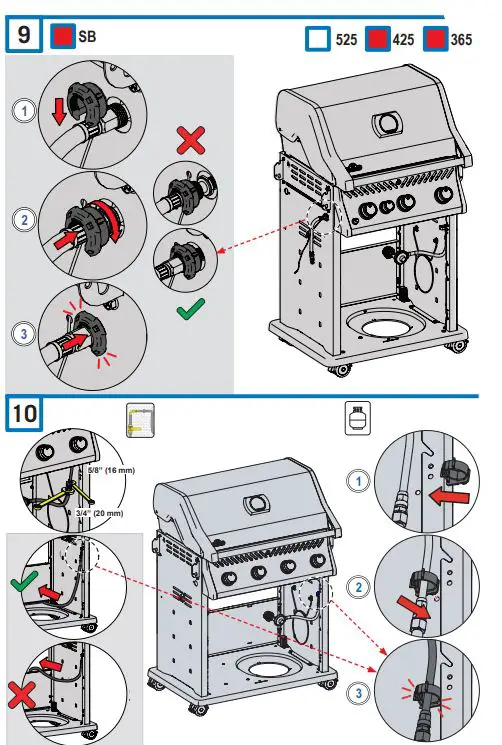

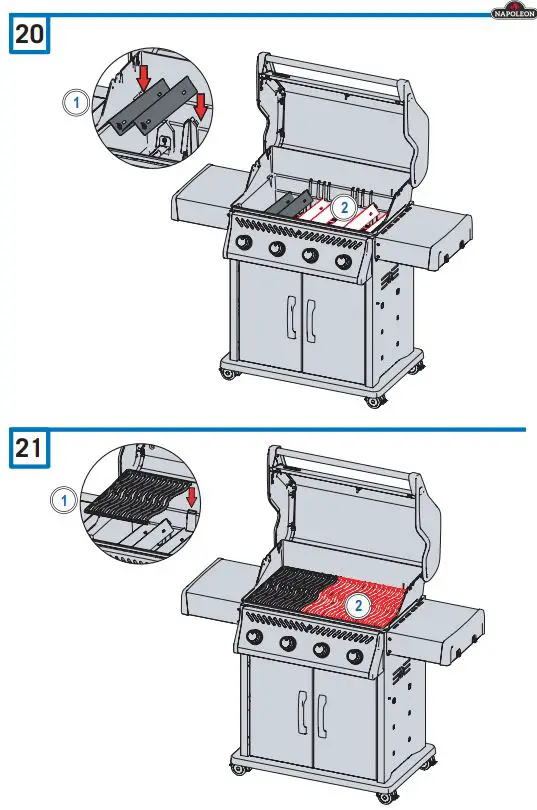

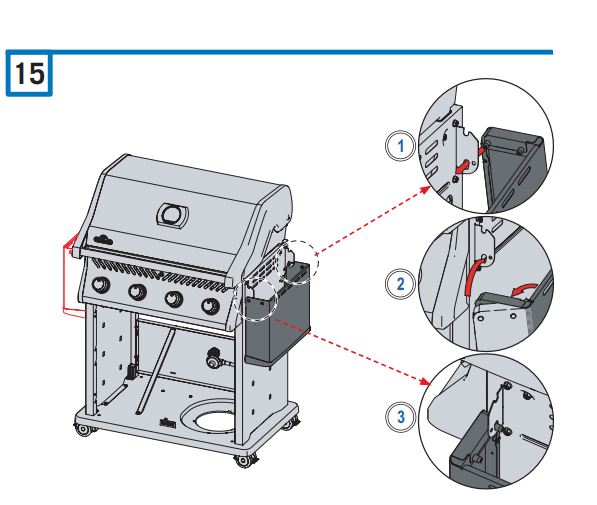

INSTALLATION INSTRUCTION

PARTS LIST

	Part # / Partie # / Parte #	R365	R365SB	R365MK	R425	R425SB	R525
1	N010-0961	x	x
	N010-1316			x
	N010-0874-BK				x	x
	N010-0874-SS				x
	N010-0985-BK						x
2	S91003	x	x		x	x	x
	N685-0004K			x
3	N385-0307-SER	x	x	x	x	x	x
4	N510-0013	x	x	x	x	x	x
5	S87014	x	x	x	x	x	x
6	N520-0051	x	x	x
	N520-0050				x	x
	N520-0049						x
7	S83015	x	x	x
	S83016	ac	ac	ac
	S83008				x	x
	S83043				ac	ac
	S83024						x
	S83044						ac
8	S87016	x	x	x
	S87010				x	x
	S87013						x
9	S87001	x	x	x	x	x	x
10	N200-0126-GY1SG	x	x
	N200-0126-BK1SG			x
	N200-0136-GY1SG				x	x
	N200-0137-GY1SG						x
11	N010-1281-SER	p
	N010-1388-SER	n
	N010-1254-SER		p
	N010-1480-SER		n
	N010-1276-SER			p
	N010-1257-SER			n
	N010-1282-SER				p
	N010-1266-SER				n
	N010-1559-SER				p
	N010-1576-SER				n
	N010-1272-SER					p
	N010-1269-SER					n
	N010-1283-SER						p
	N010-1551-SER						n
12	S86002		x			x
13	N380-0044		x			x
14	N380-0043	x	x		x	x	x
	N380-0043-BK			x
15	N160-0045	x	x	x	x	x	x
16	N010-1222-SER		x			x
17	Z580-0003		x			x
18	Z430-0002		x			x

	Part # / Partie # / Parte #	R365	R365SB	R365MK	R425	R425SB	R525
19	Z305-0008		x			x
20	N335-0099-BK1HR		x			x
21	Z325-0013		x			x
22	N455-0085		p			p
	N455-0084		n			n
23	N160-0023		x			x
24	N345-0021		x			x
25	Z255-0002-1		x			x
26	N105-0017		x			x
27	N750-0016		x			x
28	Z720-0003		x
	N720-0079					x
29	N010-1030-SER	x	x
	N010-1245-SER			x
	N010-1041-SER				x	x
	N010-0999-SER						x
30	N080-0364	x	x	x	x	x	x
31	N080-0365	x	x	x	x	x	x
32	N160-0035	p	p		p	p	p
	N160-0035-BK0TX			p
33	N160-0040-GY1SG	p	p
	N160-0040-BK1SG			p
	N160-0034-GY1SG				p	p	p
34	N710-0107	x	x	x
	N710-0094				x	x
	N710-0108						x
35	N430-0002						x
36	N555-0097	x	x	x	x	x	x
37	N080-0378-GY1SG	x	x		x	x	x
	N080-0378-BK1SG			x
38	N475-0356-GY1SG	x	x		x	x	x
	N475-0356-BK1SG			x
39	N255-0027	x	x	x	x	x	x
40	S85001	p	p	p	p	p	p
	S85002			n
41	N160-0033-GY1SG	x	x		x	x	x
	N160-0033-BK1SG			x
42	N710-0062	x	x	x	x	x	x
43	N475-0442-GY1SG	x	x
	N475-0442-BK1SG			x
	N475-0363-GY1SG				x	x
	N475-0449-GY1SG						x
44	N590-0280-SER	x	x		x	x	x
	N010-1248-SER			x
	N590-0254-SER				x
45	S87015	x	x	x	x	x	x
46	N080-0254G						p
47	N510-0015	x	x	x	x	x	x
48	S82001	x	x	x	x	x	x
49	N080-0387-GY1SG						x

	Part # / Partie # / Parte #	R365	R365SB	R365MK	R425	R425SB	R525
50	N080-0380-GY1SG	x	x		x	x
	N080-0380-BK1SG			x
51	N570-0118	x	x	x	x	x	x
52	N590-0277-GY1SG	x	x
	N590-0277-BK1SG			x
	N590-0256-GY1SG				x	x
	N590-0281-GY1SG						x
53	N010-0959-SER	x	x
	N010-1251-SER			x
	N010-0869-BK-SER				x	x
	N010-0984-BK-SER						x
	N010-0869-SS-SER				x
54	N325-0094-SER	x	x		x	x	x
	N325-0094-BK0TX-SER			x
55	N105-0011	x	x	x	x	x	x

Accessories Parts List

	Description	R365	R365SB	R365MK	R425	R425SB	R525
N590-0261	Condiment Basket	ac	ac		ac	ac	ac
62050	Burner & Jetfire Maintenance Kit	ac	ac	ac	ac	ac	ac
69911	Rotisserie Kit	ac	ac	ac	ac	ac	ac
61365	Cover	ac	ac	ac
61427	Cover				ac	ac
61527	Cover						ac
56365	Cast Iron Griddle	ac	ac	ac			ac
67732	Charcoal Tray	ac	ac	ac	ac	ac	ac
62007	Grease Trays Foil (5 pieces)	ac	ac	ac	ac	ac	ac
S82002	Caster Kit	ac	ac	ac	ac	ac	ac

• x – standard part
• p – propane
• n – natural
• ac – accessory
• x – standard
• p – propane
• n – gas naturel
• ac- accessoire
• x – standard
• p – propano
• n – gas natural
• ac – accesorio

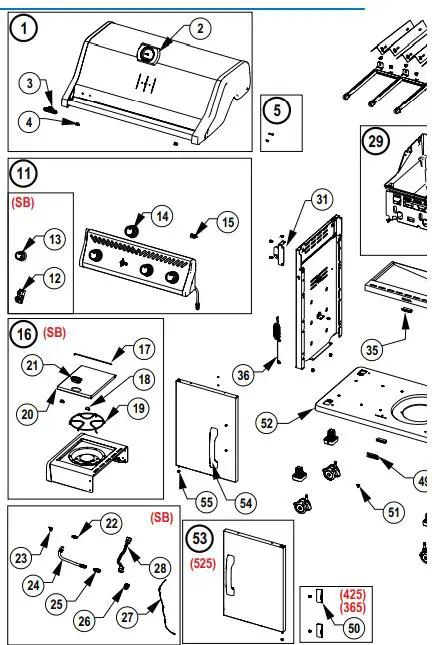

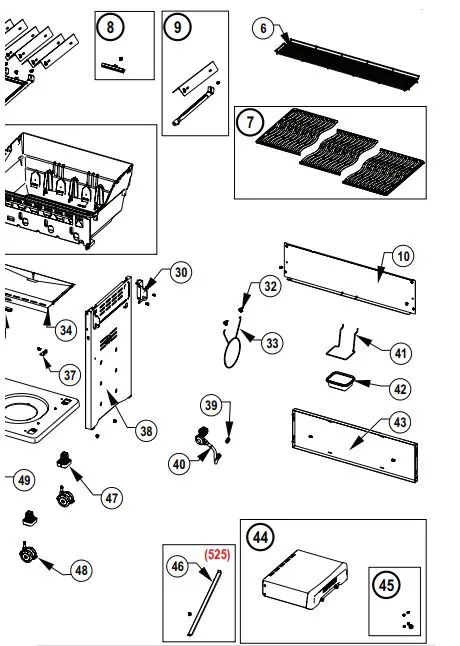

PARTS DESCRIPTION

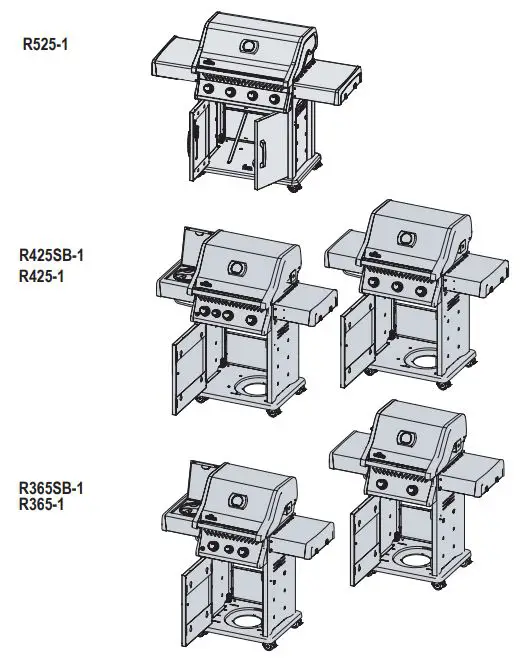

MODEL
