WALTEK logoM305 Gaming Mouse

EXHIBIT 4 – TEST SETUP PHOTOGRAPHS

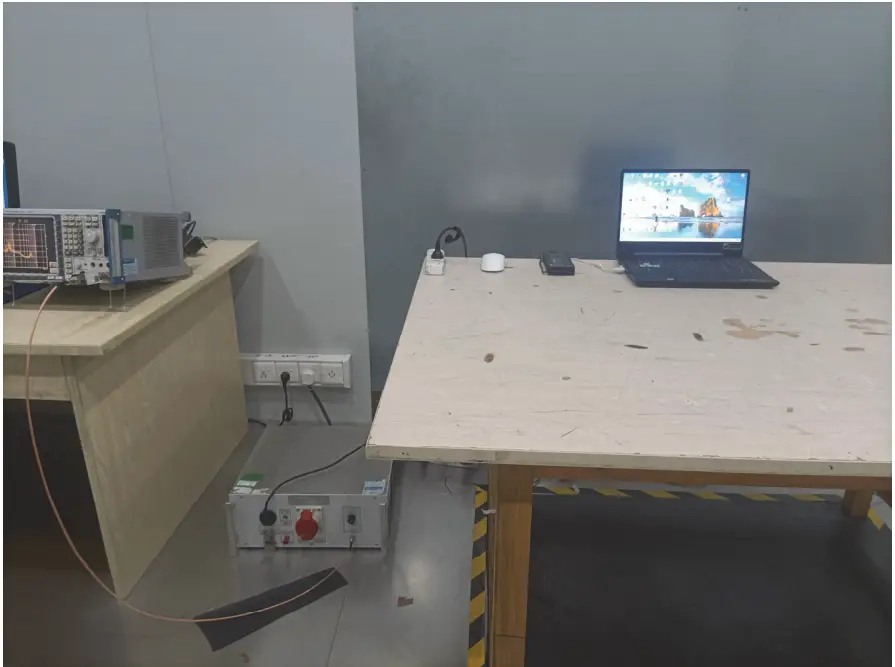

Conducted Emission Test Setup

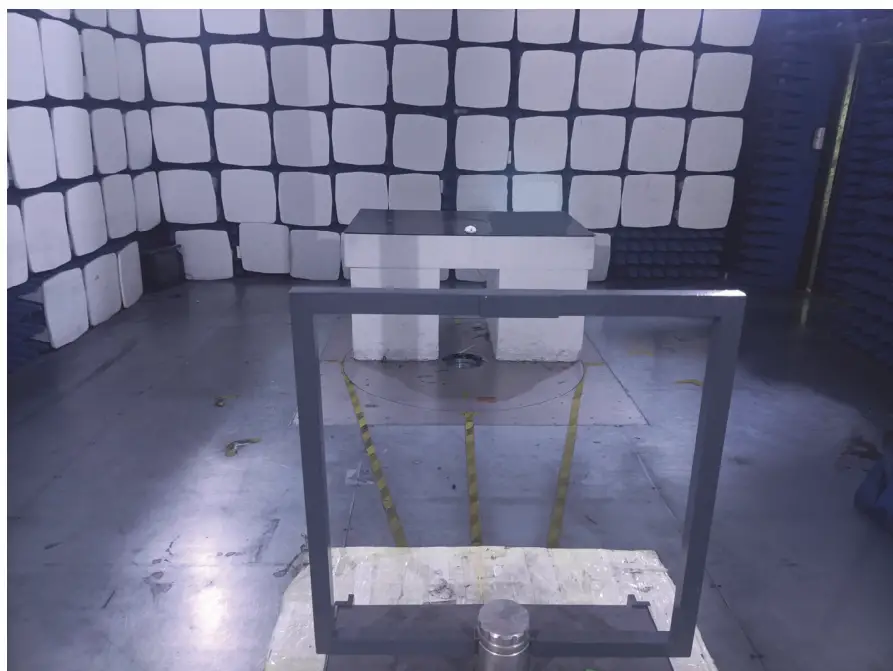

WALTEK M305 Gaming Mouse - Part 1Radiation Emission Test Setup (Below 30MHz)

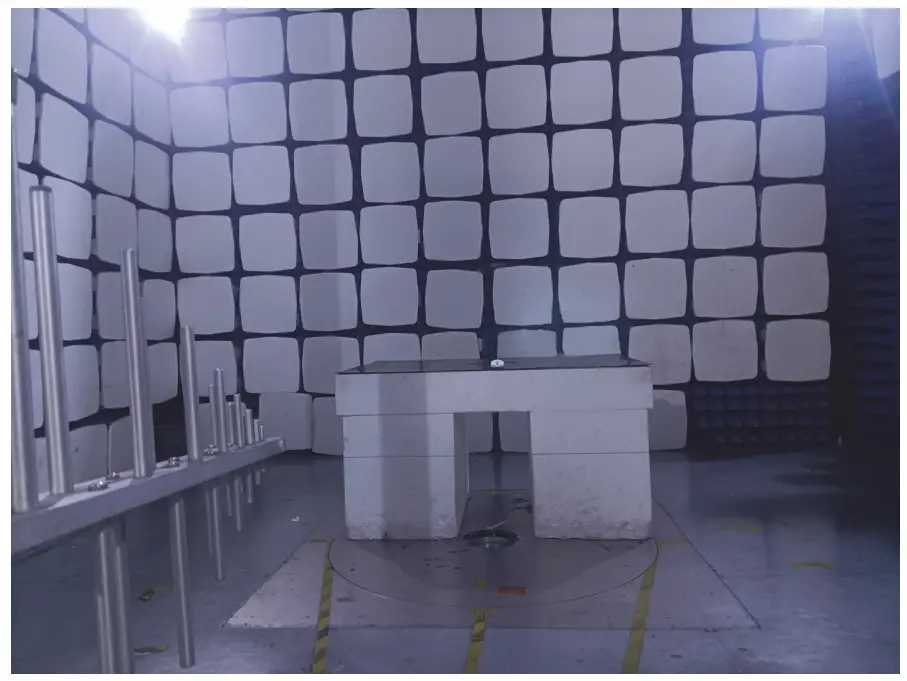

WALTEK M305 Gaming Mouse - Part 2Radiation Emission Test Setup (30MHz to 1GHz)

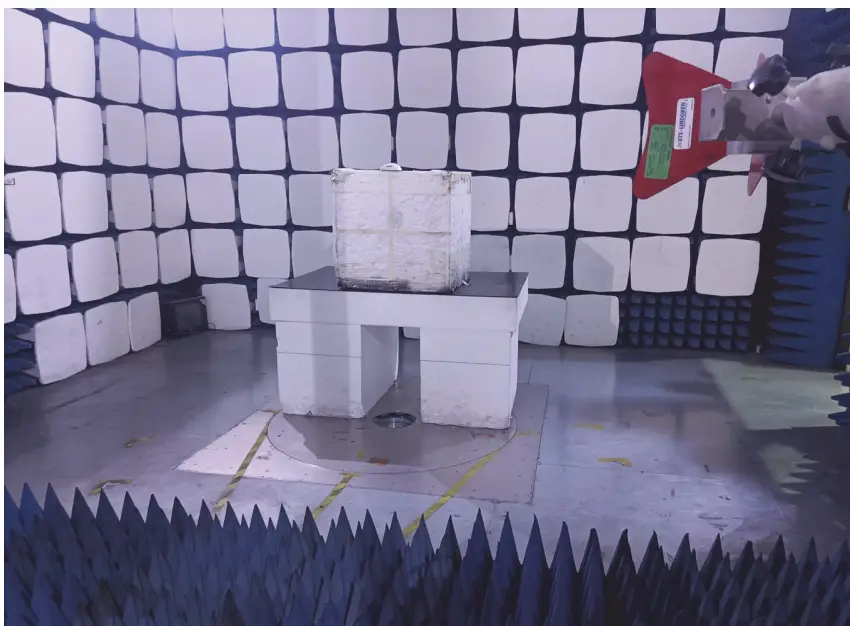

WALTEK M305 Gaming Mouse - Part 3Radiation Emission Test Setup (1GHz to 18GHz)

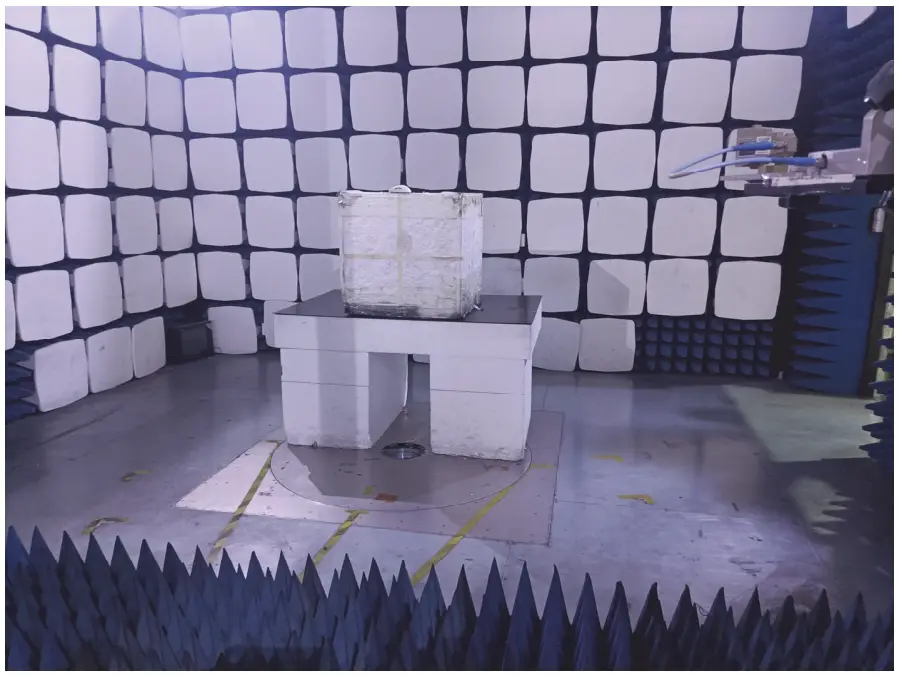

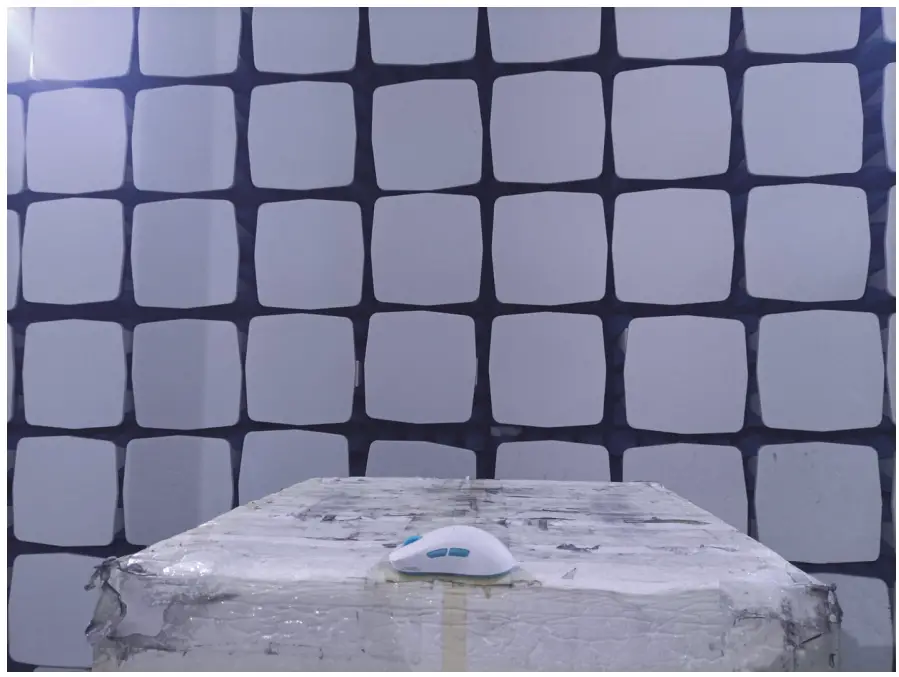

WALTEK M305 Gaming Mouse - Part 4Radiation Emission Test Setup (Above 18GHz)

WALTEK M305 Gaming Mouse - Part 5WALTEK M305 Gaming Mouse - Part 6***** END OF REPORT *****

WALTEK logoWaltek Testing Group (Shenzhen) Co., Ltd.
https://www.waltek.com.cn
Reference No.: WTX22X08165842W001
