HYTRONIK HED8025V/BT Bluetooth LED Driver Instruction Manual

HYTRONIK HED8025V/BT Bluetooth LED Driver

HED8025V/BT Constant Voltage

Product Description

HED8025V/BT is a Bluetooth dimming and tunable white LED driver, with maximum power 25W output .It has two Switch-Dim terminals, ideal for dimming and color tuning separately. This product is suitable for direct projects. With Bluetooth wireless mesh network , it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects. Meanwhile, simple device setup and commissioning can be done via app.

App Features

Quick setup mode & advanced setup mode
Floorplan feature to simplify project planning
Web app/platform for dedicated project management
Koolmesh Pro iPad version for on-site configuration
Grouping luminaires via mesh network
Scenes
Detailed motion sensor settings
Push switch configuration
Schedule to run scenes based on time and date
Astro timer (sunrise and sunset)
Staircase function (primary & secondary)
Internet-of-Things (IoT) featured
Device firmware update over-the-air (OTA)
Device social relations check
Bulk commissioning (copy and paste settings)
Power-on status (memory against power loss)
Offline commissioning
Different permission levels via authority management
Network sharing via QR code or keycode
Remote control via gateway support HBGW01
Interoperability with Hytronik Bluetooth product portfolio
Compatible with EnOcean switch EWSSB/EWSDB
Continuous development in progress…

Hardware Features

Switch-Dim with two Push inputs
PWM 1KHz (1-100%)
Tunable white
Insulated terminal cover with cord restraint
Active PFC design
Logarithmic Dimming
Linear Dimming
24V constant voltage output
Loop-in and loop-out terminals for efficient installation
Short-circuit Protection
Overload Protection
Open-circuit Protection
5-year warranty, designed for long lifetime up to 50,000 hours

* Certain scenes which require external photocell can be achieved by using together with Hytronik Bluetooth sensors, such as HBIR29, HCD038/BT + sensor head etc.

Fully support EnOcean switch EWSSB/EWSDB

Bluetooth 5.0 SIG mesh

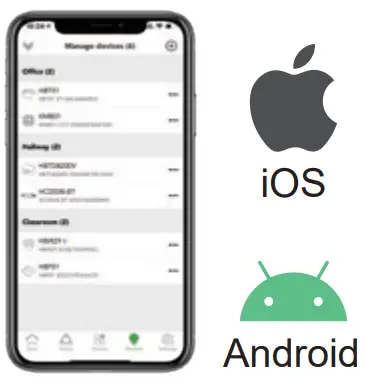

	for iOS	for Android

Smartphone app for both iOS & Android platform

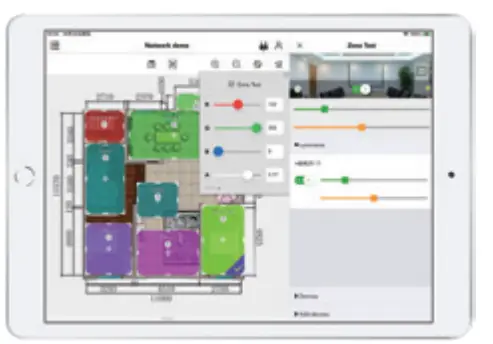

	for iPad

Koolmesh Pro app for iPad

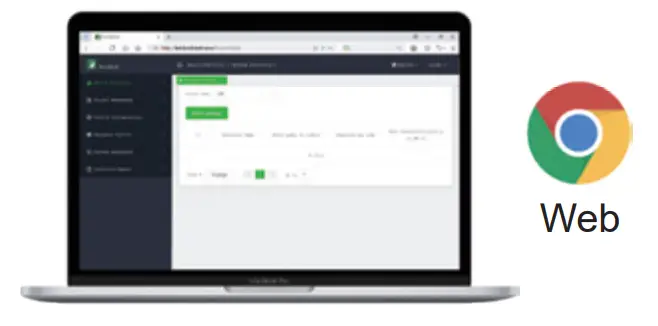

	for Web

Web app/platform: www.iot.koolmesh.com

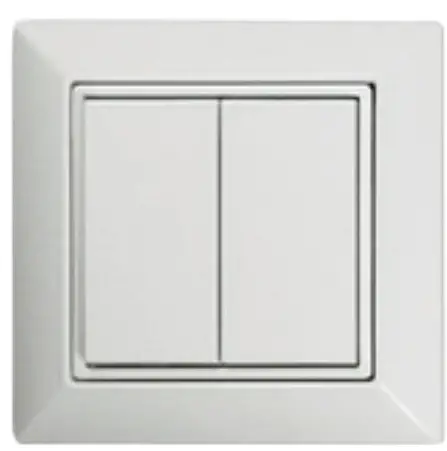

EnOcean
Self-powered loT

Fully support
EnOcean switch
EWSSB/EWSDB

Technical Specifications

Bluetooth Transceiver
Operation frequency	2.4 GHz – 2.483 GHz
Transmission power	4 dBm
Range (Typical indoor)	10~30m
Protocol	Bluetooth  5.0 SIG Mesh

Input
Mains Voltage	220~240VAC 50/60Hz
Mains Current	0.140~0.125A
Power Factor	0.95
Max. Ef_ciency	88%

Output
Ripple Current	<3%
Uout Max.	24V
Turn-on Time	<0.5s
Dimming Interface	Switch-Dim

Environment
Operation Temp.	-20 ~ +45℃
Case Temp. (Max.)	80℃
IP Rating	IP20

Safety and EMC
EMC Standard	EN55015, EN61547, EN6100-2/3, EN300328,EN301489-1/-17, EN62479
Safety Standard	EN61347-1, EN61347-2-13
Dielectric strength	Input/output: 3000VAC / 5mA /1min
Abnormal protection	Output short-circuit protection Overload Protection Open-circuit Protection

Max. output power/current/voltage range
HED8025V/BT	25W/1050mA /24V

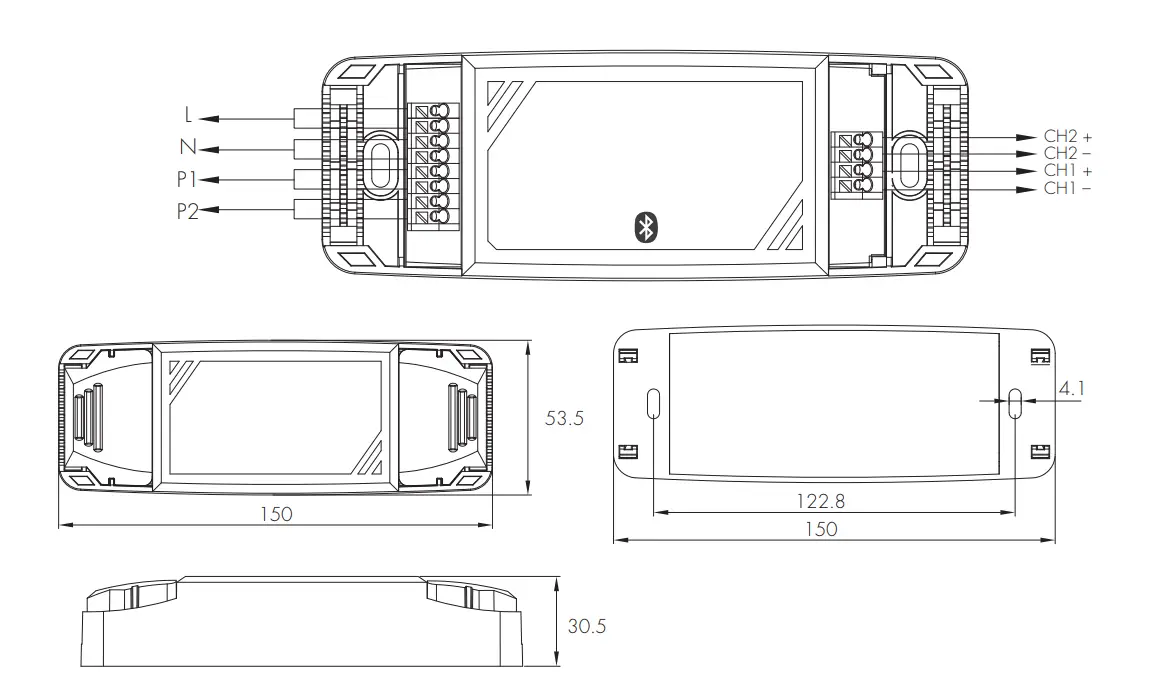

Mechanical Structure & Dimensions

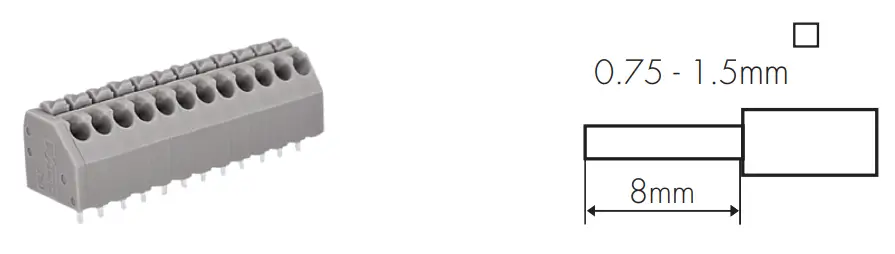

Wire Preparation

To make or release the wire from the terminal, use a screwdriver to push down the button.

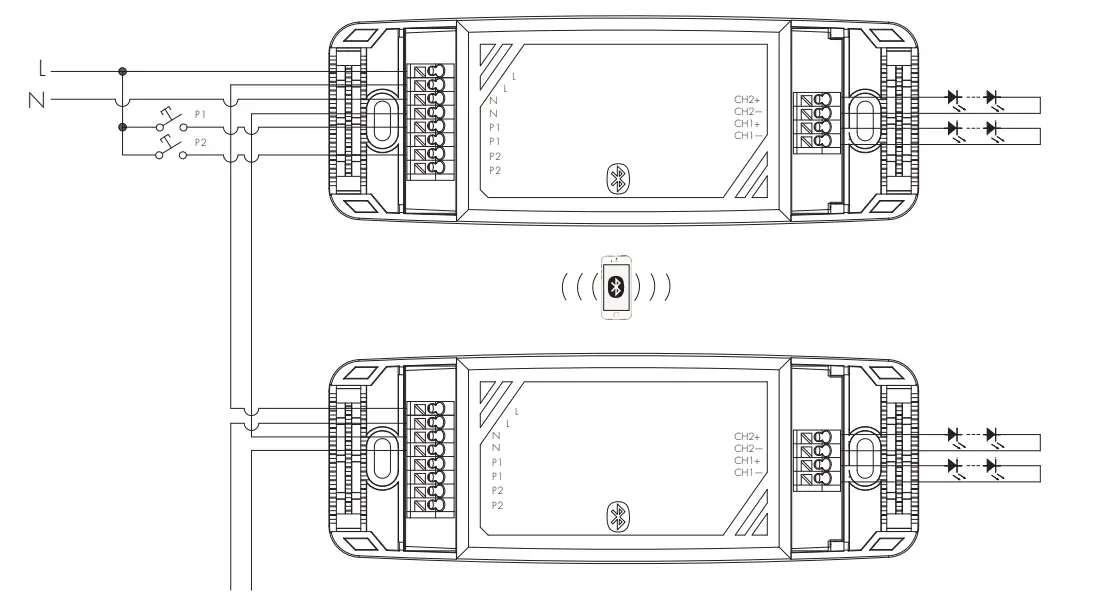

Wiring Diagram

Note: There is no need for any hard wirings on “push” terminal between one driver to another. The installer only needs to connect the push switches to the nearest driver to save labor and cost. The push switches can be assigned to control any Bluetooth driver through the app commissioning

Loading and In-rush Current

Model	HED8025V/BT
In-rush Current (Imax.)	26A
Pulse Time	21 µs

Circuit Breaker Information

Automatic circuit breaker type	B16A	B10A	B13A	B20A	B25A
HED8025V/BT	71	44	57	89	111

The data above is calculated according to the formula: Maximum Amount = 16/(Pn/230). In order to provide a more reliable reference in real application, the data have been revised to take 60% of the number calculated, i.e. 16/(Pn/230) x 60%.
Please kindly take note that the calculation is based on ABB circuit breaker series S200. Actual values may differ due to different types of circuit breaker used and installation environment.

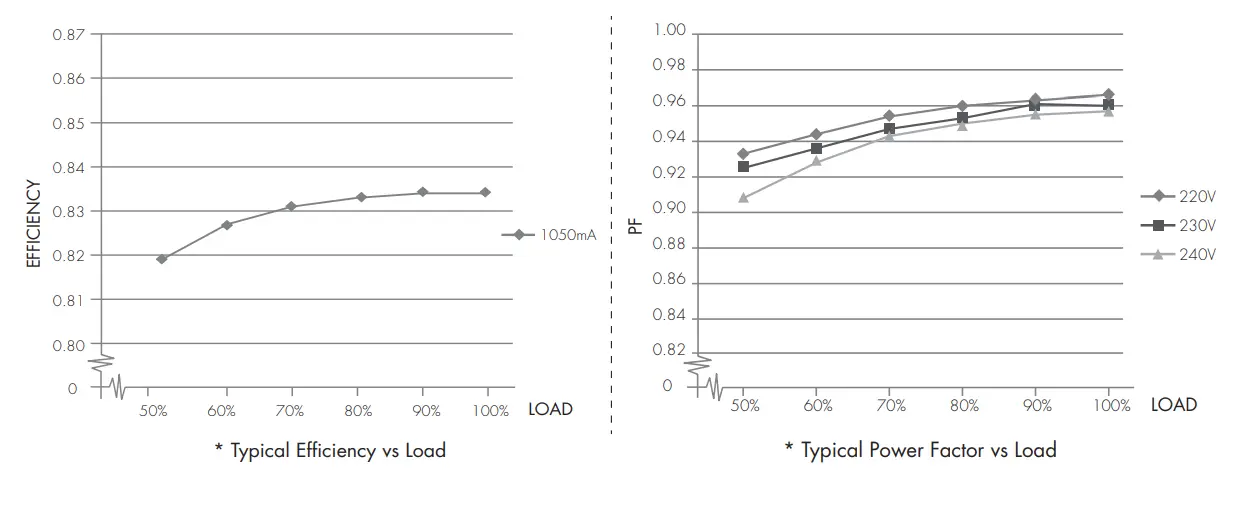

Performance Characteristics

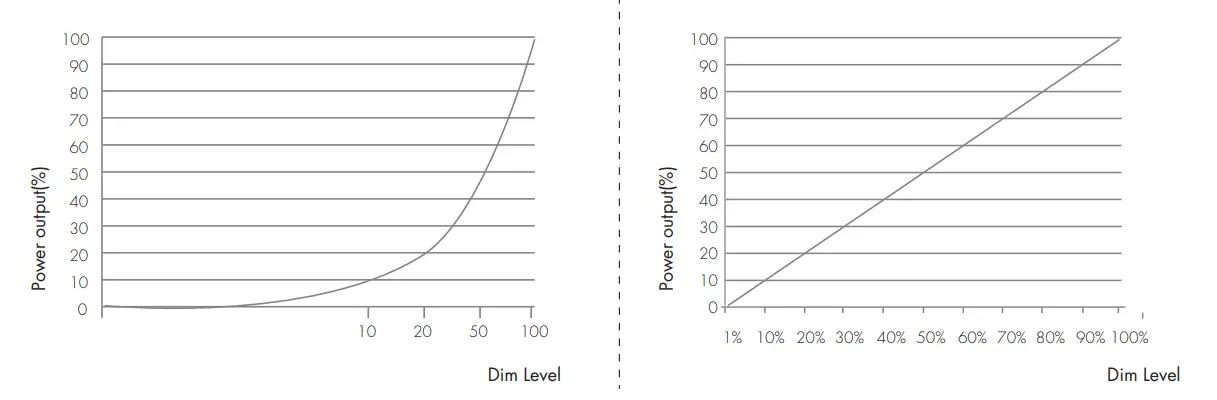

Dimming Characteristics

Dimming Interface Operation Notes

Switch-Dim

The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches. Up to 64 LED drivers maybe connected to one switch. Detailed Push switch configurations can be set on Koolmesh app.

Switch Function	Action	Descriptions
Push switch	Short press (<1 second) * Short press has to be longer than 0.1s, or it will be invalid.	Turn on/off Recall a scene Turn on only Exit manual mode Turn off only Do nothing
	Double push	Turn on only Exit manual mode Turn off only Do nothing Recall a scene
	Long press (≥1 second)	Dimming Colour tuning Do nothing
Simulate sensor	/	– Upgrade a normal on/off motion sensor to a Bluetooth controlled motion sensor

Additional Information / Documents

1. Regarding precautions for LED driver installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->LED Drivers – Precautions for Product Installation and Operation
2. To learn more about detailed product features/functions, please refer to www.hytronik.com/download->knowledge ->Introduction of App Scenes and Product Functions
3. Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
4. Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Bluetooth Drivers
5. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
