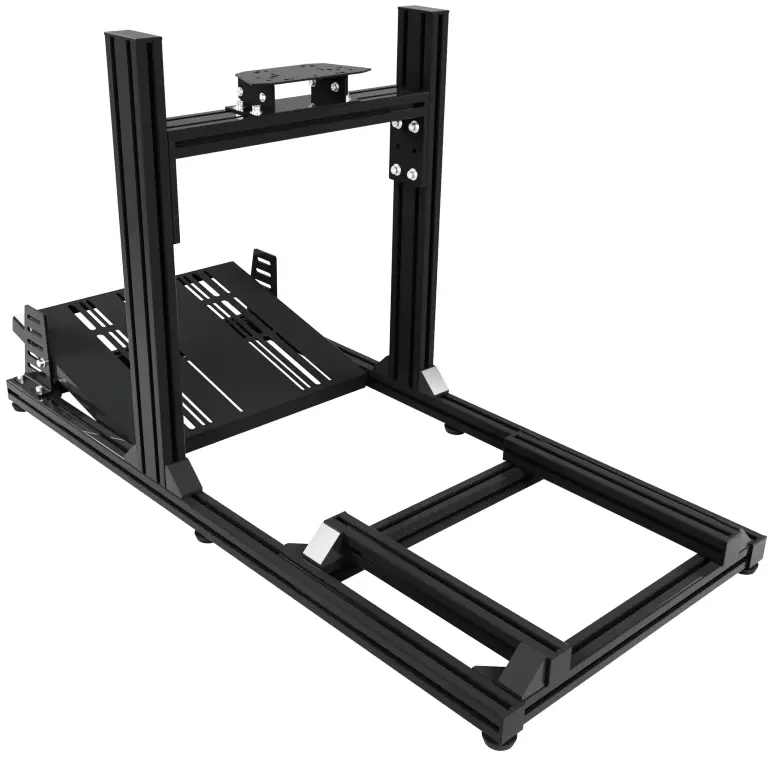

6S-SLIM

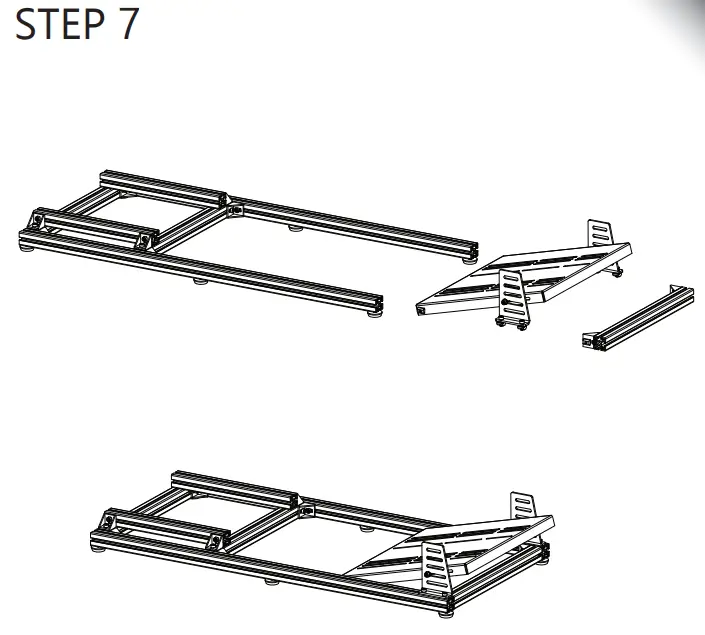

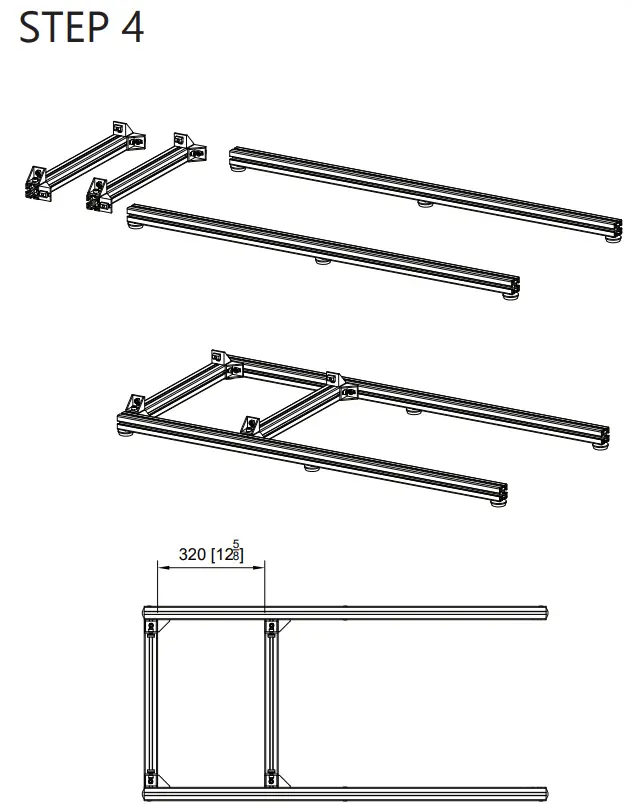

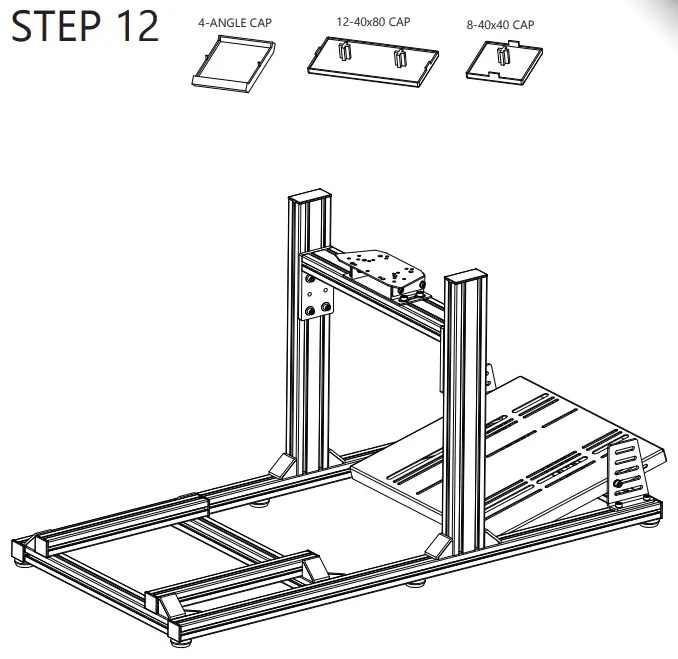

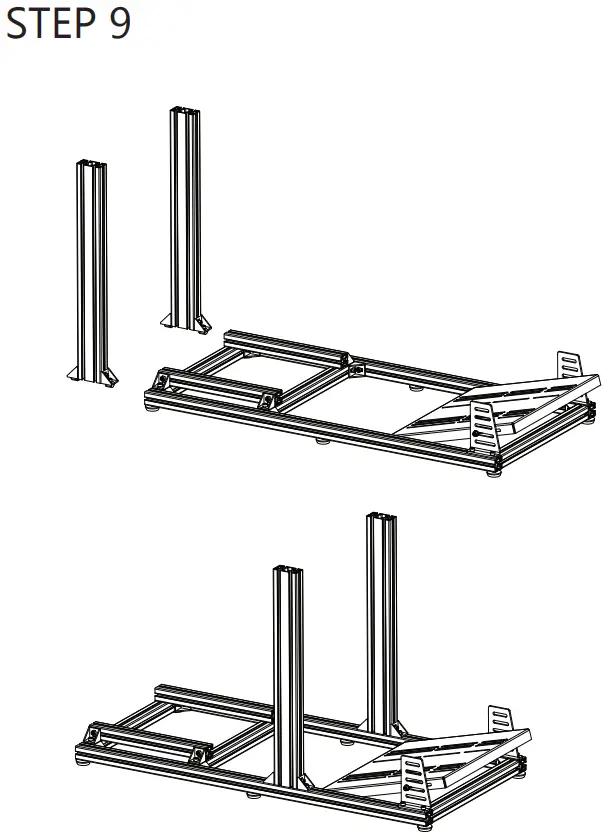

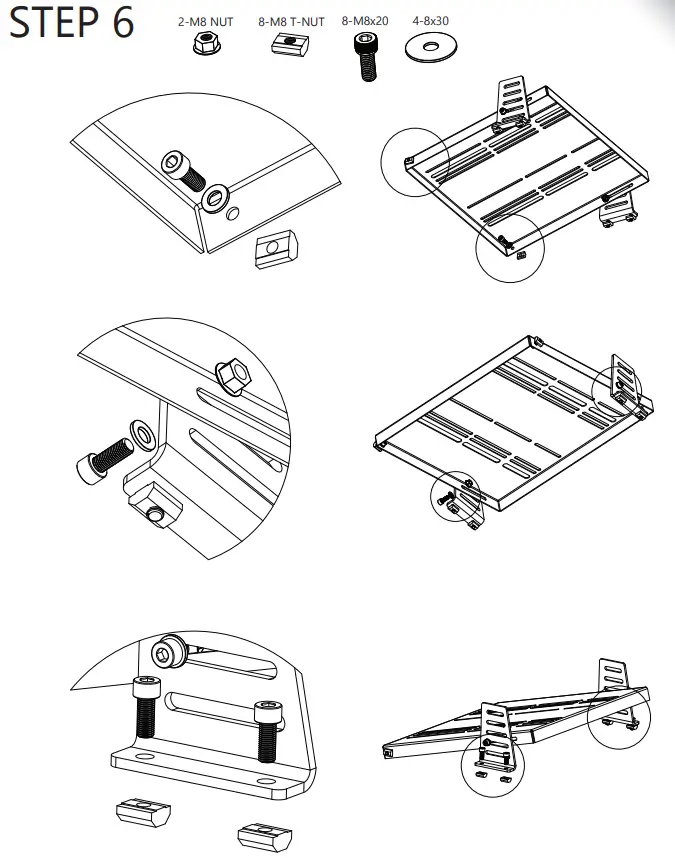

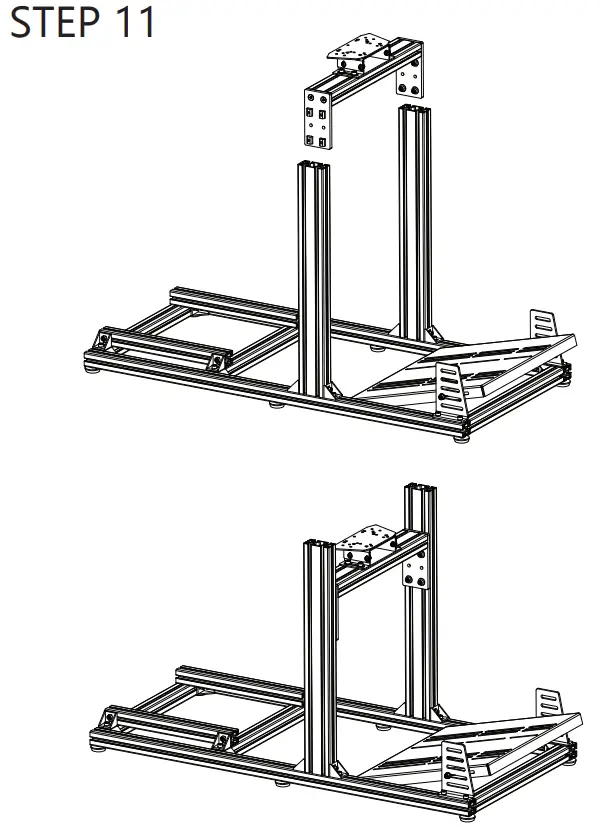

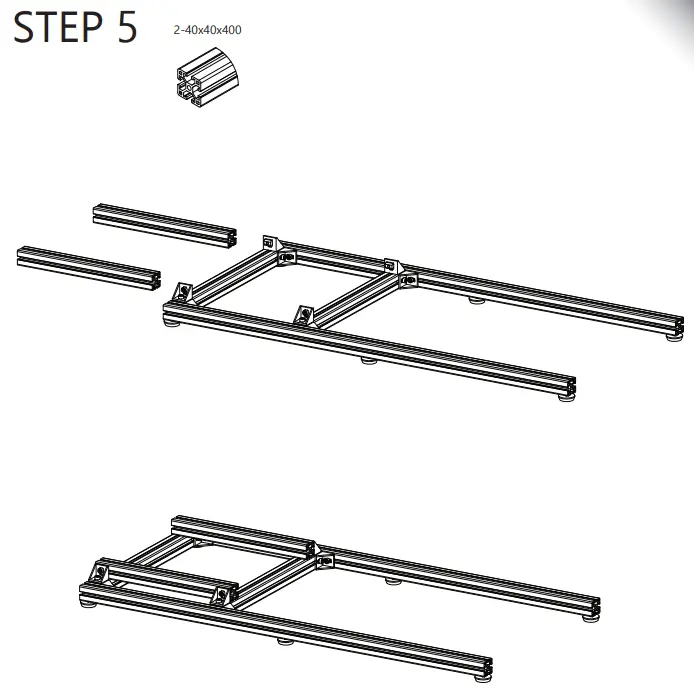

Assembly Documentation
Contents

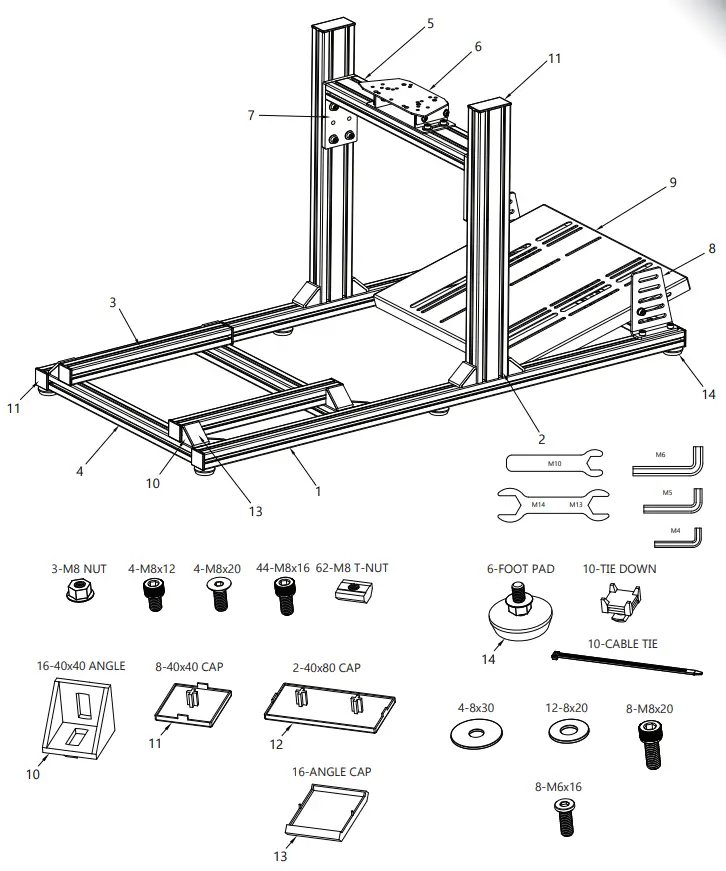

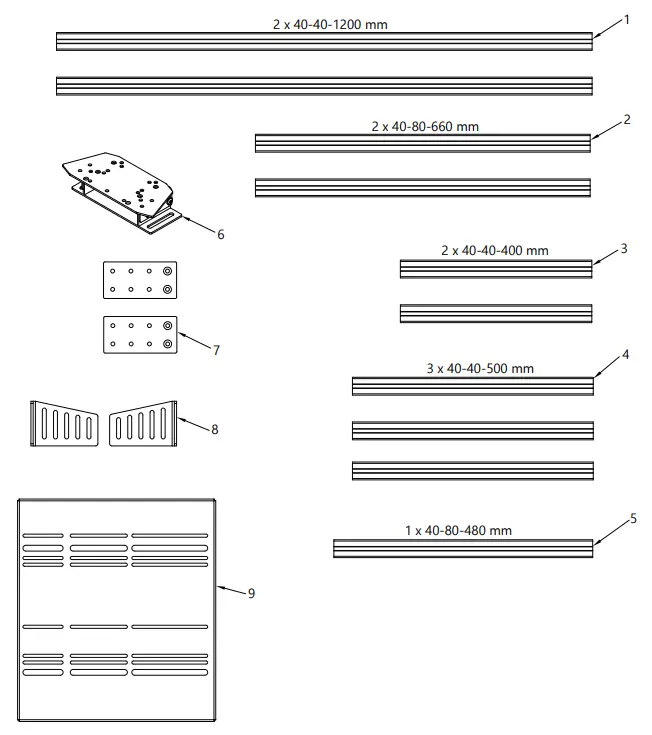

PARTS
NOTES
Safety First
Be mindful of any sharp edges. Use safety goggles whenever removing tabs from angle brackets.
Protect From Scratches
Hard surfaces can damage the surfaces of the aluminum extrusions.
Use a towel or blanket when assembing on hard surfaces to protect the finishes.

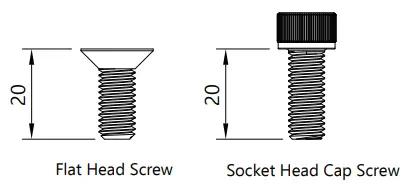

How to measure screws
Flat head screws are measured based on their overall length.
Socket head cap screws are measured based on the length under the head of the screw.
Metric Conversions
25.4 mm = 1″
16 mm = 5/8″
20 mm = 25/32″
320 mm = 12 5/8″
400 mm = 15 3/4″
480 mm = 18 7/8“
500 mm = 19 11/16″
660 mm = 26“
1200 mm = 47 1/4″

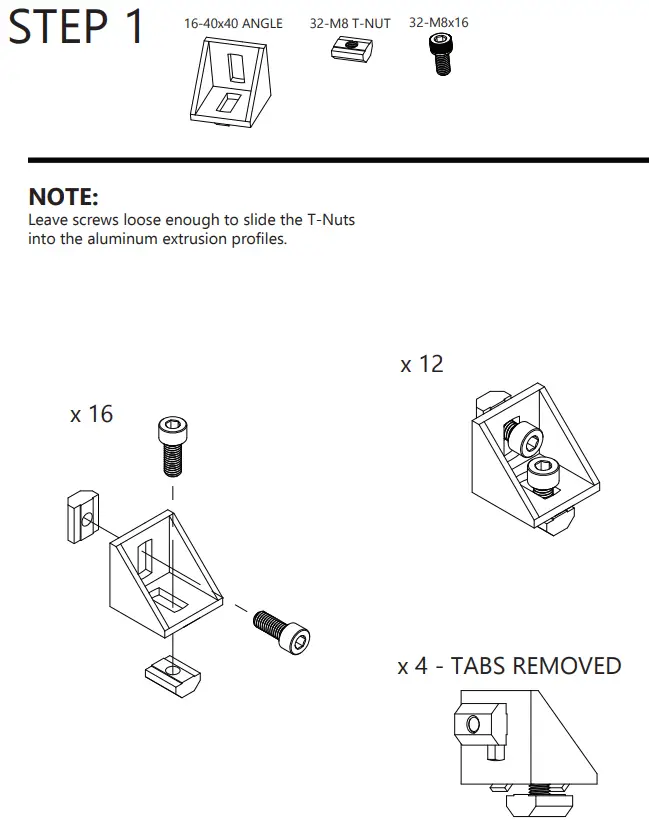

T-Nut Installation
Be mindful of the order of installation and plan out the insertion of T-nuts.

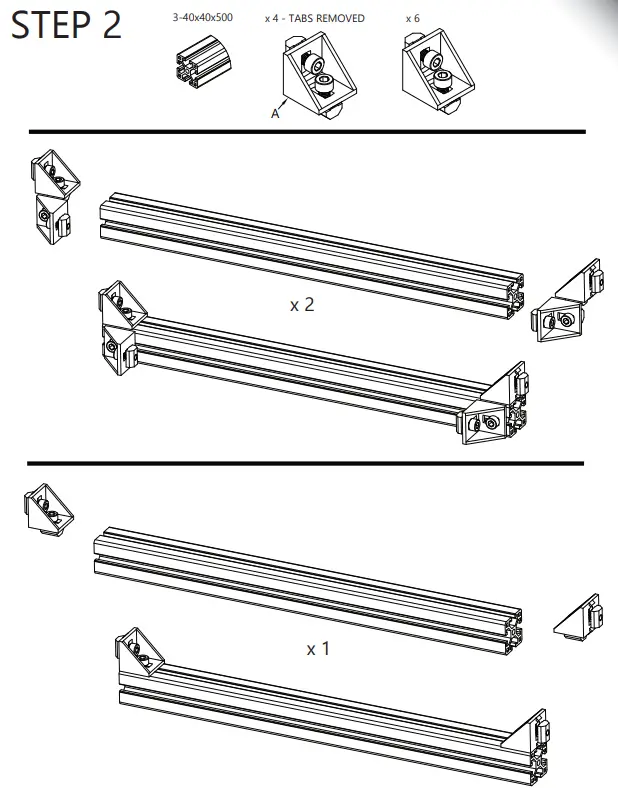

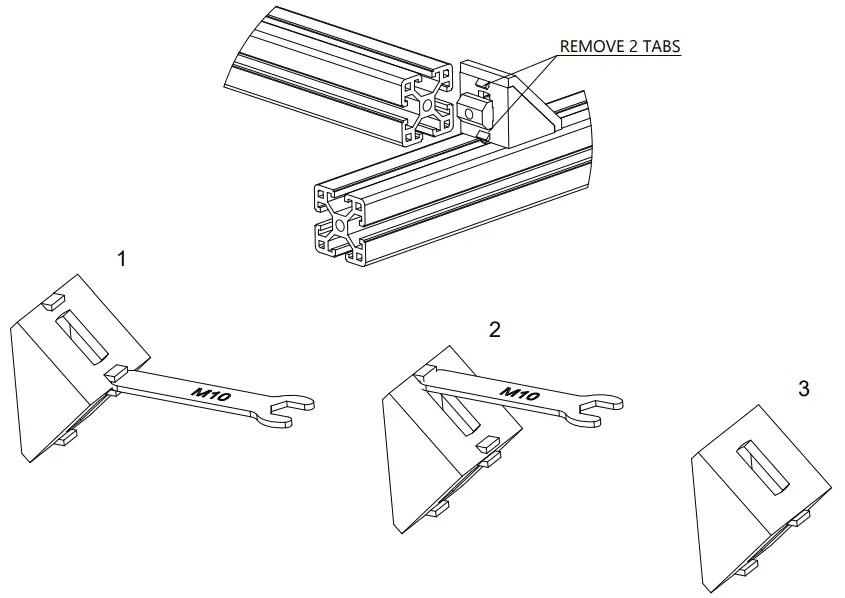

Alignment Tab Removal
Tabs on brackets may need to be removed if they interfere with the installation of an extrusion as shown to the right.
2 – tabs need to be removed from 4 brackets
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
