3M™ Preassembled Wiremount Socket
100″ × .100″ for .050″ Pitch Cable
Contents

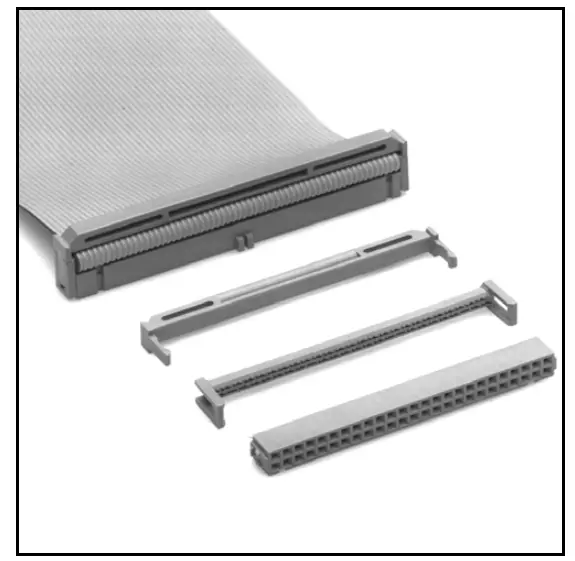

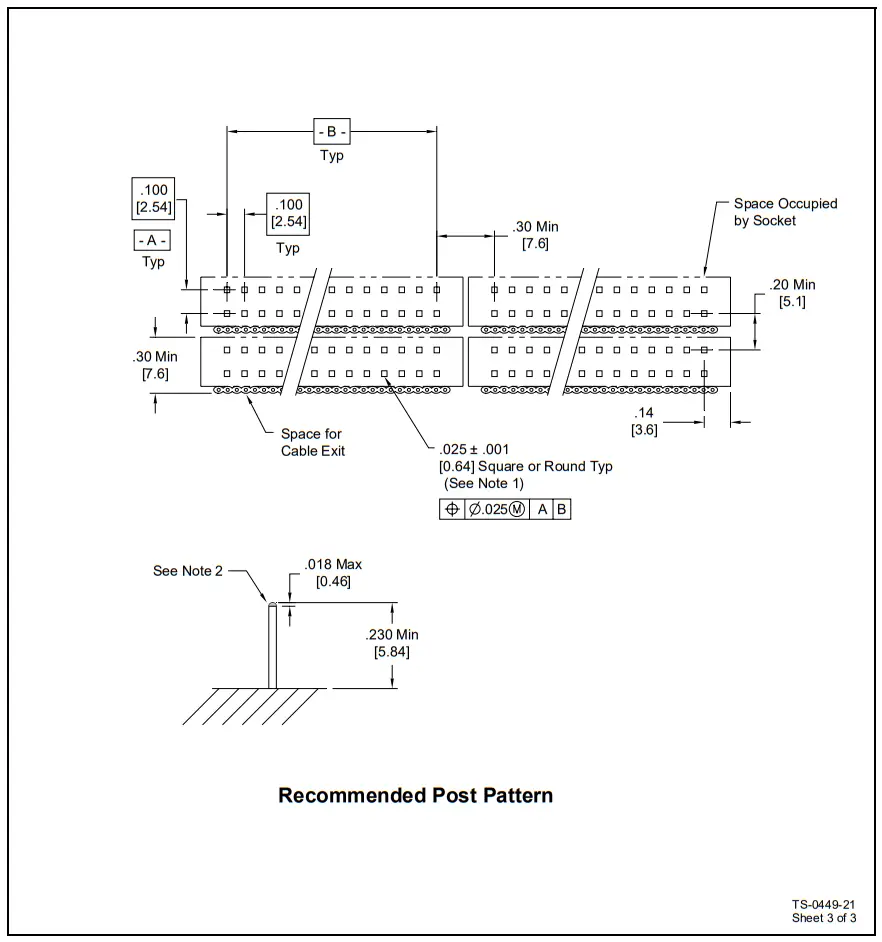

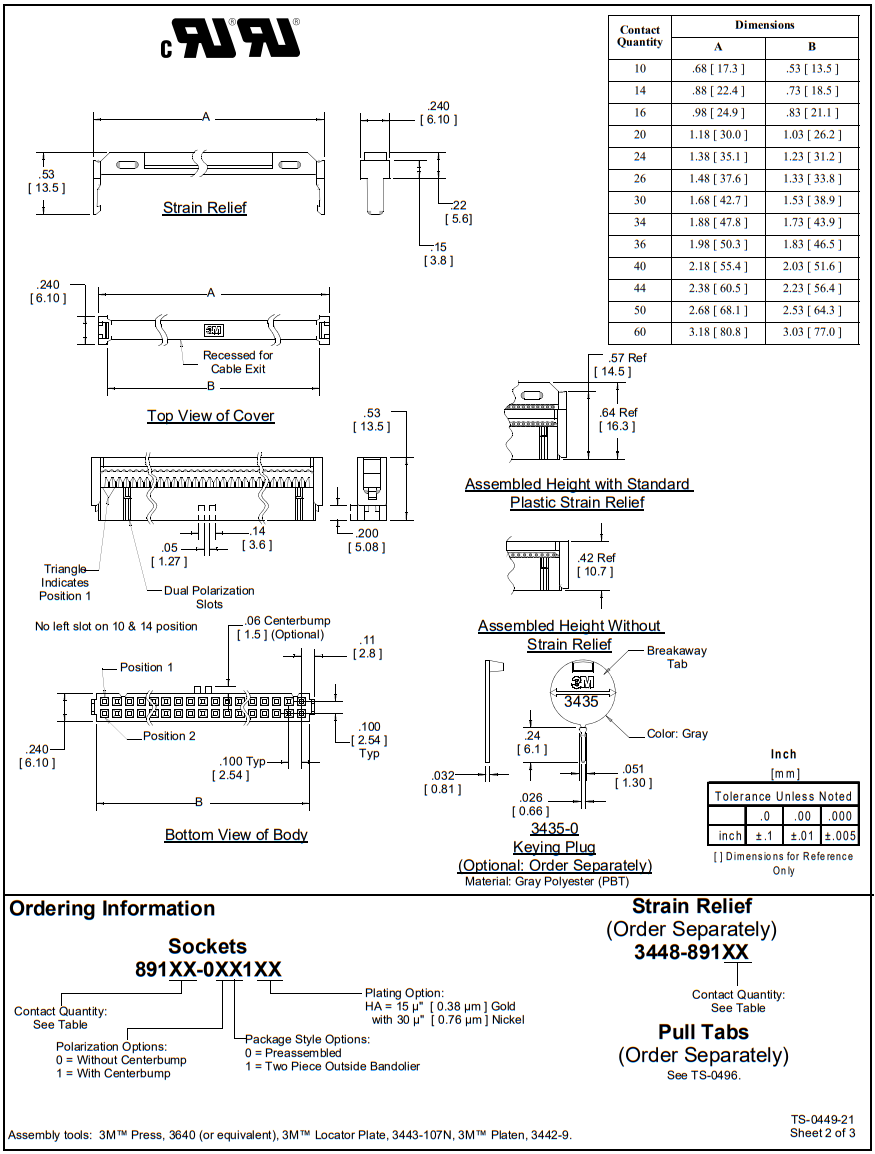

3M 891 Series Preassembled Wiremount Socket
- Preassembled, terminates faster than two-piece sockets
- “Sword” packaging makes easy loading of manual and semi-automatic assembly equipment
- “Bumps” prevent premature latch locking during shipment
- Optional double-sided adhesive pull tab for easy unplugging
- Double-recessed cover for cable terminating from either side eliminates need for single-recessed cover connectors
- *RoHS compliant
Physical
| Insulation | |
| Material: | Glass Filled Polyester (PBT) |
| Flammability: | UL 94V-0 |
| Color: | Gray |
| Contact | |
| Material: | Phosphor Bronze |
| Plating: | |
| Underplating: | 30 μ″ [ 0.76 μm ] Nickel |
| Wiping Area: | 15 μ″ [ 0.38 μm ] Gold |
| Wire Accommodation: | 26 and 28 AWG Stranded |
| Marking: | 3M Logo, Part Identification Number and Orientation Triangle |
Electrical
| Current Rating: | 1:00 AM |
| Insulation Resistance: | > 1 × 10 9 Ω at 500 VDC |
| Withstanding Voltage: | 1000 Vrms at Sea Level |
Environmental
| Temperature Rating: | -55°C to +105°C |
*”RoHS compliant” means that the product or part does not contain any of the following substances in excess of the following maximum concentration values in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this information represents 3M’s knowledge and belief based upon information provided by third party suppliers to 3M.
3M™ Preassembled Wiremount Socket. 100″ × .100″ for .050″ Pitch Cable
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
